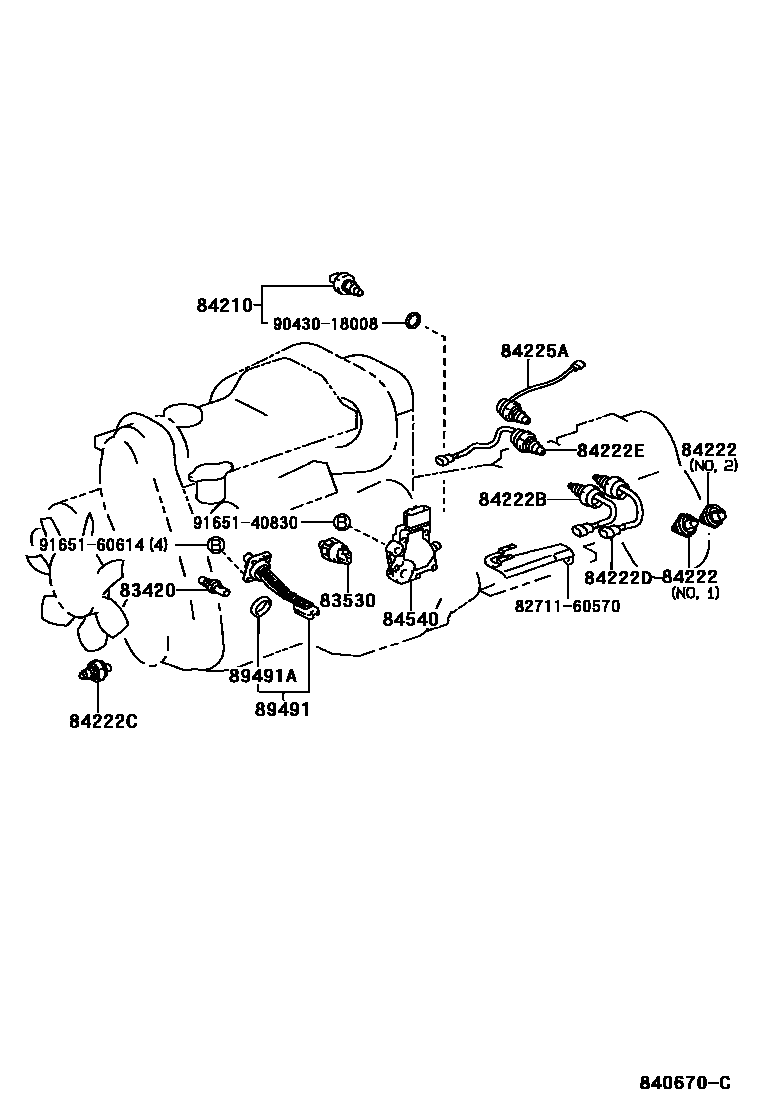

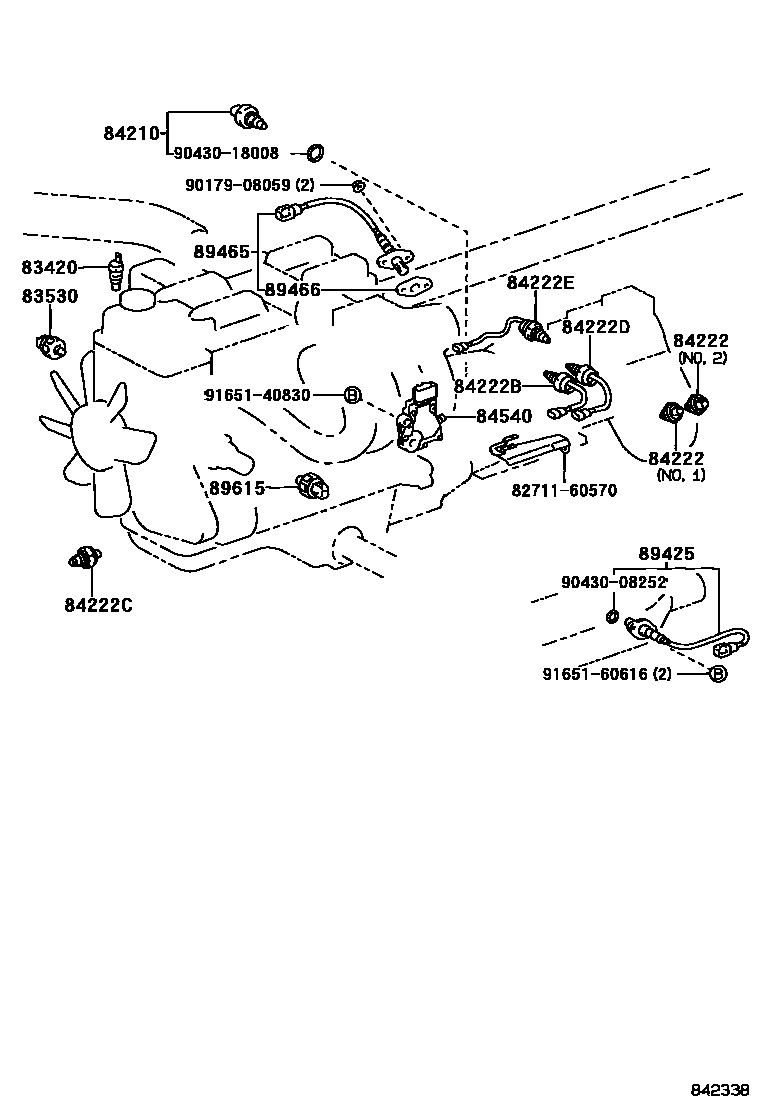

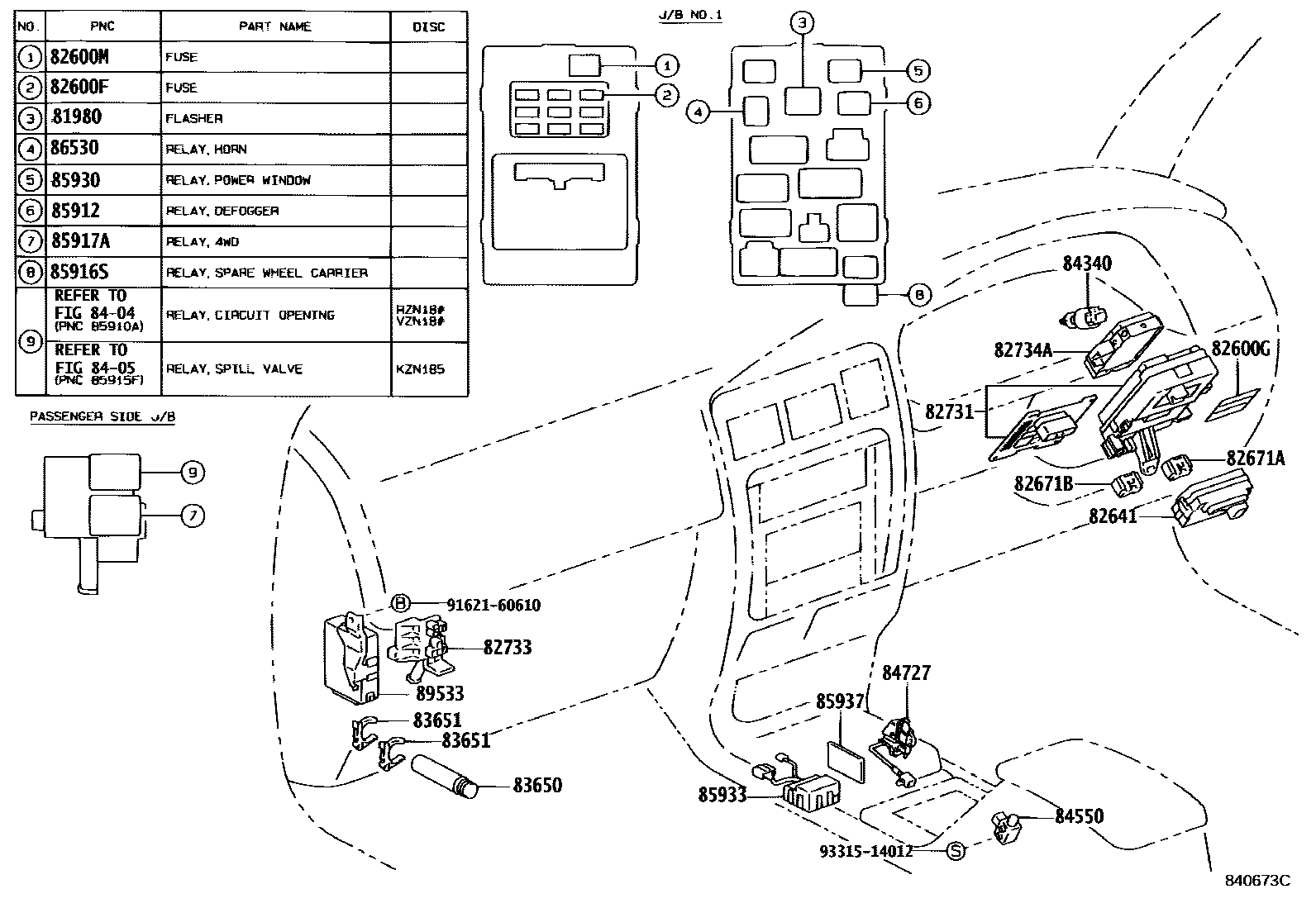

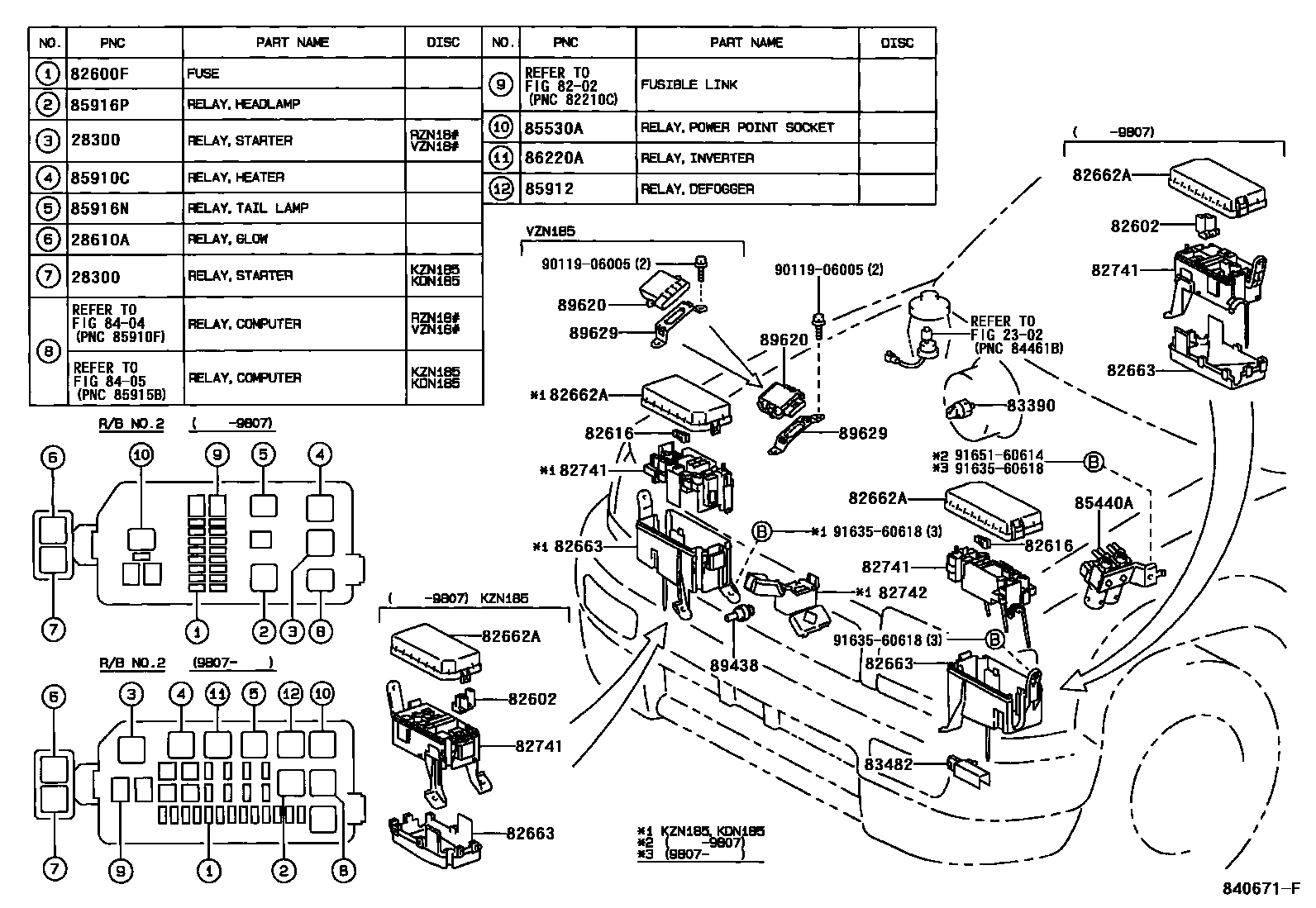

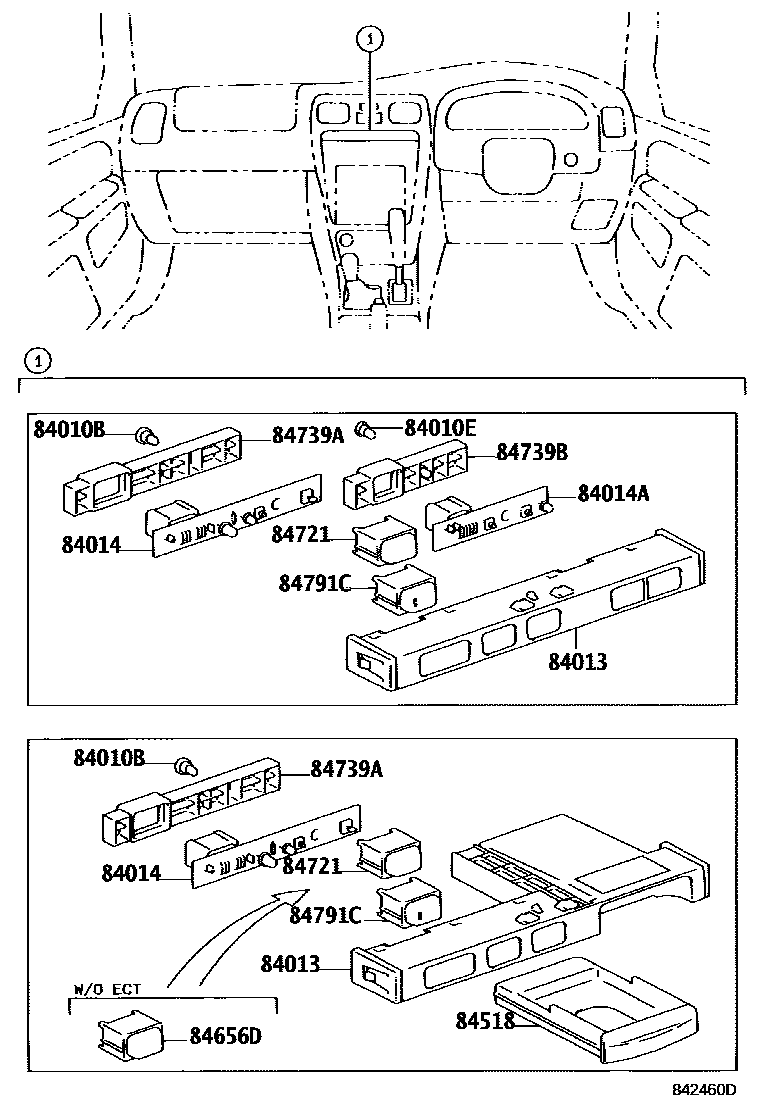

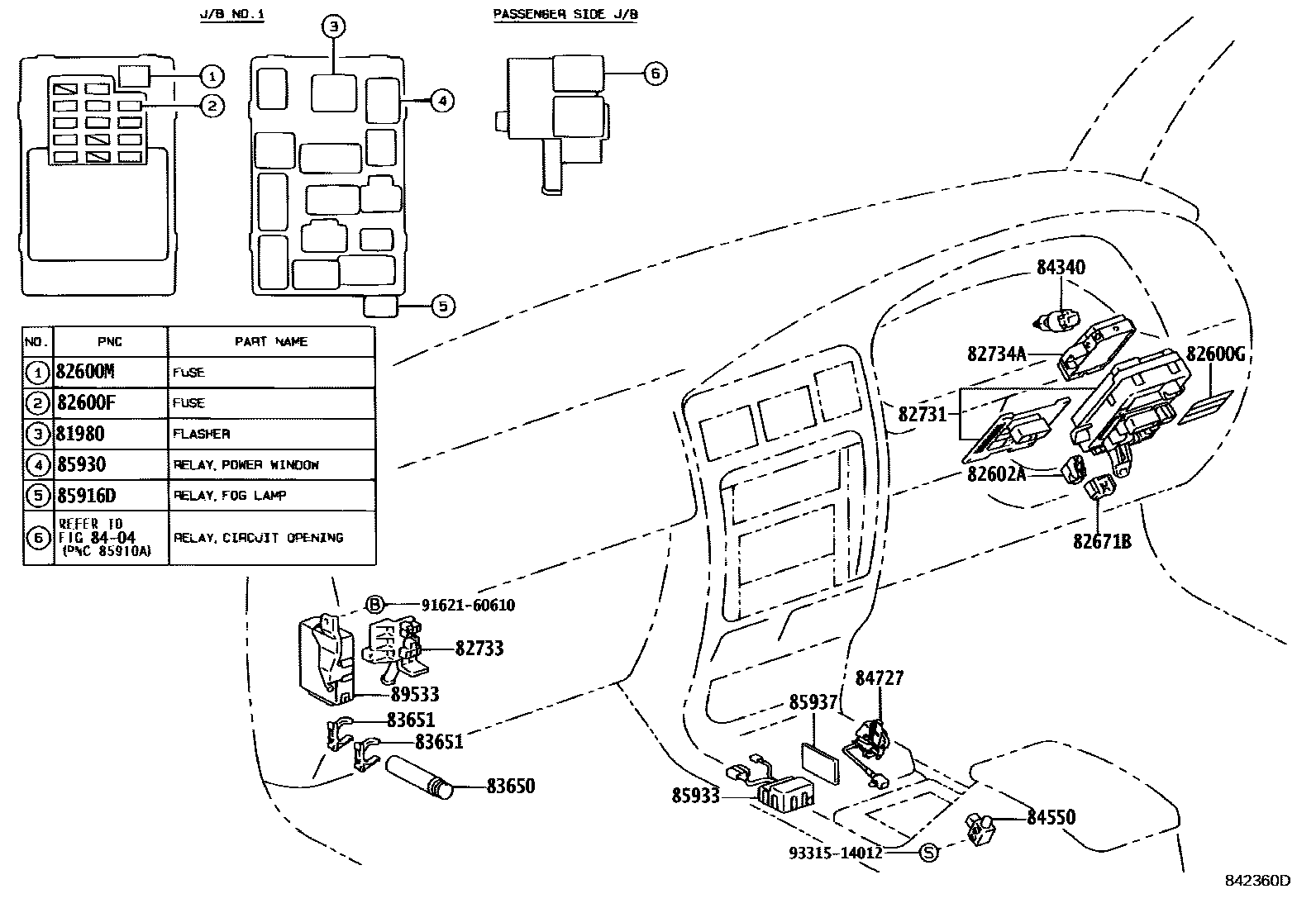

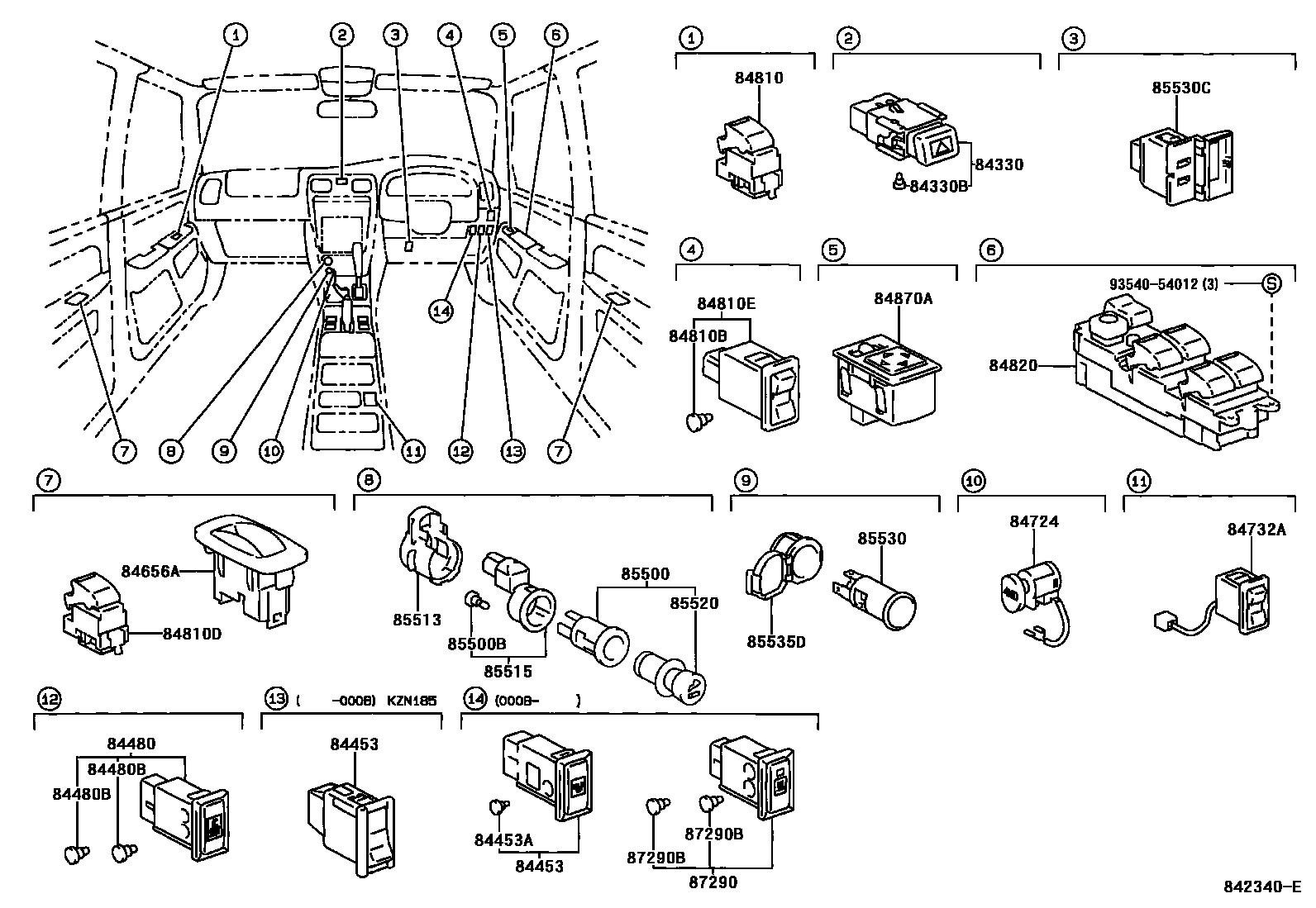

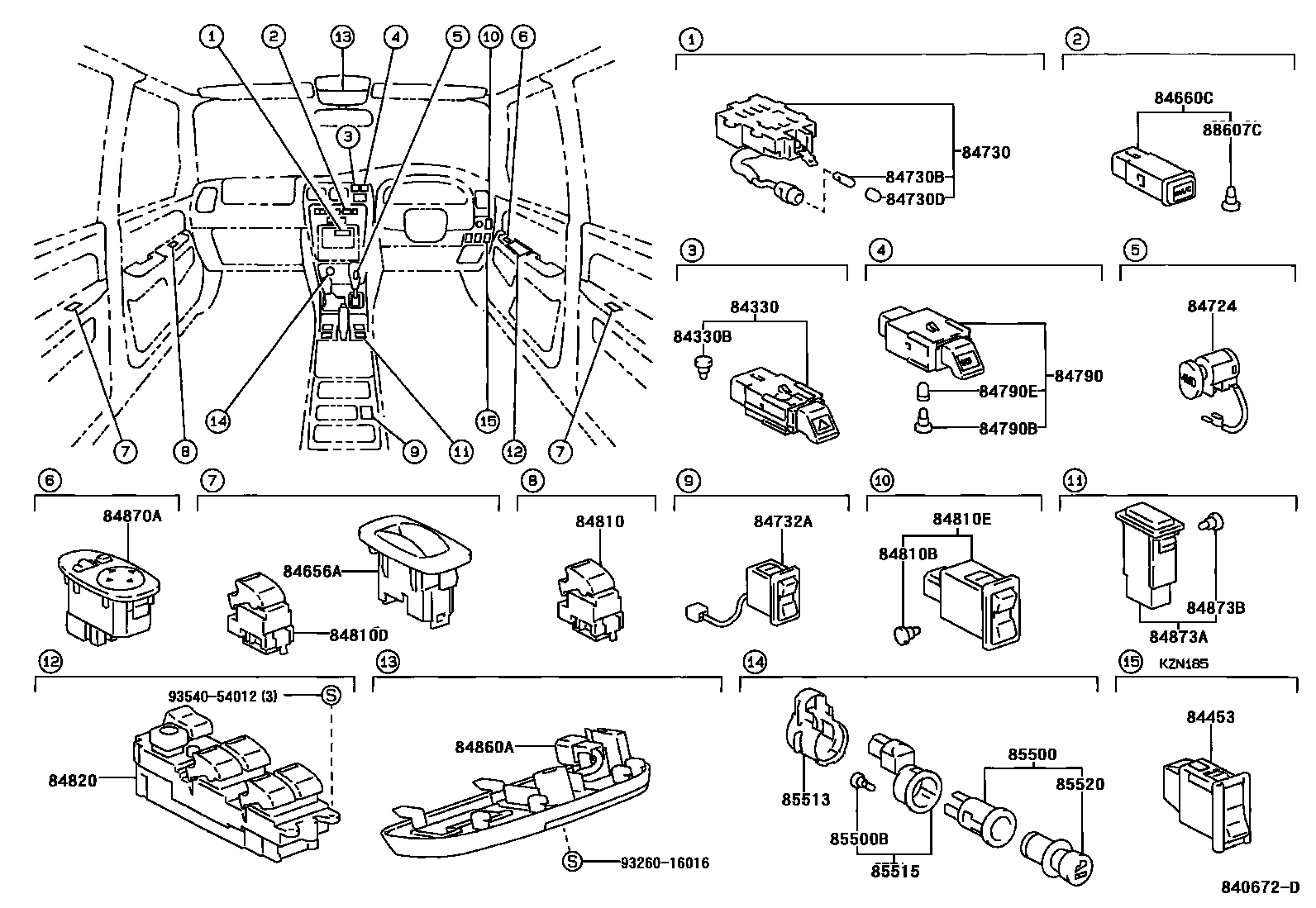

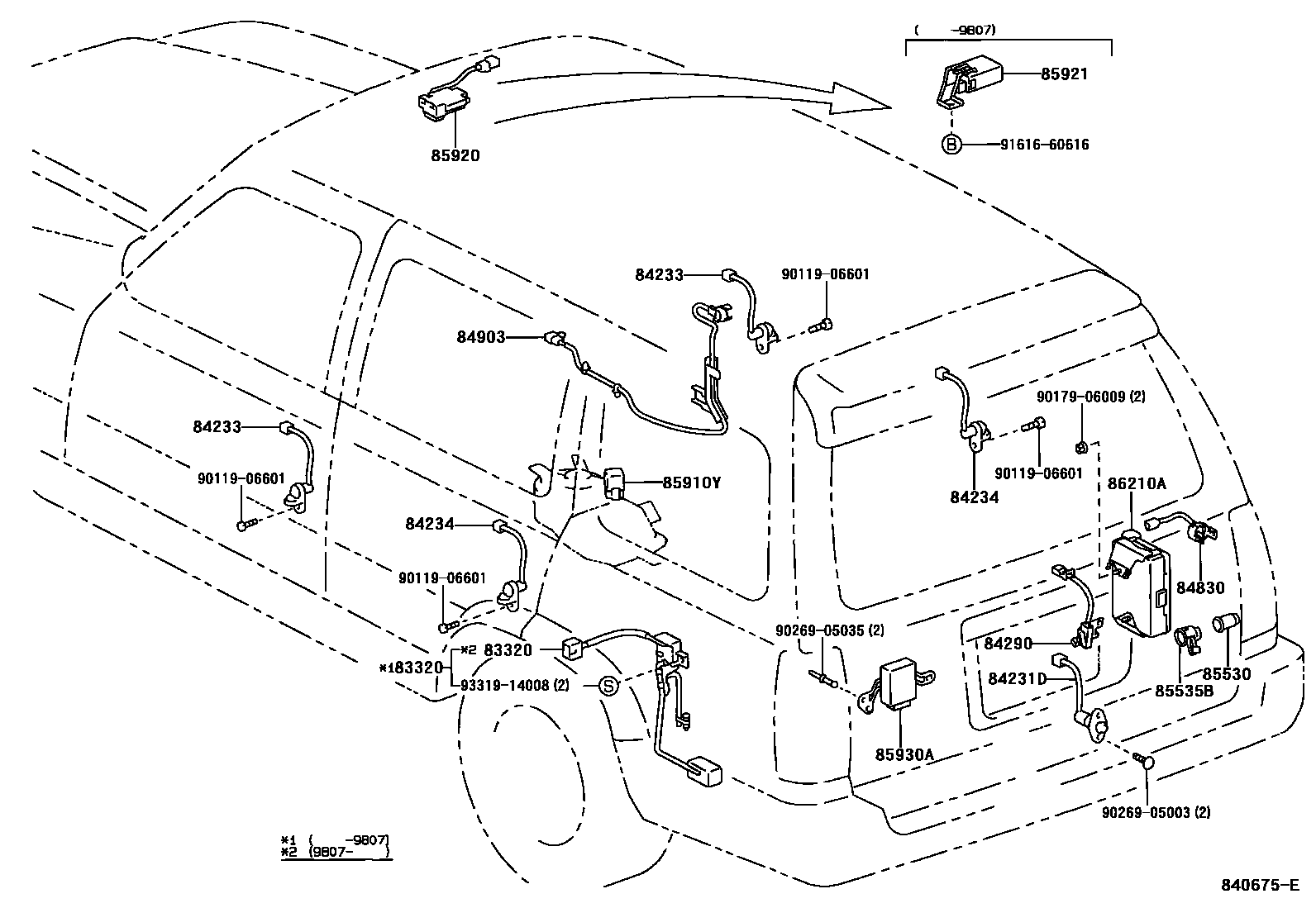

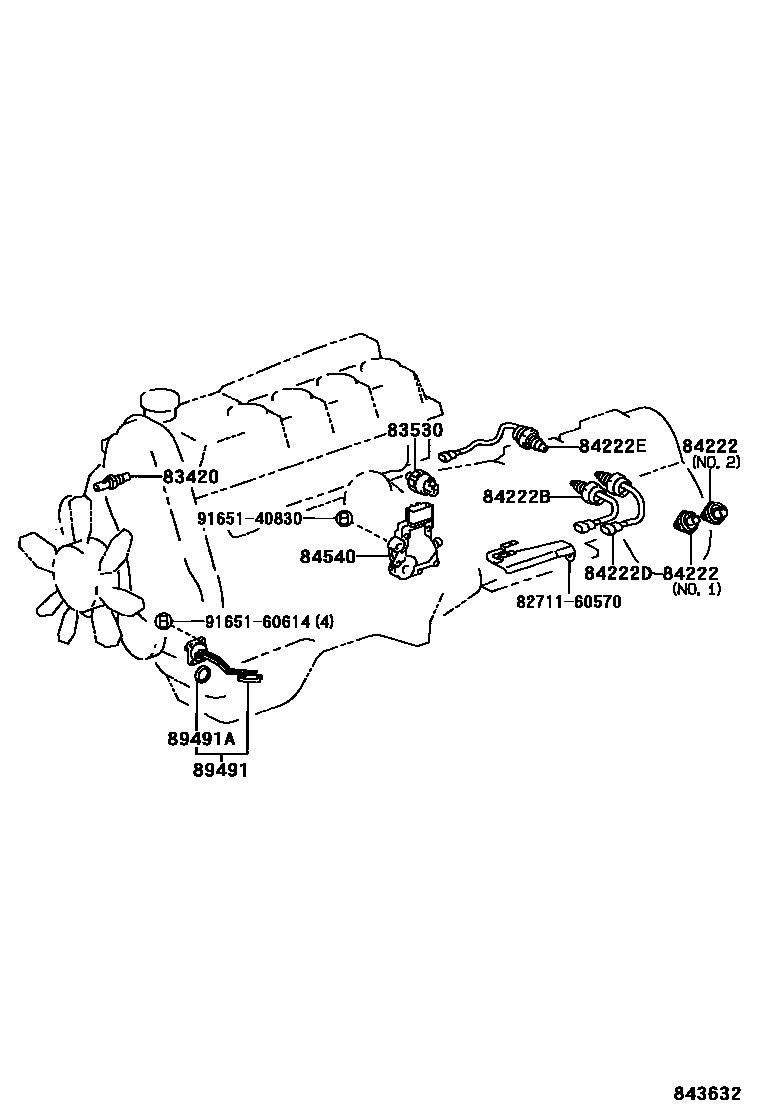

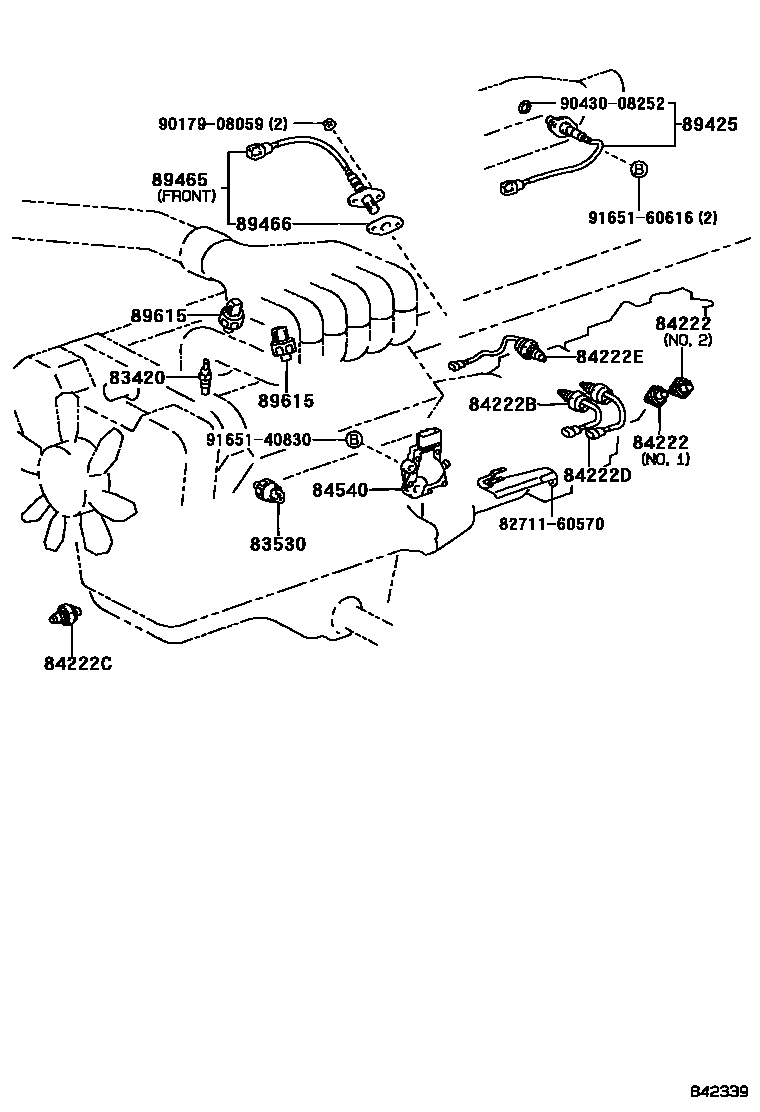

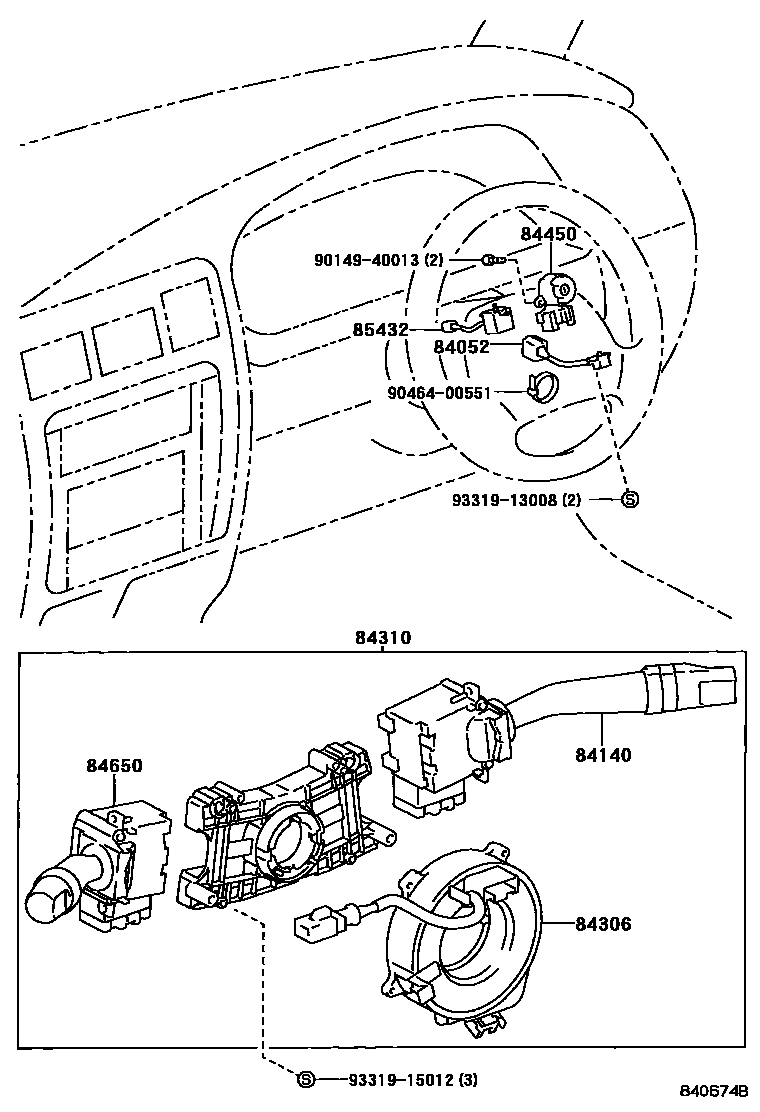

Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 12 images and 124 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 · 28300-46010 |
| 28610A | Sub glow plug relay assembly | 28610-54360 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 · 81980-32010 |
| 82600F | Spare fuse | 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 |
| 82600G | Warning nameplate (for fuses) | 82683-35060 · 82683-35061 · 82683-35130 |
| 82600M | medium current fuse | 90982-10001 |
| 82602 | Relay box sub-assembly | 82602-35180 |
| 82602A | Relay box sub-assembly | 82602-35150 |
| 82616 | fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-35150 · 82641-60060 |
| 82662A | No. 1 relay box upper cover | 82662-35410 · 82662-35411 · 82662-35412 · 82662-35420 · 82662-35421 · 82662-35422 · 82662-35620 · 82662-35630 · 82662-35860 · 82662-35870 |
| 82663 | Relay box lower cover | 82663-35050 · 82663-35060 · 82663-35070 |
| 82671A | junction box | 82671-30350 |
| 82671B | junction box | 82671-30370 |
| 82731 | Driver's side junction box | 82730-35060 · 82731-35010 |
| 82733 | Passenger side junction box | 82733-35010 |
| 82734A | central junction box | 82734-35020 |
| 82741 | Engine room relay box | 82741-35020 · 82741-35030 · 82741-35080 · 82741-35090 |
| 82742 | Engine room No. 2 relay box | 82742-35010 |
| 83320 | Fuel gauge sensor assembly | 83320-35530 · 83320-35590 · 83320-35620 · 83320-80330 · 83320-80332 |
| 83390 | Vacuum warning switch assembly | 83390-30100 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-16040 · 83420-20040 |
| 83482 | Outside car ambient temperature sensor | 83482-35010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14070 · 83530-28020 · 83530-30090 · 83530-30100 · 83530-60010 · 83530-60020 |
| 83650 | fuse | 90986-01005 |
| 83651 | fuse clip | 90468-25003 |
| 84010B | Integrated control and panel light bulbs | 90010-01040 |
| 84010E | Integrated control and panel light bulbs | 90010-01041 |
| 84013 | Integrated panel sub-assembly | 84013-35010 · 84013-35020 · 84013-35030 |
| 84014 | Printed circuit integrated board sub-assembly | 84014-35010 · 84014-35020 |
| 84014A | No. 2 printed circuit integrated board sub-assembly | 84014-35030 |
| 84052 | Unlock warning switch assembly | 84052-20030 · 84052-35020 |
| 84140 | Headlight dimmer switch assembly | 84140-26150 · 84140-26170 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84222 | No. 1 transfer case indicator switch | 84222-12010 · 84222-35120 · 84222-35121 · 84222-60080 · 84222-60081 |
| 84222B | No. 2 transfer case indicator switch | 84222-35080 |
| 84222C | No. 3 transfer case indicator light switch | 84222-35070 |
| 84222D | No. 4 transfer case indicator light switch | 84222-35090 |
| 84222E | Differential lock indicator light switch | 84222-35110 |
| 84225A | Shift lever position switch | 84225-35010 |
| 84231D | Door control light switch (for tire carrier) | 84231-35020 |
| 84233 | Door control light switch assembly (for front door) | 84231-12080 |
| 84234 | Door control light switch assembly (for rear door) | 84231-12080 |
| 84290 | Limit switch assembly | 84290-35020 |
| 84306 | Spiral cable sub-assembly | 84306-12070 · 84306-35010 · 84306-35011 |
| 84310 | Turn signal switch assembly | 84310-35600 · 84310-35860 · 84310-35880 |
| 84330 | Hazard warning signal switch assembly | 84332-35050 · 84332-35080 |
| 84330B | Hazard warning signal switch light bulb | 84999-10320 · 84999-10860 |
| 84340 | brake light switch assembly | 84340-20060 · 84340-32050 · 84340-32070 · 84340-35020 · 84340-35030 |
| 84450 | Ignition or starter switch assembly | 84450-41010 |
| 84453 | Idle speed boost switch | 84453-35020 · 84453-60050 |
| 84453A | Idle speed boost switch bulb | 84999-10320 |
| 84480 | Main switch assembly | 84480-35040 |
| 84480B | Main switch assembly light bulb | 84999-10320 · 90010-01024 |
| 84518 | Switch cover fixing parts | 84518-35010 |
| 84540 | Neutral start switch assembly | 84540-30270 · 84540-30320 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650 | Windshield wiper switch assembly | 84652-35490 |
| 84656A | switch box | 84656-35020 · 84656-35030 · 84656-35040 · 84656-35050 · 84656-35070 · 84656-35080 |
| 84656D | Switch frame hole cover | 84656-35060 |
| 84660C | Cooler switch | 84660-35010 · 84660-35030 |
| 84721 | front wheel drive button | 84721-35010 |
| 84724 | four wheel drive control switch | 84724-35010 |
| 84727 | Shift lock control switch | 33805-35030 · 84727-35090 |
| 84730 | Heater blower switch assembly | 84732-89115 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84730D | Heater blower switch bulb cover | 84998-10050 |
| 84732A | Rear heater blower switch | 84732-35020 |
| 84739A | switch fixture | 84739-35010 |
| 84739B | switch fixture | 84739-35020 |
| 84790 | Rear window defogger switch assembly | 84790-35010 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10850 |
| 84790E | Bulb cover (for rear window defogger switch) | 84998-10720 |
| 84791C | Defogger timing switch button | 84791-35010 |
| 84810 | Electric window lift switch assembly | 84810-12080 · 84810-32070 |
| 84810B | Bulb (for power window lift switch) | 90010-01013 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 · 84810-32070 |
| 84810E | Rear door electric window lift switch assembly | 84810-35020 |
| 84820 | Electric window lift main switch assembly | 84820-10040 · 84820-35050 |
| 84830 | Back door control switch assembly | 84830-35030 · 84830-35040 · 84830-35041 |
| 84870A | Exterior rearview mirror switch assembly | 84870-16020 · 84870-16040 |
| 84873A | Telescopic exterior mirror switch | 84873-35020 |
| 84873B | Retractable exterior mirror switch bulb | 90010-01013 |
| 84903 | Door unlock switch sub-assembly | 84903-35020 |
| 85432 | Key interlock solenoid valve | 85432-35020 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-35040 · 85440-35060 |
| 85500 | Cigarette lighter assembly | 85500-12240 |
| 85500B | Cigarette lighter bulb | 84999-10250 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-32010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530A | power outlet relay | 90987-02012 |
| 85530C | Central power socket assembly | 85530-35010 |
| 85535D | Central power socket cover | 85535-35040 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85910Y | rear heater relay | 90987-04003 |
| 85912 | defogger relay | 90987-02012 |
| 85916D | fog light relay | 90987-02012 |
| 85916N | Tail light relay | 90987-02012 |
| 85916P | headlight relay | 90987-02006 |
| 85916S | Spare tire rack relay | 90987-02012 |
| 85917A | Four wheel drive indicator light relay | 90987-03003 |
| 85921 | Sliding sunroof control relay | 85921-35010 |
| 85930 | Electric window relay assembly | 90987-02012 |
| 85930A | No. 1 electric window relay assembly | 85930-35020 · 85930-35040 · 85930-35050 · 85930-35070 |
| 85933 | Shift lock control ECU | 85933-35150 · 85933-35160 |
| 85937 | Shift lock control protection device | 85937-35010 |
| 86210A | Voltage inverter assembly | 86210-35010 |
| 86220A | Inverter relay | 90987-02012 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 87290 | Heater switch assembly | 87290-35030 |
| 87290B | Light bulb (for heater switch) | 84999-10320 · 90010-01043 |
| 88607C | Indicator light sub-assembly | 88607-16010 |
| 89425 | Exhaust gas temperature sensor | 89425-80032 · 89425-80033 · 89425-80034 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-35600 · 89465-39735 · 89465-39755 · 89465-39835 · 89465-80010 |
| 89466 | Oxygen sensor pad | 89466-20020 |
| 89491 | Engine oil level sensor | 89491-60050 |
| 89491A | Engine oil level sensor gasket | 89493-60010 |
| 89533 | Four-wheel drive control ECU | 89533-35080 · 89533-35090 · 89533-35140 · 89533-35180 |
| 89615 | knock control sensor | 89615-12040 · 89615-12050 · 89615-26010 · 89615-50010 |
| 89620 | Ignition assembly | 89621-26010 · 89621-35020 |
| 89629 | Ignition bracket assembly | 89629-35030 · 89629-35040 |
