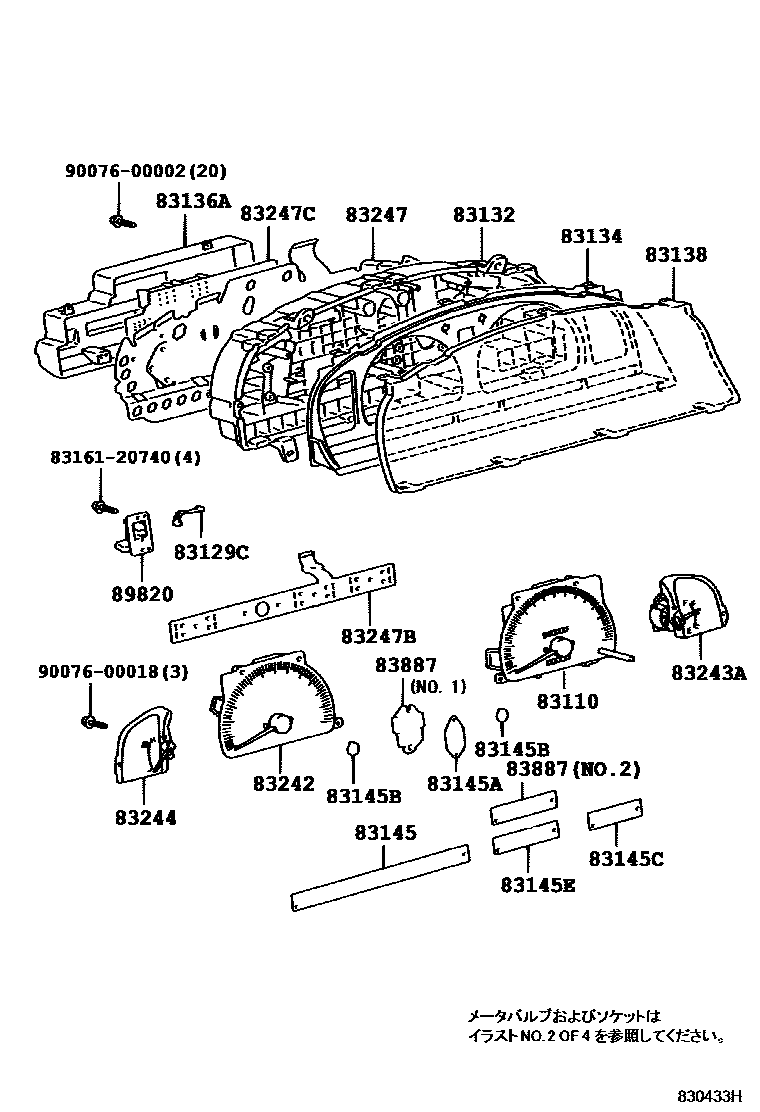

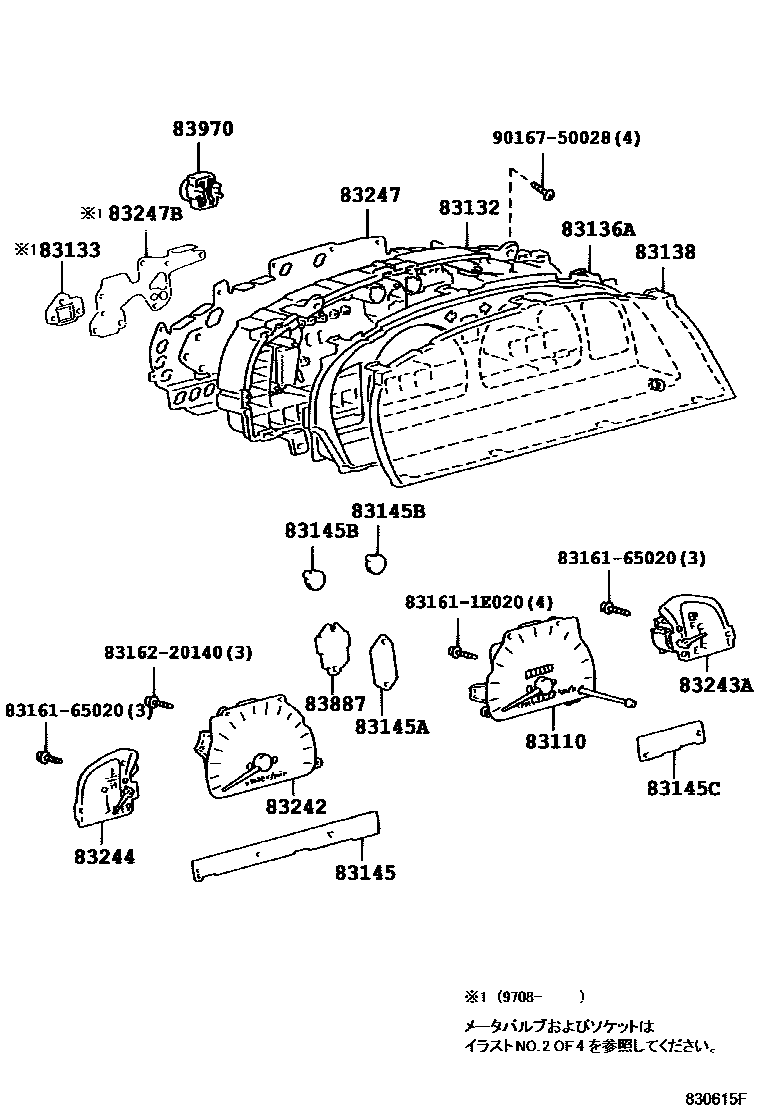

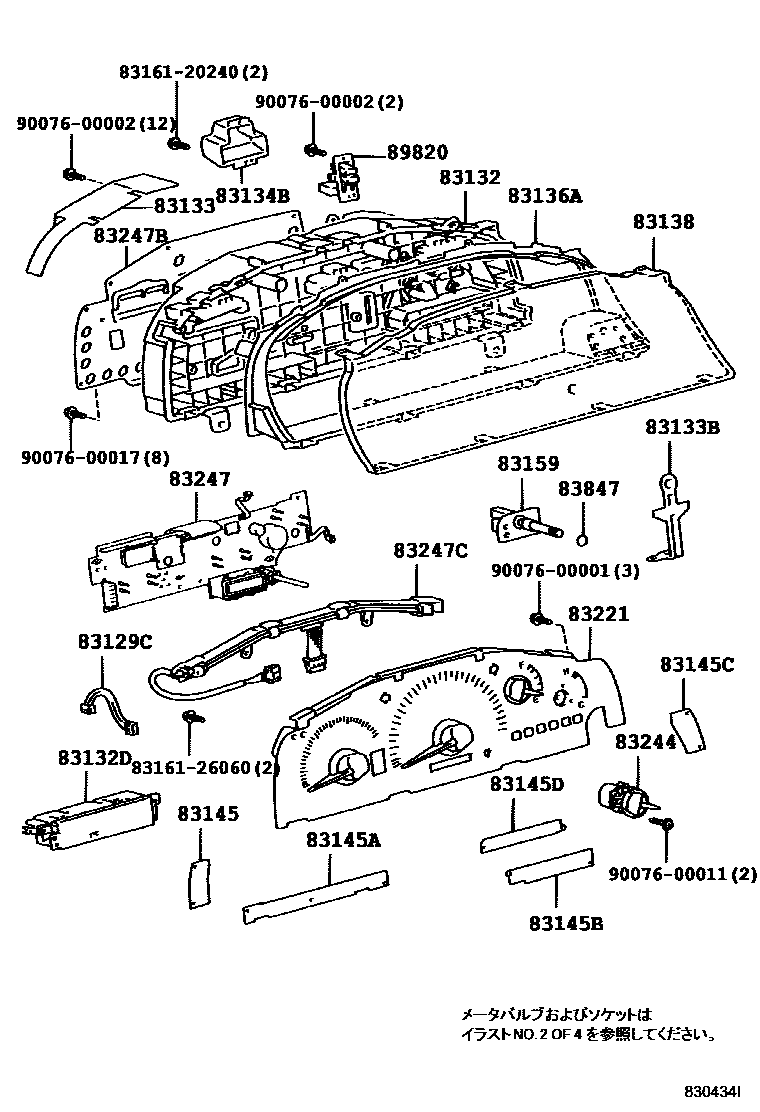

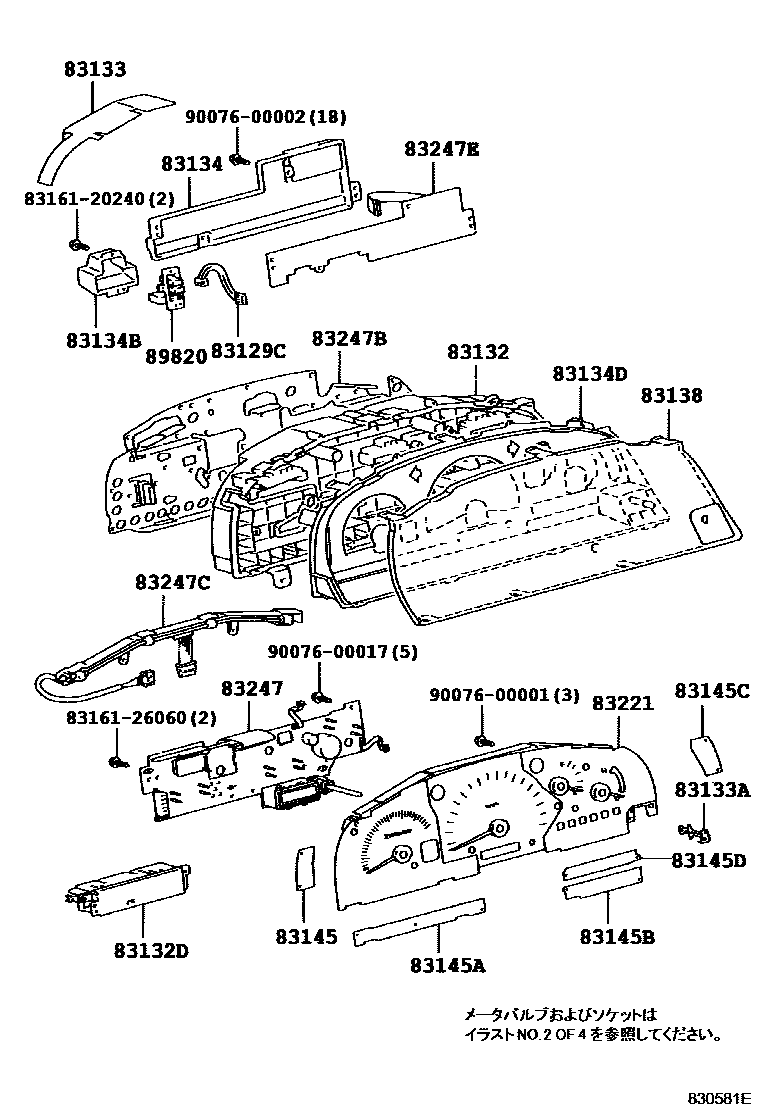

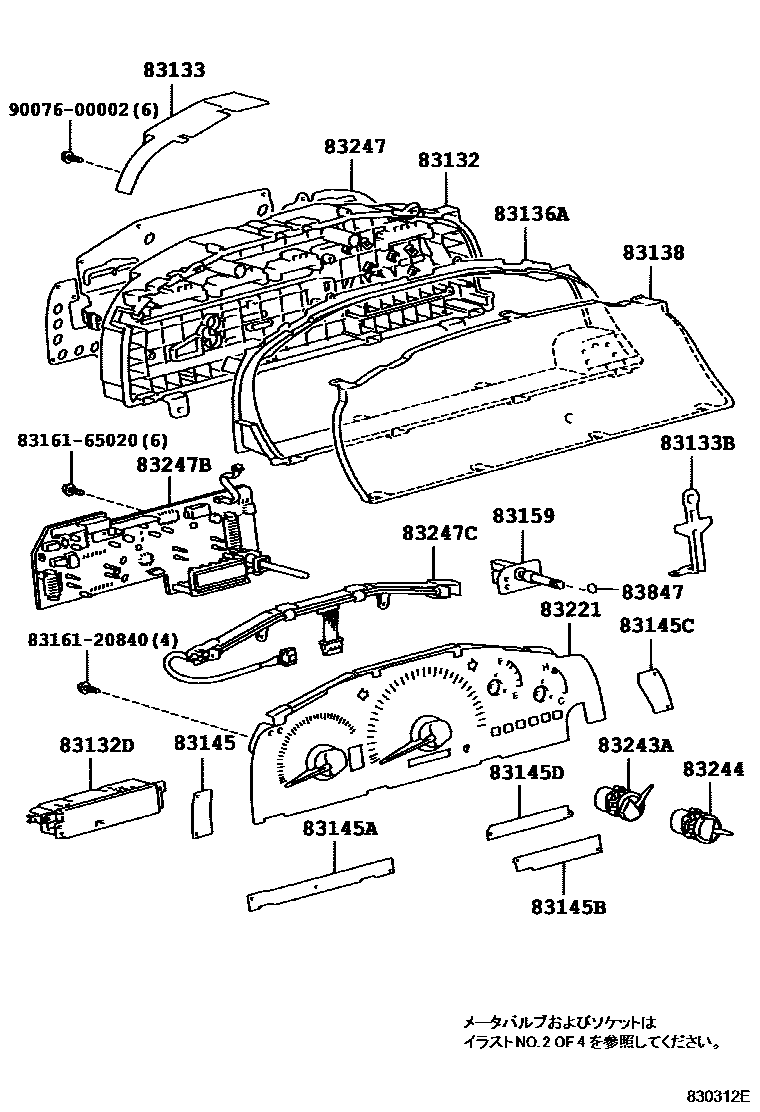

Toyota HILUX 仪表 — Figure 8301
Toyota HILUX EPC diagram 8301, 仪表, with 12 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

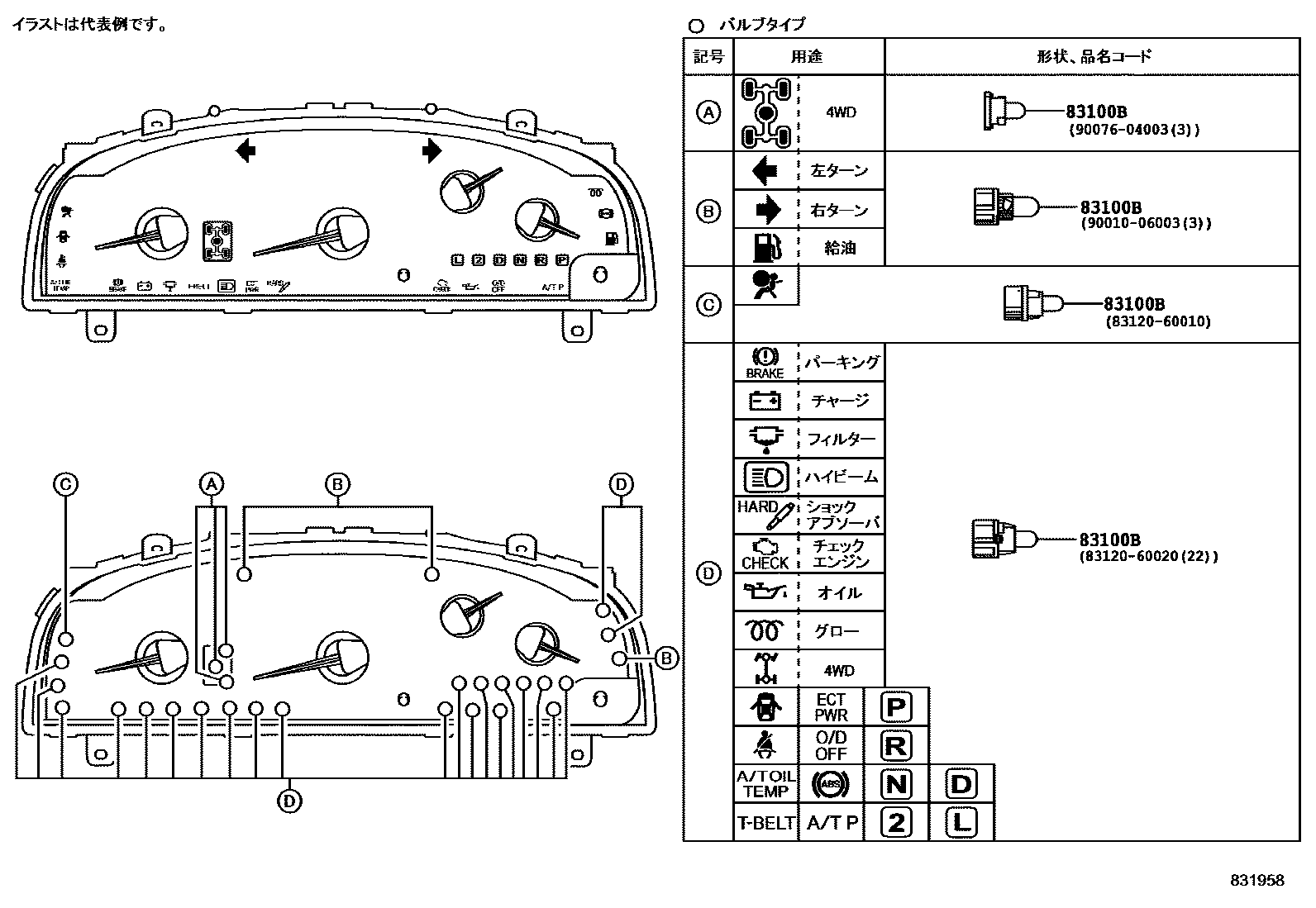

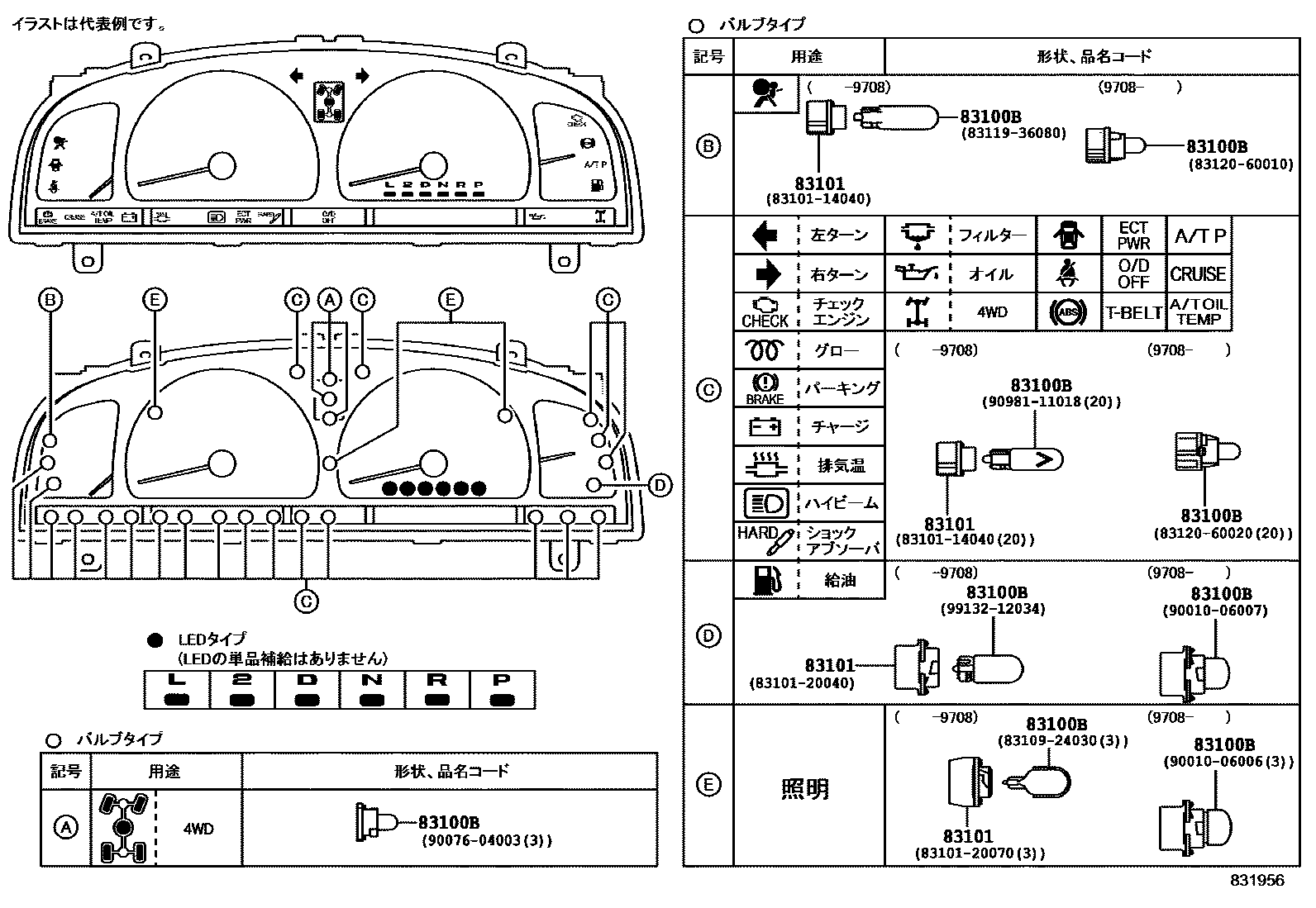

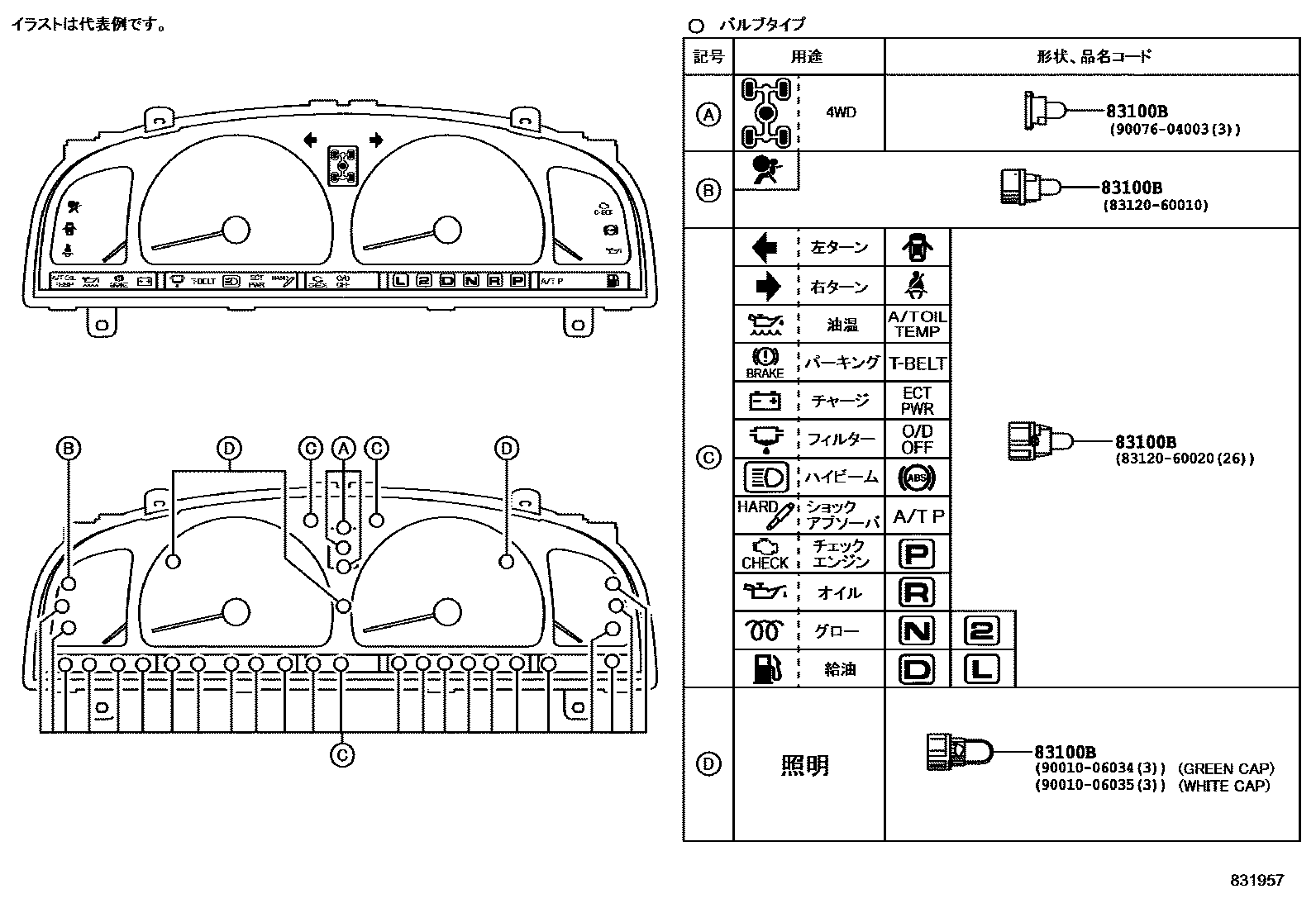

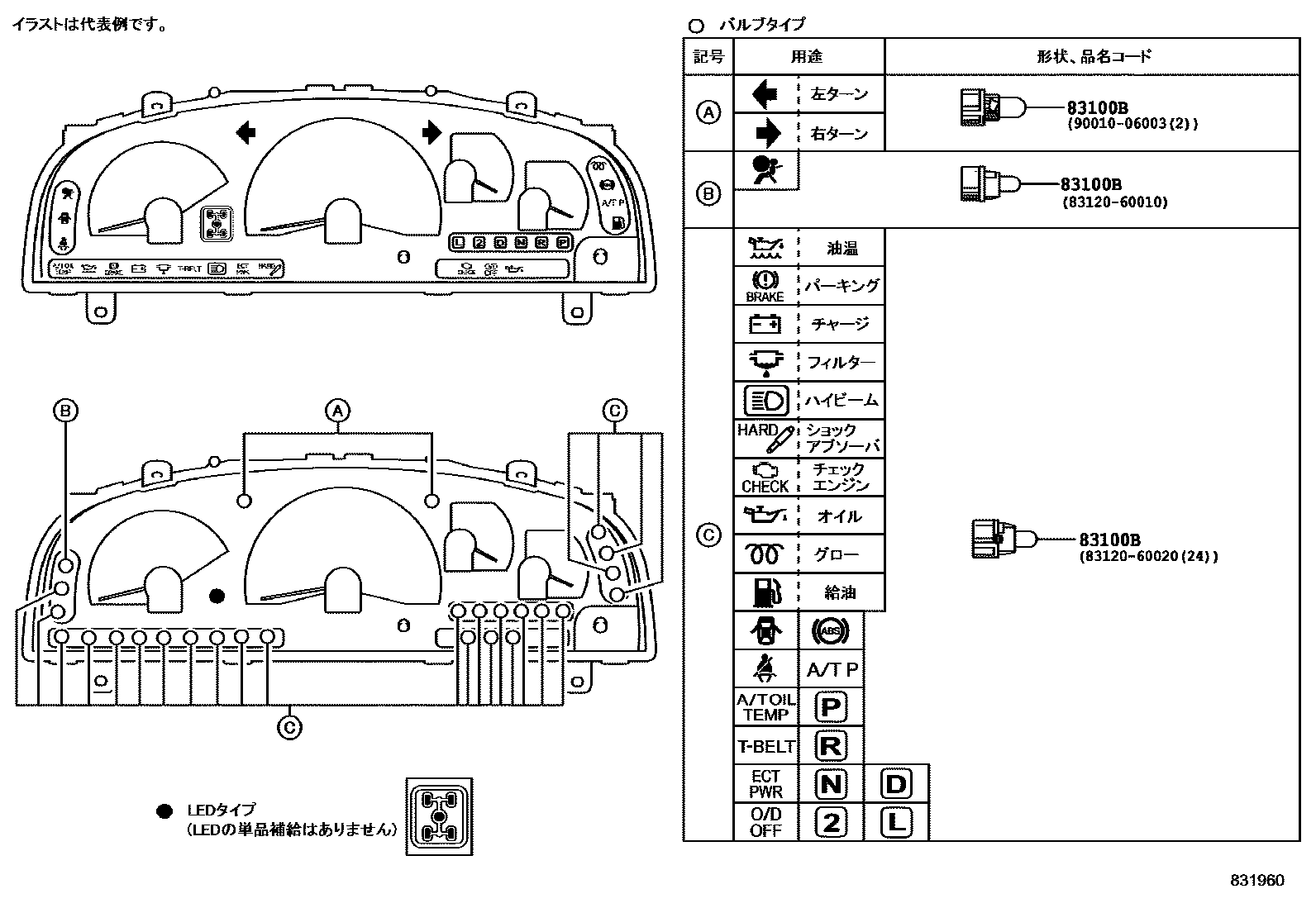

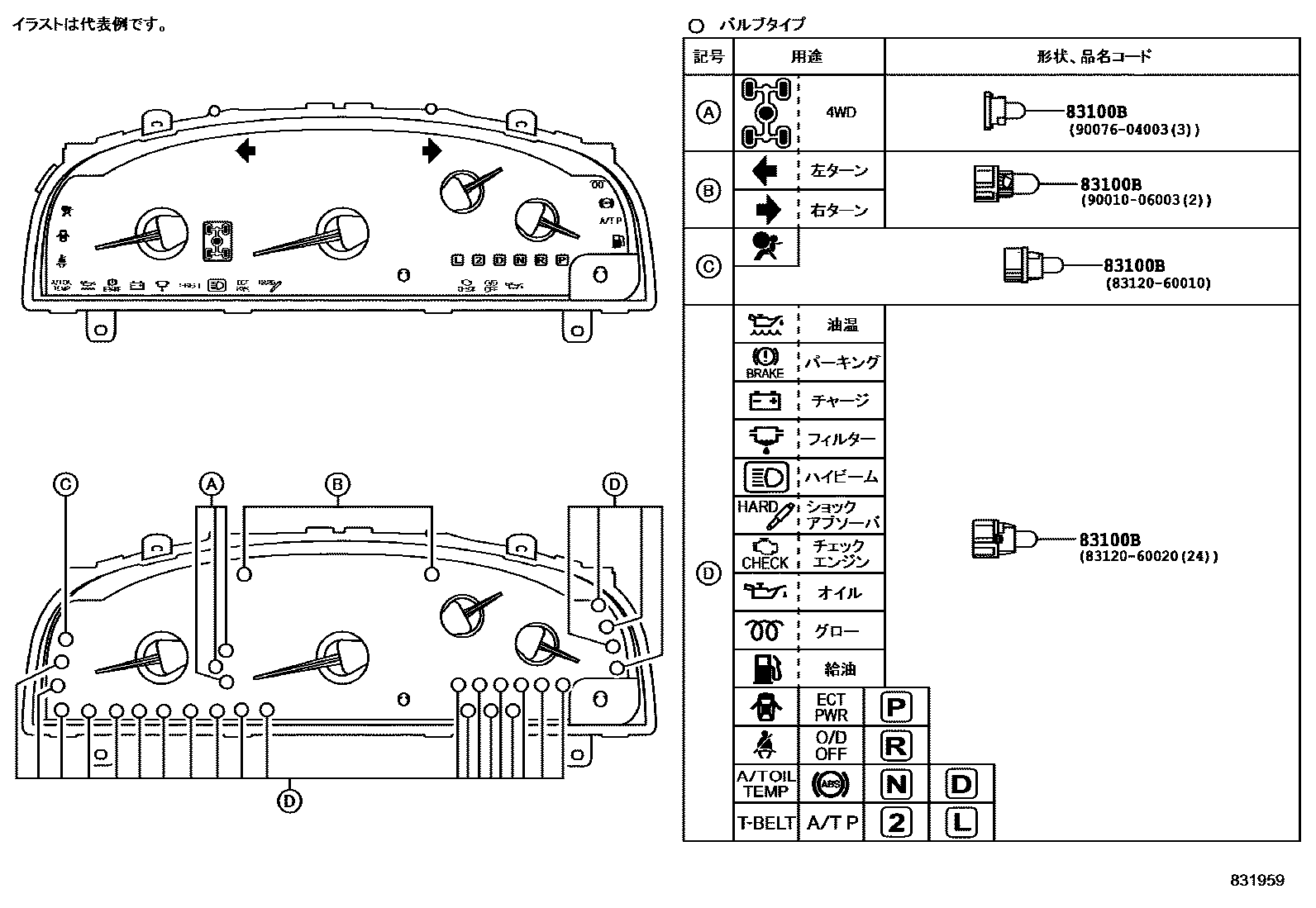

| 83100B | Combination instrument bulb No. 1 | 83109-24030 · 83119-36080 · 83120-60010 · 83120-60020 · 90010-06003 · 90010-06006 · 90010-06007 · 90010-06034 · 90010-06035 · 90076-04003 · 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14040 · 83101-20040 · 83101-20070 |
| 83110 | Speedometer assembly | 83220-35010 · 83220-35020 · 83220-35410 · 83220-35420 |
| 83129C | Combined instrument wiring harness | 83875-3D370 · 83875-6A840 |
| 83132 | Instrument cluster housing | 83841-35020 · 83841-35021 · 83841-35880 · 83841-3D200 · 83841-3D370 · 83841-3D420 |
| 83132D | Instrument combination housing No. 2 | 83842-35880 · 83842-3D370 |
| 83133 | Combined instrument panel No. 1 | 83811-35031 · 83811-35880 · 83811-3D370 |
| 83133A | Combined instrument panel No. 2 | 83811-3D420 |
| 83133B | Combined instrument panel No. 3 | 83813-35880 |
| 83134 | Combination instrument cover No. 1 | 83821-3D200 · 83821-3D210 · 83821-3D260 · 83821-3D400 · 83821-3D420 |
| 83134B | Combination instrument cover No. 2 | 83821-3D370 |
| 83134D | Combination instrument cover No. 3 | 83821-3D490 · 83822-3D420 |
| 83136A | Instrument combination cover | 83851-35020 · 83851-35040 · 83851-35880 · 83851-3D200 |
| 83138 | speedometer glass | 83852-35020 · 83852-35880 · 83852-3D200 · 83852-3D420 |
| 83145 | Instrument No. 1 lampshade | 83831-35020 · 83831-35021 · 83831-35060 · 83831-35061 · 83831-35880 · 83831-3D200 |
| 83145A | Instrument No. 2 lampshade | 83831-35040 · 83831-35860 · 83831-35890 · 83831-3D370 · 83832-35880 |
| 83145B | Instrument No. 3 lampshade | 83832-3D370 · 83833-26010 · 83833-35880 |
| 83145C | Instrument No. 4 lampshade | 83832-35020 · 83832-3D200 · 83833-35880 · 83833-3D370 · 83834-35880 |
| 83145D | Instrument No. 5 lampshade | 83834-3D370 · 83835-35880 |
| 83145E | Instrument No. 6 lampshade | 83831-3D210 |
| 83159 | No.1 instrument switch | 83871-35880 |
| 83181A | speedometer sensor | 83181-12020 · 83181-35070 |
| 83181B | O-ring (for speedometer sensor) | 90301-18004 · 96711-24030 |
| 83221 | speedometer | 83221-35880 · 83221-35890 · 83221-3D030 · 83221-3D040 · 83221-3D050 · 83221-3D060 · 83221-3D370 · 83221-3D380 · 83221-3D390 · 83221-3D420 · 83221-3D430 · 83221-3D440 · 83221-3D490 · 83221-3D500 · 83819-3D540 · 83819-3D620 |
| 83242 | Engine tachometer assembly | 83881-35020 · 83881-35031 · 83881-35040 · 83881-35060 · 83881-35081 · 83881-3D070 · 83881-3D200 · 83881-3D220 · 83881-3D400 |
| 83243A | Fuel gauge sub-assembly | 83882-35020 · 83882-35060 · 83882-35880 · 83882-3D200 · 83882-3D220 · 83882-3D400 |
| 83244 | Water temperature meter sub-assembly | 83883-35020 · 83883-35880 · 83883-3D200 · 83883-3D400 |
| 83247 | Instrument circuit board | 83861-35020 · 83861-35021 · 83861-35031 · 83861-35040 · 83861-35060 · 83861-35061 · 83861-35081 · 83861-35090 · 83861-35091 · 83861-35271 · 83861-35860 · 83861-35870 · 83861-35880 · 83861-35890 · 83861-3D030 · 83861-3D050 · 83861-3D060 · 83861-3D210 · 83861-3D230 · 83861-3D390 · 83861-3D391 · 83861-3D400 · 83861-3D440 · 83861-3D490 · 83861-3D500 · 83861-3D540 · 83861-3D620 · 83861-3D730 · 83862-3D220 · 83862-3D370 · 83862-3D371 · 83862-3D380 · 83862-3D381 · 83862-3D420 · 83862-3D430 · 83864-3D200 |
| 83247B | No. 2 instrument circuit board | 83861-3D040 · 83861-3D200 · 83861-3D370 · 83861-3D380 · 83861-3D420 · 83861-3D430 · 83862-35031 · 83862-35890 · 83862-3D030 · 83863-35880 |
| 83247C | No. 3 instrument circuit board | 83861-3D240 · 83861-3D241 · 83861-3D600 · 83862-35880 · 83862-3D230 · 83862-3D231 · 83863-3D200 · 83863-3D201 |
| 83247E | No. 4 instrument circuit board | 83863-3D420 |

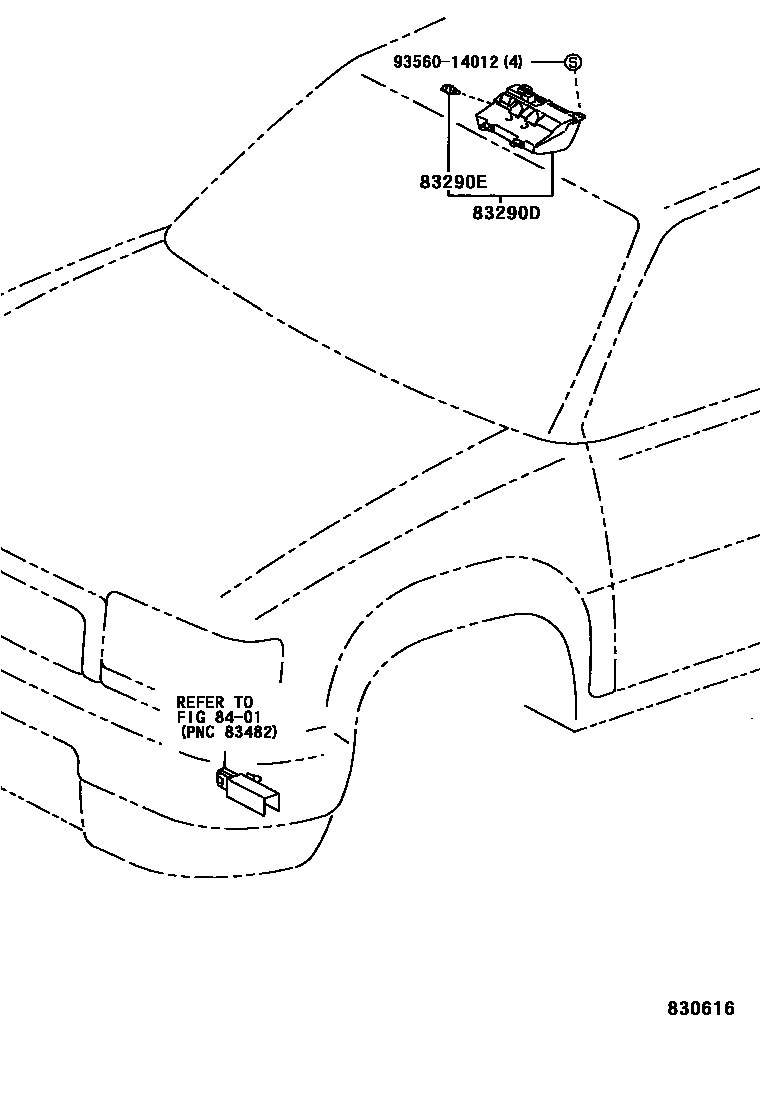

| 83290D | Auxiliary instrument assembly | 83290-35010 · 83290-35020 · 83290-35030 |
| 83290E | Auxiliary instrument bulb | 90077-01004 |
| 83847 | No. 1 combination speedometer cushion | 83847-22010 |
| 83887 | No. 1 instrument cluster prism plate | 83887-35040 · 83887-35860 · 83887-3D210 |

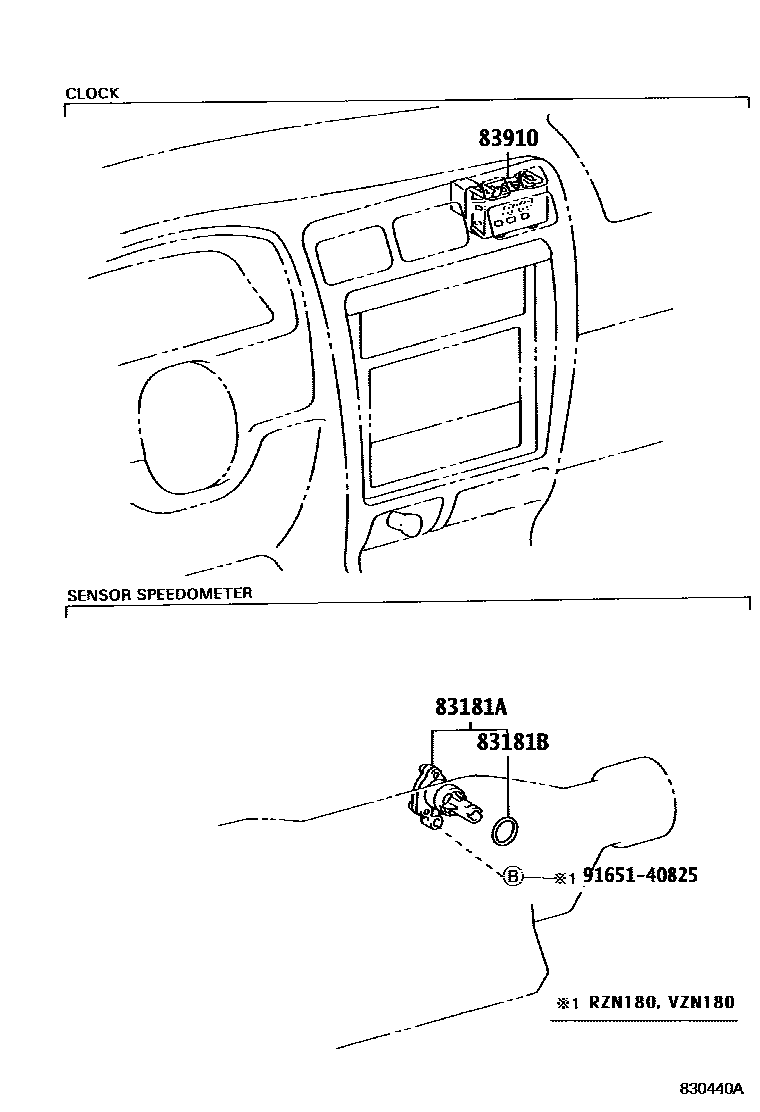

| 83910 | clock assembly | 83910-26020 |
| 83970 | Reversing warning buzzer assembly | 83970-12020 |
| 89820 | Inclination sensor assembly | 89820-35010 |
