Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 4 PNC and OE references.

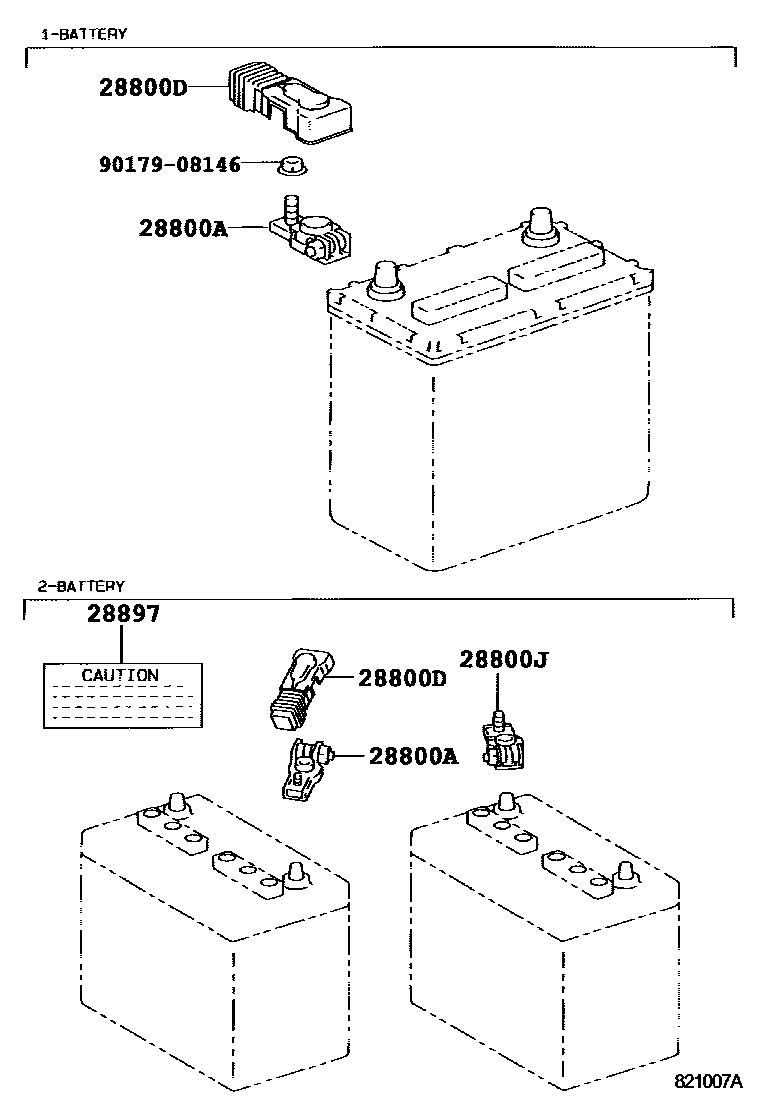

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — 821007A
蓄电池和蓄电池电缆 — 821007A (199511 – 999999)

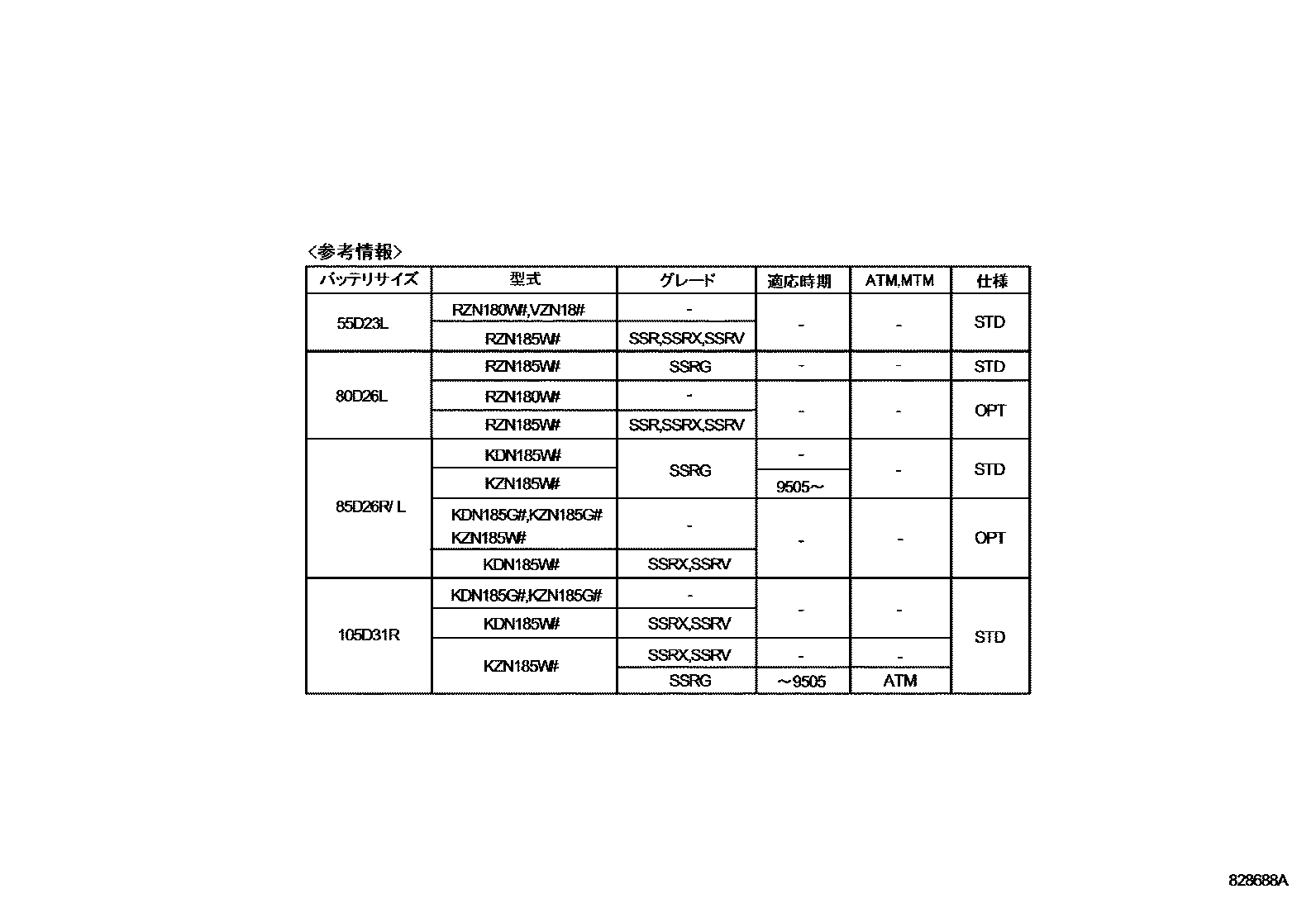

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — 828688A
蓄电池和蓄电池电缆 — 828688A (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800Abattery positive terminal90982-05035
28800DConnector cover (for battery terminals)82821-35020
28800Jbattery negative terminal90982-06022
28897Battery warning nameplate28897-54030
