Toyota HILUX 车内灯 — Figure 8121

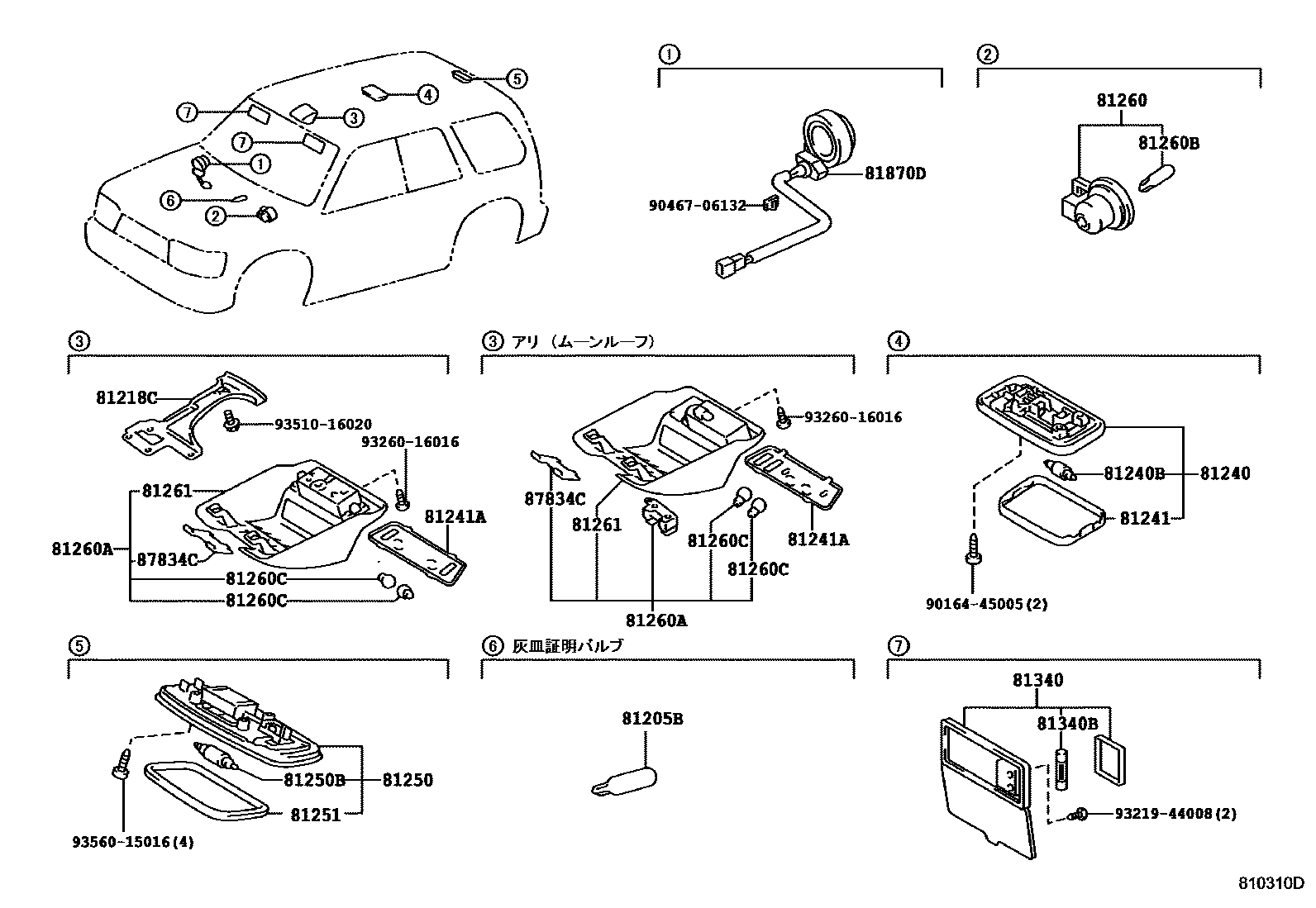

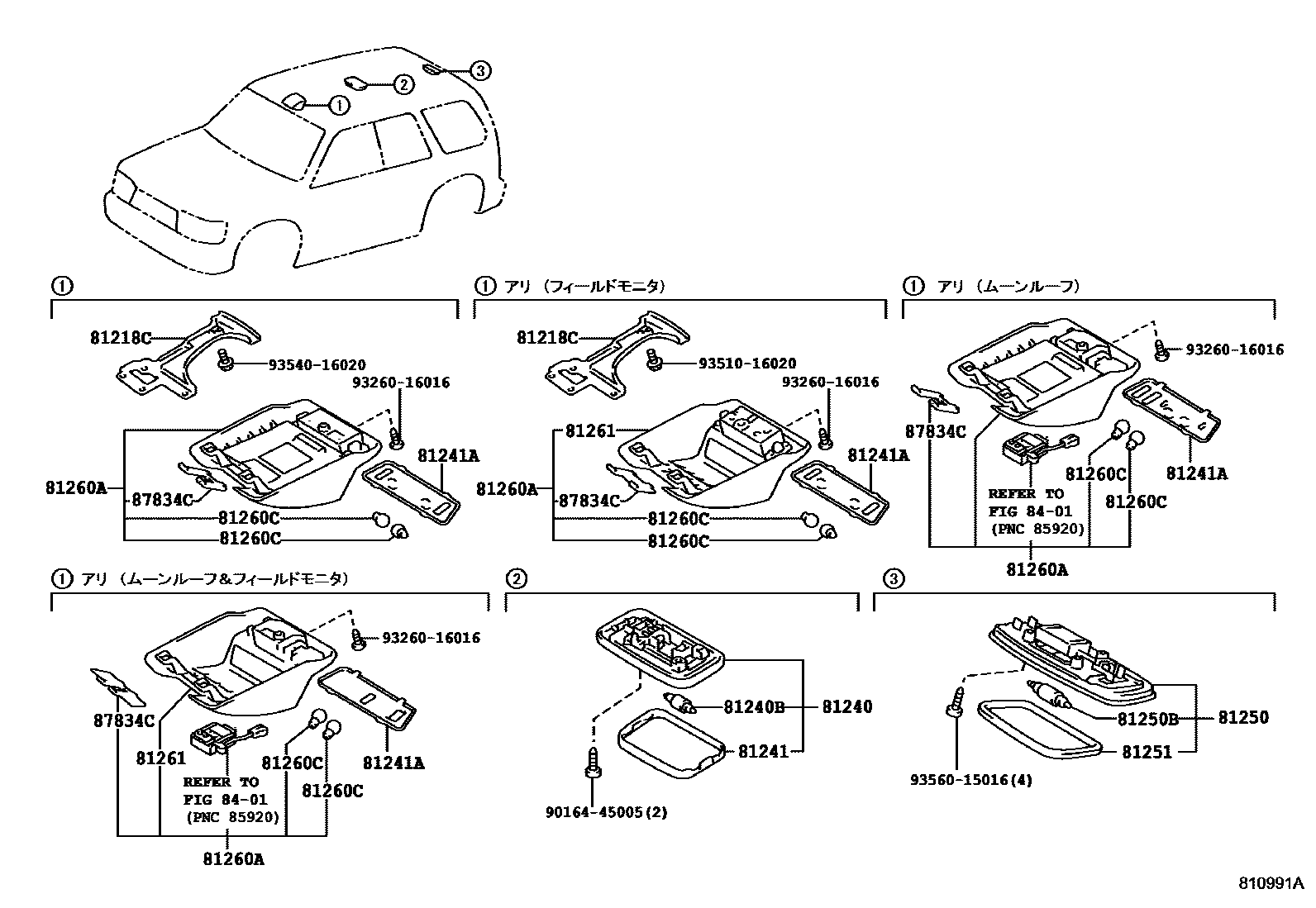

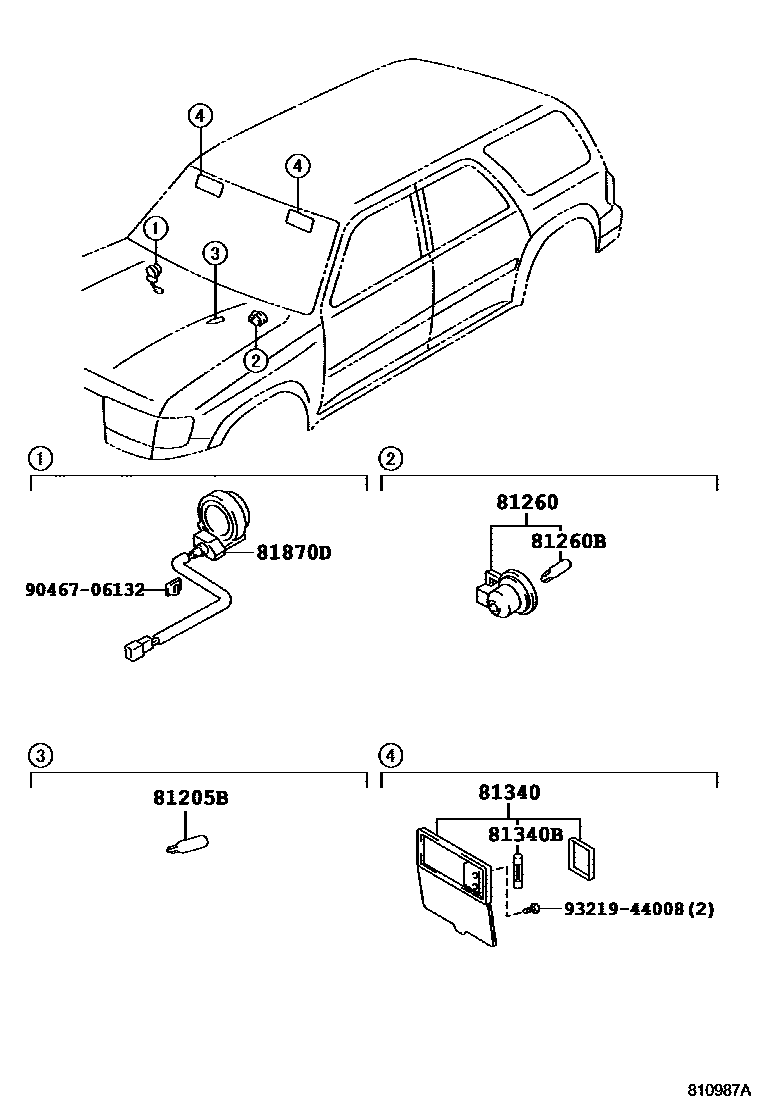

Toyota HILUX EPC diagram 8121, 车内灯, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11041 |
| 81218C | reading light holder | 81218-35010 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12020 |
| 81241A | Interior light cover No. 2 | 81241-35010 · 81241-35020 · 81241-35050 |
| 81250B | Interior light bulb No. 2 | 90981-14002 · 90981-14004 |
| 81251 | Interior light cover No. 2 | 81241-32031 |
| 81260 | Glove box light assembly | 81260-33010 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81260C | Light bulb (for reading lamp) | 90981-12020 |
| 81340B | Bulb (for vanity lights) | 90981-14003 |
| 81870D | Lock core lighting assembly | 81870-35020 |
