Toyota HILUX reflector — Figure 8115

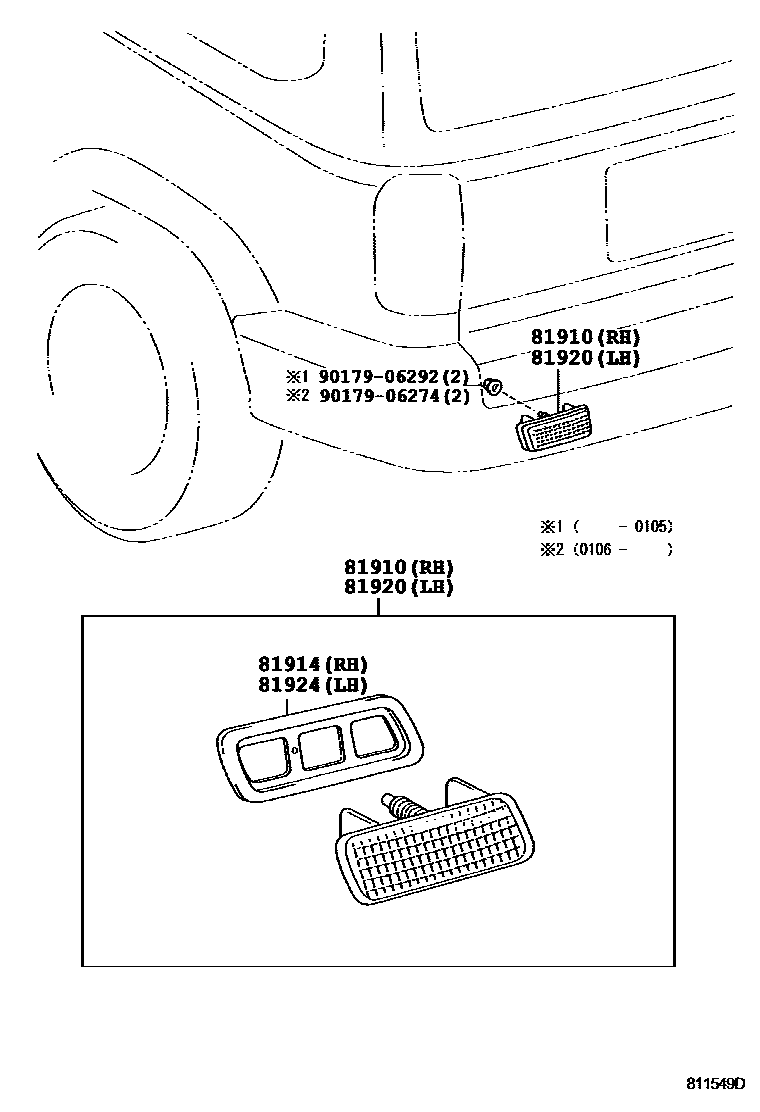

Toyota HILUX EPC diagram 8115, reflector, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81910 | Right reflector assembly | 81910-35050 |
| 81914 | Right reflector body gasket | 81914-35050 |
| 81920 | Left reflector assembly | 81920-35040 |
| 81924 | Left reflector body gasket | 81924-35040 |
