Toyota HILUX 后牌照灯 — Figure 8113

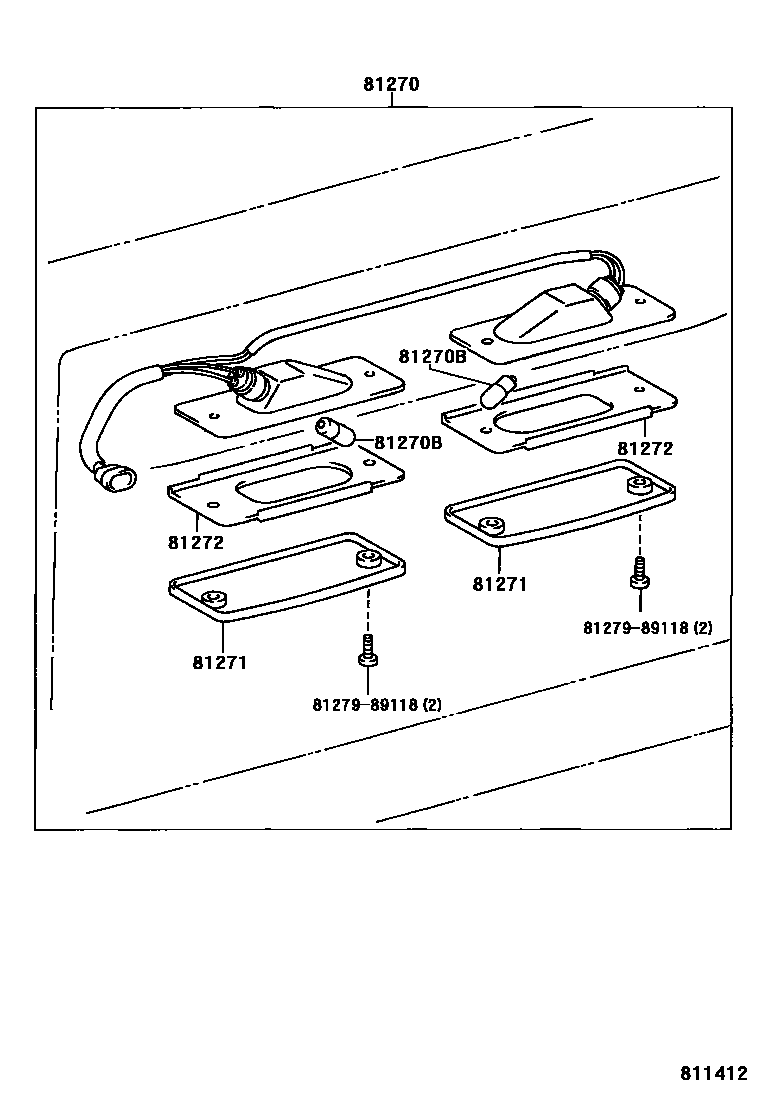

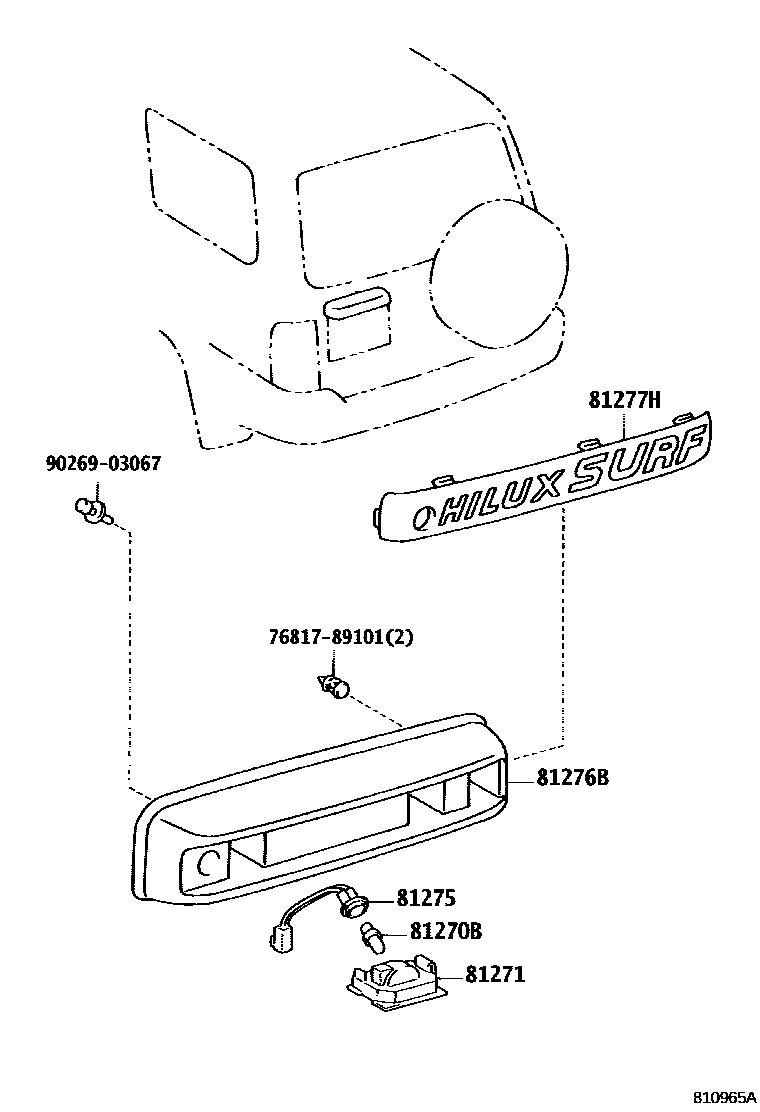

Toyota HILUX EPC diagram 8113, 后牌照灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-35090 · 81270-35120 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-16260 · 81271-95J07 |
| 81272 | License plate lamp shade gasket | 81272-95J07 |
| 81275 | License plate lamp holder and wiring harness | 81275-35100 |
| 81276B | license plate light cover | 81276-35100 |
| 81277H | license plate light cover | 75132-35020 · 75132-35050 |
