Toyota HILUX 前示宽灯 — Figure 8104

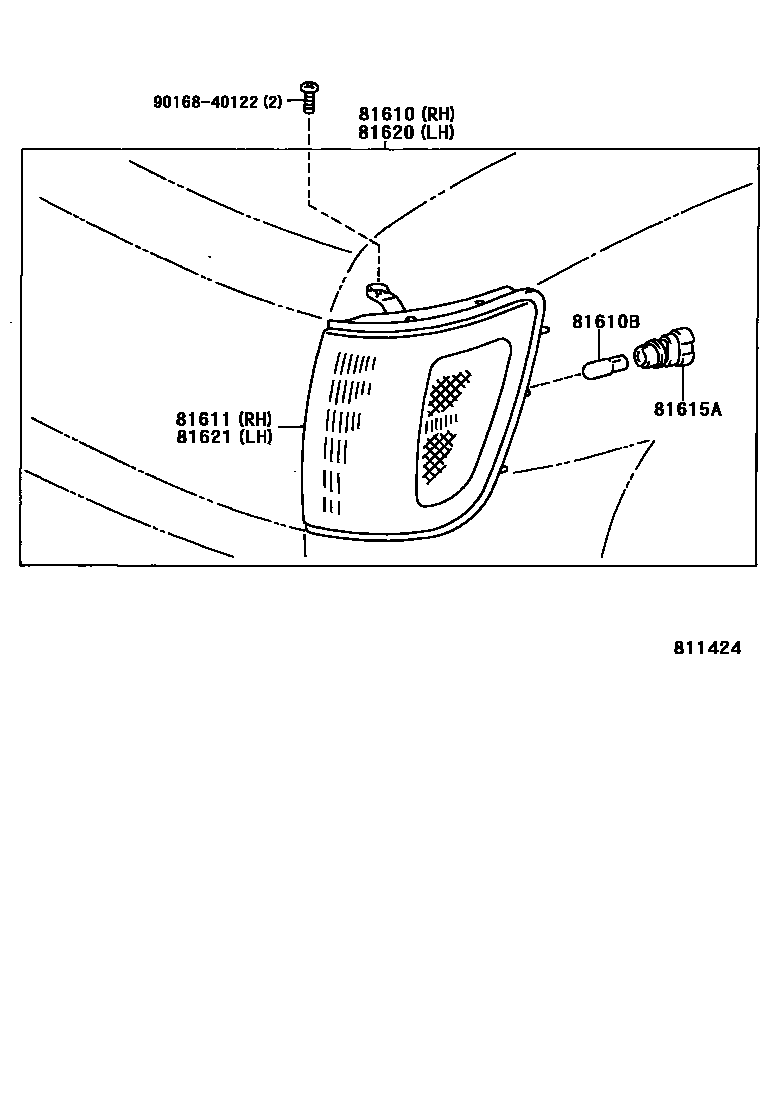

Toyota HILUX EPC diagram 8104, 前示宽灯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81610 | Right parking light and width indicator light assembly | 81610-35320 · 81610-35321 · 81610-35340 |
| 81610B | Bulbs (for parking lights and side lights) | 99132-12050 |
| 81611 | Right parking light and width indicator light cover | 81611-35320 · 81611-35321 · 81611-35340 |
| 81615A | Width light lamp holder plug | 90075-99109 |
| 81620 | Left parking light and width indicator light assembly | 81620-35320 · 81620-35321 · 81620-35350 |
| 81621 | Left parking light and width indicator light cover | 81621-35320 · 81621-35321 · 81621-35350 |
