Toyota HILUX Fog Lamp — Figure 8102

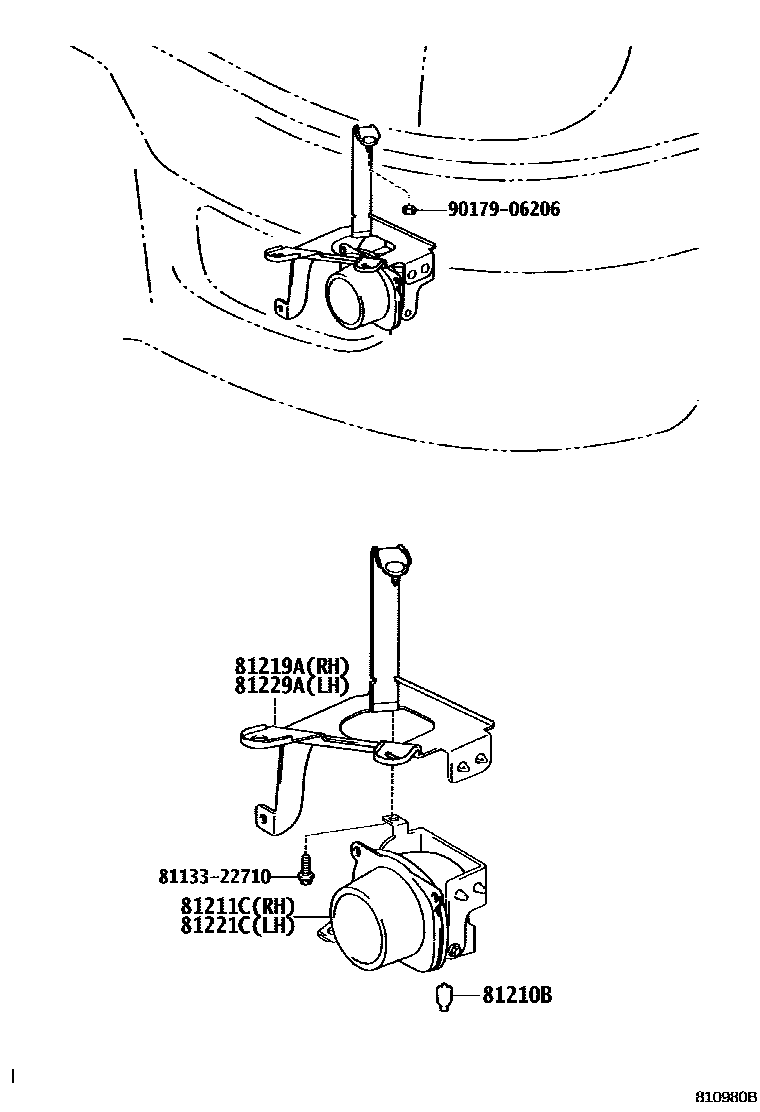

Toyota HILUX EPC diagram 8102, Fog Lamp, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210B | fog light bulb | 90981-13049 |
| 81211C | Right fog light assembly | 81211-35030 |
| 81219A | Right fog light bracket | 81219-35030 · 81219-35040 |
| 81221C | Left fog light assembly | 81221-35010 |
| 81229A | Left fog light bracket | 81229-35010 · 81229-35020 |
