Toyota HILUX Headlamp — Figure 8101

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 4 PNC and OE references.

Toyota HILUX Headlamp EPC diagram — 810309B
Headlamp — 810309B (199511 – 199807)

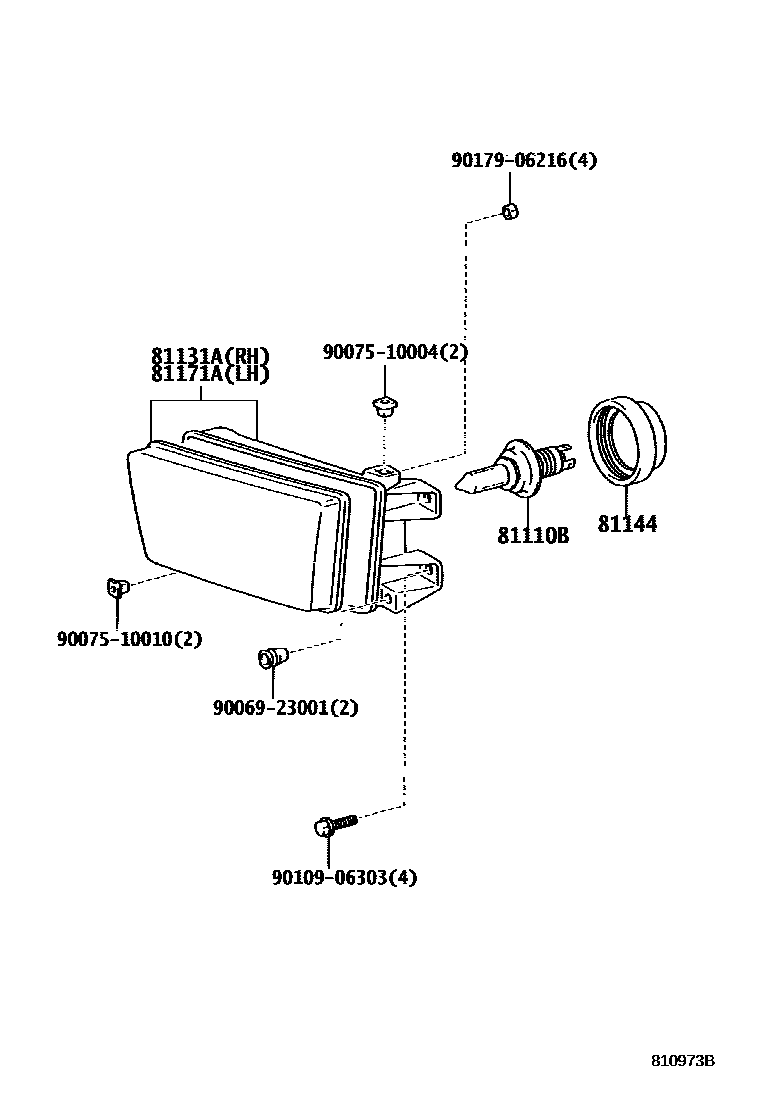

Toyota HILUX Headlamp EPC diagram — 810973B
Headlamp — 810973B (199807 – 999999)

PNC and OE references

PNCPart nameOE numbers
81110BBulb (for headlight No. 1)90981-22004
81131ARight headlight assembly assembly81130-35240 · 81130-35241 · 81130-35330
81144No. 1 headlight cover90075-65002
81171ALeft headlight assembly assembly81170-35220 · 81170-35221 · 81170-35310
