Toyota HILUX accelerator pedal connecting rod — Figure 7851

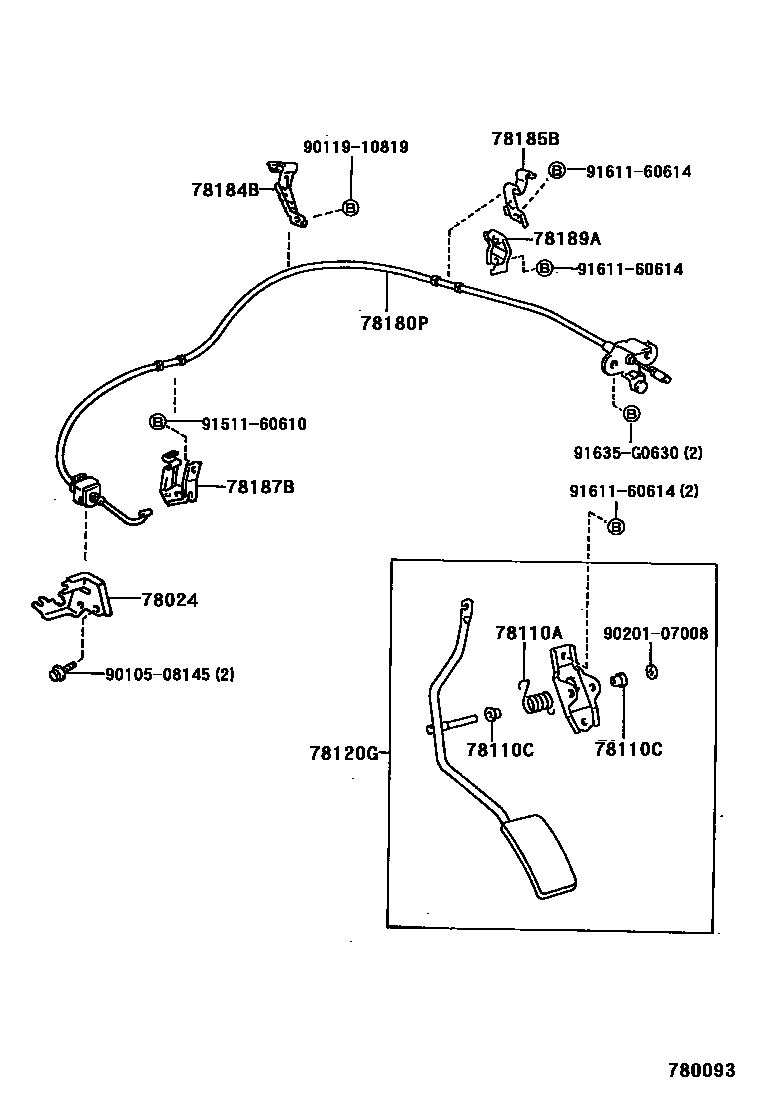

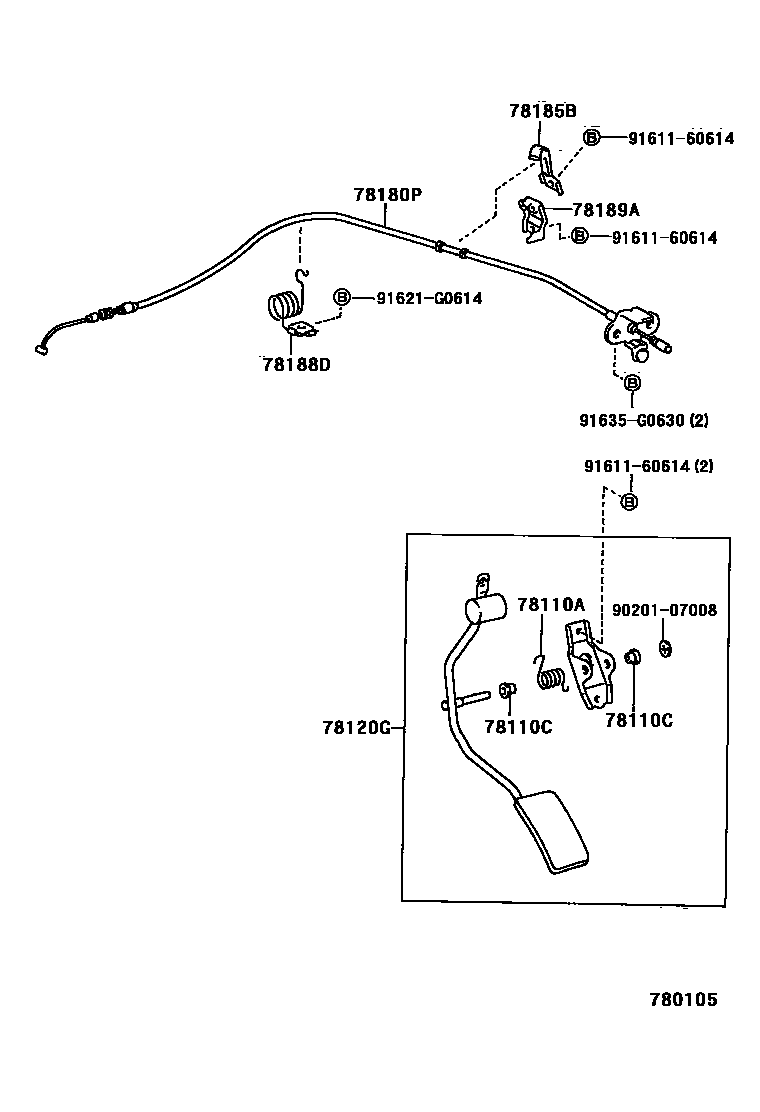

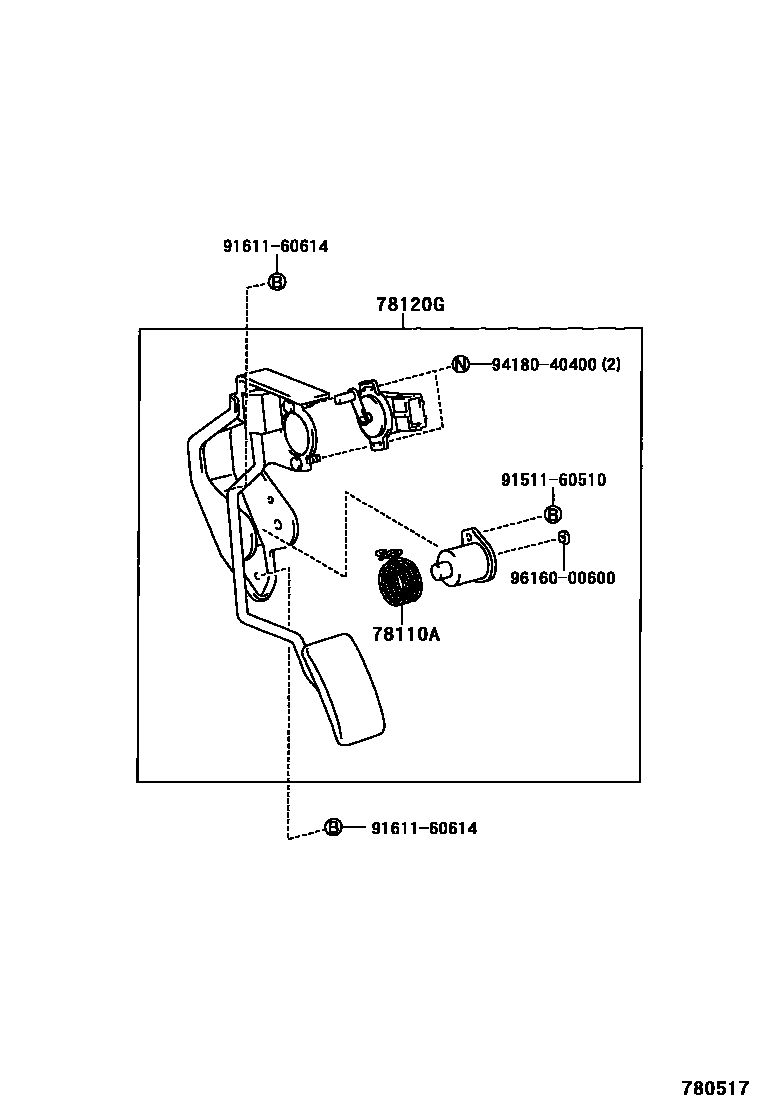

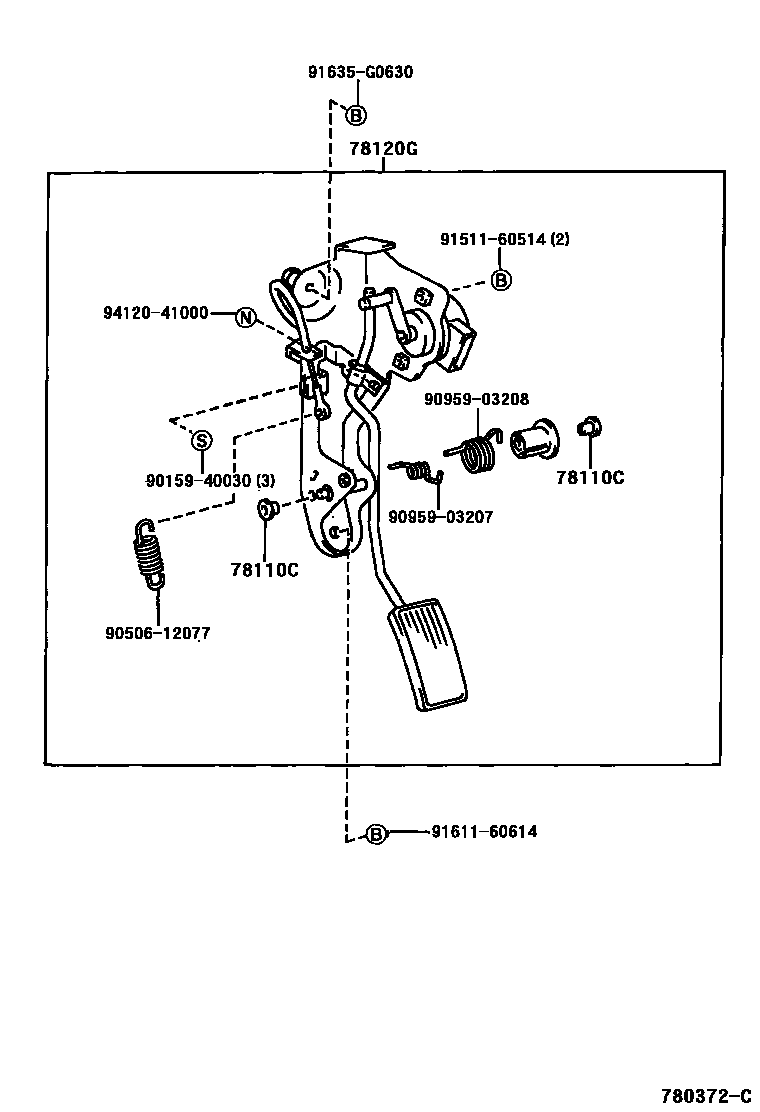

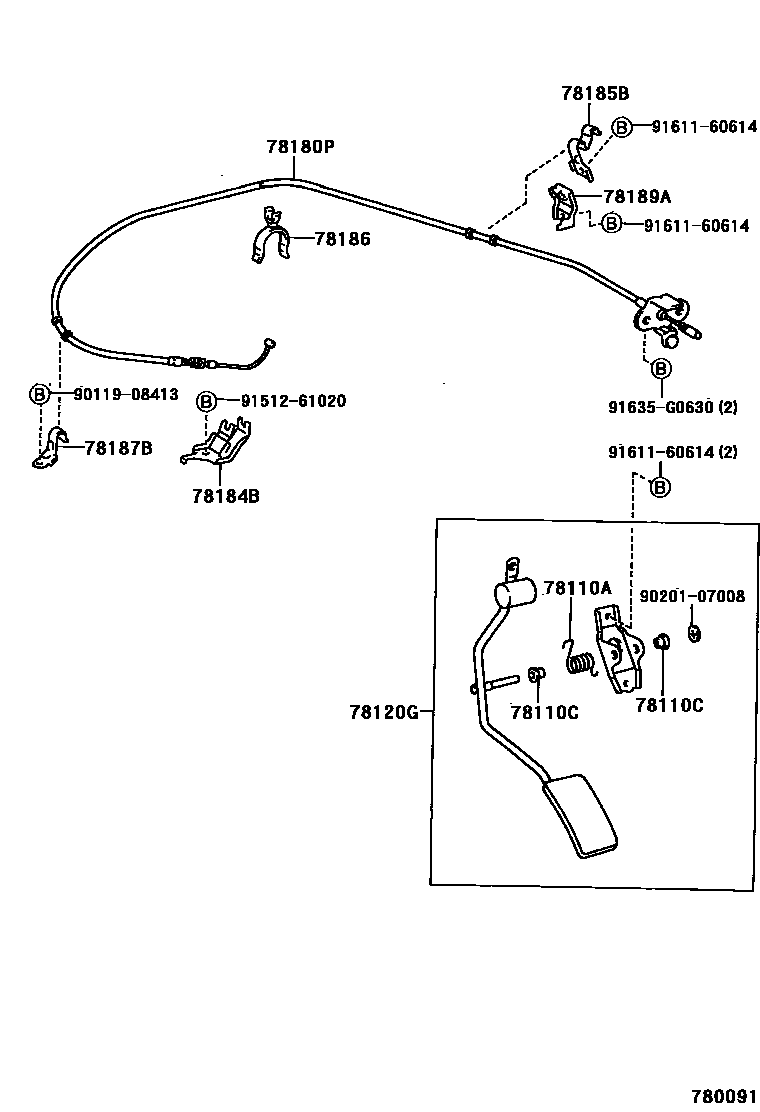

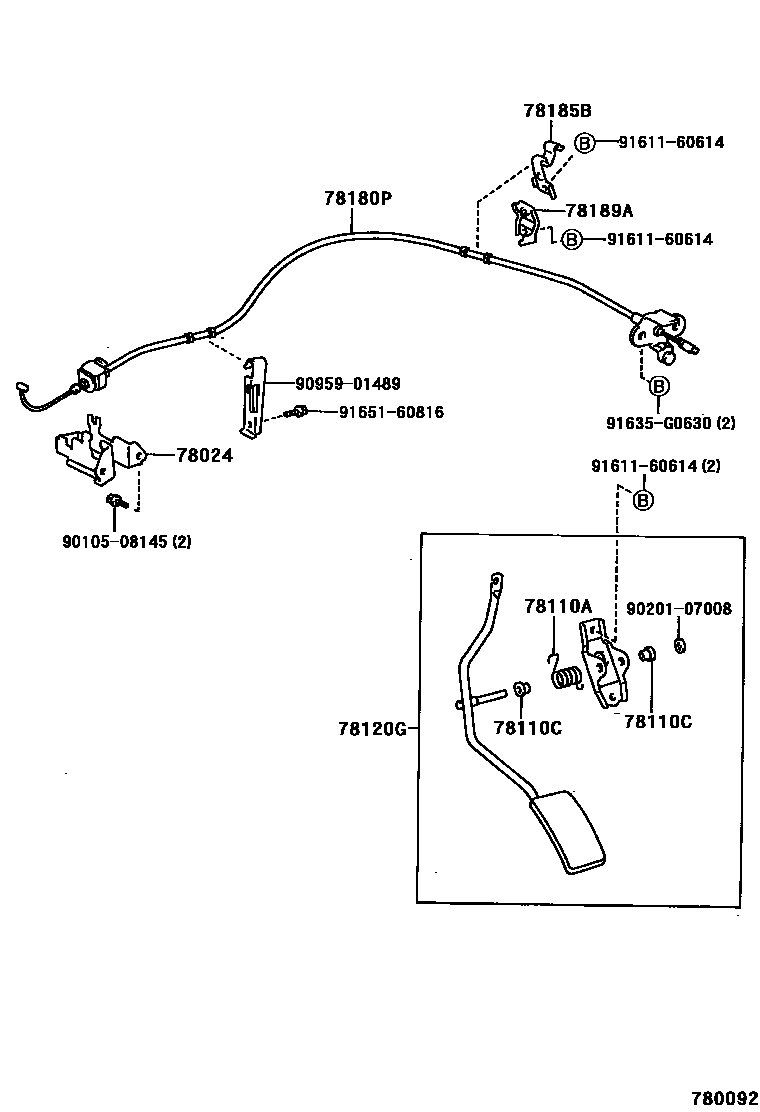

Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 6 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-35020 · 78024-60030 |
| 78110A | Spring (for accelerator pedal lever) | 90959-03085 · 90959-03088 · 90959-03089 · 90959-03299 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-08063 |
| 78120G | Accelerator pedal lever assembly | 78010-35010 · 78010-35060 · 78120-35290 · 78120-35300 · 78120-35310 · 78120-35320 · 78120-35321 |
| 78180P | Accelerator pedal control cable assembly | 78180-35210 · 78180-35220 · 78180-35230 · 78180-35280 |
| 78184B | Throttle pedal control cable bracket | 78184-35080 · 78184-35130 |
| 78185B | No. 6 accelerator pedal control lever rear bracket | 78185-35020 · 78185-35030 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-35060 |
| 78187B | Accelerator pedal cable return spring bracket | 78187-35010 · 78187-35020 |
| 78188D | Accelerator pedal cable return spring shock absorber | 78188-35020 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-35010 |
