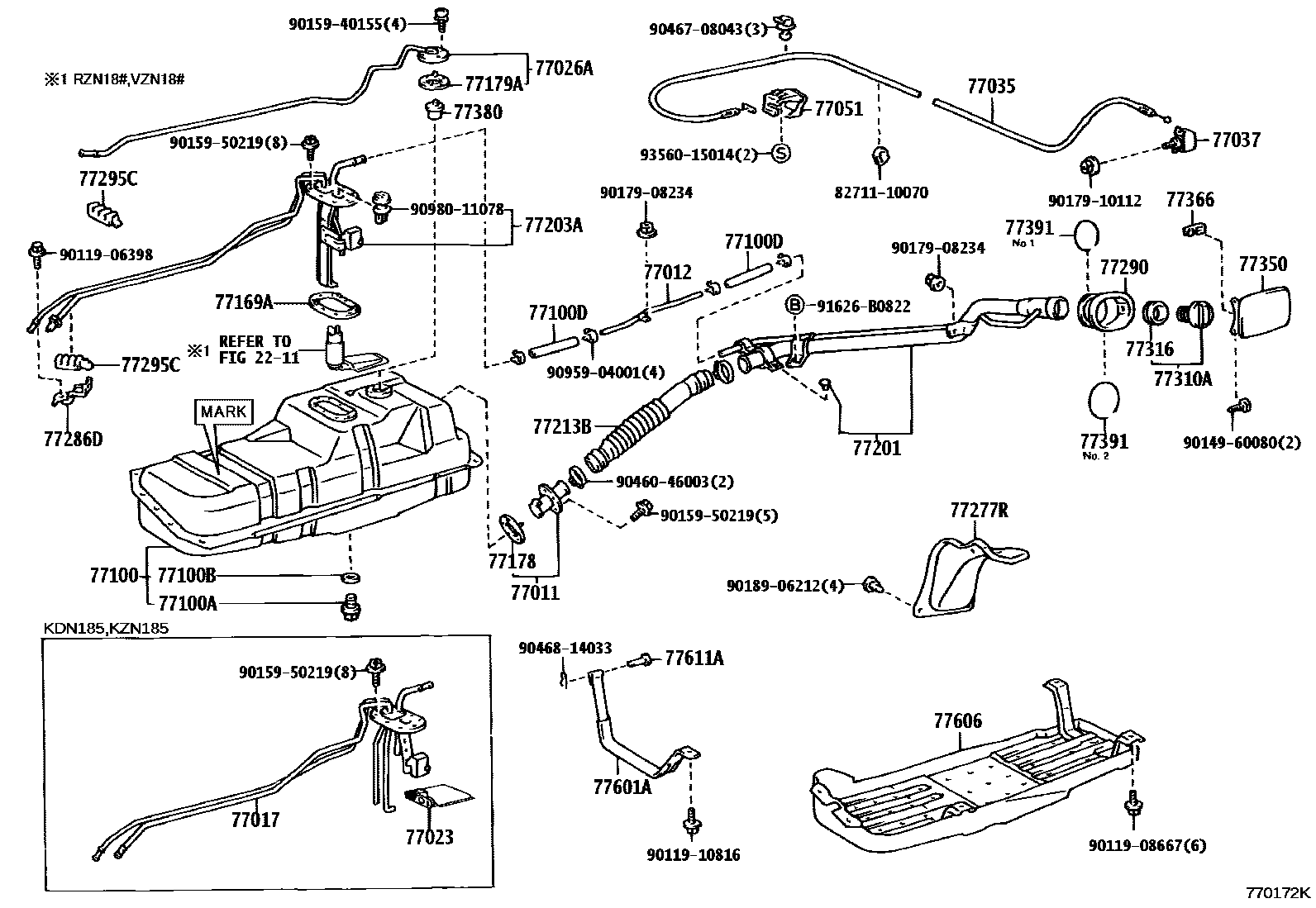

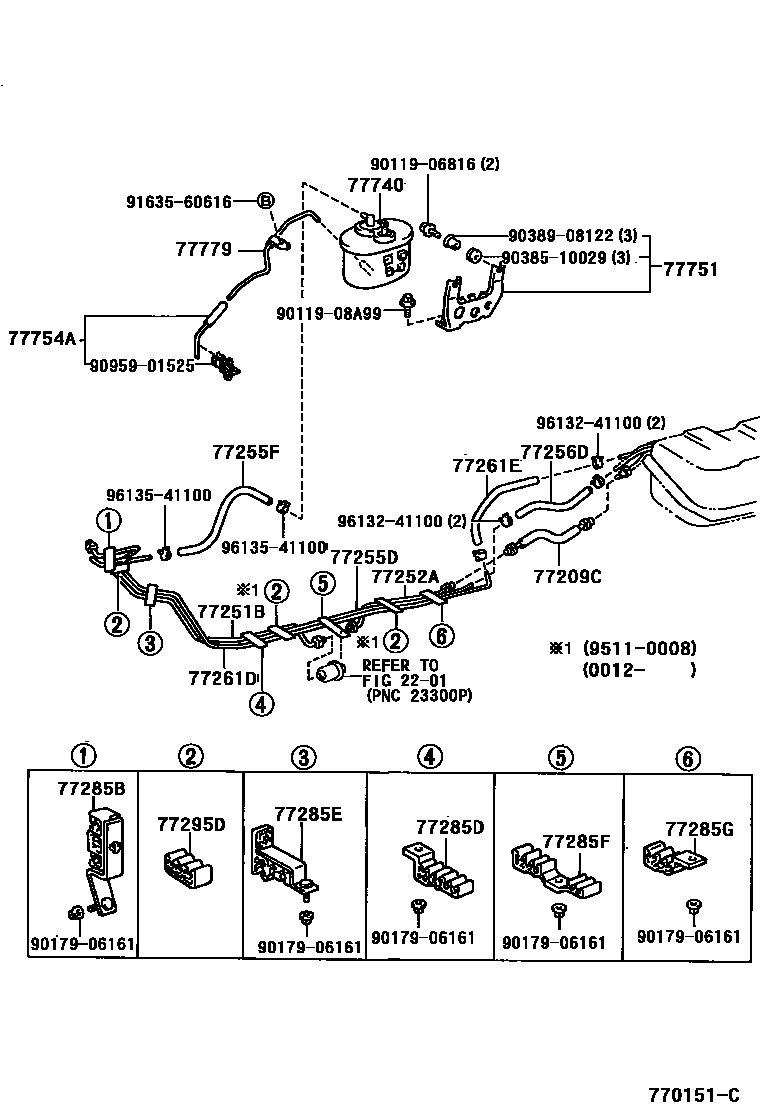

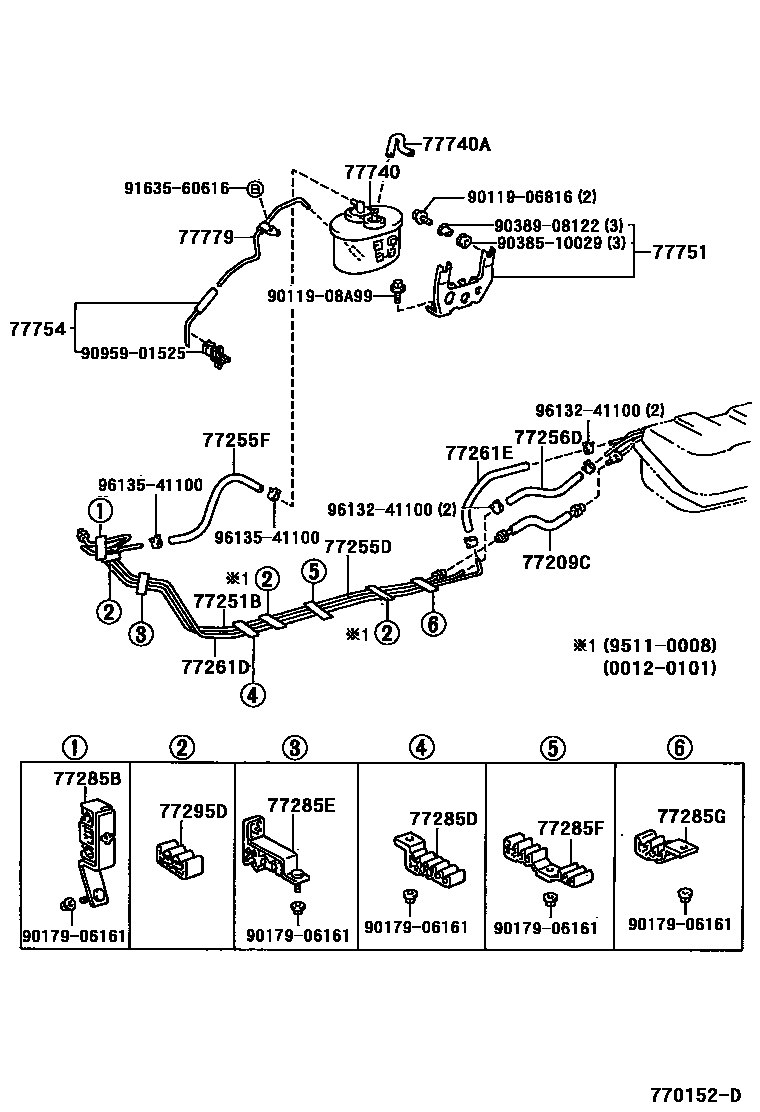

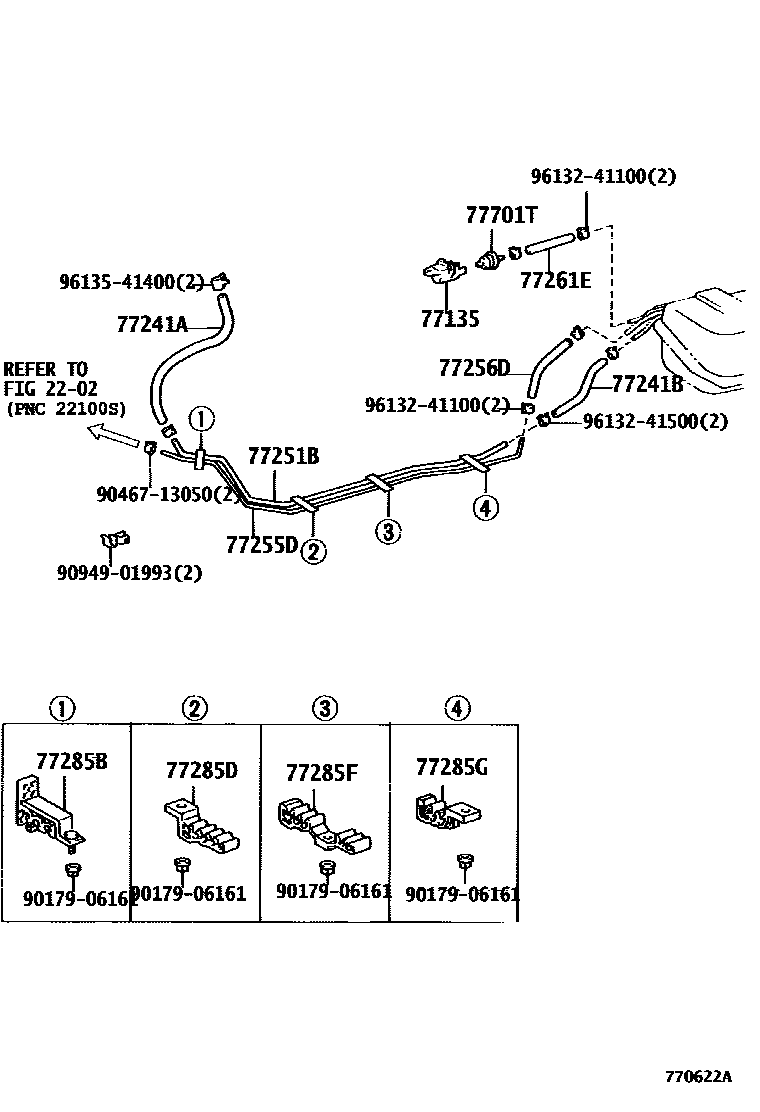

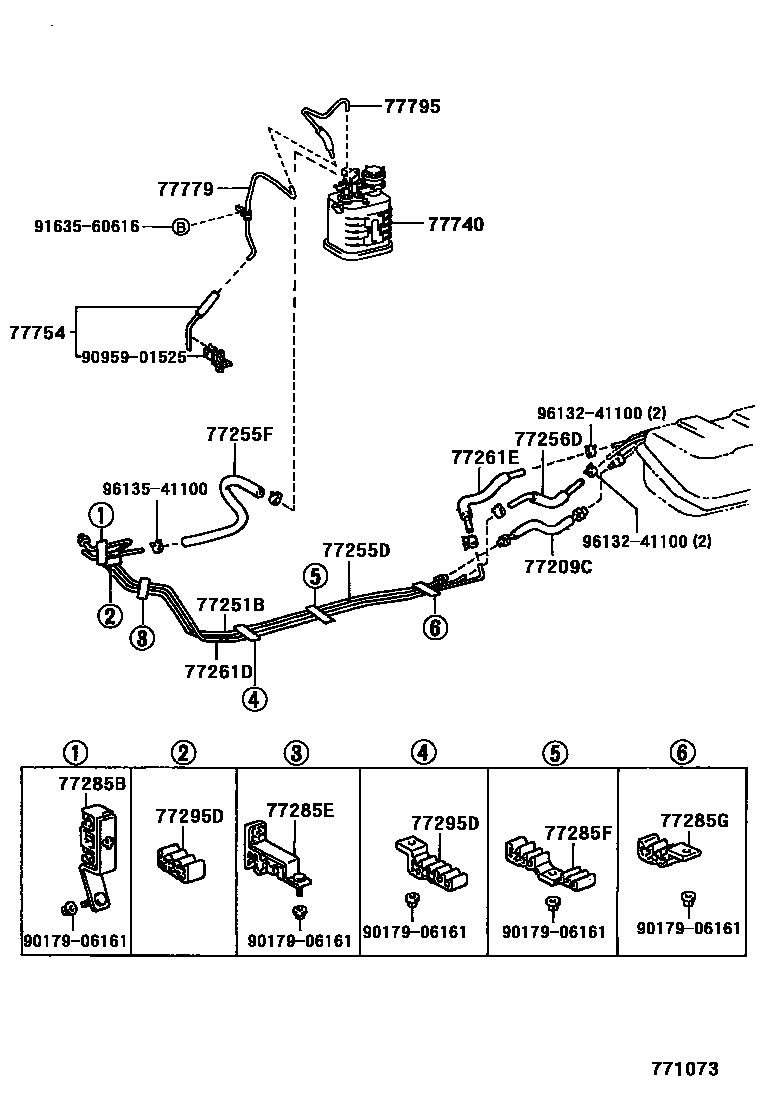

Toyota HILUX 燃油箱和燃油管 — Figure 7751
Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 5 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-12130 |
| 77012 | Fuel tank breather pipe sub-assembly | 77012-35020 |
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77017-35020 · 77017-35021 · 77017-35040 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-26010 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-35090 · 77026-35110 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-35080 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12050 |
| 77051 | Fuel filler cap opening lever sub-assembly | 77051-35010 |
| 77100 | fuel tank assembly | 77001-3D290 · 77001-3D300 |
| 77100A | Screw plug (for fuel tank) | 90105-12116 |
| 77100B | Gasket (for fuel tank) | 90430-12245 |
| 77100D | No. 1 fuel hose (for fuel tank) | 77279-35040 · 77279-35050 |
| 77135 | One-way valve bracket | 77135-20080 |
| 77169A | Fuel suction pipe fixed gasket | 77169-60010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-35500 |
| 77203A | Fuel suction pipe sub-assembly | 77203-35460 · 77203-35461 · 77203-35810 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-35330 |
| 77213B | Fuel tank to filler pipe hose | 77213-35270 · 77213-35300 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 77259-35220 |
| 77251B | main fuel pipe | 77251-3D140 · 77251-3D150 · 77251-3D160 |
| 77252A | No. 2 main fuel pipe | 77252-35350 |
| 77255D | fuel return pipe | 77255-35740 · 77255-35750 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 77259-35450 |
| 77256D | No. 1 fuel hose (for No. 2 fuel return pipe) | 23273-75040 · 77279-35090 · 77279-35110 · 95333-06030 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-35520 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77249-35100 · 77259-35300 |
| 77277R | Fuel tank filler pipe protection device | 77277-35010 |
| 77285B | No. 1 fuel pipe clamp with retaining ring | 77285-35230 · 77285-35270 |
| 77285D | No. 1 fuel pipe clamp | 77285-35280 |
| 77285E | No. 1 fuel pipe clamp with retaining ring | 77285-35260 |
| 77285F | No. 1 fuel pipe clamp | 77285-35290 |
| 77285G | No. 1 fuel pipe clamp | 77285-35300 |
| 77286D | No. 2 fuel pipe clamp | 77286-35030 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-35060 |
| 77295C | Fuel pipe retaining ring | 77295-35140 · 77295-35150 |
| 77295D | Fuel pipe retaining ring | 77295-35110 |
| 77310A | Fuel tank cap assembly | 77310-12150 · 77310-35070 · 77310-35110 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-35040 |
| 77366 | Fuel filler cap hinge spring | 77360-35010 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77391 | fuel inlet ring | 77391-14020 · 77391-35010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-35060 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-35010 · 77606-35050 |
| 77611A | Pin (for fuel tank strap) | 90240-08118 |
| 77701T | Check valve (for main fuel tank) | 90917-10067 |
| 77740 | Carbon canister assembly | 77704-35320 · 77740-60430 |
| 77740A | No. 1 fuel hose (for canister) | 23829-75110 |
| 77751 | Carbon canister base bracket | 77751-35100 |
| 77754 | No. 1 carbon canister outlet hose | 77754-35330 |
| 77754A | No. 2 carbon canister outlet hose | 77754-35330 |
| 77779 | Carbon canister outlet pipe | 77779-35030 · 77779-35070 |
| 77795 | No. 2 carbon canister outlet hose | 77795-60050 |
