Toyota HILUX 防护条 — Figure 7552

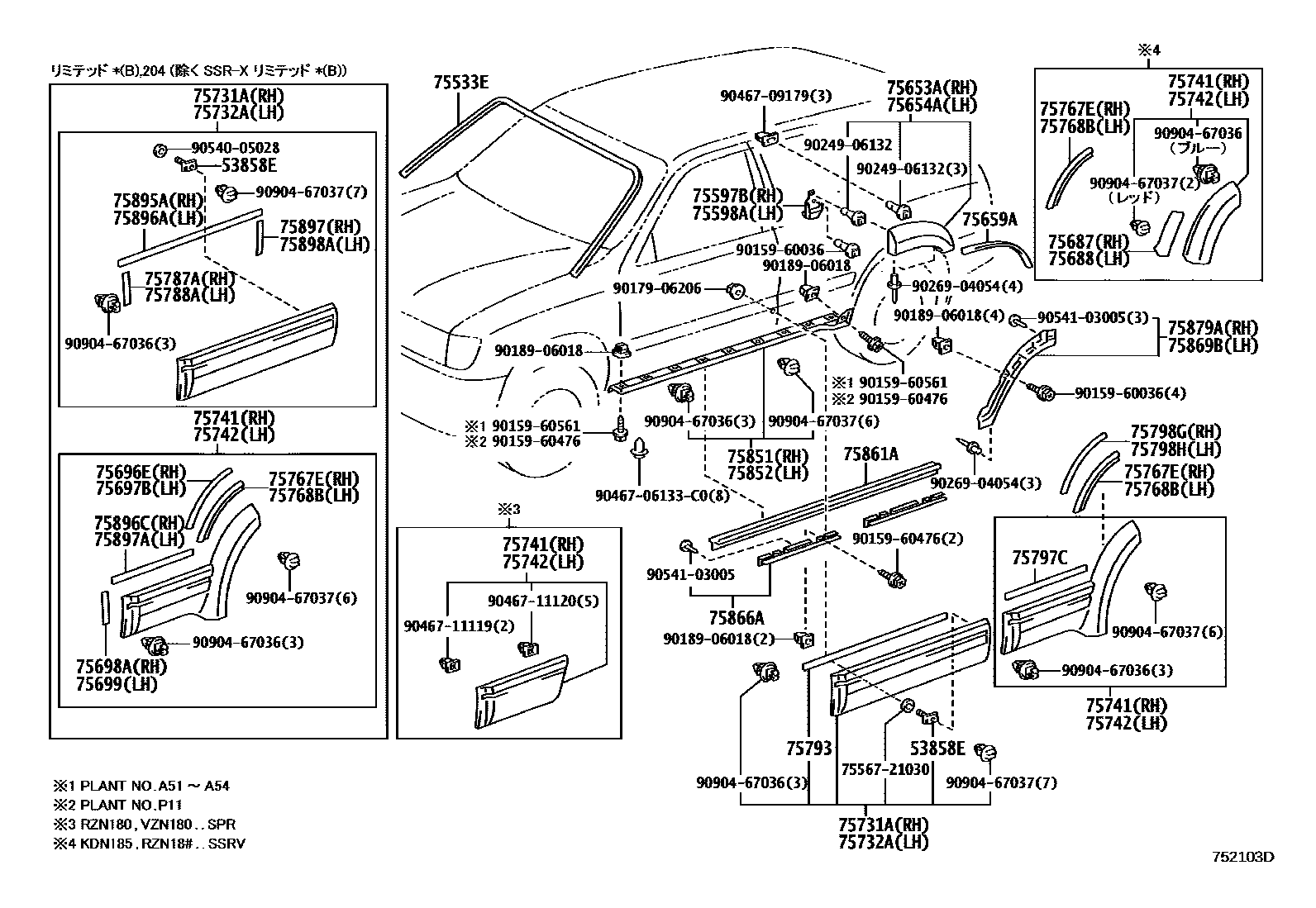

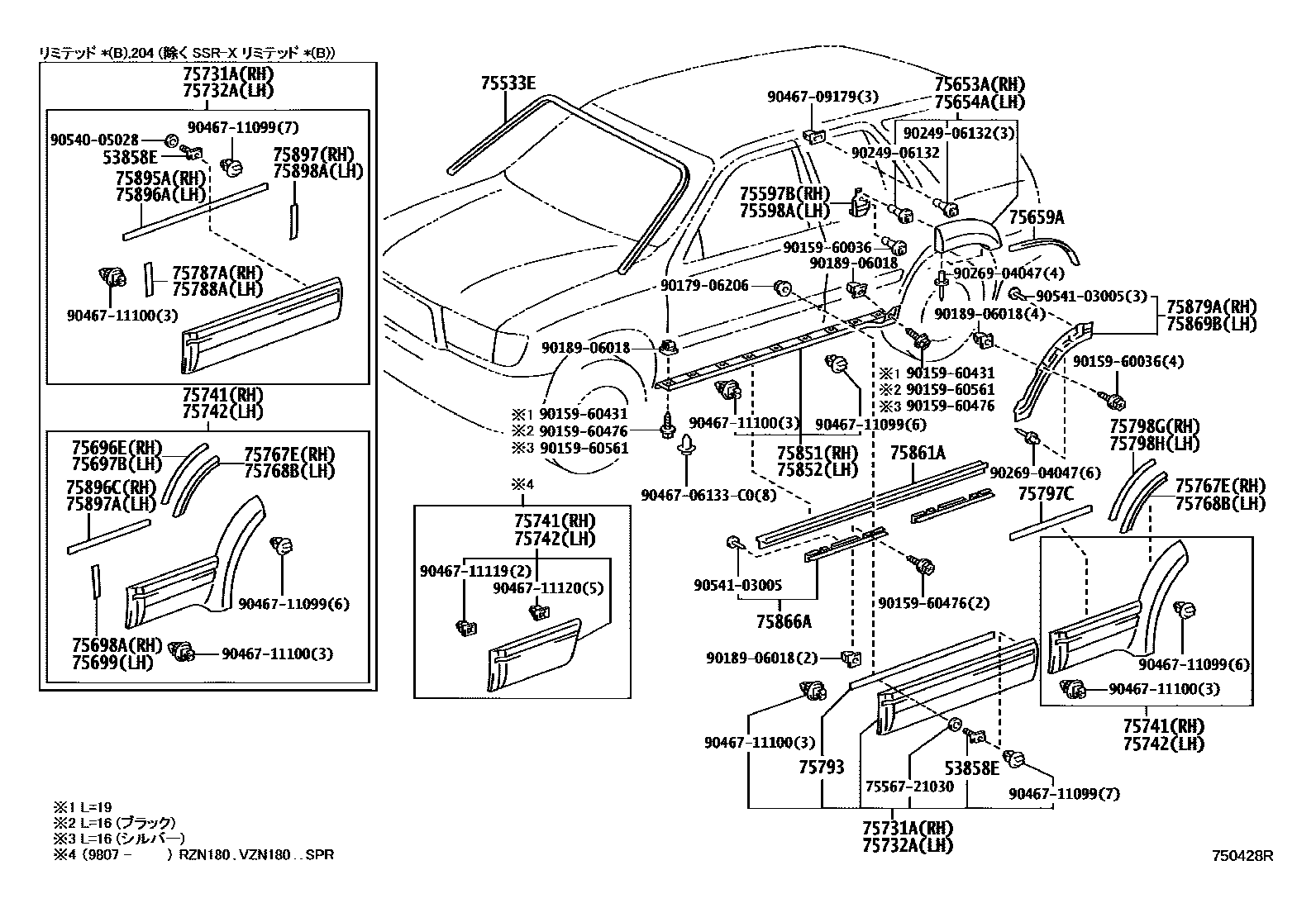

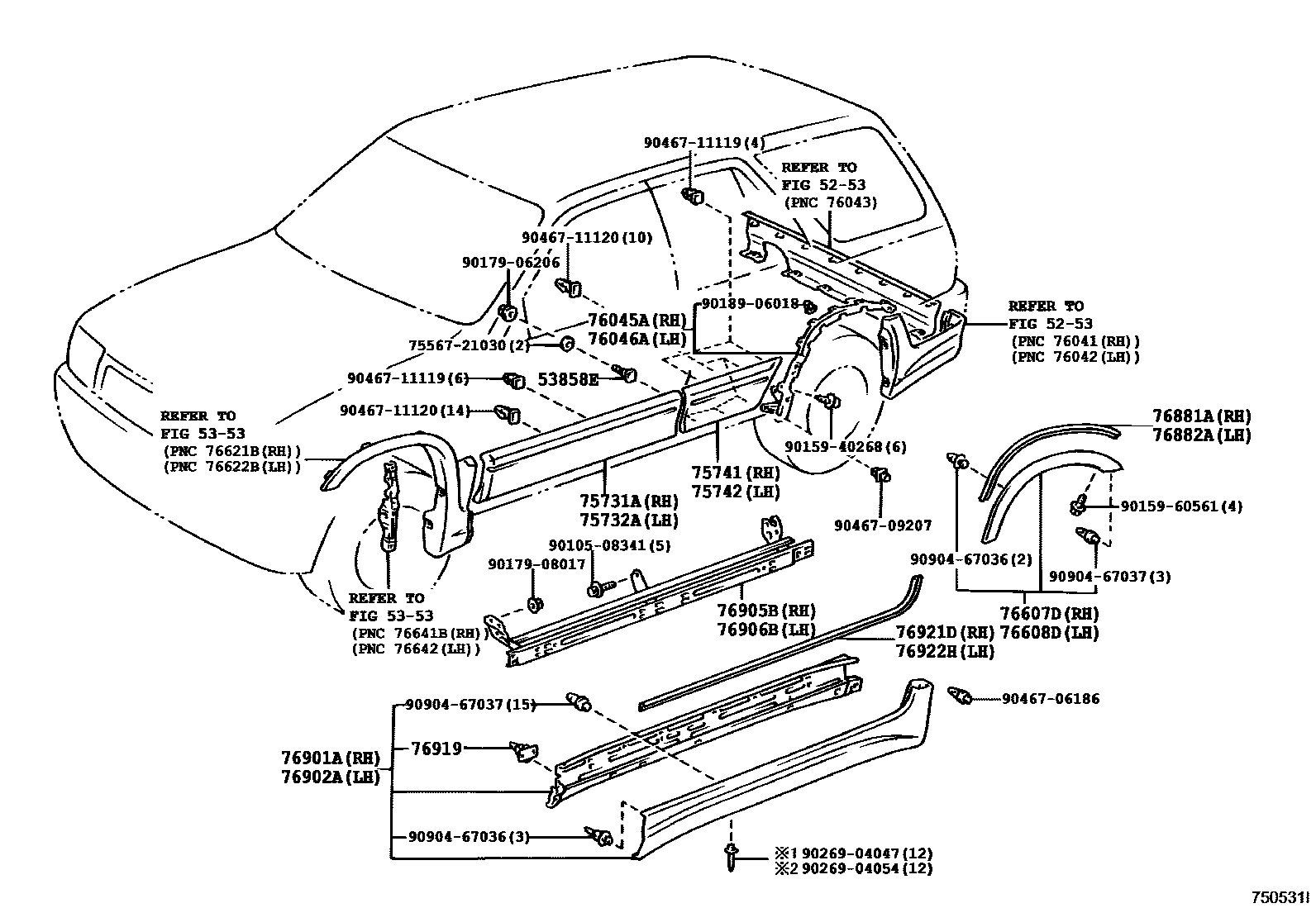

Toyota HILUX EPC diagram 7552, 防护条, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53858E | Fender outer panel fixing bolts | 52491-35010 · 52491-35020 |

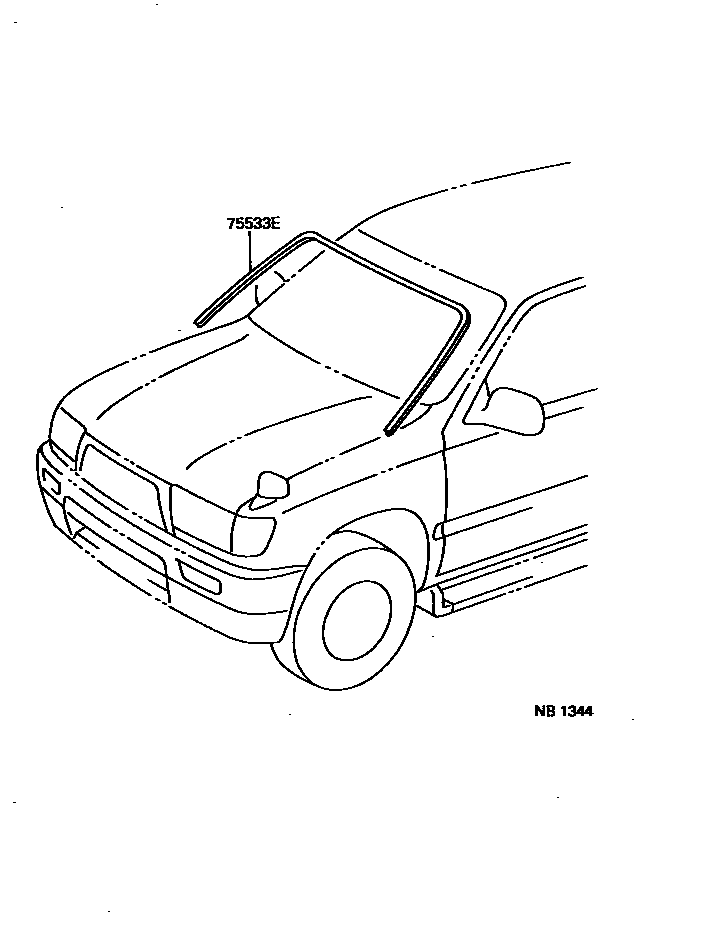

| 75533E | Windshield outer protective strip | 75533-35020 · 75533-35030 |
| 75597B | Right front side panel decorative panel fixing | 75597-35010 |
| 75598A | Left front side panel decorative panel fixing | 75598-35010 |
| 75653A | Right rear side panel outer protective strip | 75605-35900 |
| 75654A | Left rear side panel outer protective strip | 75606-35900 |
| 75659A | No. 1 side panel protective strip lining | 75659-35010 · 75659-35020 · 75659-35030 |
| 75687 | Right rear side panel lower protective strip protection device | 75687-35020 |
| 75688 | Left rear side panel lower protective strip protection device | 75688-35020 |
| 75696E | Body right outer protective strip lining tape | 75696-35030 |
| 75697B | Body left outer protective strip padding tape | 75696-35030 |
| 75698A | No. 3 body outer protective strip lining | 75787-35010 |
| 75699 | No. 4 body outer protective strip lining | 75788-35010 |
| 75731A | Right front door outer protective strip | 75071-35050 · 75071-35900 · 75071-35903 |
| 75732A | Left front door outer protective strip | 75072-35050 · 75072-35900 · 75072-35902 |
| 75741 | Right rear door outer protective strip | 75075-35050 · 75075-35902 · 75075-35903 |
| 75742 | Left rear door outer protective strip | 75076-35050 · 75076-35902 · 75076-35903 |
| 75767E | Right rear door protective strip lining | 75767-35010 · 75767-35020 · 75767-35030 |
| 75768B | Left rear door protective strip lining | 75767-35010 · 75767-35020 · 75767-35030 |
| 75787A | Right front door outer protective strip lining | 75787-35010 |
| 75788A | Left front door outer protective strip lining | 75788-35010 |
| 75793 | Front door outer upper protective strip lining | 75793-35010 |
| 75797C | Rear door outer upper protective strip lining | 75797-35010 |
| 75798G | Right rear door protective strip gasket tape | 75798-35010 |
| 75798H | Left rear door protective strip gasket tape | 75798-35010 |
| 75861A | No. 1 door sill panel protective strip protective cover | 75861-35010 · 75861-35020 · 75861-35030 |
| 75866A | Door sill panel protective strip fixings | 75866-35010 |
| 75869B | Left side panel opening fixing | 75869-35010 · 75869-35020 |
| 75879A | Right side panel opening fixing | 75879-35010 · 75879-35020 |
| 75895A | No. 1 protective strip tape | 75895-35010 |
| 75896A | No. 2 protective strip tape | 75895-35010 |
| 75896C | No. 2 protective strip tape | 75896-35010 |
| 75897 | No. 3 protective tape | 75897-35010 |
| 75897A | No. 2 protective strip tape | 75896-35010 |
| 75898A | No. 4 protective tape | 75898-35010 |
| 76045A | Right side fender fender fixing sub-assembly | 76045-35010 |
| 76046A | Left side fender fender fixing part sub-assembly | 76046-35010 |
| 76607D | Right side fender sub-assembly | 76607-35900 |
| 76608D | Left side fender sub-assembly | 76608-35900 |
| 76901A | Right fender sub-assembly | 76901-35900 |
| 76902A | Left fender sub-assembly | 76902-35900 |
| 76905B | Right fender lower fixing part sub-assembly | 76905-35010 |
| 76906B | Left fender lower fixing part sub-assembly | 76906-35010 |
| 76919 | Side fender liners | 76919-35010 |
