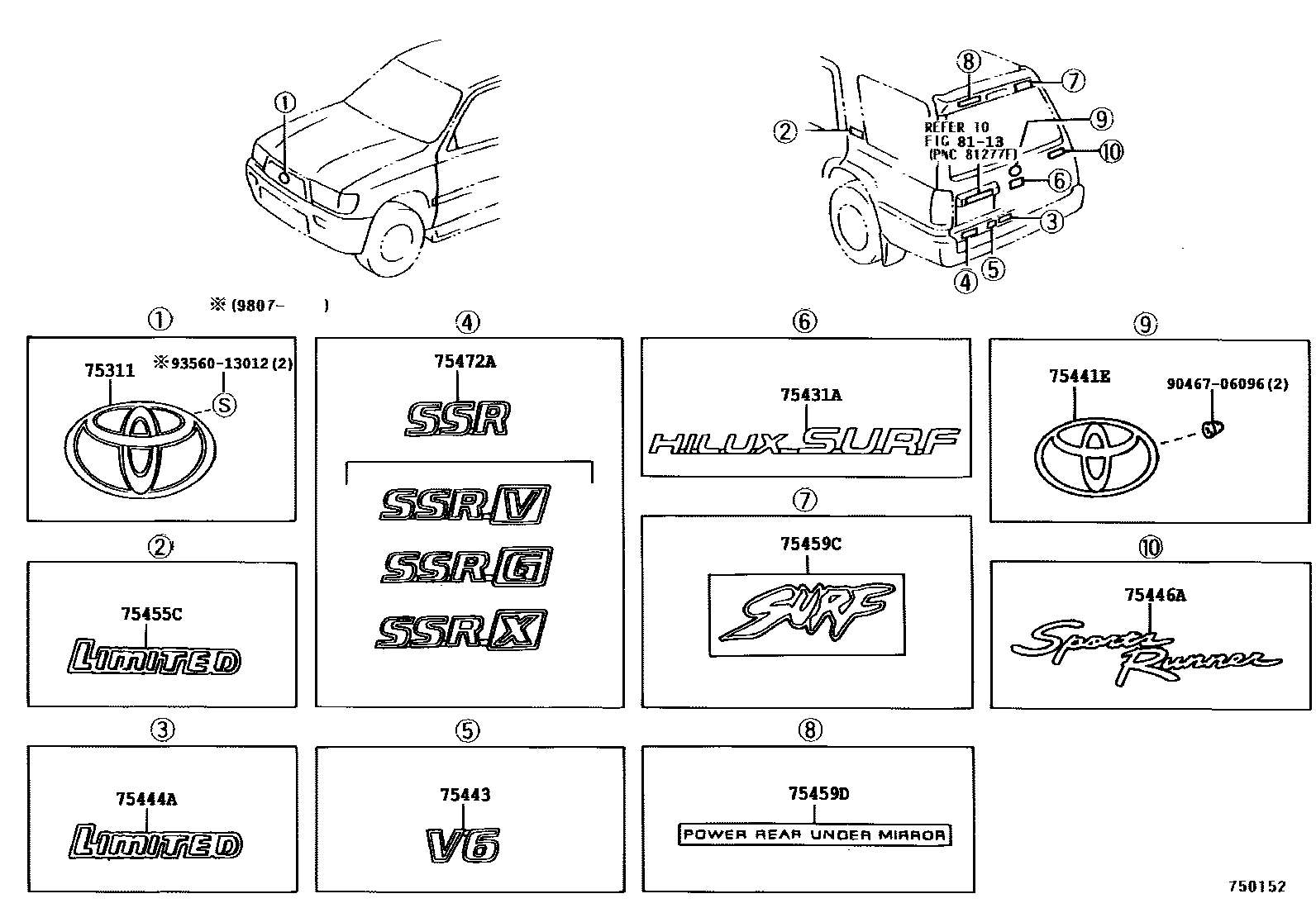

Toyota HILUX 徽标和铭牌 — Figure 7551
Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-35090 · 75311-35140 · 75311-60090 |
| 75431A | No. 1 sign on back door | 75431-35010 · 75444-35030 |
| 75441E | Back door No. 1 nameplate | 75441-35010 |
| 75443 | No. 3 nameplate on back door | 75443-35020 · 75443-35040 |
| 75444A | No. 4 nameplate on back door | 75455-35010 · 75455-35020 |
| 75446A | No. 6 nameplate on back door | 75446-35020 |
| 75455C | No. 1 nameplate on roof side | 75455-35010 · 75455-35020 |
| 75459C | No. 1 rear sun visor mark | 75459-35020 |
| 75472A | No. 2 nameplate on rear body | 75442-35030 · 75442-35040 · 75442-35050 · 75442-35060 · 75442-35090 · 75442-35100 · 75442-35110 · 75442-35120 |
