Toyota HILUX battery holder — Figure 7454

Toyota HILUX EPC diagram 7454, battery holder, with 3 images and 4 PNC and OE references.

Toyota HILUX battery holder EPC diagram — NB1338
battery holder — NB1338 (199511 – 999999)

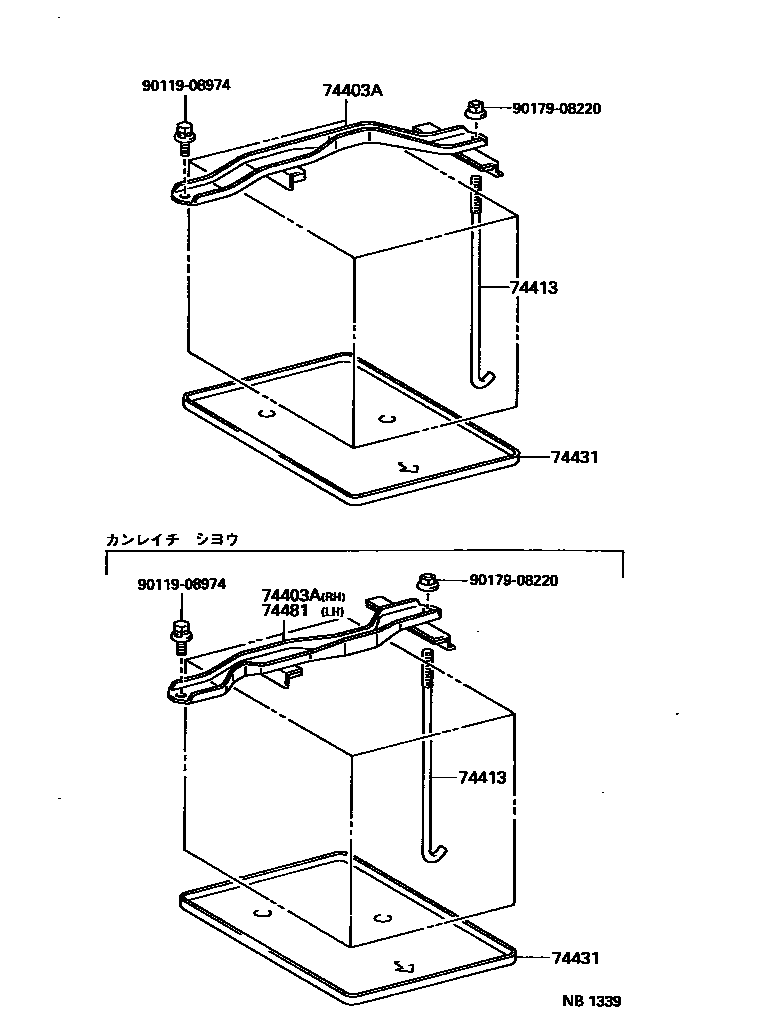

Toyota HILUX battery holder EPC diagram — NB1339
battery holder — NB1339 (199511 – 999999)
Toyota HILUX battery holder EPC diagram — NB1340
battery holder — NB1340 (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
74403ABattery bracket sub-assembly74403-35010
74413Battery clamp bolt74451-35060
74431battery tray74431-14030 · 74431-35030 · 74431-35040
74481Battery fixing clip74404-35140
