Toyota HILUX 座椅和座椅滑轨 — Figure 7151

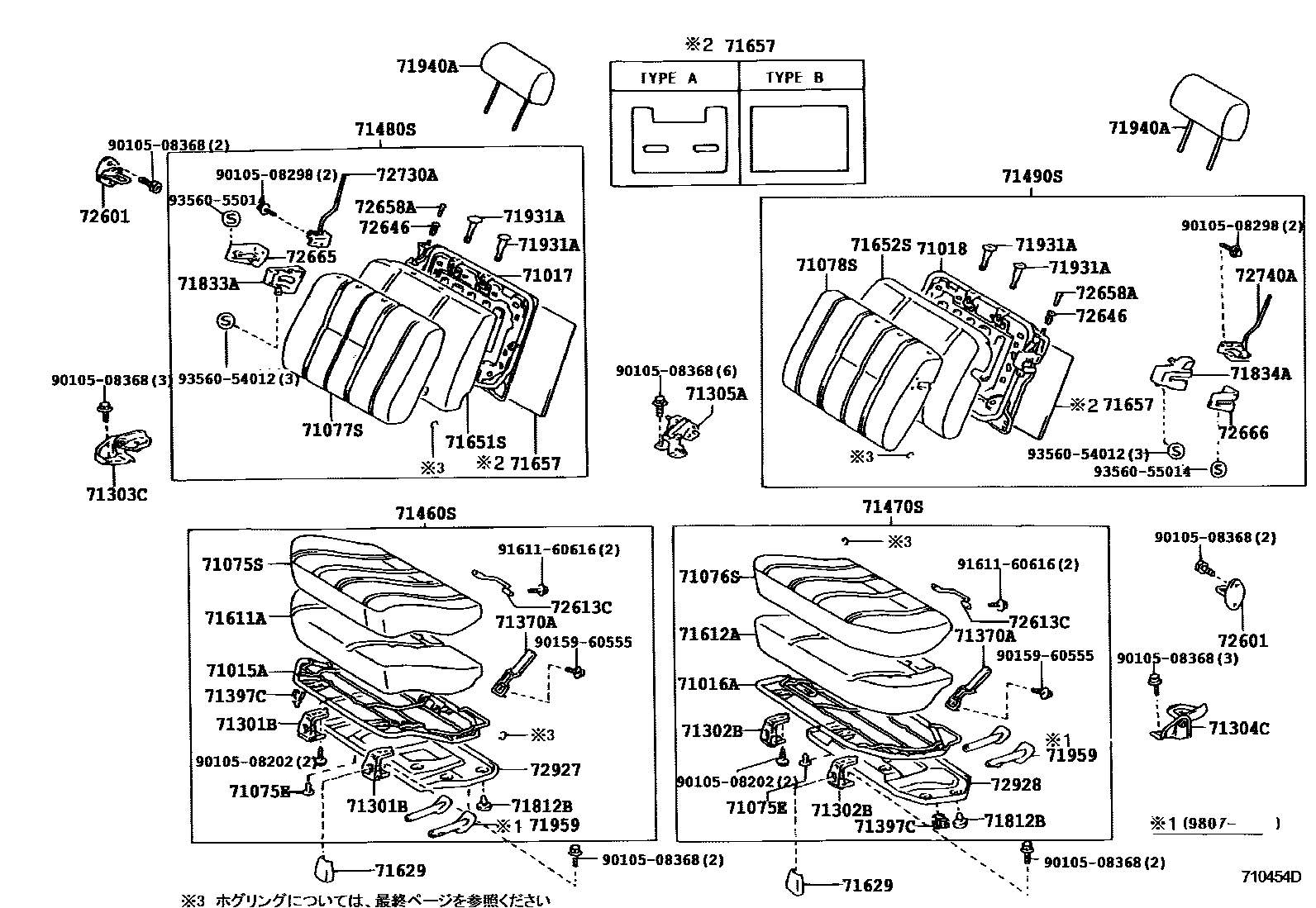

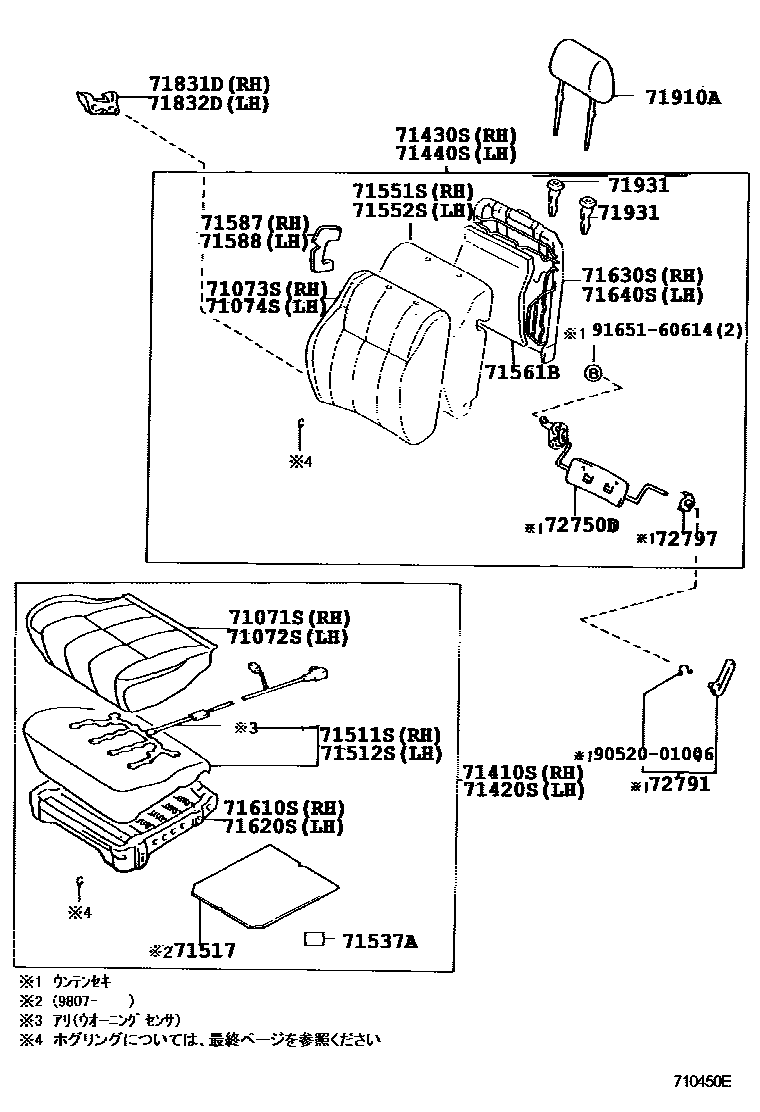

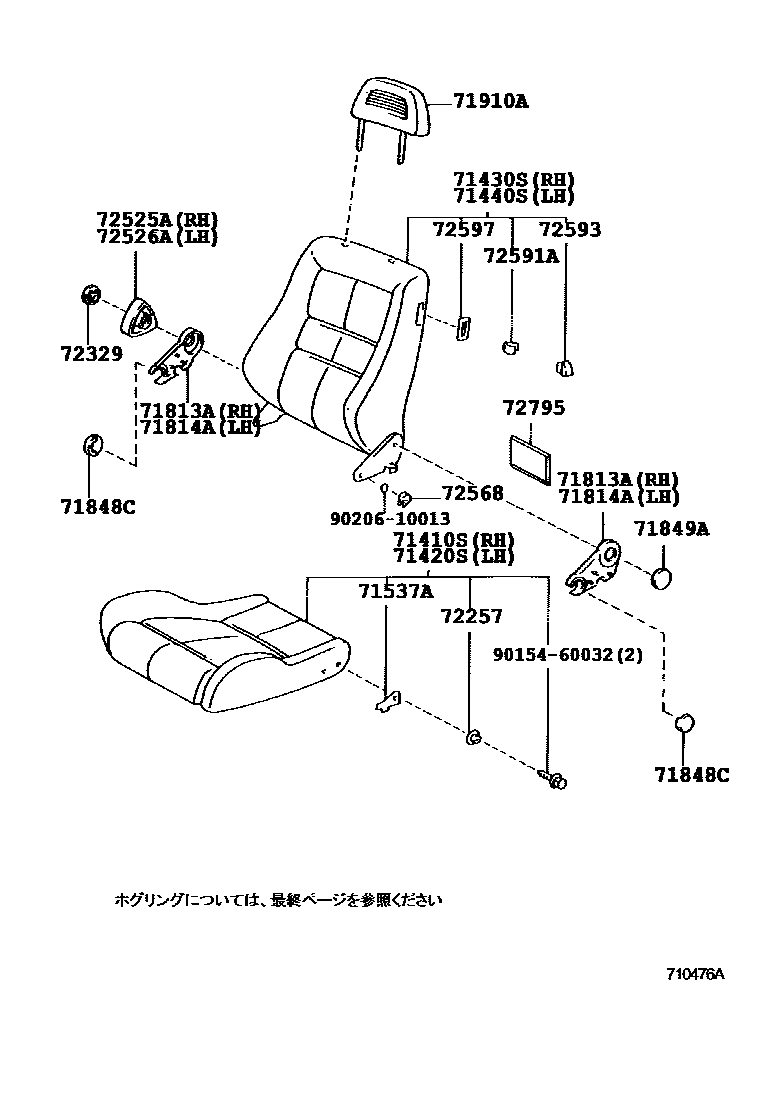

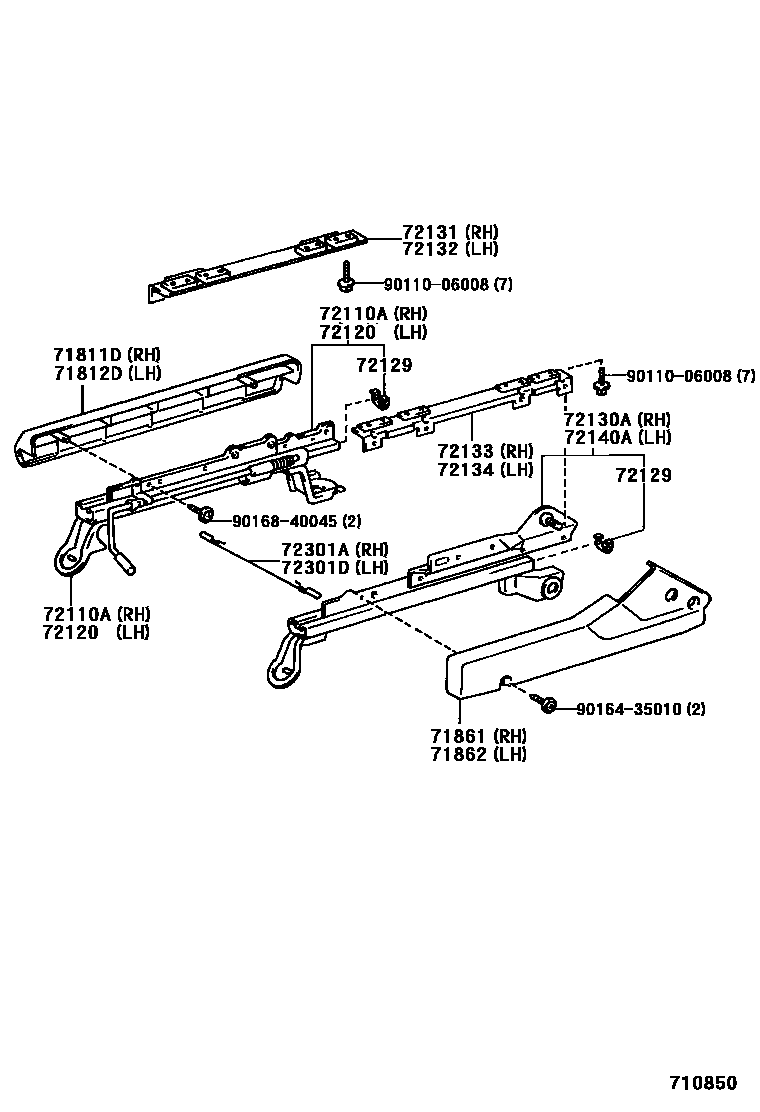

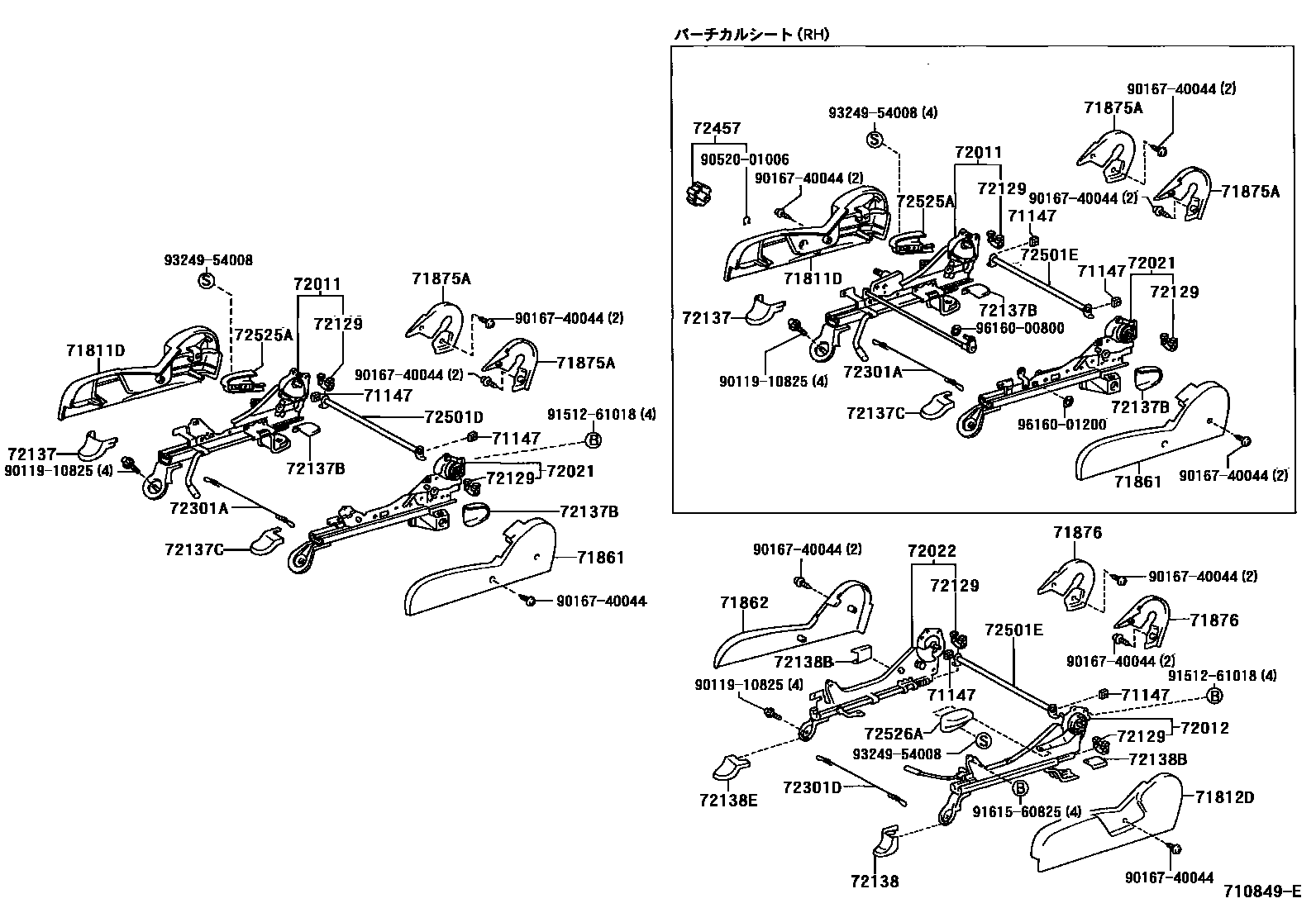

Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 6 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-35020 · 71015-35070 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-35030 · 71016-35040 |
| 71017 | Right rear seat back frame sub-assembly | 71017-35060 · 71017-35190 |
| 71018 | Rear left seat back frame sub-assembly | 71018-35060 · 71018-35090 |
| 71147 | seat spring muffler | 71147-35010 |
| 71301B | No. 1 seat hinge sub-assembly on the right side of the rear row | 71301-35020 · 71301-35030 |
| 71302B | Hinge sub-assembly of No. 1 seat on the left side of the rear row | 71301-35020 · 71301-35030 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-35010 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-35010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-35010 · 71305-35040 |
| 71397C | Rear seat block | 71397-60010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-35040 · 71511-35050 |
| 71512S | Front left seat cushion cushion (for split seats) | 71501-35030 · 71501-35040 · 71501-35050 · 71501-35060 · 71511-35040 · 71511-35050 |
| 71517 | Front seat cushion lower lining | 71517-34060 · 71517-35060 |
| 71537A | Front seat cushion protective cover | 71537-35020 · 71537-35030 |
| 71551S | Front right seat back cushion (for split seats) | 71551-35040 · 71551-35050 |
| 71552S | Front left seat back cushion (for split seats) | 71551-35040 · 71551-35050 |
| 71561B | Padded front seat backrest | 71561-35100 · 71561-35110 |
| 71587 | Front seat back edge protective cover | 71587-60080 |
| 71588 | Front seat back edge protective cover No. 2 | 71588-60030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-35060 · 71610-35110 |
| 71611A | Rear right seat cushion | 71611-35020 |
| 71612A | Rear left seat cushion | 71612-35010 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-35060 · 71610-35110 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-35100 · 71630-35110 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-35110 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-35040 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-35030 |
| 71657 | Rear seat backrest lower lining | 71657-35060 |
| 71831D | Front right seat hinge cover | 71831-35050 |
| 71832D | Front left seat hinge cover | 71832-35050 |
| 71833A | Rear right No. 1 seat back recliner cover | 71833-35010 |
| 71834A | Rear left seat back recliner cover No. 1 | 71834-35010 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-35070 · 72011-35080 · 72011-35090 · 72011-35100 · 72011-35190 · 72011-35200 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-35100 · 72012-35120 · 72012-35220 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-35070 · 72021-35080 · 72021-35090 · 72021-35100 · 72021-35180 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-35090 · 72022-35110 · 72022-35180 |
| 72110A | Front right seat outer slide rail assembly | 72110-35030 · 72110-35070 |
| 72120 | Front left seat outer slide rail assembly | 72120-35040 · 72120-35080 · 72120-35190 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-21010 · 72129-35010 |
| 72130A | Front right seat inner slide rail assembly | 72130-35030 · 72130-35060 |
| 72131 | Front right seat outer slide rail upper rail bracket | 72131-35020 |
| 72132 | Front left seat outer slide rail upper rail bracket | 72132-35010 |
| 72133 | Front right seat inner slide rail upper rail bracket | 72133-35010 |
| 72134 | Front left seat inner slide rail upper rail bracket | 72133-35010 |
| 72140A | Front left seat inner slide rail assembly | 72140-35040 · 72140-35070 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-35030 · 72301-35050 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-35030 · 72301-35050 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-35010 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-35010 |
| 72568 | Seat back tilt bolt locking plate | 72568-17010 |
| 72591A | Seat back tilt rocker | 72591-10030 |
| 72601 | Rear seat lock sub-assembly | 72601-35010 |
| 72613C | Rear seat lock | 72613-35030 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-35010 · 72730-35020 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-35010 · 72740-35020 |
| 72750D | Right lumbar support adjuster assembly | 72750-35020 |
| 72795 | Lumbar support pads | 72795-12030 |
| 72797 | lumbar support spacer | 72797-50010 |
