Toyota HILUX 锁芯组件 — Figure 6765

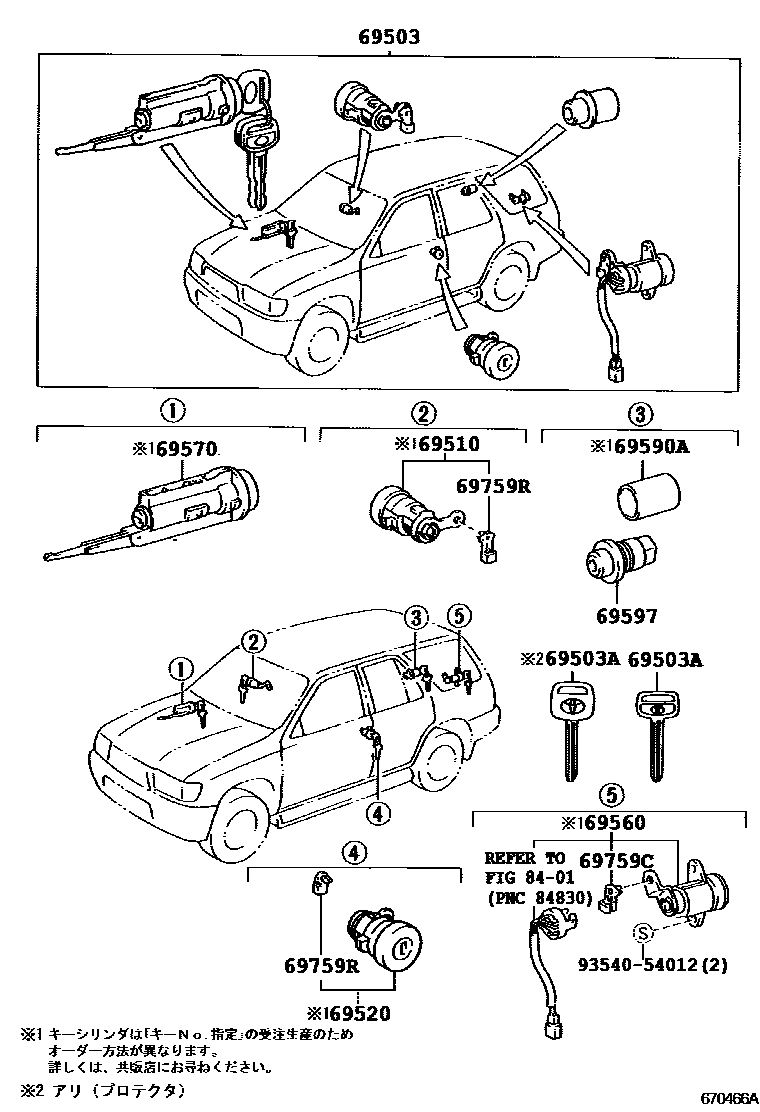

Toyota HILUX EPC diagram 6765, 锁芯组件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-35140 · 69005-35410 · 69005-35760 · 69005-35770 · 69005-35830 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 |
| 69510 | Right front door lock cylinder assembly | 69510-35070 · 69510-35100 |
| 69520 | Left front door lock cylinder assembly | 69520-35040 · 69520-35070 |
| 69560 | Rear door lock cylinder assembly | 69560-35070 · 69560-35080 · 69560-35090 · 69560-35100 |
| 69570 | Ignition switch lock cylinder assembly | 69570-35030 |
| 69590A | Spare tire lock cylinder assembly | 69590-35030 |
| 69597 | Spare tire lock nut | 69597-35020 |
| 69759C | Back door lock cylinder buckle | 69759-24080 · 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-20080 · 69759-20090 · 69759-35030 · 69759-35040 |
