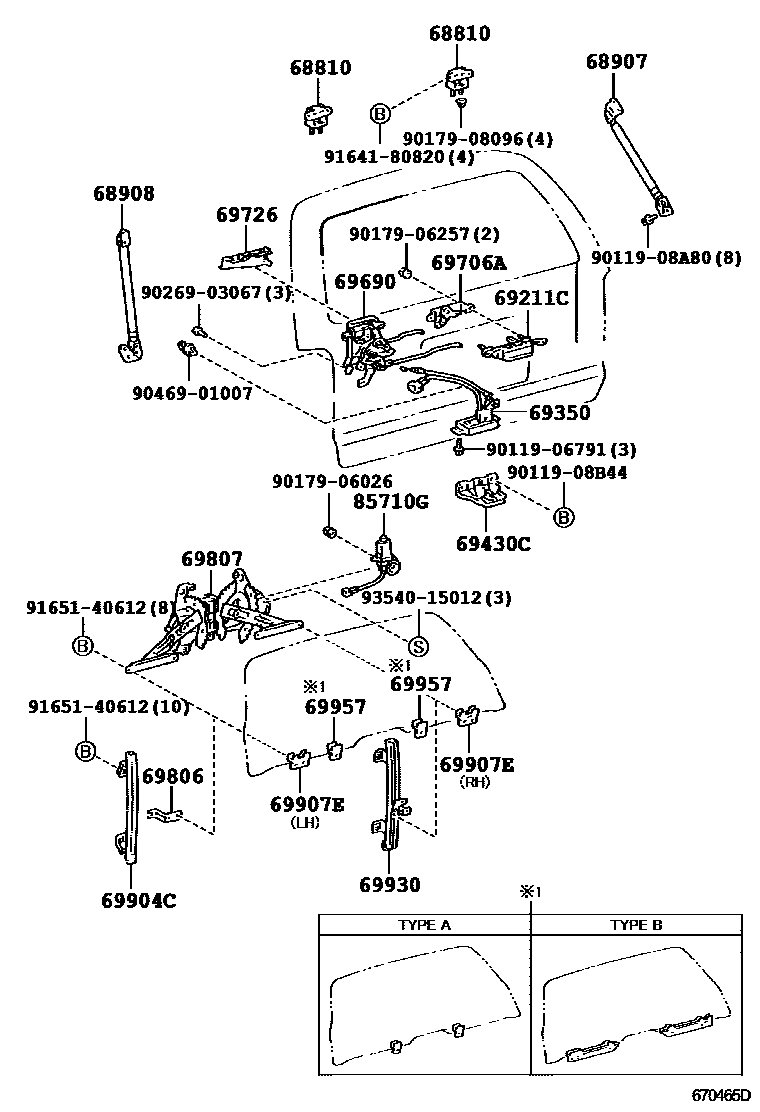

Toyota HILUX 背门锁和合页 — Figure 6762
Toyota HILUX EPC diagram 6762, 背门锁和合页, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810 | Back door upper hinge assembly | 68810-35010 · 68820-35010 |
| 68907 | Back door right damping strut sub-assembly | 68907-35010 · 68907-35020 · 68907-35030 · 68907-35040 |
| 68908 | Rear door left damping strut sub-assembly | 68908-35010 · 68908-35020 · 68908-35030 · 68908-35040 |
| 69211C | Back door outer handle | 69023-35010 |
| 69350 | Rear door lock assembly | 69350-35010 · 69350-35020 |
| 69430C | Back door lock assembly | 69430-35010 |
| 69690 | Back door remote control assembly | 69690-35010 · 69690-35011 · 69690-35020 · 69690-35021 · 69690-35030 |
| 69706A | Rear door lock remote control lever sub-assembly | 69706-35010 · 69706-35030 |
| 69726 | Rear door lock control protection parts | 69726-35020 · 69726-35030 |
| 69806 | Rear door glass guide channel bracket sub-assembly | 69806-35010 |
| 69807 | Rear door electric window lift sub-assembly | 69807-35010 |
| 69904C | Back door glass left side guide rail sub-assembly | 69904-35010 |
| 69907E | Rear door glass slot sub-assembly | 69907-35030 · 69907-35031 · 69907-35041 · 69908-35010 · 69908-35020 |
| 69930 | Back door glass right guide rail assembly | 69930-35010 |
| 69957 | Rear door glass channel | 69957-35010 |
| 85710G | Right power window lift motor assembly | 85710-35090 |
