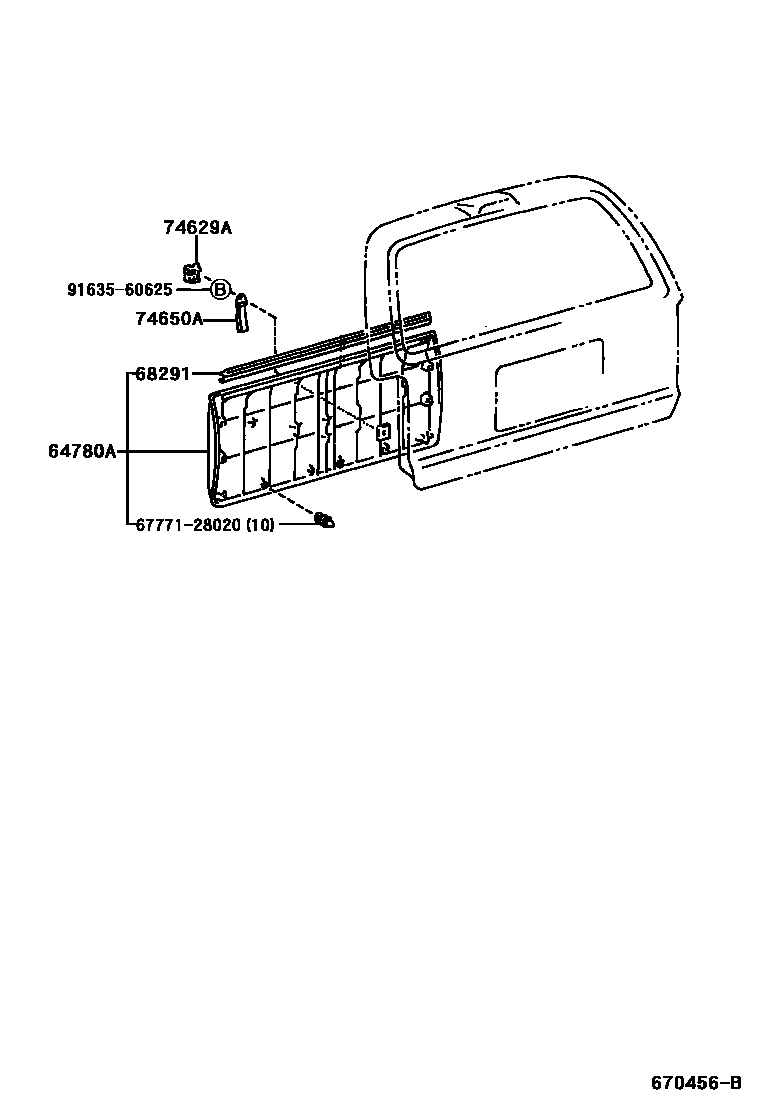

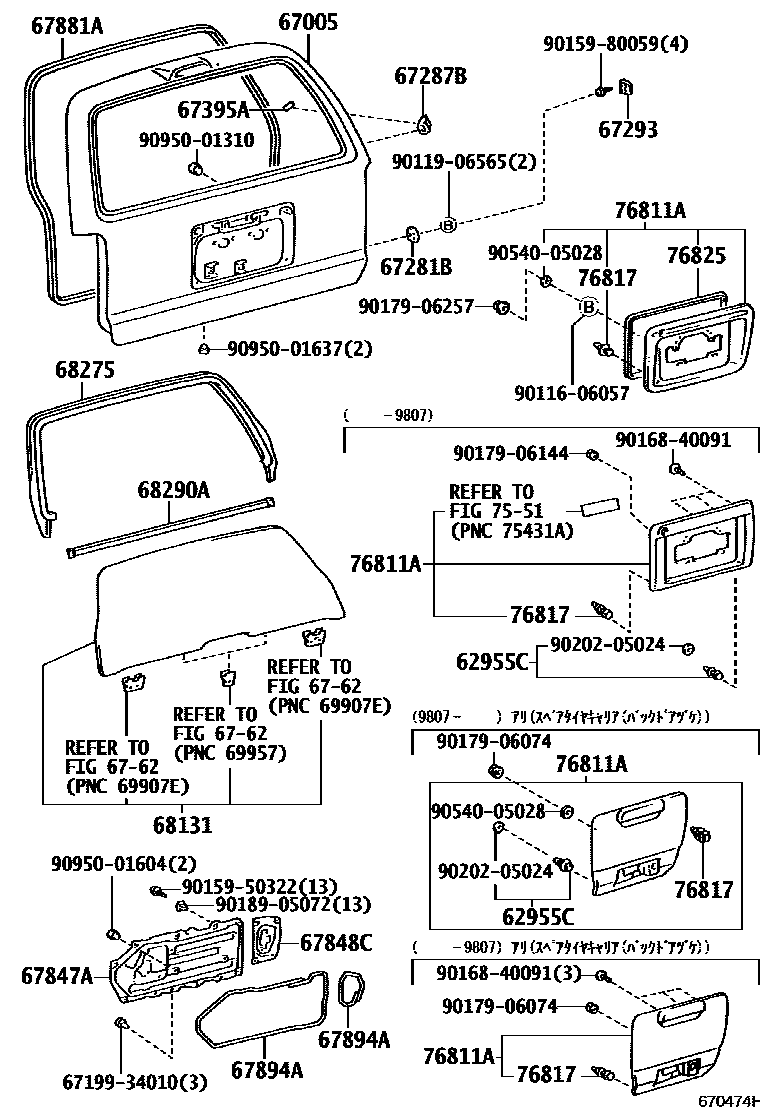

Toyota HILUX 背门板和背门玻璃 — Figure 6761
Toyota HILUX EPC diagram 6761, 背门板和背门玻璃, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62955C | Back door protective strip fixings | 62955-12010 |
| 67005 | Rear door panel sub-assembly | 67005-35060 · 67005-35070 · 67005-35080 · 67005-35090 · 67005-35110 · 67005-35120 · 67005-35130 · 67005-35160 · 67005-35170 · 67005-35180 |
| 67281B | Back door lower block | 67281-35010 |
| 67287B | Back door stop slider | 67287-35010 |
| 67293 | Back door lower block cushion | 67293-35010 |
| 67395A | Protective parts under rear door | 67395-35010 |
| 67847A | Rear door access hole cover | 67847-35010 · 67847-35011 |
| 67848C | Back door No. 2 manhole cover | 67848-35010 |
| 67881A | Back door seal | 67881-35020 |
| 67894A | Back door panel No. 1 protective piece | 67893-35010 · 67894-35010 |
| 68131 | back door glass | 68150-35110 · 68150-35111 · 68150-35120 · 68150-35121 · 68150-35130 · 68150-35131 · 68150-35190 · 68150-35220 · 68150-35250 |
| 68275 | Rear door glass lift chute | 68275-35010 |
| 68290A | Back door glass outer sealing strip assembly | 68290-35020 |
| 68291 | Rear door glass seal strip | 68291-35010 |
| 76811A | Rear door exterior decorative strip | 76801-35090 · 76801-35150 · 76801-35220 |
| 76817 | Rear door exterior decorative strip clip | 76817-89101 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-35020 |
