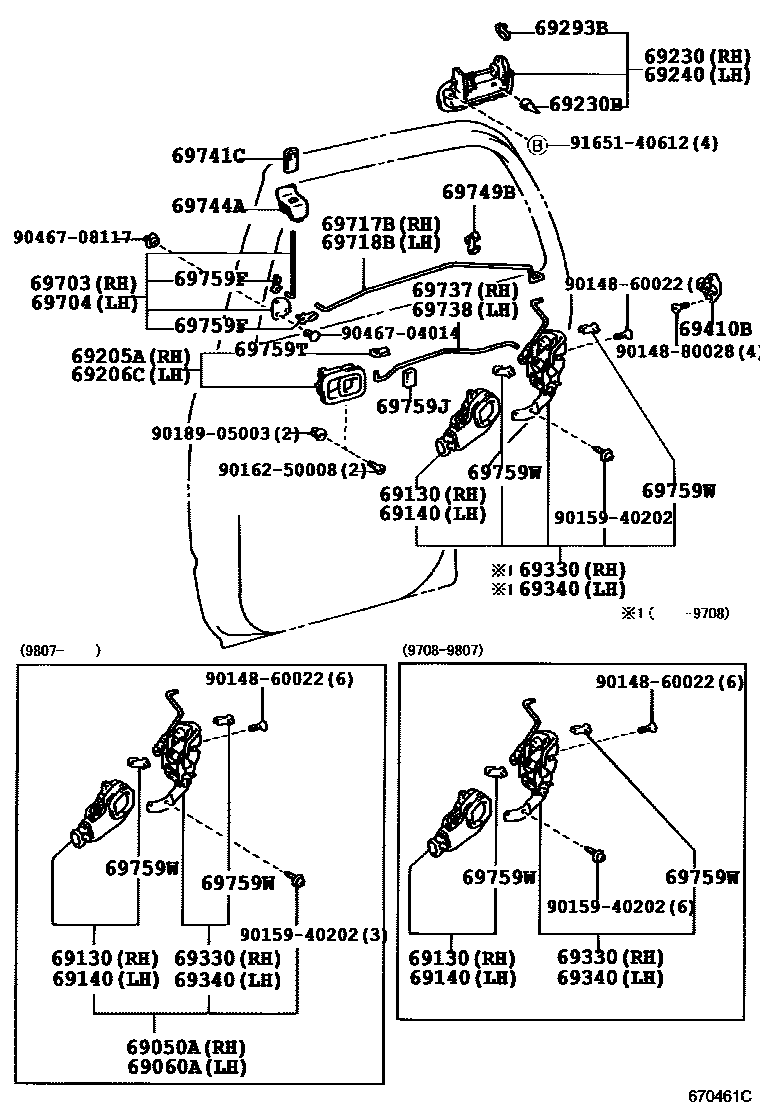

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-35100 |
| 69060A | Left rear door lock assembly with motor | 69060-35100 |
| 69130 | Right rear door lock actuator assembly | 69130-35030 · 69130-35060 |
| 69140 | Left rear door lock actuator assembly | 69140-35030 · 69140-35060 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04014 |
| 69293B | Rear door outer handle buckle | 69293-12030 · 69293-12040 |
| 69330 | Right rear door door lock assembly | 69050-35060 · 69330-35140 |
| 69340 | Left rear door lock assembly | 69060-35060 · 69340-35140 |
| 69410B | Rear door lock plate assembly | 69410-20070 |
| 69703 | Right rear door lock control link sub-assembly | 69703-35030 |
| 69704 | Left rear door lock control link sub-assembly | 69704-35030 |
| 69717B | Right rear door lock remote control lever | 69713-35040 |
| 69718B | Left rear door lock remote control lever | 69714-35040 |
| 69737 | Right rear door inner locking link | 69737-35020 |
| 69738 | Left rear door inner locking link | 69738-35020 |
| 69744A | door lock control button cover | 69744-35010 |
| 69749B | Rear door lock link clamp | 69749-12040 |
| 69759F | Rear door lock control link buckle | 69759-20020 · 69759-20030 · 69759-24030 · 69759-24040 |
| 69759J | Door lock link silencer | 69759-12060 · 69759-35010 |
| 69759T | Rear door inner handle buckle | 69759-20060 · 69759-20070 |
| 69759W | Rear door lock control link buckle | 69759-20040 · 69759-20050 |
