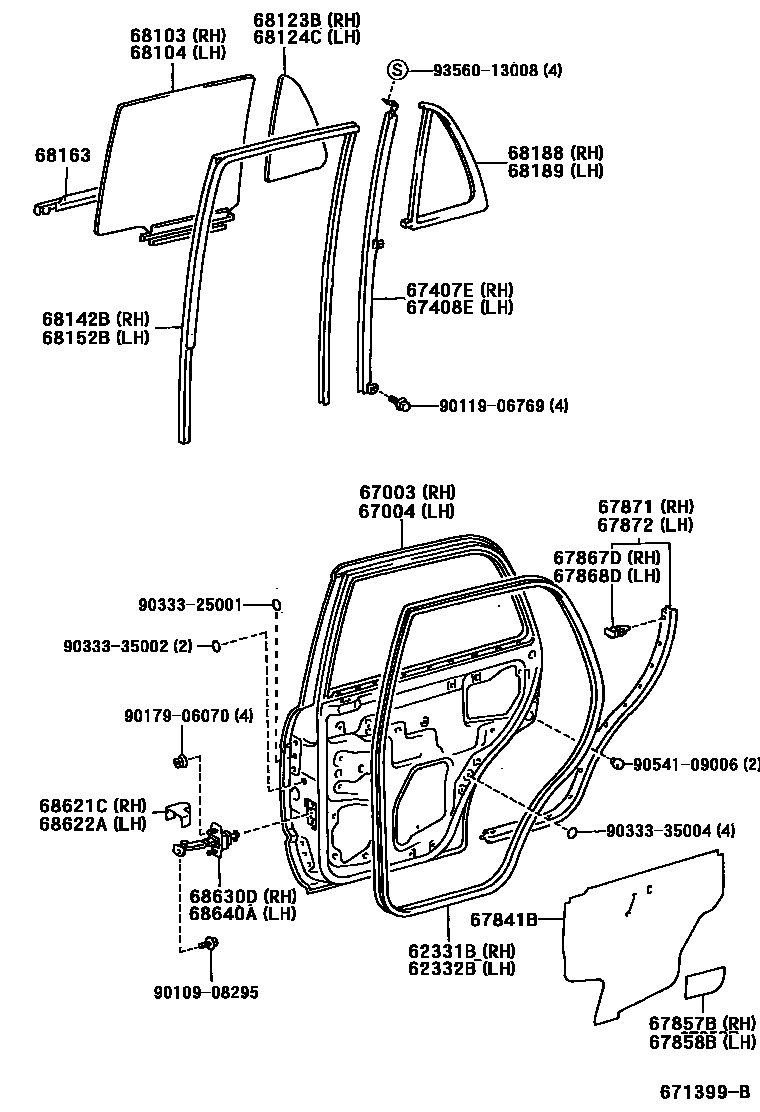

Toyota HILUX 后门板和后门玻璃 — Figure 6755
Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62331B | Right rear door opening waterproof tape | 62331-35010 · 62331-35011 |
| 62332B | Left rear door opening waterproof tape | 62332-35010 · 62332-35011 |
| 67003 | Right rear door panel sub-assembly | 67003-35020 · 67003-35080 · 67003-35120 · 67003-35130 |
| 67004 | Left rear door panel sub-assembly | 67004-35020 · 67004-35080 · 67004-35120 · 67004-35150 |
| 67407E | Right rear door window divider sub-assembly | 67407-35010 |
| 67408E | Left rear door window divider sub-assembly | 67408-35010 |
| 67603 | Right rear door decorative panel sub-assembly | 67630-35440 |
| 67603A | Fixings (for rear door trim) | 67771-12050 · 67771-28020 |
| 67604 | Left rear door decorative panel sub-assembly | 67640-35440 |
| 67841B | Rear door access hole cover | 67841-35030 · 67841-35050 · 67842-35020 |
| 67857B | Right rear door panel protector | 67857-35020 |
| 67858B | Left rear door panel protector | 67858-35020 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-35030 |
| 67872 | Left rear door sealing strip | 67872-35030 |
| 68103 | Right rear door glass sub-assembly | 68113-35040 · 68113-35050 · 68113-35060 · 68113-35070 · 68113-35080 |
| 68104 | Left rear door glass sub-assembly | 68114-35040 · 68114-35050 · 68114-35060 · 68114-35070 · 68114-35080 |
| 68123B | Right rear door corner window glass | 68123-35010 · 68123-35020 · 68123-35030 · 68123-35040 · 68123-35050 |
| 68124C | Left rear door corner window glass | 68124-35010 · 68124-35020 · 68124-35030 · 68124-35040 · 68124-35050 |
| 68142B | Right rear door window lift chute | 68142-35010 · 68142-35011 |
| 68152B | Left rear door window lift chute | 68152-35010 · 68152-35011 |
| 68163 | Rear door glass outer seal strip | 68163-35010 · 68164-35010 |
| 68173B | Right rear door glass inner sealing strip | 68173-35010 |
| 68174A | Left rear door glass inner sealing strip | 68174-35010 |
| 68188 | Right rear door corner window seal | 68188-35010 · 68188-35011 |
| 68189 | Left rear door corner window seal | 68189-35010 · 68189-35011 |
| 68621C | Right rear door opening limiter cover | 68621-35020 |
| 68622A | Left rear door opening limiter cover | 68622-35010 |
| 68630D | Right rear door opening limiter assembly | 68630-35030 |
| 68640A | Left rear door opening limiter assembly | 68640-35010 |
