Toyota HILUX 前门车窗升降器和合页 — Figure 6754

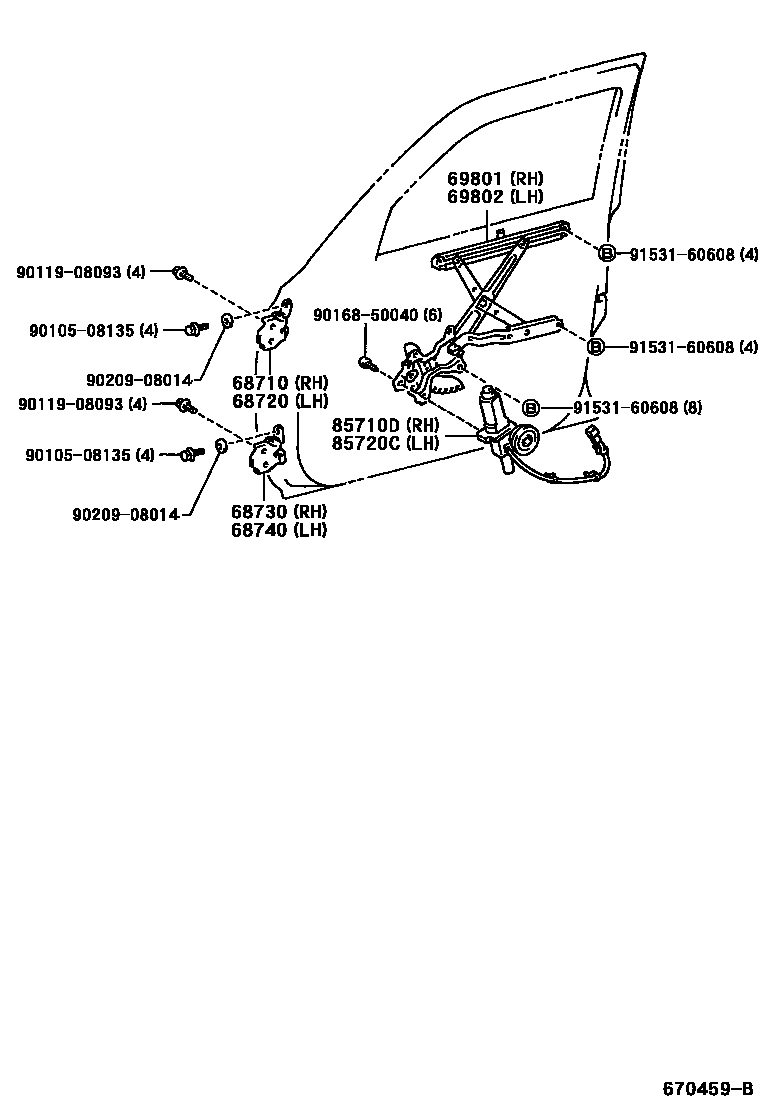

Toyota HILUX EPC diagram 6754, 前门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-04010 |
| 68720 | Left front door upper hinge assembly | 68730-04010 |
| 68730 | Right front door lower hinge assembly | 68730-04010 |
| 68740 | Left front door lower hinge assembly | 68710-04010 |
| 69801 | Right front door window lifter sub-assembly | 69801-35090 · 69801-35091 |
| 69802 | Left front door window lifter sub-assembly | 69802-35100 · 69802-35101 |
| 85710D | Right power window lift motor assembly | 85710-35100 · 85710-35150 |
| 85720C | Left electric window lift motor assembly | 85720-35050 |
