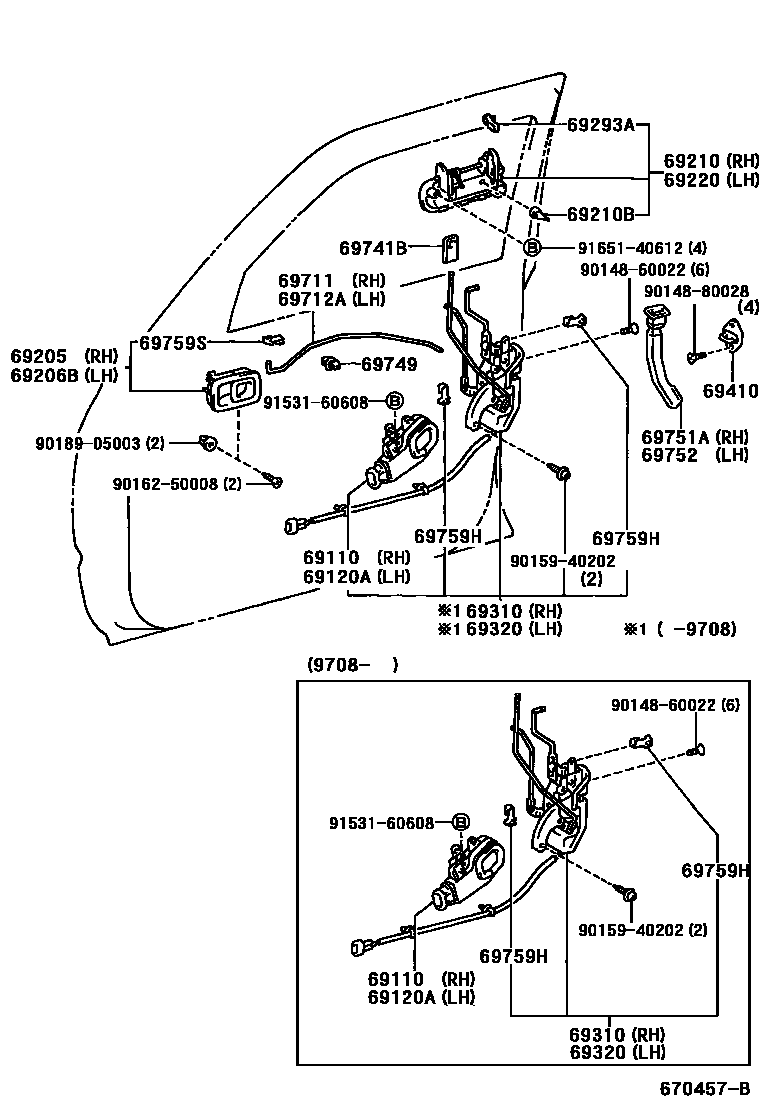

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-35040 · 69110-35050 |
| 69120A | Left front door lock actuator assembly | 69120-35040 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04014 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69030-35100 · 69310-35470 · 69310-35510 |
| 69320 | Left front door lock assembly | 69040-35140 · 69320-35470 · 69320-35490 |
| 69410 | Front door lock plate assembly | 69410-20070 |
| 69711 | Front sliding door lock cylinder connecting rod | 69711-35040 |
| 69712A | Left front door lock remote control lever | 69712-35040 |
| 69749 | Front door lock link clip | 69749-35010 · 69749-35020 · 69749-89101 |
| 69751A | Door lock fixings (for front doors) | 69751-35020 |
| 69752 | Left front door lock control button fixing | 69752-35020 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-20040 · 69759-20050 · 69759-24010 · 69759-24020 |
| 69759S | Front door inner handle buckle | 69759-20060 · 69759-20070 |
