Toyota HILUX 前门板和前门玻璃 — Figure 6751

Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 4 images and 33 PNC and OE references.

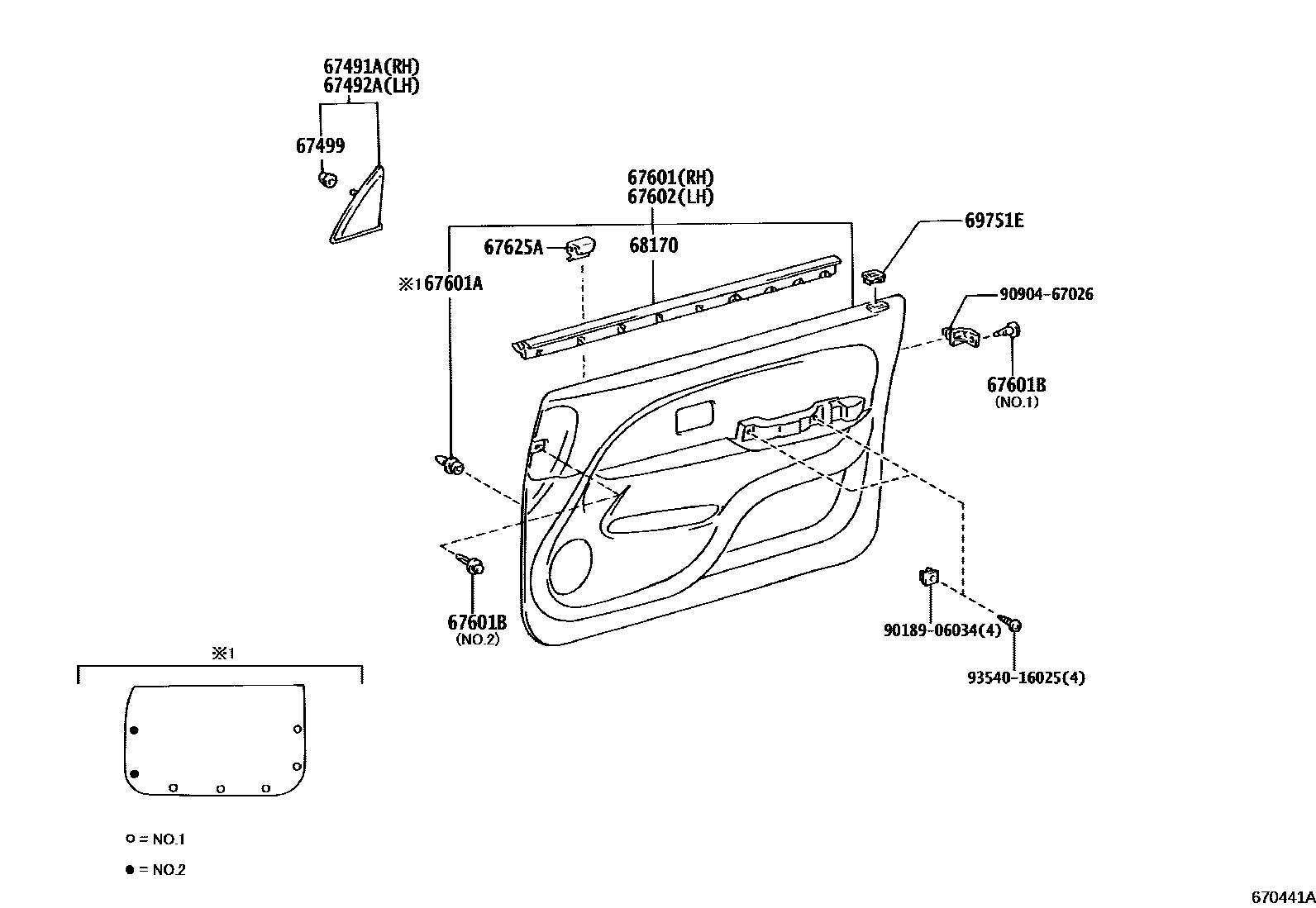

Toyota HILUX 前门板和前门玻璃 EPC diagram — 670441A
前门板和前门玻璃 — 670441A (199511 – 999999)

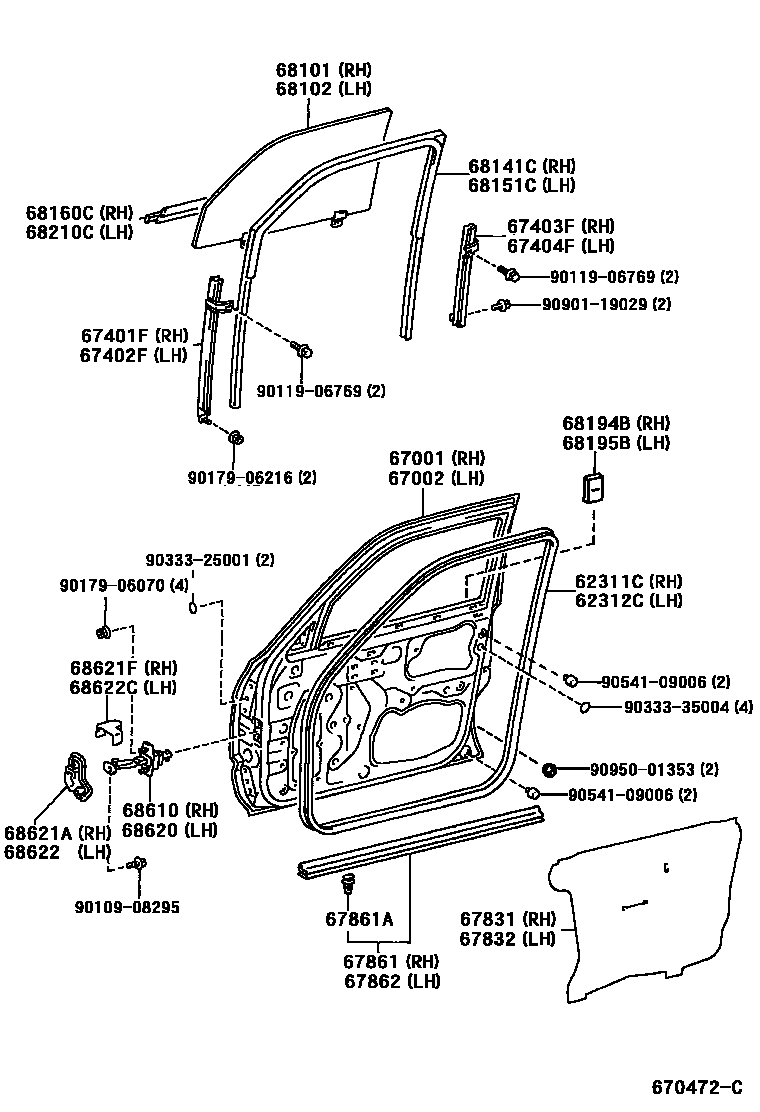

Toyota HILUX 前门板和前门玻璃 EPC diagram — 670472C
前门板和前门玻璃 — 670472C (199511 – 999999)

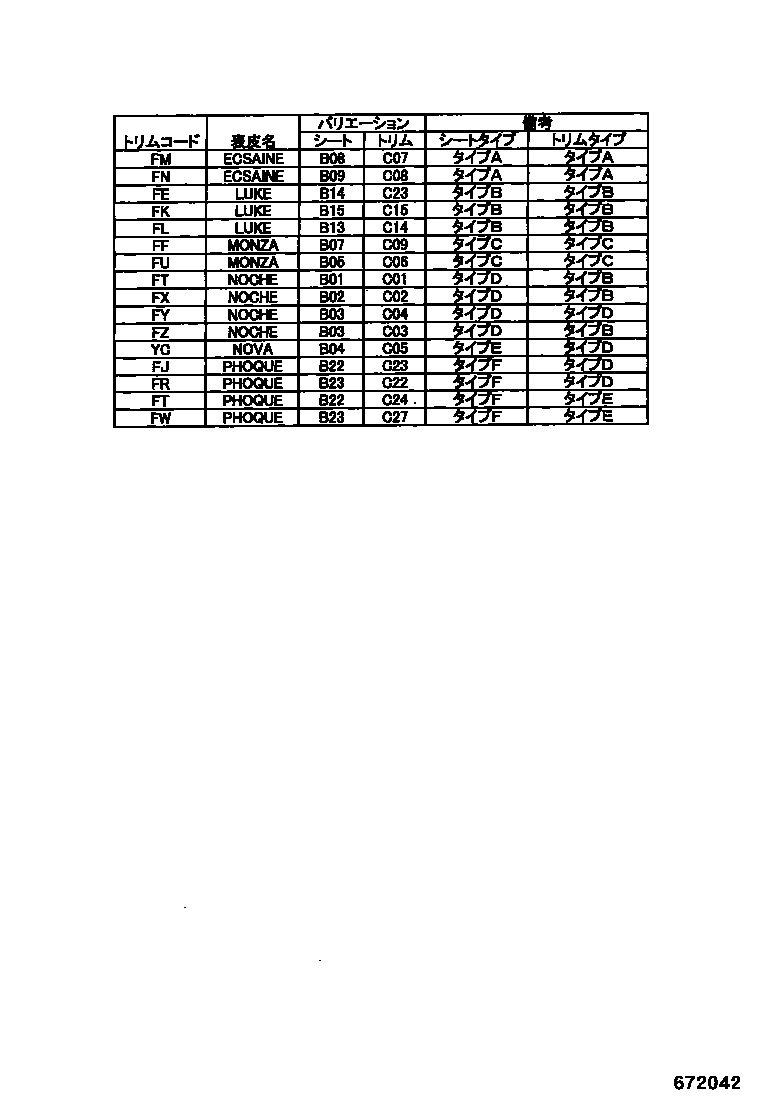

Toyota HILUX 前门板和前门玻璃 EPC diagram — 672042
前门板和前门玻璃 — 672042 (199511 – 200008)

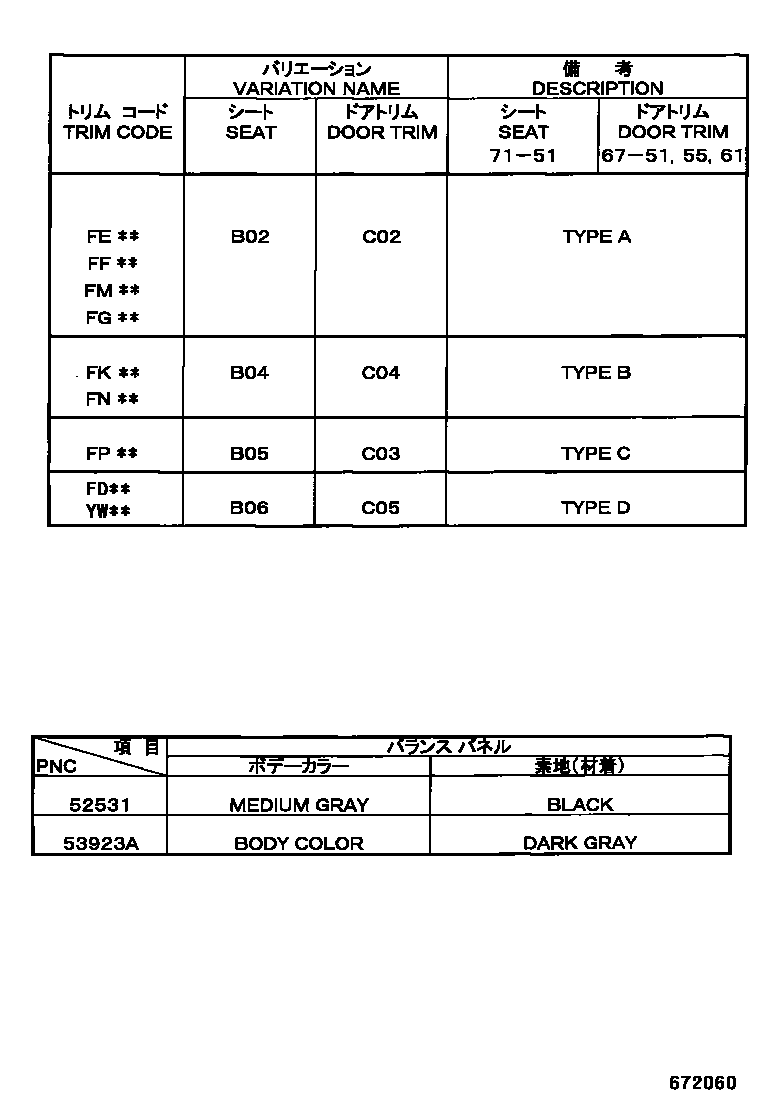

Toyota HILUX 前门板和前门玻璃 EPC diagram — 672060
前门板和前门玻璃 — 672060 (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
62311CRight front door opening waterproof tape62311-35010 · 62311-35011 · 62311-35012
62312CLeft front door opening waterproof tape62312-35010 · 62312-35011 · 62312-35012
67001Right front door panel sub-assembly67001-35320 · 67001-35321 · 67001-35330 · 67001-35331
67002Left front door panel sub-assembly67002-35330 · 67002-35331 · 67002-35340 · 67002-35341
67401FRight front door front lower door frame sub-assembly67401-35030
67402FLeft front door front lower door frame sub-assembly67402-35040
67403FRight front door rear lower door frame sub-assembly67403-35040
67404FLeft front door rear lower door frame sub-assembly67404-35040
67499Front door lower door frame bracket trim strip fixing67499-89101
67601Right front door decorative panel sub-assembly67610-3D240
67601AFixings (for front door trim)67771-12030 · 67771-12050 · 67771-22040 · 67771-28020
67602Left front door decorative panel sub-assembly67660-35150
67625AFront door decorative panel bracket No. 167625-35010
67831Right front door access hole cover67831-35050
67832Left front door access hole cover67832-35030
67861Right front door seal67861-35040
67861AFixing piece (for front door sealing strip)67867-12150
67862Left front door seal67861-35040
68101Right front door glass sub-assembly68101-35140 · 68101-35150 · 68101-35160 · 68101-35170
68102Left front door glass sub-assembly68102-35140 · 68102-35150 · 68102-35160 · 68102-35170
68141CRight front door glass lift channel68141-35020 · 68141-35021 · 68141-35022
68151CLeft front door glass lift channel68151-35020 · 68151-35021 · 68151-35022
68160CRight front door glass outer sealing strip assembly68161-35010
68170Front door glass inner sealing strip assembly68171-35030
68194BRight front door beltline rear seal68194-35010 · 68194-35011
68195BLeft front door beltline rear seal68194-35010 · 68194-35011
68210CLeft front door glass outer sealing strip assembly68162-35010
68610Front door opening limiter assembly68610-35010
68620Left front door opening limiter assembly68620-35010
68621ARight front door opening limiter cover68621-35030
68621FRight front door opening limiter cover68621-35020
68622Left front door opening limiter cover68621-35030
68622CLeft front door opening limiter cover68622-35010
