Toyota HILUX 车内装饰板 — Figure 6451

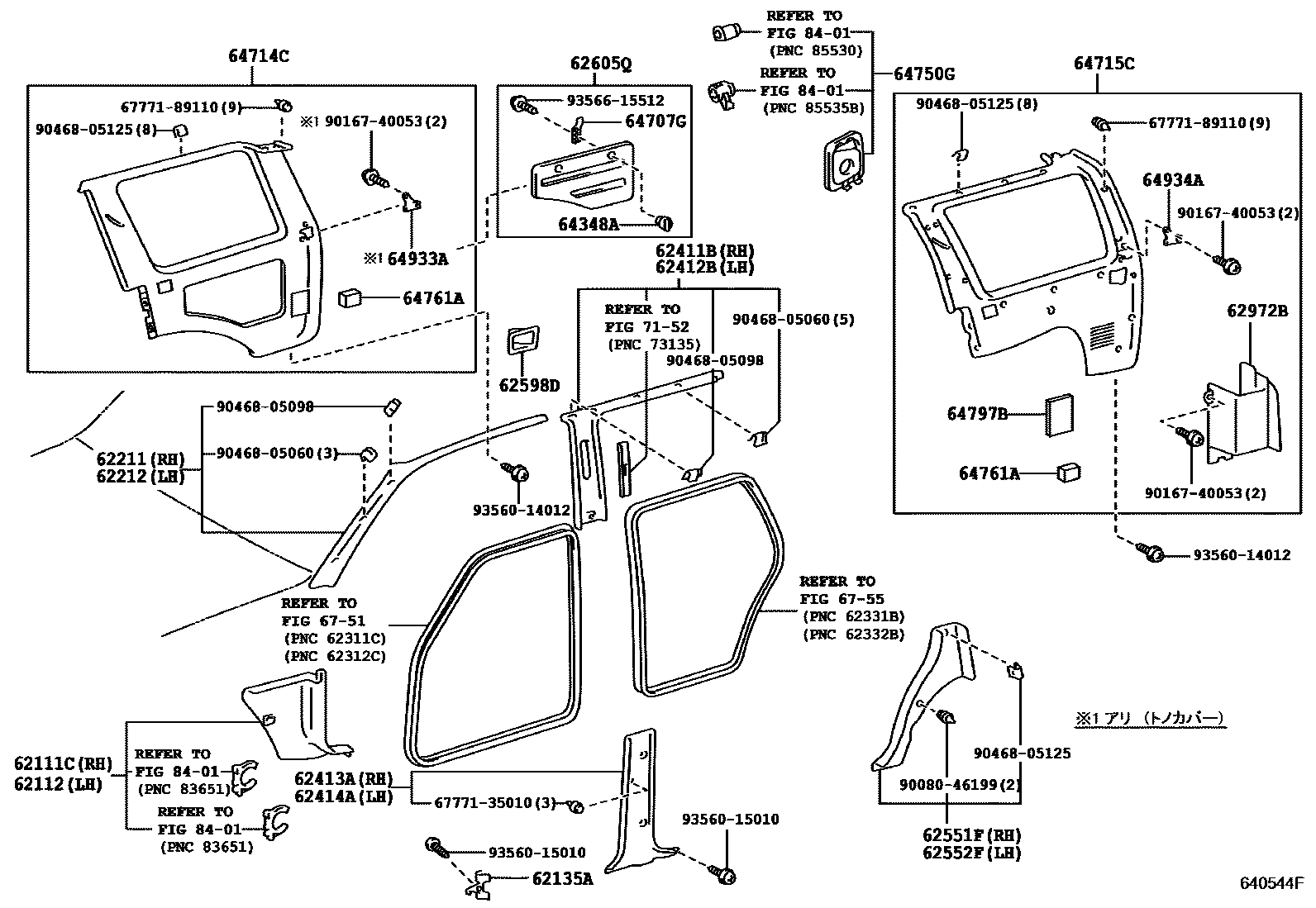

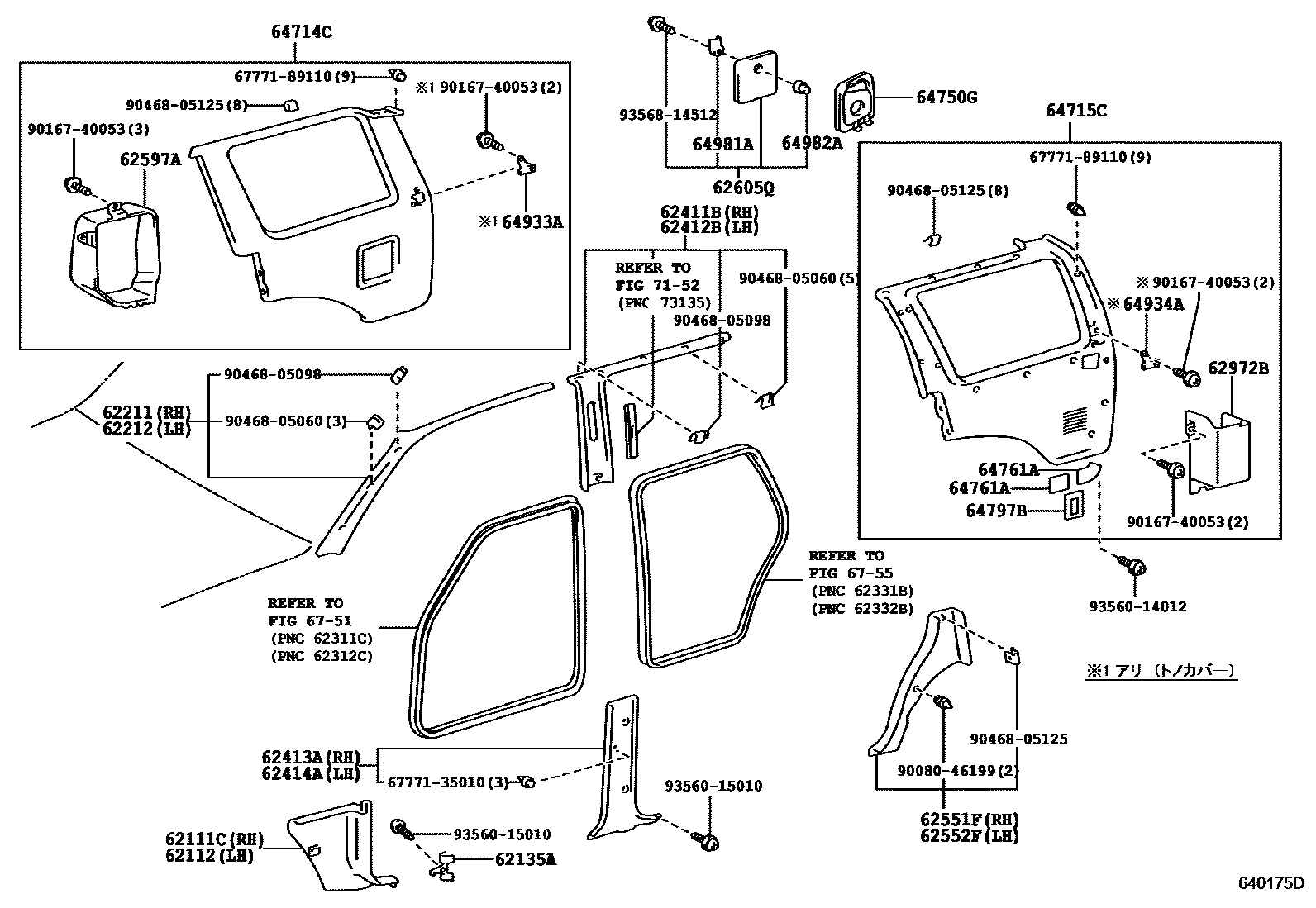

Toyota HILUX EPC diagram 6451, 车内装饰板, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62135A | Front wall side cover fixing parts | 62135-35010 |
| 62597A | Side decorative box | 62597-35010 |
| 62598D | Side decorative box cover | 62598-35010 |
| 62972B | Air duct No. 1 on the left side of the roof | 62971-35010 |
| 64707G | Jack cover stop | 64768-60010 |
| 64761A | No. 1 floor panel side decorative part muffler part | 64761-35010 |
| 64797B | No. 2 floor panel side decorative parts muffler parts | 64797-35010 |
| 64933A | Right trunk trim cover retainer | 64933-35010 |
| 64934A | Left trunk trim cover retainer | 64934-35010 |
| 64981A | Side panel decorative panel cover stopper | 64981-16021 |
