Toyota HILUX 天窗板和背板 — Figure 6153

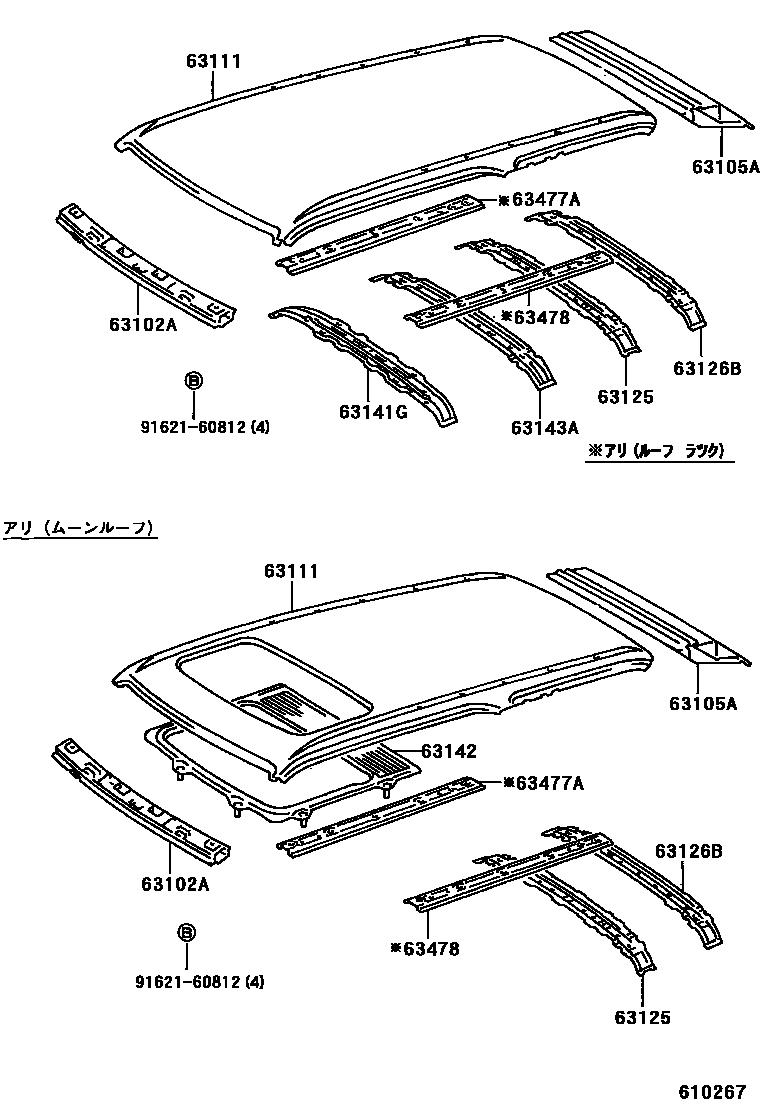

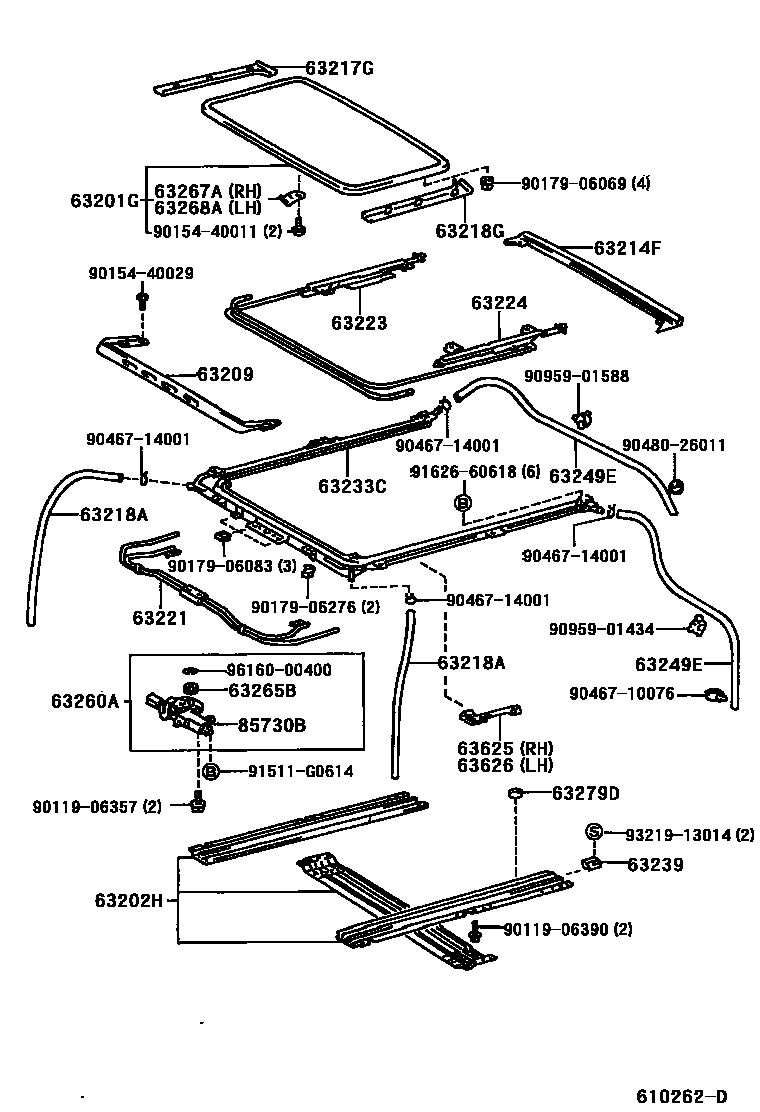

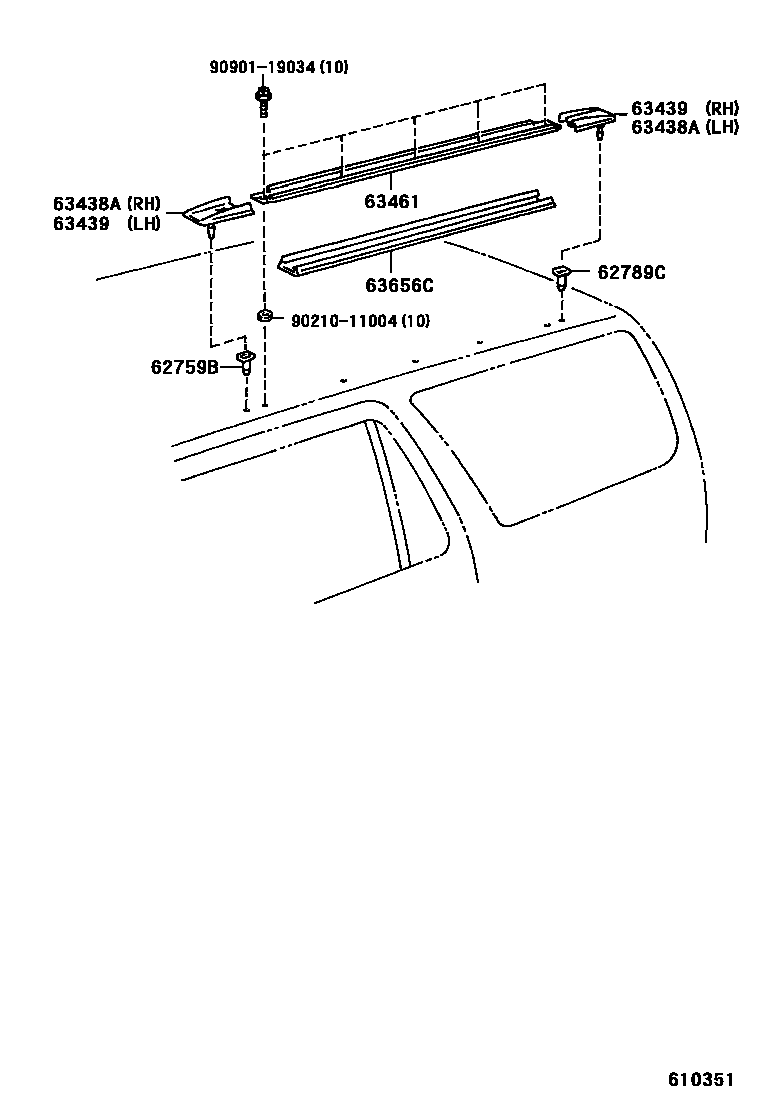

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62759B | Roof rack clip | 62759-35010 |
| 62789C | Roof rack clip | 62789-35010 |
| 63102A | Windshield roof sub-assembly | 63102-35010 |
| 63105A | Back door opening frame sub-assembly | 63105-35060 |
| 63111 | roof panel | 63111-35131 · 63111-35141 · 63111-35171 · 63111-35181 |
| 63125 | No. 2 roof panel reinforcement | 63125-35010 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-35020 |
| 63141G | No. 1 roof panel reinforcement | 63141-35020 |
| 63142 | No. 2 roof panel reinforcement | 63142-35010 |
| 63143A | Roof panel reinforcement | 63143-35010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-35040 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-35020 |
| 63209 | Roof deflector sub-assembly | 63209-35020 · 63209-35030 |
| 63214F | Roof rear drain channel | 63214-35010 |
| 63217G | Right sliding sunroof trim | 63217-35010 |
| 63218G | Sliding sunroof trim, left | 63218-35010 |
| 63221 | Sliding sunroof cable duct | 63221-35010 |
| 63223 | Right sliding sunroof transmission cable | 63223-35030 |
| 63224 | Left sliding sunroof transmission cable | 63224-35030 |
| 63233C | Sliding skylight shelf | 63233-35010 |
| 63239 | Sliding roof panel stop | 63239-35010 |
| 63249E | Sliding skylight drain hose | 63249-35060 · 63249-35110 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-35030 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-32020 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-32020 |
| 63279D | Sliding sunroof guide rail stop | 63279-35020 |
| 63438A | No. 1 roof rack end cap | 63438-35010 · 63438-35011 · 63439-35010 |
| 63439 | No. 2 roof rack end cap | 63438-35010 · 63439-35010 · 63439-35011 |
| 63461 | Roof rack rail lower frame | 63461-35010 |
| 63477A | Right center roof rack bracket | 63477-35010 |
| 63478 | Left center roof rack bracket | 63478-35010 |
| 63625 | Right sliding sunroof guide block | 63625-35010 |
| 63626 | Left sliding sunroof guide block | 63626-35010 |
| 63656C | Rear roof protection cover | 63656-35010 |
| 85730B | Sliding sunroof motor assembly | 85730-35020 · 85730-35030 |
