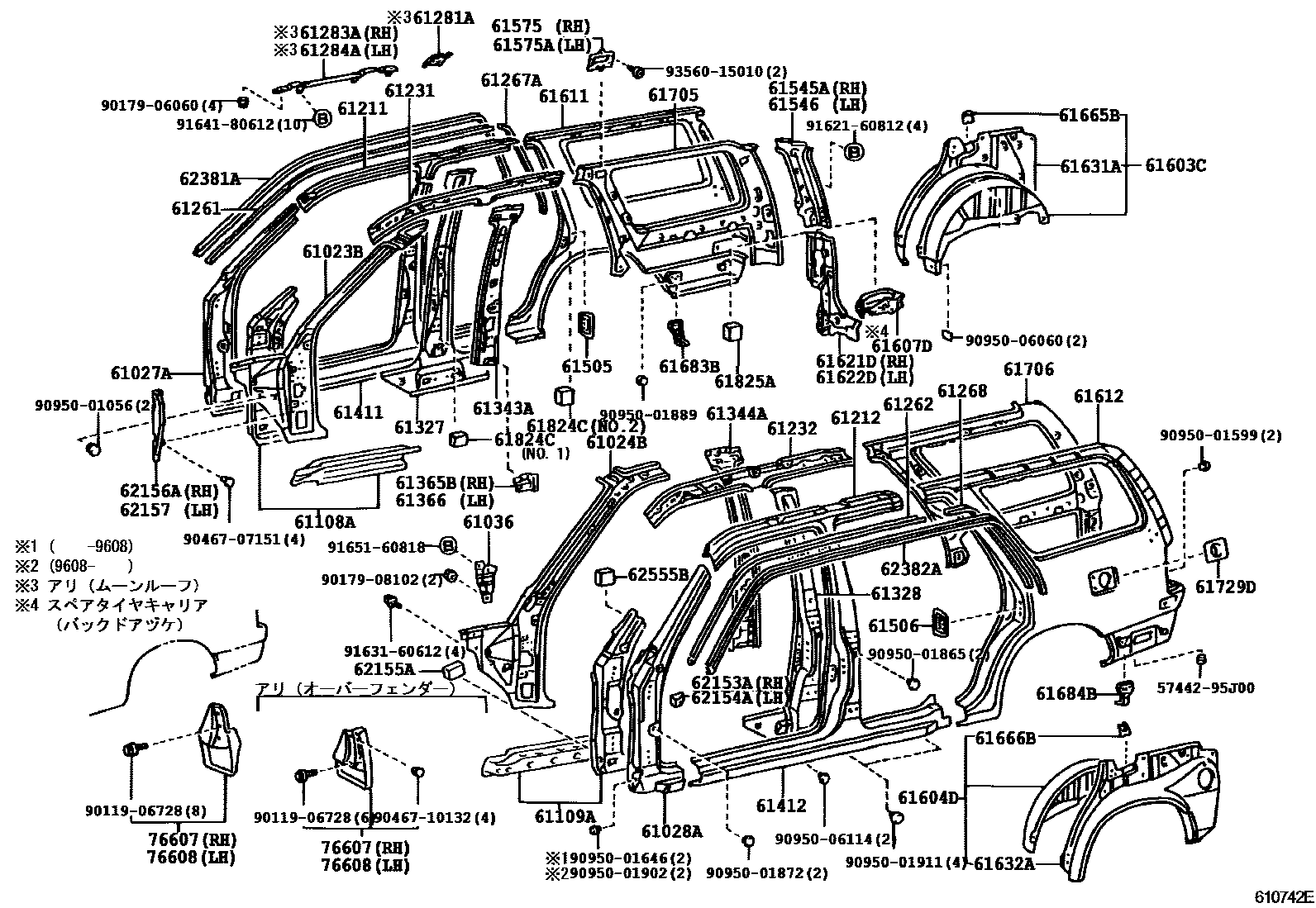

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 1 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61023B | Right body inner front pillar sub-assembly | 61023-35030 · 61023-35080 · 61023-35081 |
| 61024B | Left body inner front pillar sub-assembly | 61024-35030 · 61024-35060 · 61024-35061 |
| 61027A | Right body outer front pillar sub-assembly | 61131-35010 · 61131-35011 · 61131-35020 · 61131-35021 |
| 61028A | Left body outer front pillar sub-assembly | 61132-35010 · 61132-35011 · 61132-35020 · 61132-35021 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-35010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-35010 · 61108-35020 · 61108-35021 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-35010 · 61109-35020 · 61109-35021 |
| 61211 | Roof right outer longitudinal beam | 61211-35020 · 61211-35021 |
| 61212 | Roof left outer longitudinal beam | 61212-35020 · 61212-35021 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-35100 · 61231-35110 · 61231-35111 · 61231-35120 · 61231-35121 |
| 61232 | Roof left inner longitudinal beam | 61232-35090 · 61232-35100 · 61232-35101 · 61232-35110 · 61232-35111 |
| 61261 | Drainage channel on the right side of the roof | 61261-35020 |
| 61262 | Drainage channel on the left side of the roof | 61262-35020 |
| 61267A | Roof right rear gutter | 61267-35010 |
| 61268 | Roof left rear gutter | 61268-35010 |
| 61281A | Sliding sunroof frame No. 1 side mounting bracket | 61281-35010 |
| 61283A | Sliding sunroof frame No. 3 right side mounting bracket | 61283-35010 |
| 61284A | Sliding sunroof frame No. 3 left mounting bracket | 61284-35010 |
| 61327 | Right body outer center pillar reinforcement | 61307-35900 · 61307-35901 · 61307-35902 · 61307-35903 |
| 61328 | Left body outer center pillar reinforcement | 61308-35900 · 61308-35901 · 61308-35902 · 61308-35903 |
| 61343A | Right body inner center pillar | 61343-35010 |
| 61344A | Left body inner center pillar | 61344-35010 |
| 61365B | Right No. 3 seat belt anchor to center pillar reinforcement | 61365-35020 |
| 61366 | Left No. 3 seat belt anchor to center pillar reinforcement | 61366-35020 |
| 61411 | Right door outer sill panel | 61411-35050 · 61411-35051 · 61411-35060 · 61411-35061 |
| 61412 | Left door outer sill panel | 61412-35050 · 61412-35051 · 61412-35060 · 61412-35061 |
| 61505 | Right front door latch reinforcement sub-assembly | 61505-89101 |
| 61506 | Left front door latch reinforcement sub-assembly | 61505-89101 |
| 61545A | Cab right inner rear pillar panel sub-assembly | 61545-35900 · 61545-35902 |
| 61546 | Cab left inner rear pillar panel sub-assembly | 61546-35900 |
| 61575 | Cab left rear pillar upper panel | 61575-35010 |
| 61575A | Cab left rear pillar upper panel | 61575-35010 |
| 61603C | Right wheel cover sub-assembly | 61603-35010 · 61603-35020 |
| 61604D | Left side wheel cover sub-assembly | 61604-35010 |
| 61607D | Spare tire carrier hinge fixation sub-assembly | 61607-35030 |
| 61611 | Right side hoarding | 61611-35901 · 61611-35903 · 61611-35904 · 61611-35905 · 61611-35906 · 61611-35907 |
| 61612 | left side panel | 61612-35901 · 61612-35903 · 61612-35904 · 61612-35905 |
| 61621D | Back door right opening slot | 61621-35900 · 61621-35901 |
| 61622D | Rear door left opening slot | 61622-35900 |
| 61631A | Right wheel cover outer panel | 61631-35010 · 61631-35020 |
| 61632A | Left side wheel cover outer panel | 61632-35010 |
| 61665B | Right seat belt anchor to side wheel arch reinforcement | 61665-35020 |
| 61666B | Left-hand seat belt anchor to side wheel arch reinforcement | 61666-35010 |
| 61683B | No. 1 right rear fender external panel bracket | 61683-35010 |
| 61684B | No. 1 left rear fender external panel bracket | 61684-35010 |
| 61705 | Roof right inner panel sub-assembly | 61701-35900 · 61701-35902 |
| 61706 | Roof left inner panel sub-assembly | 61702-35900 |
| 61729D | Fuel inlet plate | 61729-35020 |
| 61824C | No. 1 silencer panel gasket | 61824-30070 · 61824-60010 |
| 61825A | Noise Control Panel No. 2 | 61825-34010 |
| 62153A | Right front side upper silencer pad | 62153-35010 |
| 62154A | Left front side upper silencer pad | 62154-35010 |
| 62155A | Front and lower side muffler pads | 62155-89101 |
| 62156A | Right front wall side insulation pad | 62156-35010 · 62156-35020 |
| 62157 | Left front wall side insulation pad | 62157-35010 · 62157-35020 |
| 62381A | Roof right side rail seal strip | 62381-35010 · 62381-35011 |
| 62382A | Roof left side rail seal strip | 62382-35010 · 62382-35011 |
| 62555B | No. 5 column pad | 62555-89101 |
| 76607 | Right rear side fender sub-assembly | 76625-39475 · 76625-39495 · 76625-39545 · 76625-39555 |
| 76608 | Left rear side fender sub-assembly | 76626-39475 · 76626-39495 · 76626-39545 · 76626-39555 |
