Toyota HILUX 中央扶手箱和支架 — Figure 5855

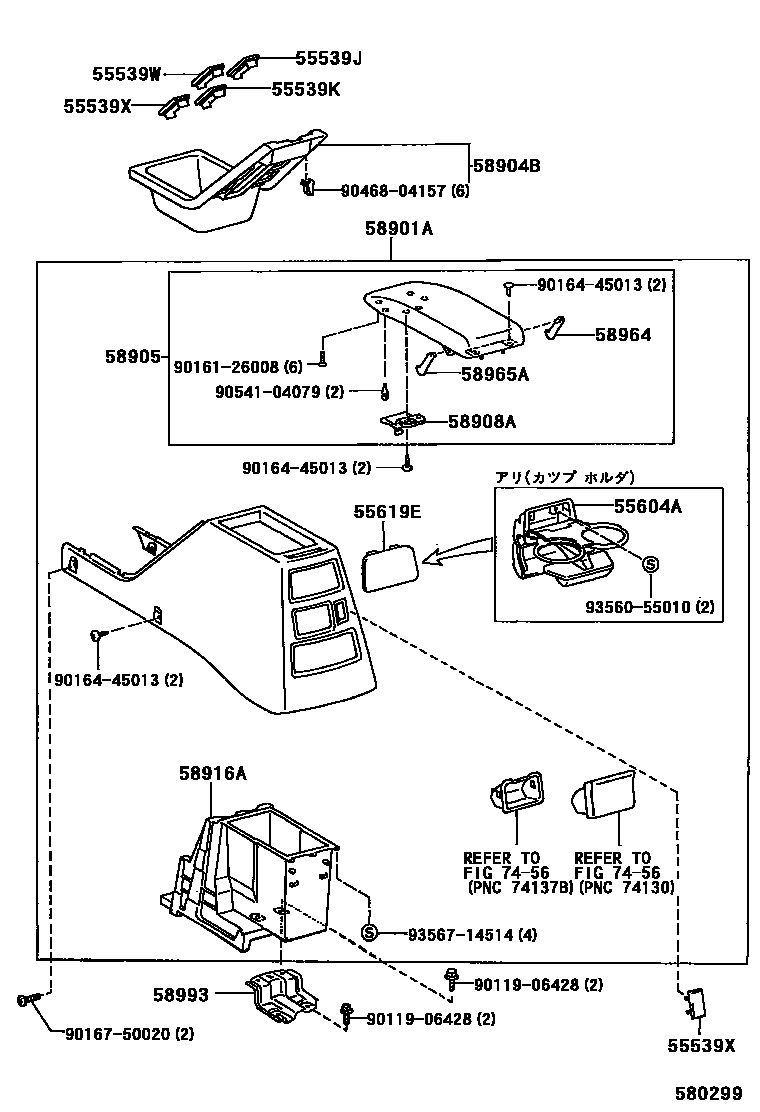

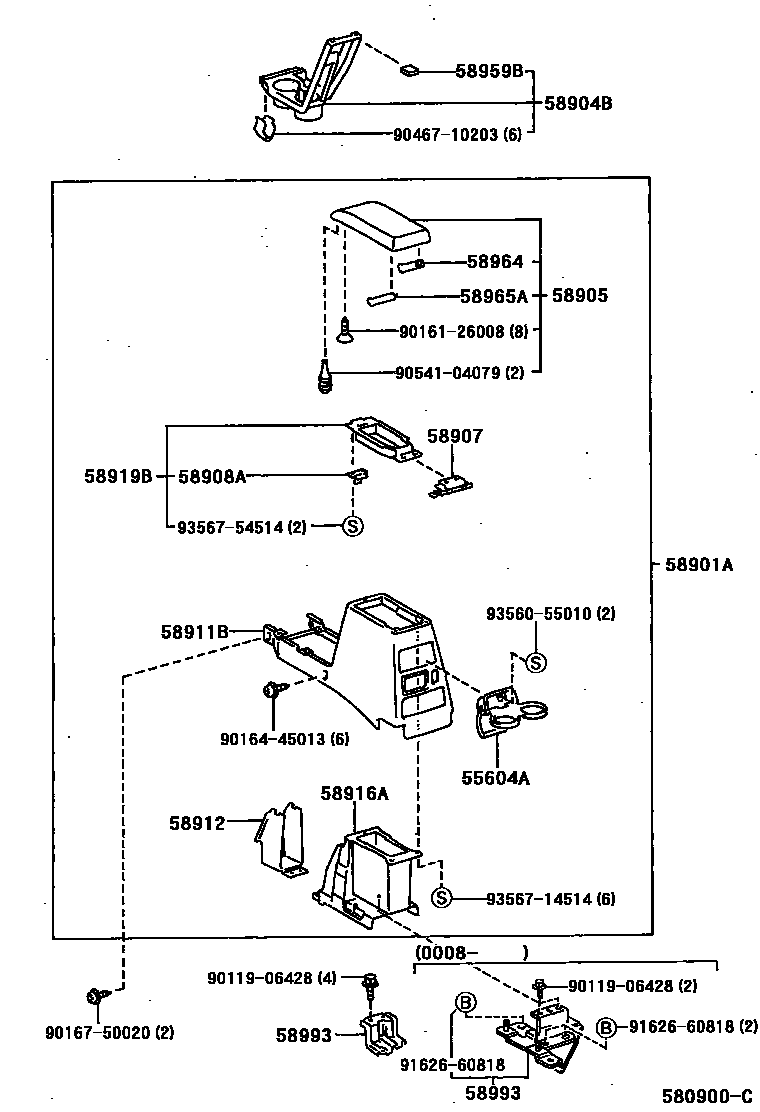

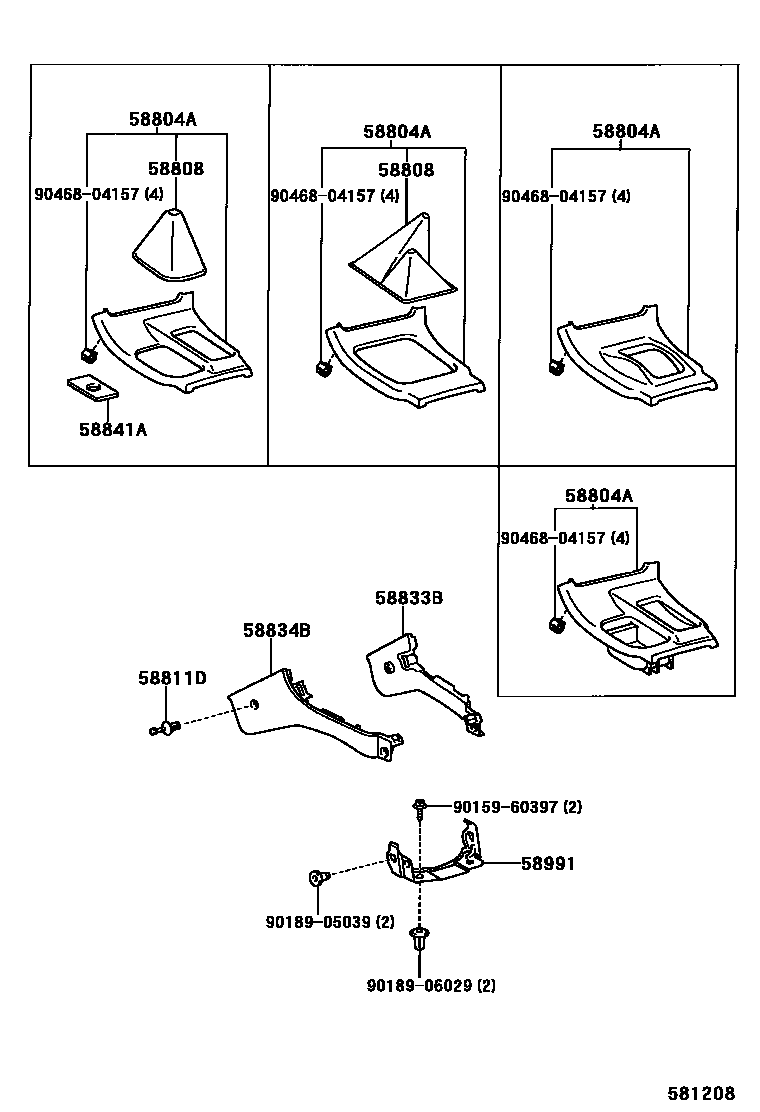

Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55539J | Spare switch hole cover | 55539-89105 |
| 55539K | Spare switch hole cover | 55539-89105 |
| 55539W | Spare switch hole cover | 55539-89105 |
| 55539X | Spare switch hole cover | 55539-89105 |
| 58804A | Armrest box upper panel sub-assembly | 58804-35100 · 58804-35110 · 58804-35120 · 58804-35130 · 58804-35160 · 58804-35170 · 58804-35180 · 58804-35190 · 58804-35240 · 58804-35250 · 58804-35260 · 58804-35310 · 58804-35320 · 58804-35330 |
| 58808 | Shift hole cover sub-assembly | 58808-35120 · 58808-35150 |
| 58841A | shift hole cover | 58841-35010 |
| 58904B | Parking brake hole cover sub-assembly | 58904-35010 · 58904-35030 · 58904-35040 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-35010 |
| 58908A | Armrest box lid lock assembly | 58908-32050 |
| 58912 | No. 2 rear armrest box | 58912-35020 |
| 58916A | Rear armrest box insert | 58916-35020 · 58916-35040 · 58916-35060 |
| 58919B | Armrest box nameplate | 58919-35030 · 58919-35031 |
| 58959B | Armrest box cover cushion | 58959-16010 |
| 58964 | Armrest box cover No. 1 stop | 58964-16010 |
| 58965A | Armrest box cover No. 2 stopper | 58965-16010 |
| 58991 | Mounting bracket on armrest box | 58991-35030 |
| 58993 | Armrest box rear mounting bracket | 58902-35030 · 58993-35030 · 58993-35050 |
