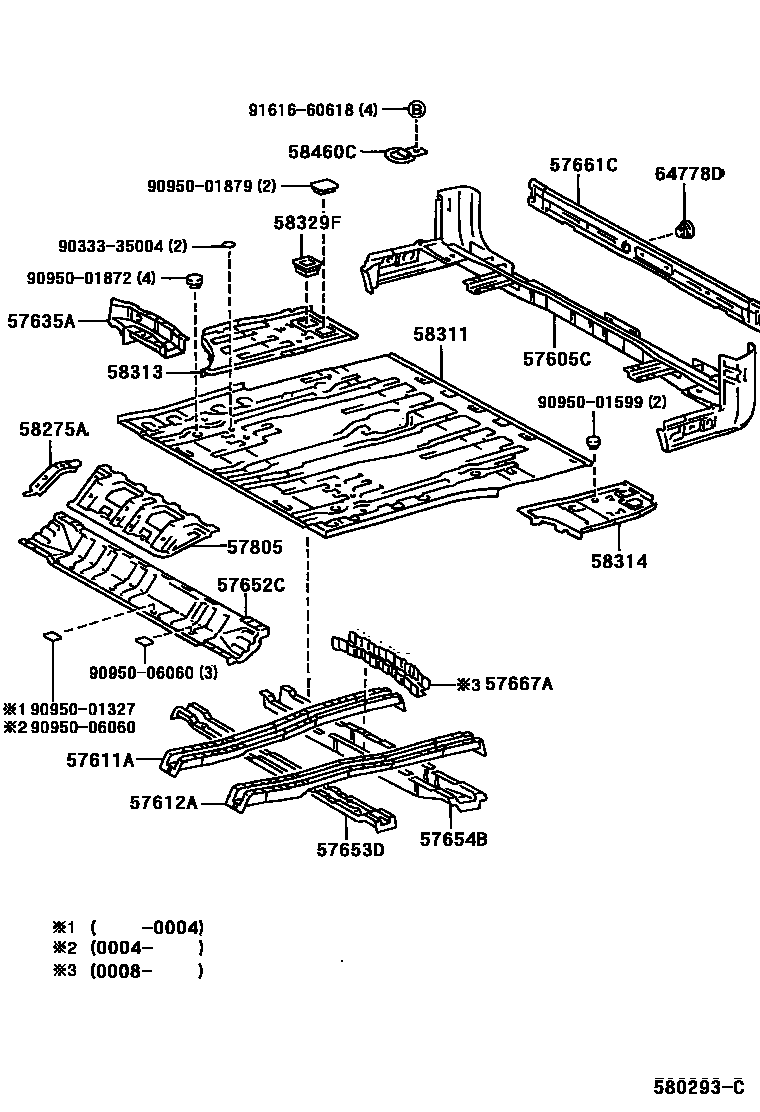

Toyota HILUX 后地板和后地板梁 — Figure 5852
Toyota HILUX EPC diagram 5852, 后地板和后地板梁, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57605C | Rear floor cross member sub-assembly | 57605-35030 · 57605-35040 · 57605-35090 · 57605-35100 · 57605-35220 · 57605-35230 |
| 57611A | Rear floor right longitudinal beam | 57611-35010 |
| 57612A | Rear floor left longitudinal beam | 57612-35010 · 57612-35011 |
| 57635A | Rear floor right rear longitudinal beam reinforcement | 57635-35010 |
| 57652C | Rear floor beam No. 1 | 57652-35010 · 57652-35011 |
| 57653D | No. 2 rear floor cross member | 57653-35030 · 57653-35031 · 57653-35100 |
| 57654B | Rear floor beam No. 3 | 57654-35010 · 57654-35030 |
| 57661C | Rear floor outer rear cross member | 57661-35010 · 57661-35020 |
| 57667A | Rear floor No. 4 cross member reinforcement | 57667-35010 |
| 57805 | Seat belt anchor reinforcement sub-assembly | 57805-35010 · 57805-35011 |
| 58275A | Rear seat back to center floor fixing | 58275-35010 |
| 58311 | rear floor pan | 58311-35040 |
| 58313 | Rear floor right panel | 58313-35010 |
| 58314 | rear floor left panel | 58314-35010 |
| 58329F | Rear floor manhole cover No. 2 | 58329-35010 |
| 58460C | Luggage fixing belt lock assembly | 58460-35010 · 58460-35011 · 58460-35012 |
| 64778D | Spare tire protection device | 64778-35010 |
