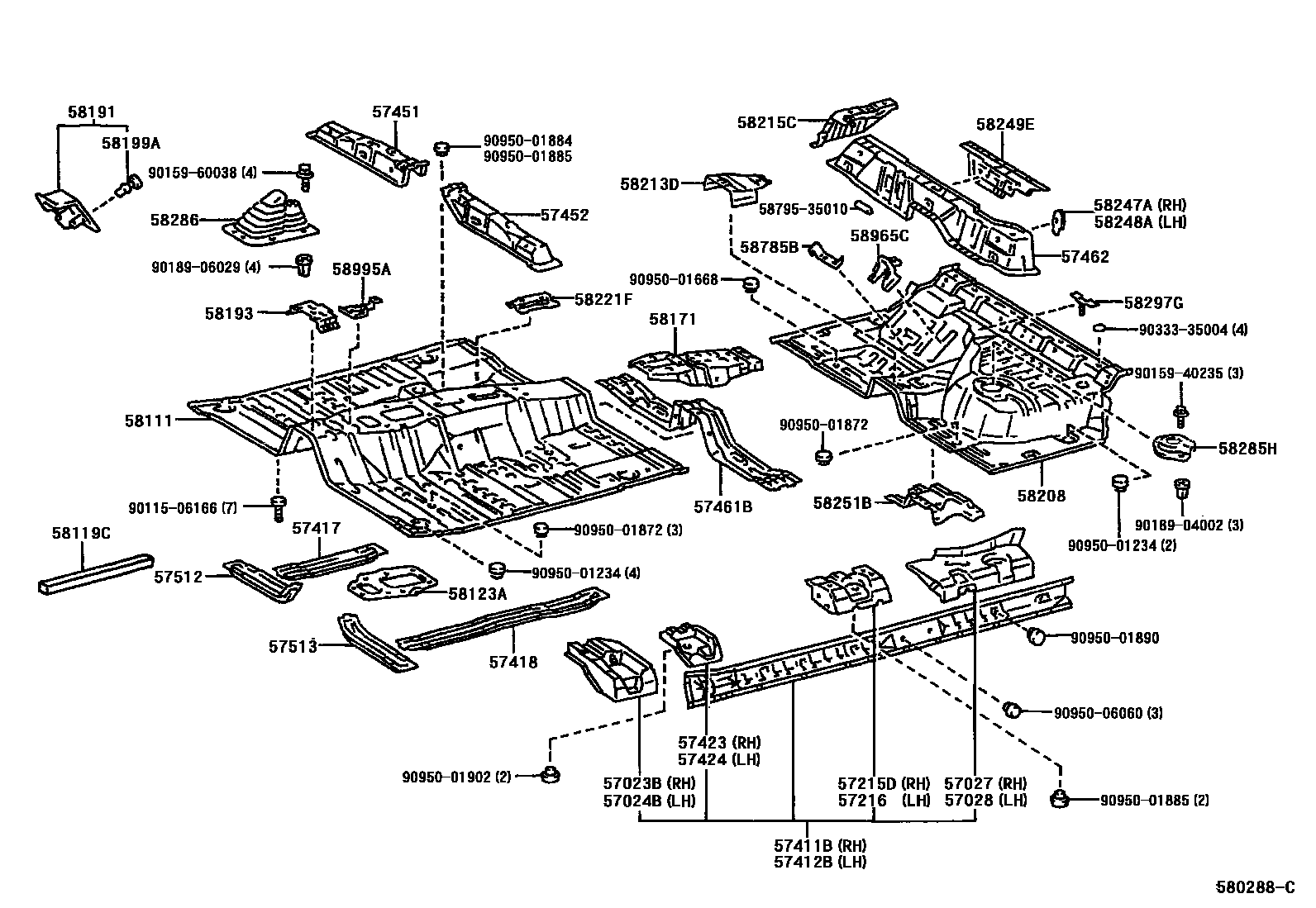

Toyota HILUX 前地板和前地板梁 — Figure 5851
Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51707 | Right pedal sub-assembly | 51083-35070 · 51083-35080 · 51770-35030 |
| 51708 | Left pedal sub-assembly | 51084-35060 · 51084-35070 · 51780-35010 |
| 51759A | Left rear door step panel cover | 51759-35020 · 51759-35030 |
| 51773B | Right front door side step panel lining cover | 51773-35020 · 51773-35030 |
| 51774A | Left front door side step panel lining cover | 51774-35020 · 51774-35030 |
| 51779A | Right rear door step panel cover | 51779-35020 · 51779-35030 |
| 51793A | Right footboard bracket No. 1 | 51793-35010 · 51793-35020 · 51793-35050 |
| 51794A | Left pedal No. 1 bracket | 51794-35010 · 51794-35020 · 51794-35050 |
| 51795A | Right footboard bracket No. 2 | 51795-35010 · 51795-35020 · 51795-35060 |
| 51796 | Left side step plate No. 2 bracket | 51796-35010 · 51796-35020 · 51796-35060 |
| 51797 | Right footboard bracket No. 3 | 51797-35010 · 51797-35020 · 51797-35070 · 51797-35080 |
| 51798 | Left footboard No. 3 bracket | 51798-35010 · 51798-35020 · 51798-35070 · 51798-35080 |
| 57023B | Right body No. 2 mounting bracket sub-assembly | 57023-35020 |
| 57024B | Left body No. 2 mounting bracket sub-assembly | 57024-35020 |
| 57027 | Right body No. 4 mounting bracket sub-assembly | 57027-35010 · 57027-35040 |
| 57028 | Left body No. 4 mounting bracket sub-assembly | 57028-35010 · 57028-35040 |
| 57215D | Right body No. 3 mounting bracket | 57025-35040 · 57215-35030 |
| 57216 | Left body No. 3 mounting bracket sub-assembly | 57026-35030 · 57216-35030 |
| 57411B | Floor right inner longitudinal beam | 57401-35900 · 57401-35903 · 57401-35904 |
| 57412B | Floor left inner longitudinal beam | 57402-35900 · 57402-35903 · 57402-35904 · 57402-35905 |
| 57417 | Front floor lower right reinforcement | 57417-35030 |
| 57418 | Front floor lower left reinforcement | 57418-35030 |
| 57423 | Front floor right reinforcement bracket | 57423-35010 |
| 57424 | Front floor left reinforcement bracket | 57424-35010 |
| 57451 | front floor cross member | 57451-35030 |
| 57452 | Front floor left cross member | 57452-35040 |
| 57461B | Center floor No. 1 beam sub-assembly | 57407-35020 |
| 57462 | Center floor beam No. 2 | 57462-35010 |
| 57512 | Front floor right reinforcement | 57512-35010 |
| 57513 | Front floor left reinforcement | 57513-35010 |
| 58111 | front floor pan | 58111-35080 · 58111-35081 · 58111-35082 · 58111-35090 · 58111-35091 · 58111-35092 · 58111-35100 · 58111-35101 · 58111-35102 · 58111-35110 · 58111-35111 · 58111-35112 · 58111-35130 · 58111-35131 · 58111-35132 · 58111-35140 · 58111-35141 · 58111-35142 · 58111-35151 · 58111-35152 · 58111-35171 · 58111-35172 |
| 58119C | front floor cushion | 58119-60030 |
| 58123A | shift lever bracket | 58123-35010 · 58123-35020 · 58123-35030 · 58123-35040 |
| 58171 | Parking brake base reinforcement | 58171-35010 · 58171-35011 · 58171-35012 · 58171-35020 |
| 58191 | Front floor footrest | 58190-35020 |
| 58193 | Dashboard bracket mounting bracket | 58109-60010 · 58193-35030 · 58193-35050 · 58193-35051 |
| 58199A | Footrest clip No. 2 | 58199-20030 |
| 58208 | central floor base | 58211-35010 |
| 58213D | Central floor reinforcement | 58213-35010 |
| 58215C | Center floor No. 2 right reinforcement | 58215-35010 |
| 58221F | Front floor right front reinforcement | 58221-35010 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-35010 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-35010 |
| 58249E | Rear seat installation reinforcement | 58249-35010 |
| 58251B | front floor bracket | 58251-35010 |
| 58285H | Center floor hole cover | 58285-35010 |
| 58286 | No. 1 shift lever dust cover | 58280-35110 · 58280-35130 |
| 58297G | Floor clip fasteners | 58297-35020 |
| 58785B | Tool bag strap holder | 58785-89106 |
| 58965C | Jack holder | 58965-35030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-35020 |
