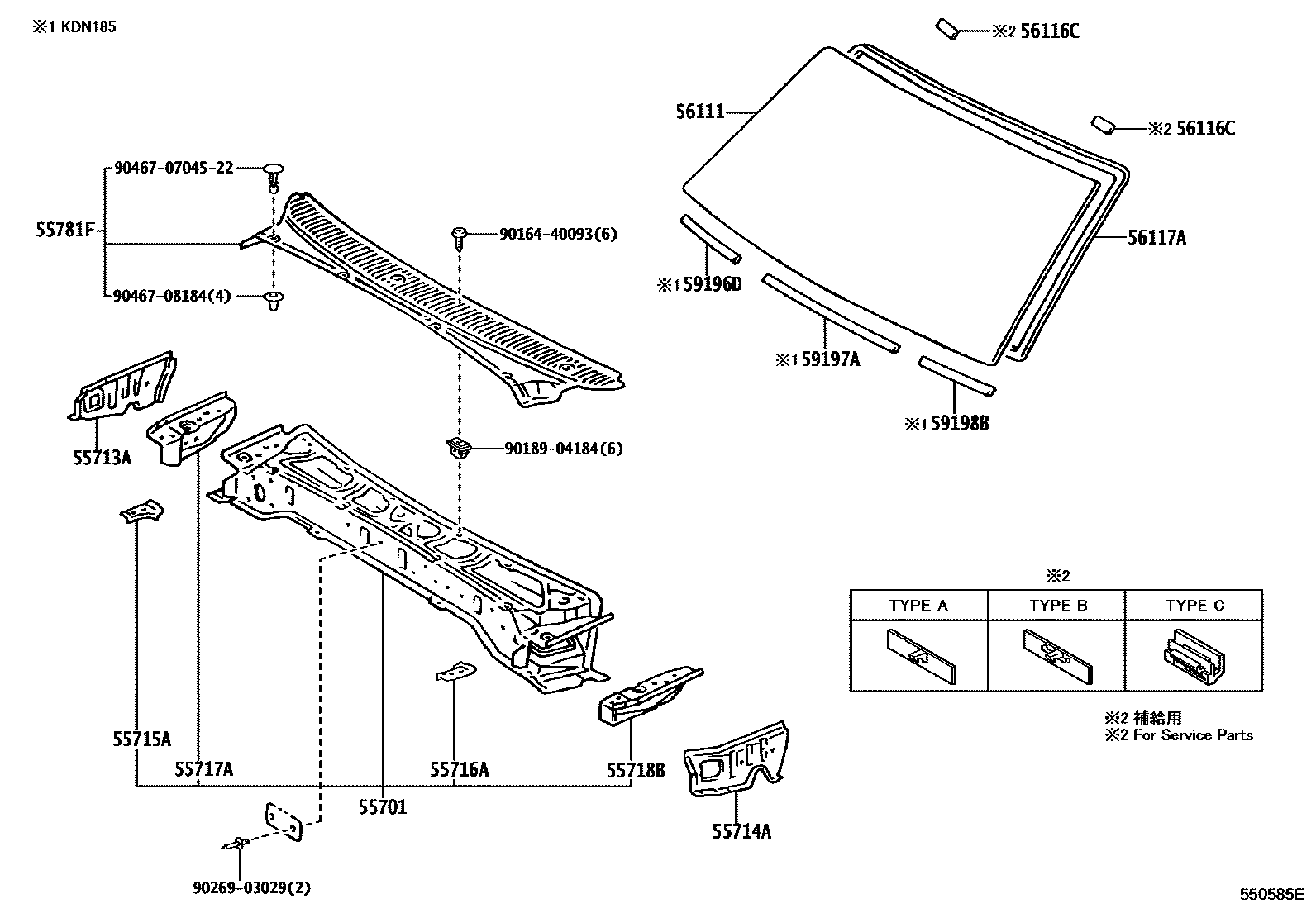

Toyota HILUX 前围板和挡风玻璃 — Figure 5553
Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55701 | Front apron sub-assembly | 55700-35010 · 55700-35030 · 55700-35190 · 55700-35520 |
| 55713A | Right front wall upper side panel | 55713-35011 |
| 55714A | Left front wall upper side panel | 55714-35011 |
| 55715A | From cowl upper cover to fender right stay | 55715-35010 |
| 55716A | From cowl upper cover to fender left stay | 55716-35010 |
| 55717A | Upper right inner panel of cowl | 55717-35900 |
| 55718B | Upper left inner panel of front wall | 55718-35900 |
| 55781F | Ventilation grille on front panel | 55708-35010 |
| 56111 | windshield | 56111-35100 · 56111-35150 |
| 56116C | Windshield block 2 | 56115-30100 · 56116-35040 · 56116-35050 |
| 56117A | Window glass adhesive seals | 56117-35020 · 56117-35070 · 56117-35080 |
| 59196D | No. 1 silencer plate seal | 59196-35010 |
| 59197A | No. 2 silencer plate seal | 59197-35010 |
| 59198B | No. 3 silencer plate seal | 59198-35010 |
