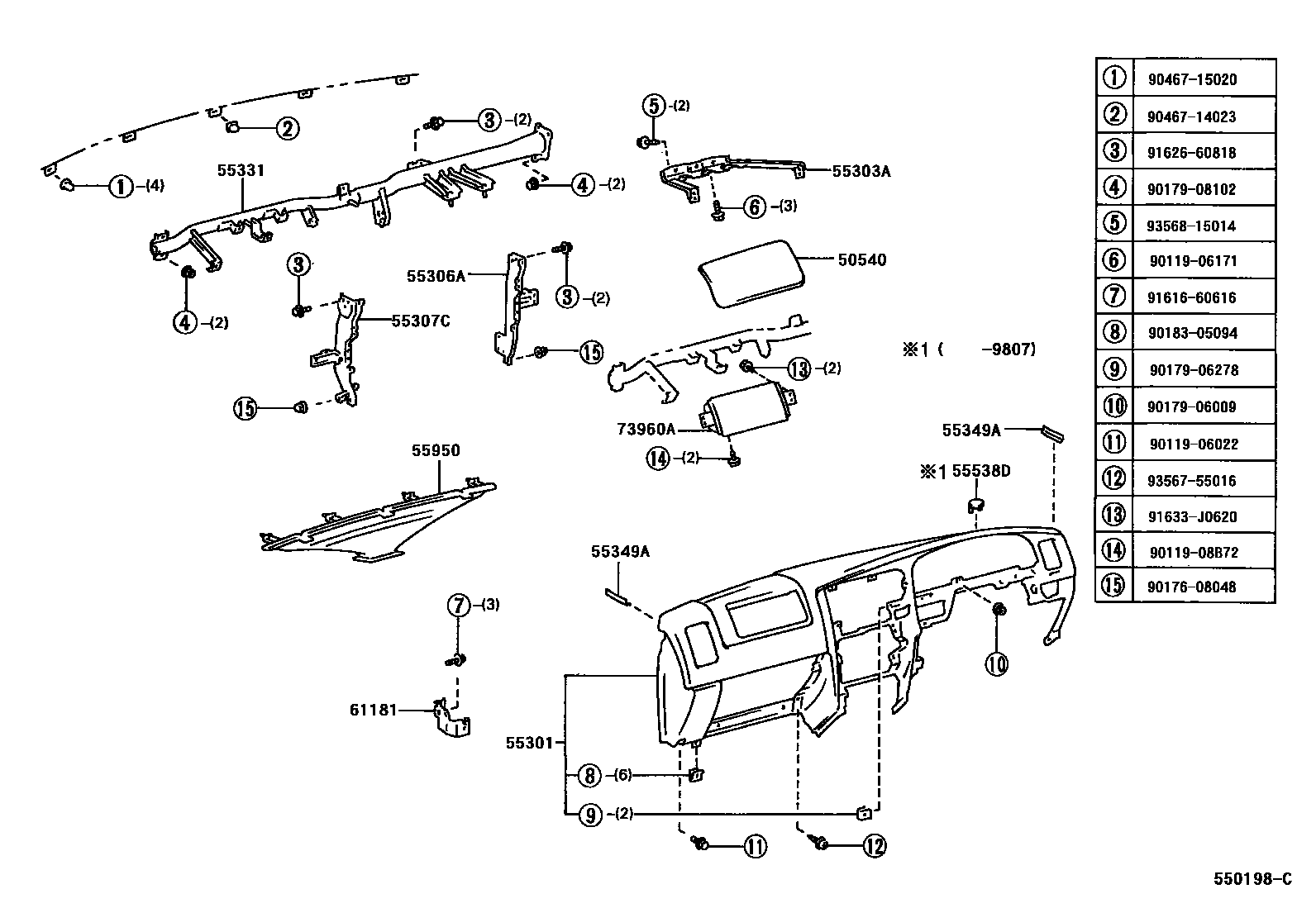

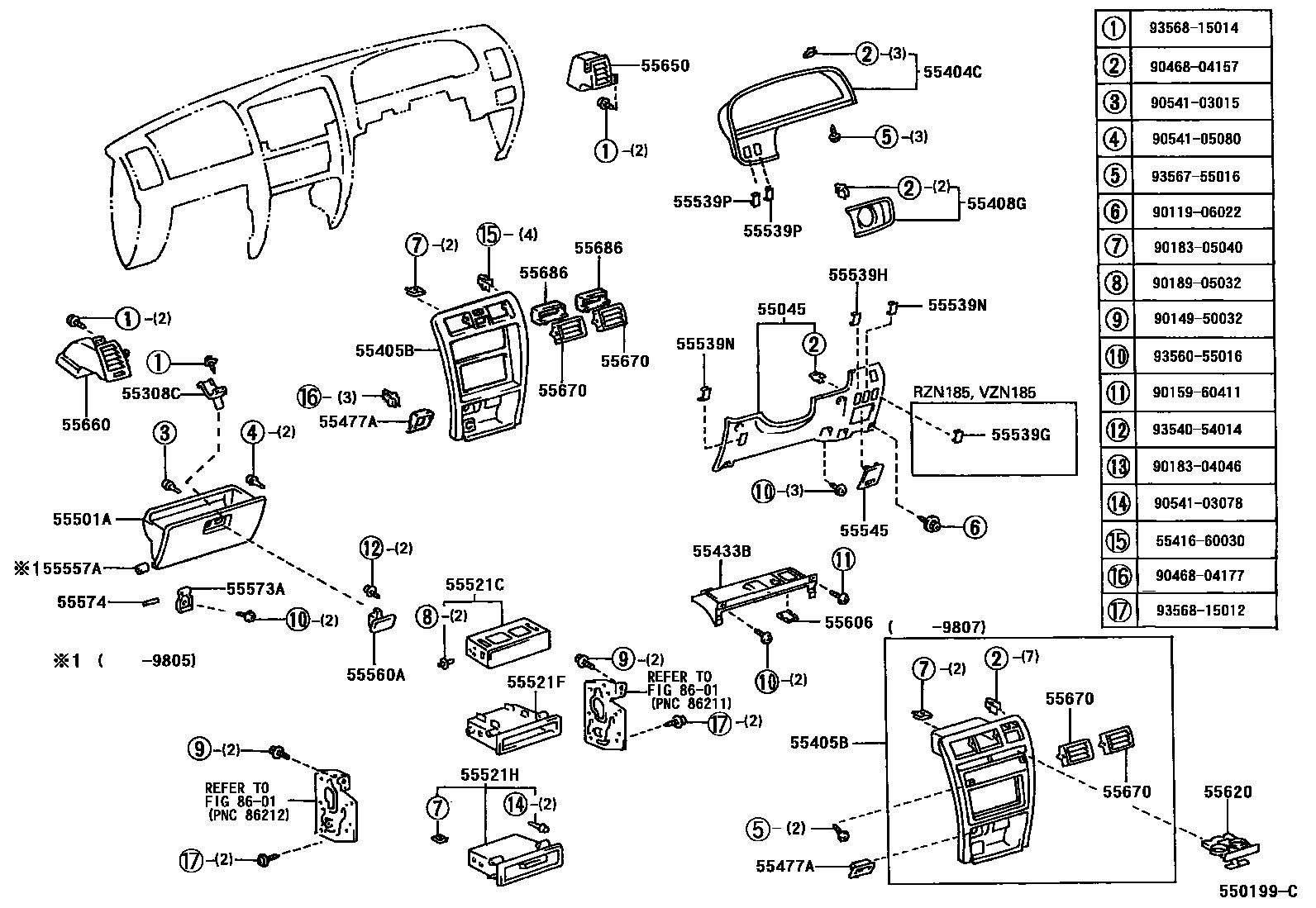

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55303A | Instrument panel stay sub-assembly | 55303-35010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-35030 · 55306-35031 · 55306-35090 · 55306-35100 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-35030 · 55307-35031 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-35010 |
| 55331 | Dashboard reinforcement | 55330-35060 · 55330-35100 · 55330-35120 |
| 55349A | Dashboard cushion | 55349-35010 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-35090 · 55404-35160 · 55404-35180 · 55404-35250 · 55404-35251 · 55404-35260 · 55404-35261 · 55404-35270 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-35030 · 55405-35080 · 55405-35120 · 55405-35180 · 55412-35150 · 55412-35160 · 55412-35170 · 55412-35190 · 55412-35220 · 55412-35230 · 55412-35240 |
| 55408G | Starter switch frame sub-assembly | 55408-35020 · 55408-35050 · 55408-35060 · 55408-35120 · 55408-35130 · 55408-35150 |
| 55433B | No. 2 lower decorative panel of instrument panel | 55433-35020 |
| 55477A | Cigarette lighter hole frame | 55477-35010 |
| 55521C | stereo system hole cover | 55521-89104 |
| 55521F | Stereo system hole cover No. 2 | 55521-35010 |
| 55521H | Stereo system hole cover assembly | 55520-35040 |
| 55539P | Spare switch hole cover | 55539-89105 |
| 55557A | Glove box cover limit pad | 55557-35010 |
| 55573A | Glove box lid hinge | 55573-32010 |
| 55574 | Glove box cover hinge shaft | 90254-04016 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-35010 · 55606-60010 |
| 55620 | Dashboard cup holder assembly | 55620-35040 · 55620-35050 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-35030 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-35050 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55063-35010 · 55063-35030 |
| 55686 | Wind regulator blade fixings | 55688-35040 |
| 55950 | Defroster nozzle assembly | 55950-35010 |
| 61181 | Dashboard side bracket | 61181-35020 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0W100 · 73960-0W230 · 73960-0W250 · 73960-35020 · 73960-35040 |
