Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

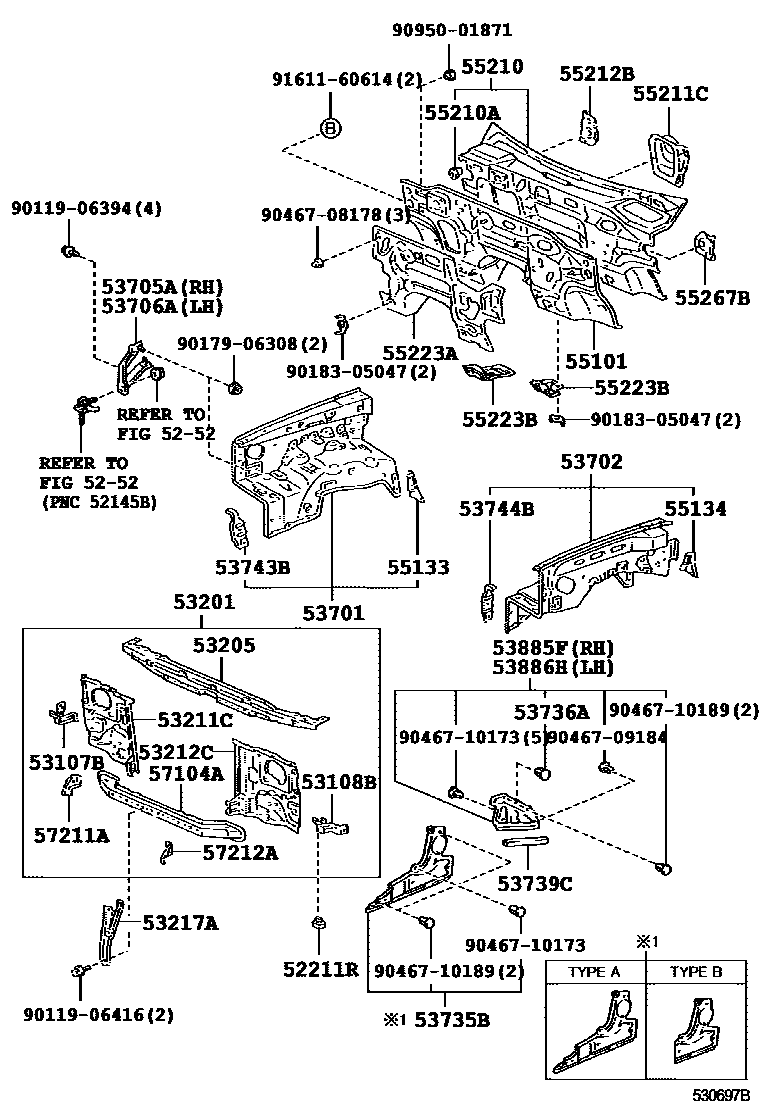

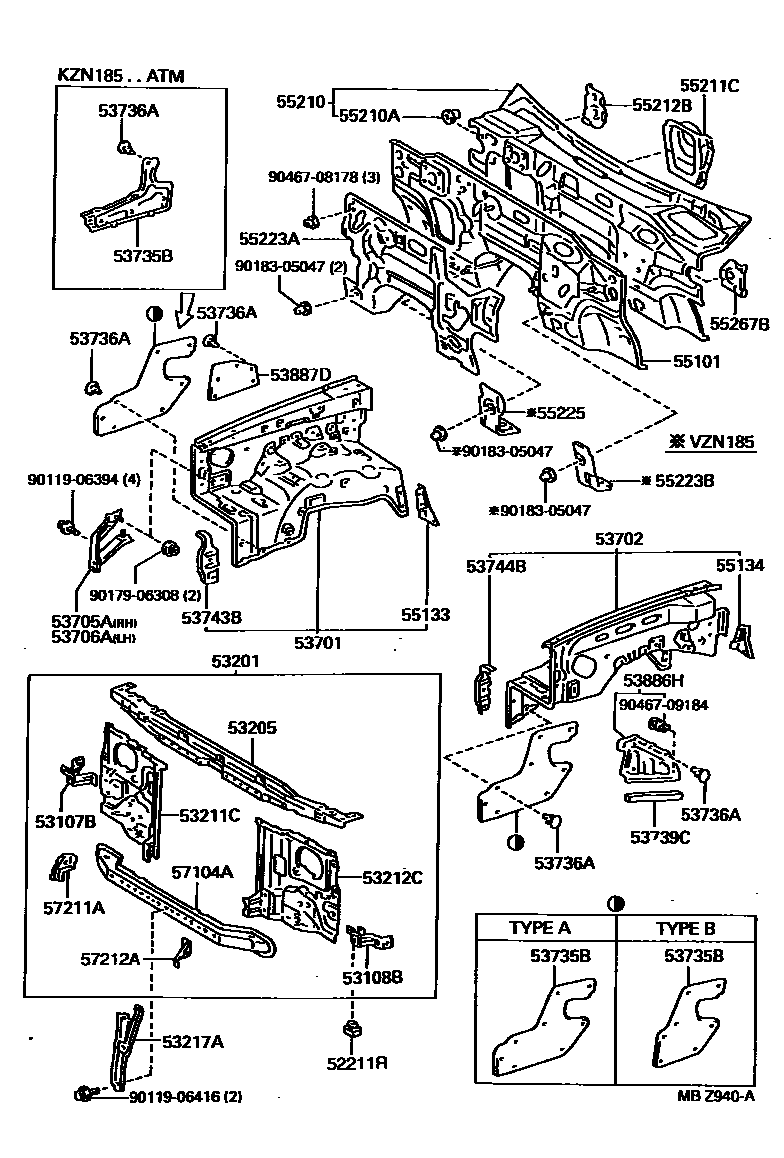

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52211R | Body No. 1 fixed cushion | 52211-35010 |
| 53107B | Radiator grille lower right bracket sub-assembly | 53107-35020 |
| 53108B | Radiator grille lower left bracket sub-assembly | 53108-35020 |
| 53201 | Radiator bracket sub-assembly | 53201-35100 |
| 53205 | Radiator upper bracket sub-assembly | 53205-35010 · 53205-35011 |
| 53211C | Radiator right side support | 53202-35090 |
| 53212C | Radiator left support | 53203-35100 |
| 53217A | engine cover lock bracket | 53217-35020 |
| 53701 | Right front fender fender sub-assembly | 53701-35430 · 53701-35450 · 53701-35451 · 53701-35452 · 53701-35500 · 53701-35501 · 53701-35502 · 53701-35510 · 53701-35540 · 53701-35580 · 53701-35590 · 53701-35591 · 53701-35592 · 53701-3D070 |
| 53702 | Left front fender fender sub-assembly | 53702-35520 · 53702-35540 · 53702-35580 · 53702-35840 · 53702-35841 · 53702-35850 · 53702-35851 · 53702-3D390 · 53702-3D410 |
| 53705A | Right fender fender bracket sub-assembly | 53705-35030 · 53705-35060 |
| 53706A | Left fender fender bracket sub-assembly | 53706-35030 · 53706-35060 |
| 53735B | Front fender fender seal | 53735-35020 · 53735-35030 · 53783-35010 · 53783-35011 · 53783-35020 · 53783-35021 · 53784-35010 · 53784-35011 |
| 53736A | Clip (for front fender fender seal) | 90467-10186 |
| 53739C | Rear seal (front fender fender to frame) | 53739-35010 · 53739-35011 |
| 53743B | Right front fender fender front reinforcement | 53743-35010 |
| 53744B | Left front fender fender front reinforcement | 53744-35010 |
| 53885F | Right front fender rear splash guard | 53885-60011 · 53885-60012 |
| 53886H | Left front fender rear splash guard | 53886-35010 · 53886-60010 · 53886-60011 · 53886-60012 · 53886-60013 |
| 53887D | No. 1 front fender splash guard seal | 53887-35010 |
| 55101 | Front apron sub-assembly | 55101-35929 · 55101-35931 · 55101-35932 · 55101-35933 · 55101-35951 · 55101-35952 · 55101-3D901 |
| 55133 | Right front fender fender lower fixing plate | 55133-35010 |
| 55134 | Left front fender fender lower fixing plate | 55134-35010 |
| 55210 | Front wall insulation pad assembly | 55210-35150 · 55210-35151 · 55210-35152 · 55210-35153 |
| 55210A | clip | 90467-13035 |
| 55211C | cowl heat insulation pad cover | 55211-35020 · 55211-35021 |
| 55212B | No. 2 heat insulation pad cover for front wall | 55212-35010 · 55212-35020 |
| 55223A | Front wall outer heat insulation pad | 55223-35010 · 55223-35011 · 55223-35012 |
| 55223B | No. 1 insulation pad for front wall panel | 55224-35010 · 55224-35020 · 55225-35120 |
| 55225 | Front wall insulation pad | 55225-35060 |
| 55267B | No. 3 heat insulation pad cover for front wall | 55267-35010 |
| 57104A | Front cross member sub-assembly | 57104-35030 |
| 57211A | Right body No. 1 mounting bracket | 57211-35010 |
| 57212A | Left body No. 1 mounting bracket | 57212-35030 |
