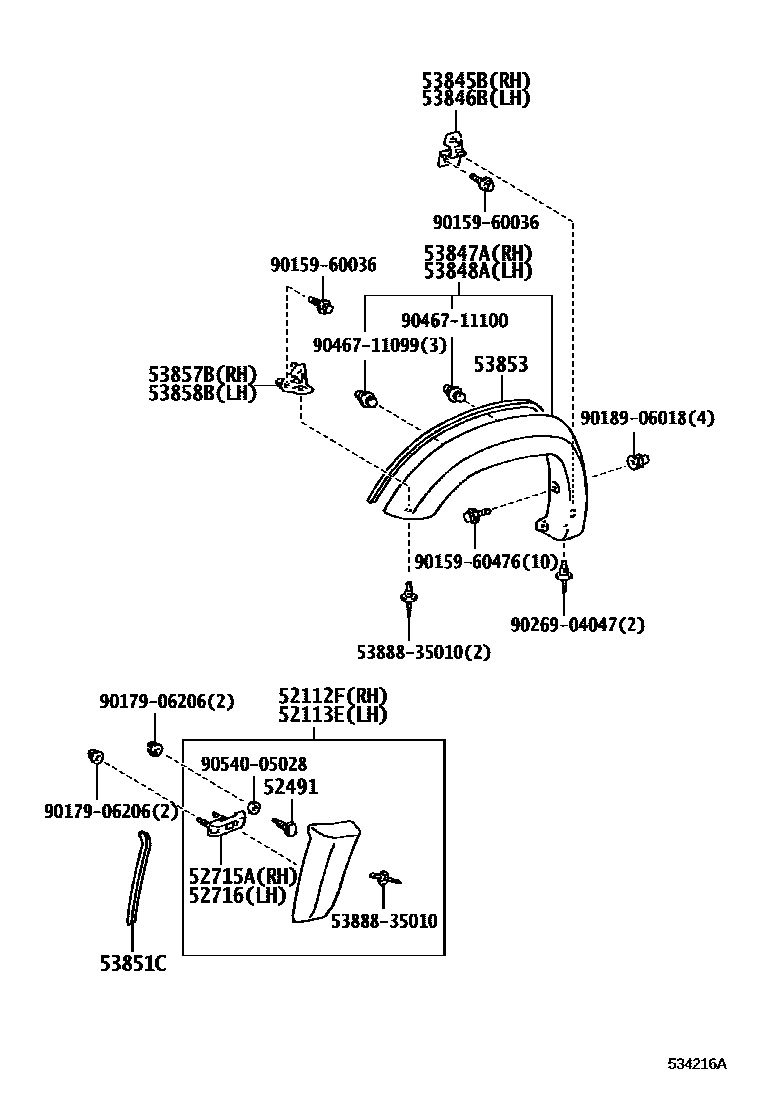

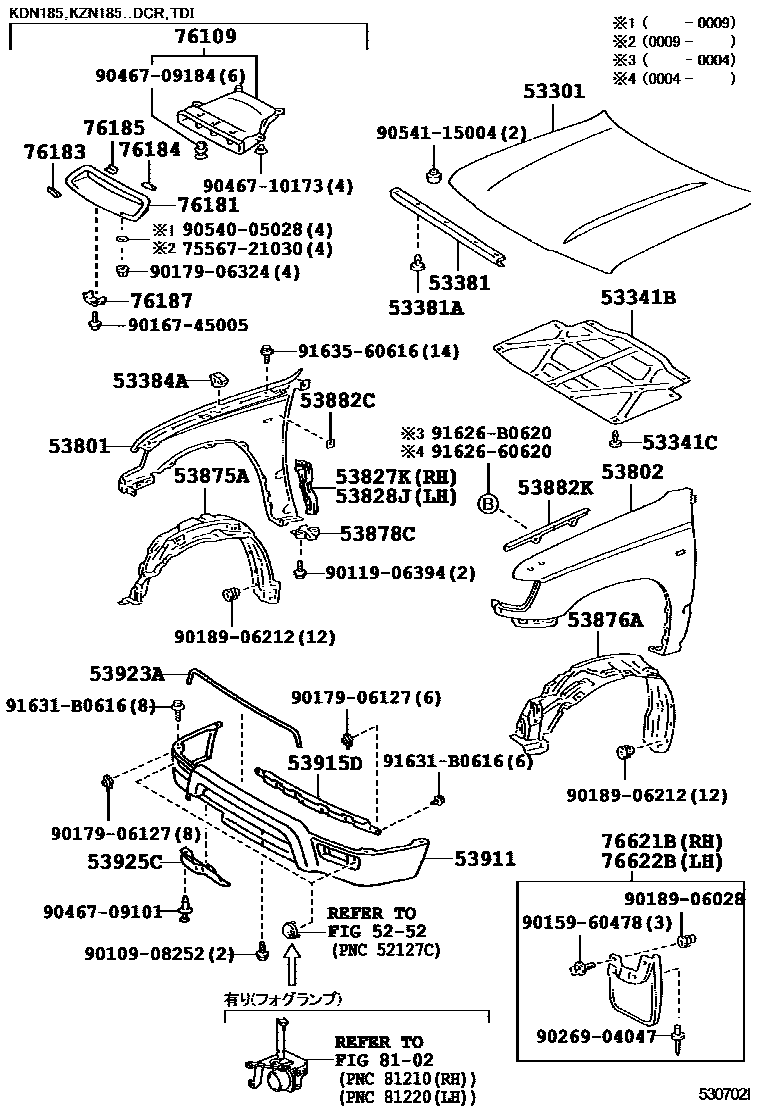

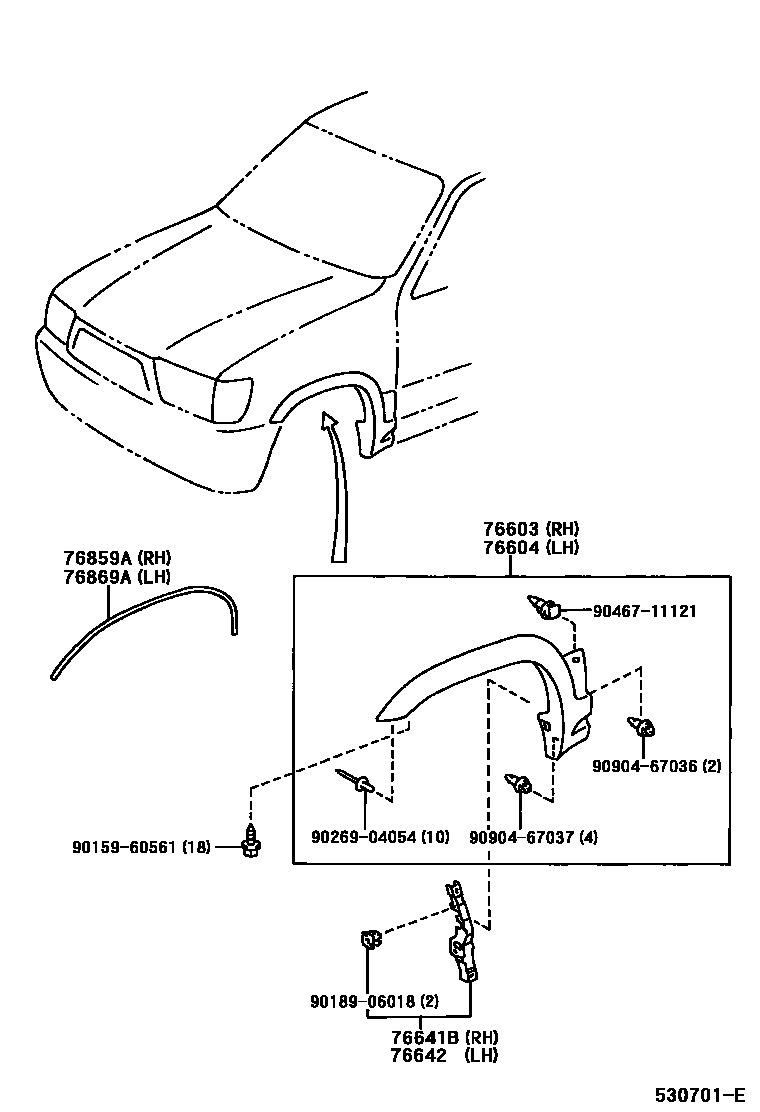

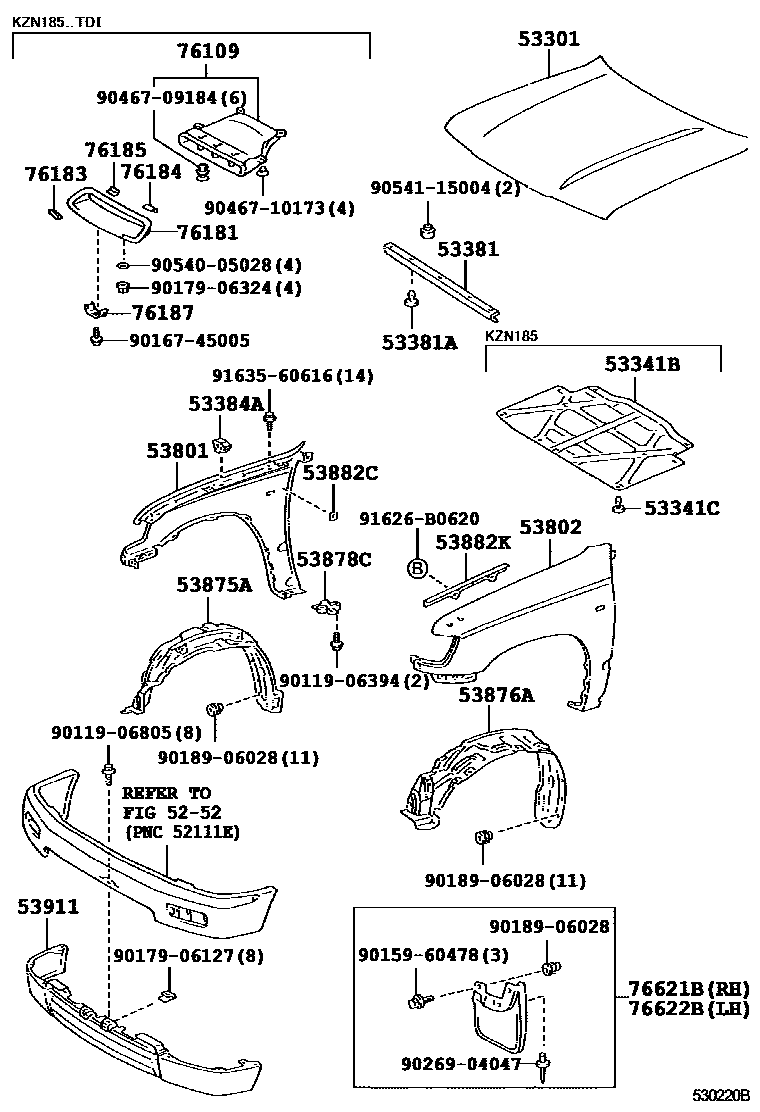

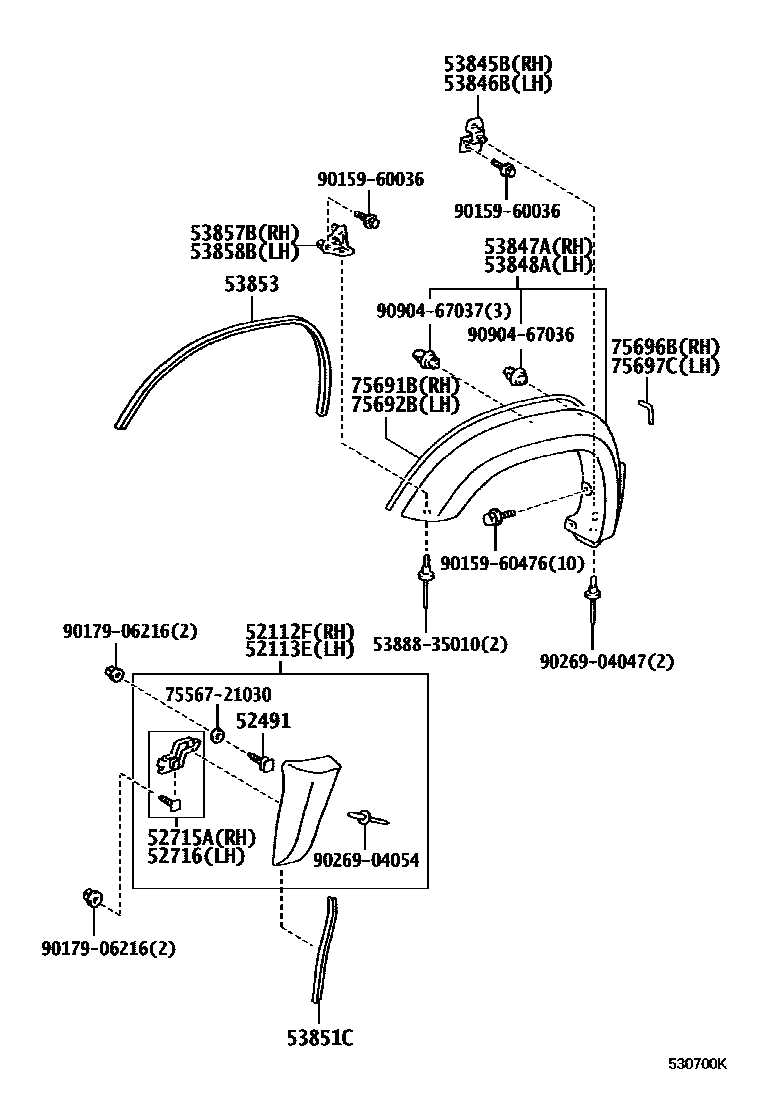

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 5 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112F | Front bumper right extension | 52102-35901 · 52102-35902 |
| 52113E | Front bumper left extension | 52103-35901 · 52103-35902 |
| 52491 | bumper liner bolts | 52491-35010 |
| 52715A | Front bumper protection strip No. 1 right side fixing piece | 52715-35010 · 52715-35020 |
| 52716 | Front bumper protective strip No. 1 left side fixing piece | 52716-35010 · 52716-35020 |
| 53301 | Engine cover sub-assembly | 53301-35040 · 53301-35050 · 53301-35080 · 53301-35090 |
| 53341B | engine cover gasket | 53341-35020 · 53341-35021 · 53341-35022 · 53341-35030 · 53341-35031 · 53341-35032 |
| 53341C | Clip (for engine cover gasket) | 90467-09006 |
| 53381 | Engine cover to radiator bracket seal | 53381-35020 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-35010 |
| 53801 | Right front fender sub-assembly | 53811-35100 · 53811-35110 · 53811-35320 · 53811-35350 |
| 53802 | Left front fender sub-assembly | 53802-35160 · 53802-35170 · 53802-35360 · 53802-35390 · 53812-35430 |
| 53827K | Right front fender side panel protector | 53827-35020 |
| 53828J | Left front fender side panel protector | 53828-35040 |
| 53845B | Right front fender No. 1 external panel | 53845-35010 · 53845-35020 |
| 53846B | Left front fender No. 1 external connection plate | 53846-35010 · 53846-35020 |
| 53847A | Right front fender or wheel arch guard strip extension | 53087-35900 · 53087-35903 |
| 53848A | Left front fender or wheel arch guard strip extension | 53088-35900 · 53088-35903 |
| 53851C | No. 1 front fender outer panel pad | 53851-35010 · 53851-35030 · 53851-35040 |
| 53853 | No. 3 front fender outer panel pad | 53853-35020 · 53853-35030 · 53853-35040 |
| 53857B | Right front fender external panel fixing piece | 53857-35020 |
| 53858B | Left front fender external panel fixing piece | 53858-35020 |
| 53875A | Right front fender lining | 53875-35020 · 53875-35050 |
| 53876A | Left front fender lining | 53876-35010 · 53876-35040 |
| 53878C | front fender spacer | 53878-35020 |
| 53882C | Front fender main seal | 53882-16030 |
| 53882K | front fender seal | 53882-35010 |
| 53911 | front fender | 53911-35120 · 53911-35130 · 53911-35140 · 53911-35300 · 53911-35908 |
| 53915D | Front fender bracket | 53915-35010 |
| 53925C | Front fender right panel | 53925-35010 |
| 75691B | Right front fender outer protective strip liner | 75691-35010 |
| 75692B | Left front fender outer protective strip liner | 75692-35010 |
| 75696B | Body right outer protective strip liner | 75696-35040 |
| 75697C | Body left outer protective strip liner | 75697-35030 |
| 76109 | Engine cover air intake duct sub-assembly | 76109-35010 · 76109-35020 |
| 76181 | hood bulge | 76181-35900 |
| 76183 | Engine cover bump protector No. 1 | 76183-12030 |
| 76184 | No. 2 engine cover bump protector | 76184-12020 |
| 76185 | No. 3 engine cover bulge protection device | 76185-35010 |
| 76187 | No. 1 engine cover air intake duct fixing part | 76187-35010 |
| 76603 | Right front fender fender sub-assembly | 76603-35900 |
| 76604 | Left front fender fender sub-assembly | 76604-35900 |
| 76621B | Right front body fender | 76621-39395 |
| 76622B | Left front body fender | 76622-39395 |
| 76641B | Right front fender fender bracket | 76641-35030 |
| 76642 | Left front fender fender bracket | 76642-35030 |
