Toyota HILUX radiator grille — Figure 5351

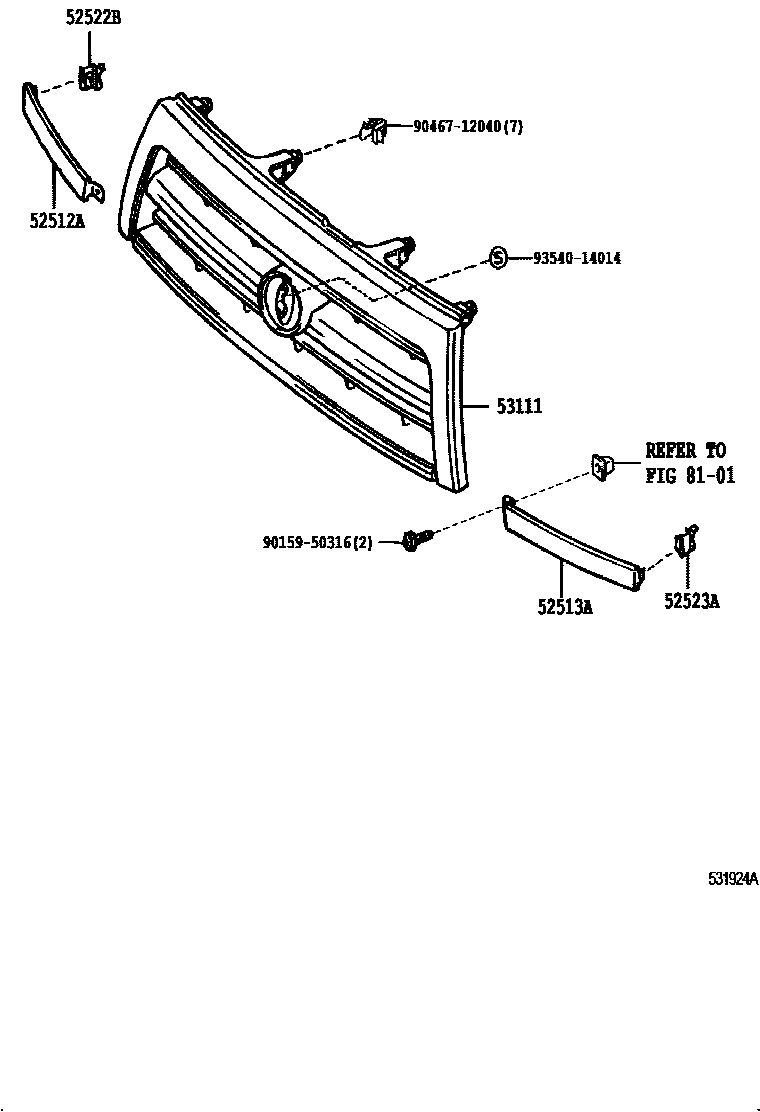

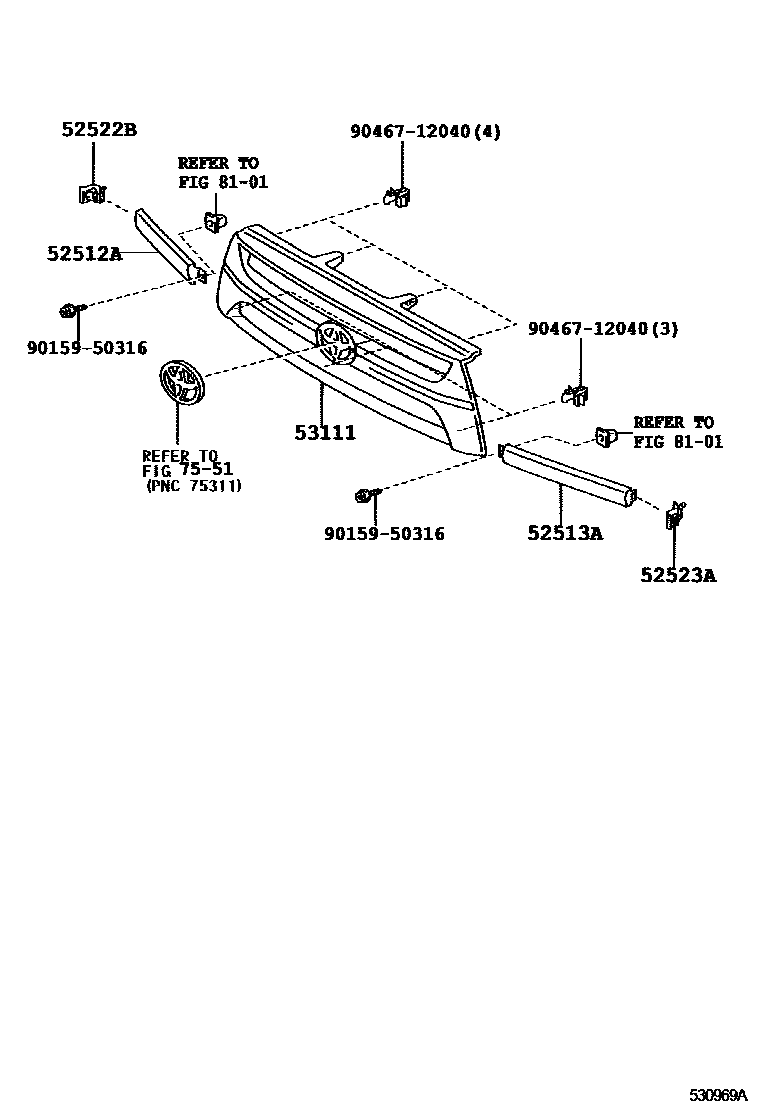

Toyota HILUX EPC diagram 5351, radiator grille, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52512A | Front bumper right curved filler | 52512-35030 |
| 52513A | Front bumper left curved filler | 52513-35030 |
| 52522B | Front bumper arc filler No. 2 fixing piece | 52522-35030 |
| 52523A | Front bumper arc filler No. 3 fixing piece | 52523-35030 |
| 53111 | radiator grille | 53111-35340 · 53111-35400 · 53111-35460 · 53111-35470 · 53111-35480 |
