Toyota HILUX 后保险杠及附件 — Figure 5253

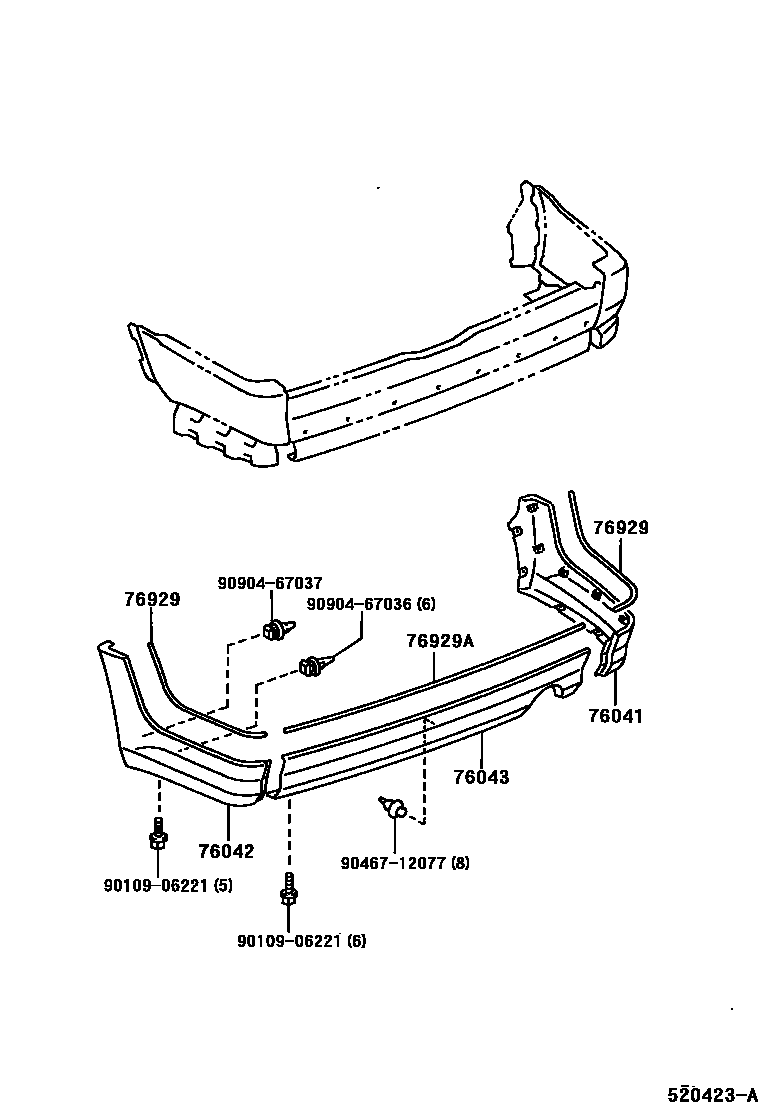

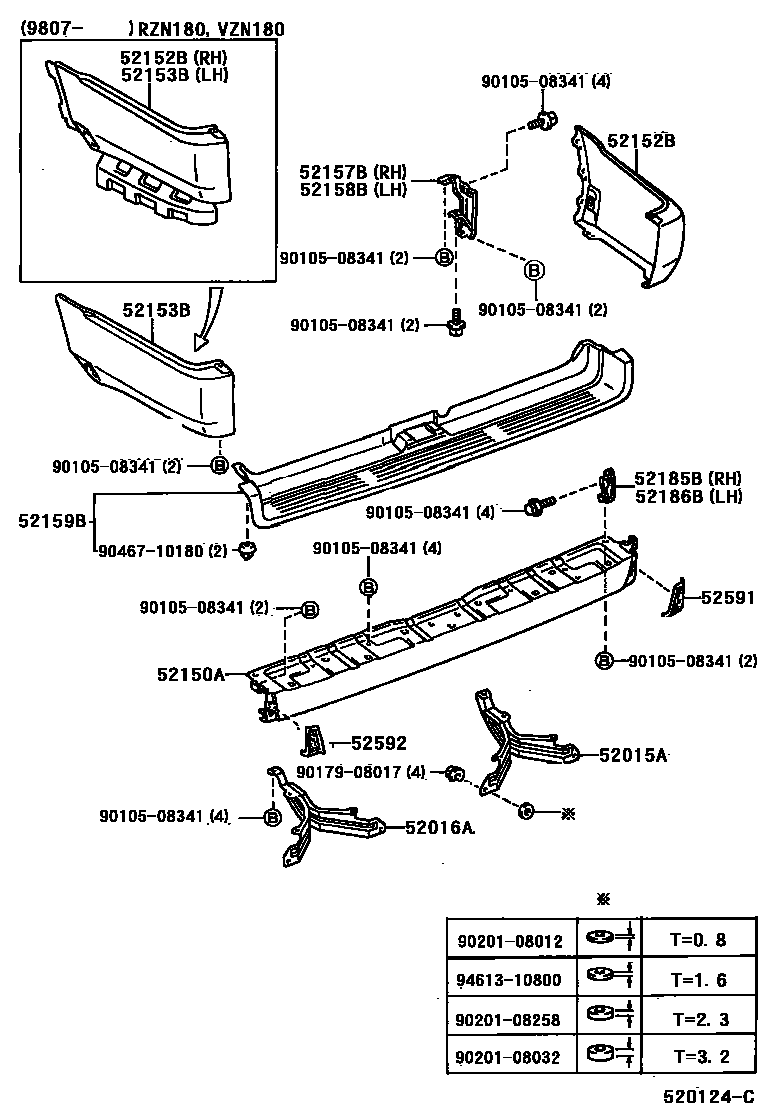

Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-35010 · 52015-35020 |
| 52016A | Rear bumper left arm sub-assembly | 52016-35010 · 52016-35020 |
| 52150A | Rear bumper assembly | 52105-35130 · 52105-35140 · 52105-35260 · 52105-35270 · 52105-35300 |
| 52152B | Rear bumper right extension | 52106-35060 · 52106-35061 · 52106-35070 · 52106-35071 · 52106-35081 · 52106-35150 |
| 52153B | Rear bumper left extension | 52107-35050 · 52107-35051 · 52107-35060 · 52107-35061 · 52107-35071 · 52107-35140 |
| 52157B | Rear bumper No. 2 right side stay | 52093-35010 |
| 52158B | Rear bumper No. 2 left side stay | 52094-35010 |
| 52159B | rear bumper bezel | 52159-35010 · 52159-35011 · 52159-35020 · 52159-35021 · 52159-35040 · 52159-35050 |
| 52185B | Installation support on the right side of the rear bumper | 52185-35010 |
| 52186B | Rear bumper left side mounting support | 52186-35010 |
| 52591 | Rear bumper right seal | 52591-35010 |
| 52592 | Rear bumper left seal | 52592-35010 |
| 76041 | Rear bumper right fender sub-assembly | 76041-35900 |
| 76042 | Rear bumper left fender sub-assembly | 76042-35900 |
| 76043 | Rear bumper center fender sub-assembly | 76043-35900 |
