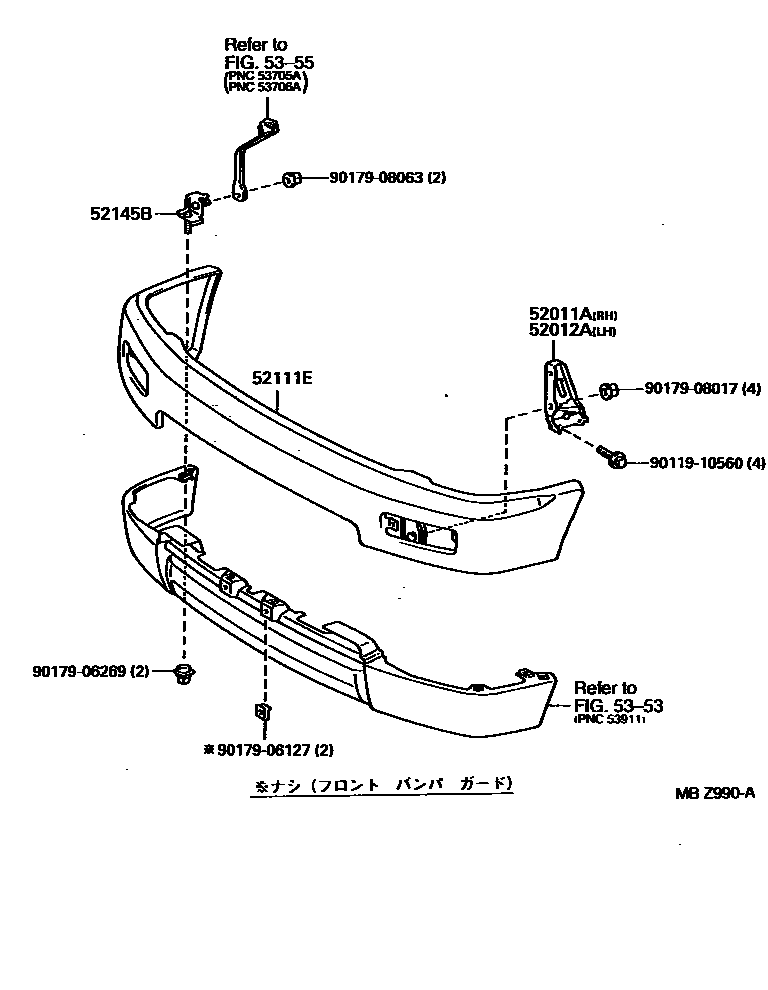

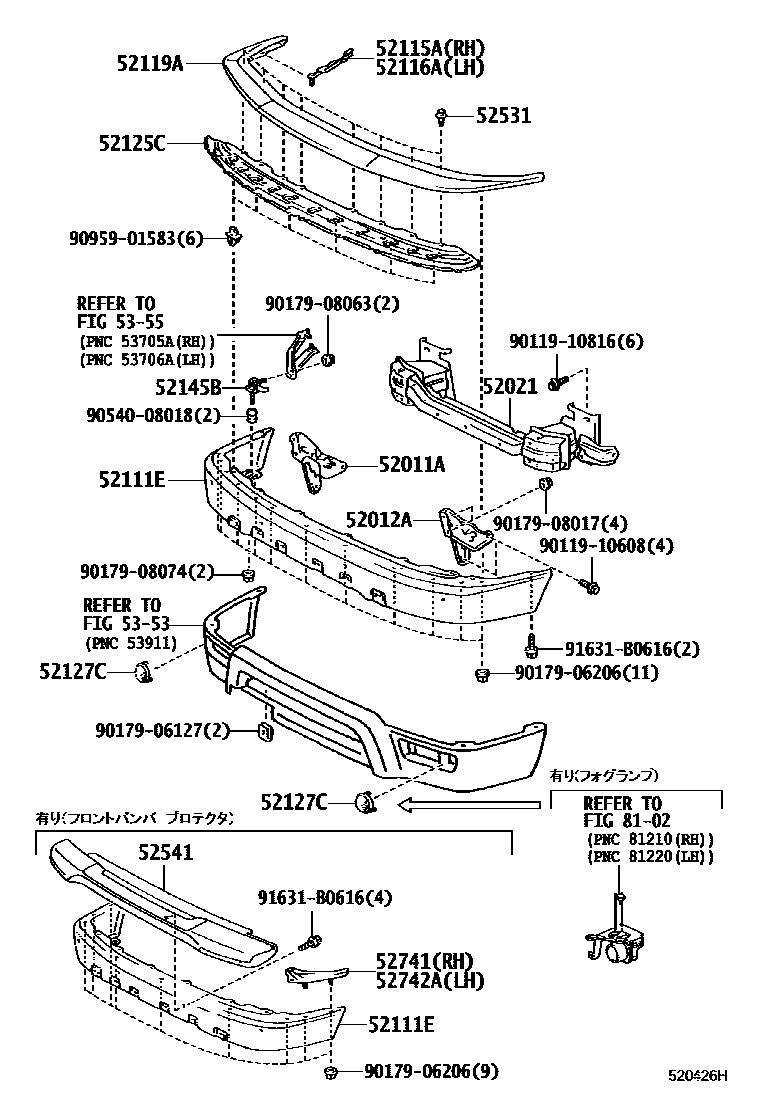

Toyota HILUX 前保险杠及附件 — Figure 5252
Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-35070 · 52141-35050 |
| 52012A | Front bumper left arm sub-assembly | 52012-35070 · 52142-35050 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-35020 · 52021-35030 |
| 52111E | front bumper stay | 52101-35300 · 52101-35320 · 52101-35330 · 52101-35570 · 52101-35580 · 52101-35590 |
| 52115A | Front bumper right side bracket | 52115-35090 |
| 52116A | Front bumper left bracket | 52116-35080 |
| 52119A | front bumper cover | 52119-35020 |
| 52125C | Front bumper reinforcement extension | 52125-35020 |
| 52127C | Front bumper hole cover | 52127-35020 |
| 52145B | Front bumper side mounting bracket | 52145-35030 · 52145-35040 · 52146-35030 · 52146-35040 |
| 52403A | Front bumper anti-collision bar gasket sub-assembly | 52403-35010 |
| 52411 | Front bumper anti-collision bar | 52401-35020 |
| 52441 | Front bumper No. 1 right anti-collision bar base | 52441-35030 |
| 52442 | Front bumper No. 1 left anti-collision bar base | 52442-35030 |
| 52492 | Bumper lining bolt No. 2 | 52492-35010 |
| 52492A | Bumper lining bolt No. 3 | 52492-35020 |
