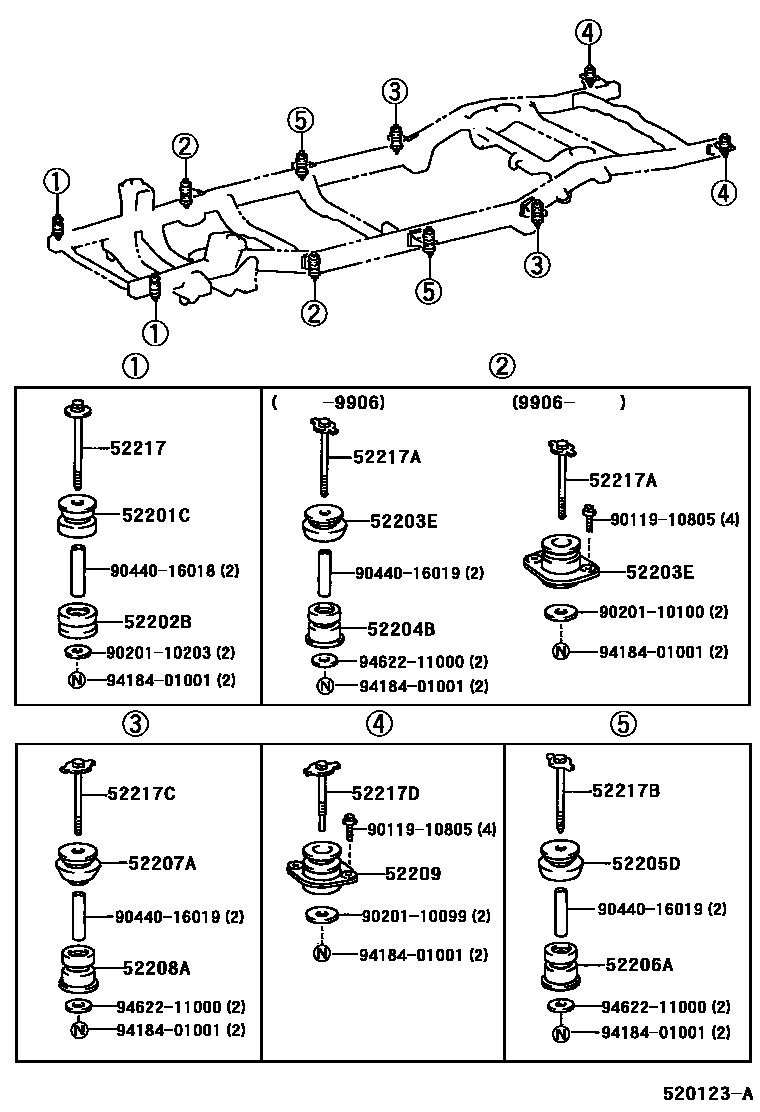

Toyota HILUX 驾驶室悬置和车身悬置 — Figure 5251
Toyota HILUX EPC diagram 5251, 驾驶室悬置和车身悬置, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52201C | Cab suspension No. 1 upper cushion pad sub-assembly | 52201-35090 |
| 52202B | Cab suspension No. 1 lower cushion pad sub-assembly | 52202-35080 |
| 52203E | Cab suspension No. 2 cushion pad sub-assembly | 52203-35200 · 52203-35250 |
| 52204B | Cab suspension No. 2 lower cushion pad sub-assembly | 52204-35110 |
| 52205D | Cab suspension No. 3 upper cushion pad sub-assembly | 52213-35011 |
| 52206A | Cab suspension No. 3 lower cushion pad sub-assembly | 52206-35030 |
| 52207A | Cab suspension No. 4 upper cushion pad sub-assembly | 52207-35040 · 52207-60060 |
| 52208A | Cab suspension No. 4 lower cushion pad sub-assembly | 52208-35040 · 52208-60031 |
| 52209 | Rear-end body fixed cushion pad sub-assembly | 52209-35010 · 52209-35011 |
| 52217 | Body mounting bolts | 52217-35040 |
| 52217A | Body mounting bolts | 52217-35050 · 52217-35100 · 52217-35110 |
| 52217B | Body mounting bolts | 52217-35100 |
| 52217C | Body mounting bolts | 52217-35050 · 52217-35100 |
| 52217D | Body mounting bolts | 52217-35030 |
