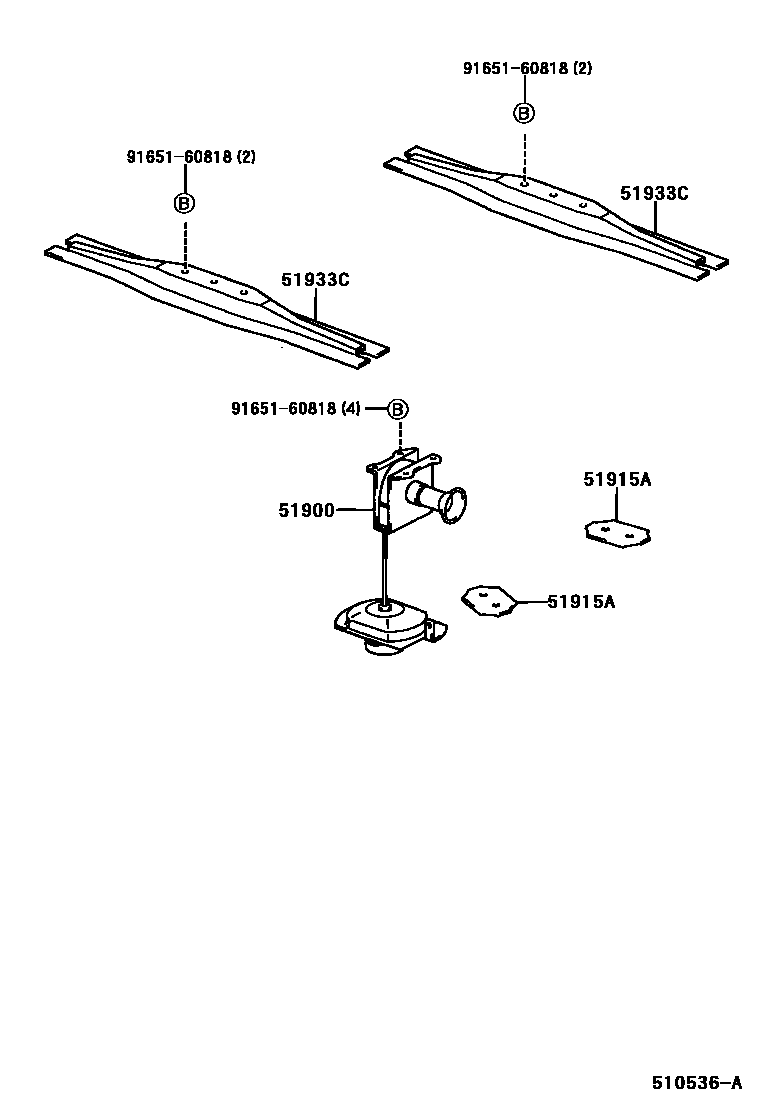

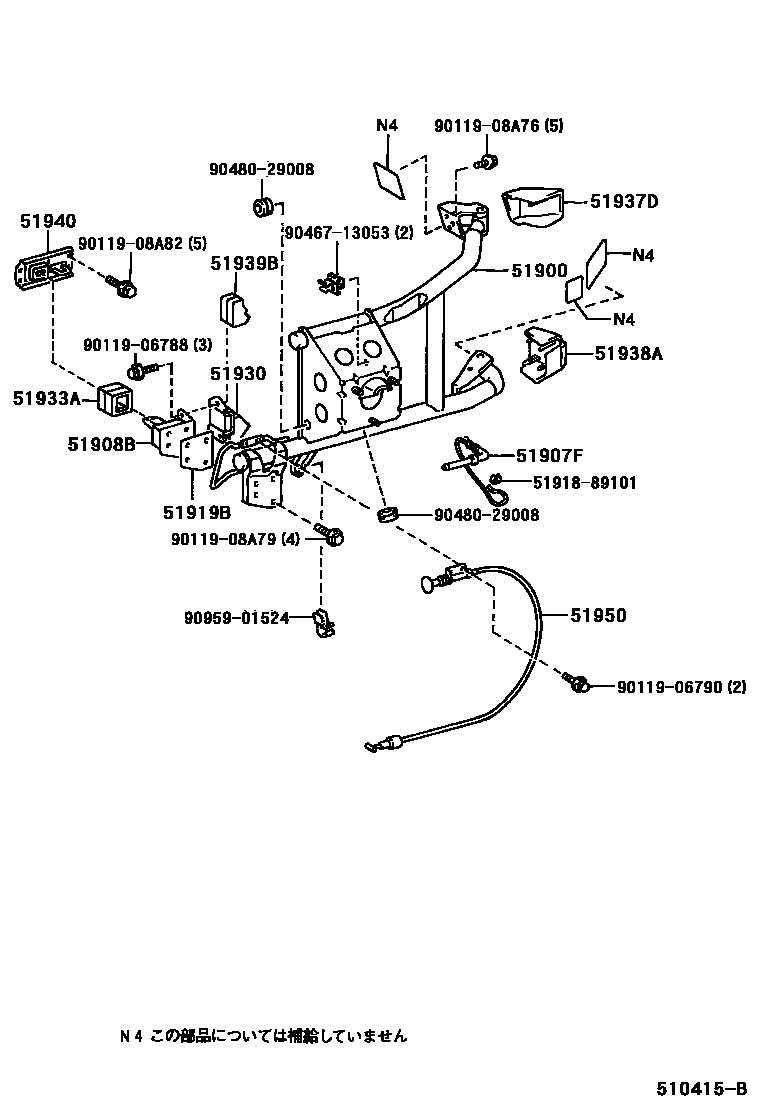

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-35230 · 51903-35090 · 51903-35092 |
| 51907F | Spare tire rack block sub-assembly | 51907-35030 |
| 51908B | Spare tire rack lock fixing component sub-assembly | 51908-35020 |
| 51915A | Spare tire rack base | 51915-35040 |
| 51919B | Spare tire rack spacer | 51919-35030 |
| 51930 | Spare tire rack lock assembly | 51930-35050 · 51930-35051 · 51930-35052 |
| 51933A | No. 1 spare tire block | 51933-35170 · 51933-35180 |
| 51933C | Spare tire block | 51933-35190 |
| 51937D | Spare tire rack upper hinge cover | 51937-35040 |
| 51938A | Spare tire rack lock spring hanger | 51938-35050 |
| 51939B | Spare tire rack lock cover | 51939-89102 |
| 51940 | Spare tire rack lock assembly | 51940-35010 |
| 51950 | Spare tire rack lock control cable assembly | 51950-35010 |
