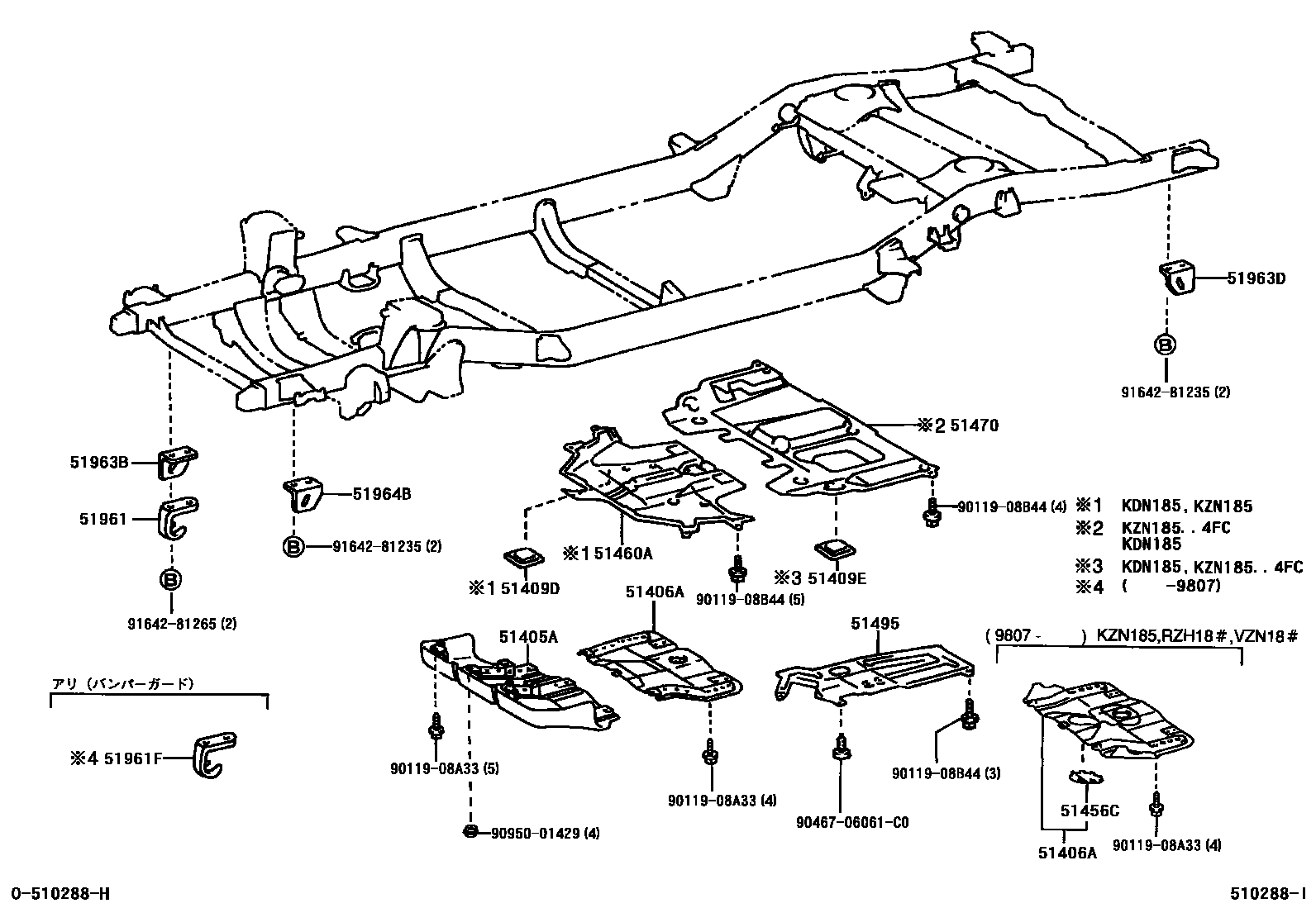

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51405A | No. 1 engine bottom cover sub-assembly | 51405-35070 · 51405-35071 · 51440-60062 · 51440-60063 |
| 51406A | No. 2 engine bottom cover sub-assembly | 51406-35010 · 51450-60042 |
| 51409D | Transmission bottom seal sub-assembly | 51409-35010 |
| 51409E | No. 2 seal sub-assembly at the bottom of the transmission | 51409-35010 |
| 51456C | Engine undercover seal No. 2 | 51456-60051 |
| 51460A | Transmission right bottom cover assembly | 51460-60011 |
| 51470 | Transmission bottom cover assembly | 51470-60011 · 51496-60171 |
| 51495 | transmission bottom cover | 51495-35010 |
| 51961 | No. 1 hook | 51961-35050 · 51961-35051 |
| 51961F | front hook | 51961-35050 · 51961-35051 |
| 51963B | Right front transport hook | 51963-35070 |
| 51963D | Left rear transport hook | 51964-35060 |
| 51964B | Left front transport hook | 51964-35050 |
