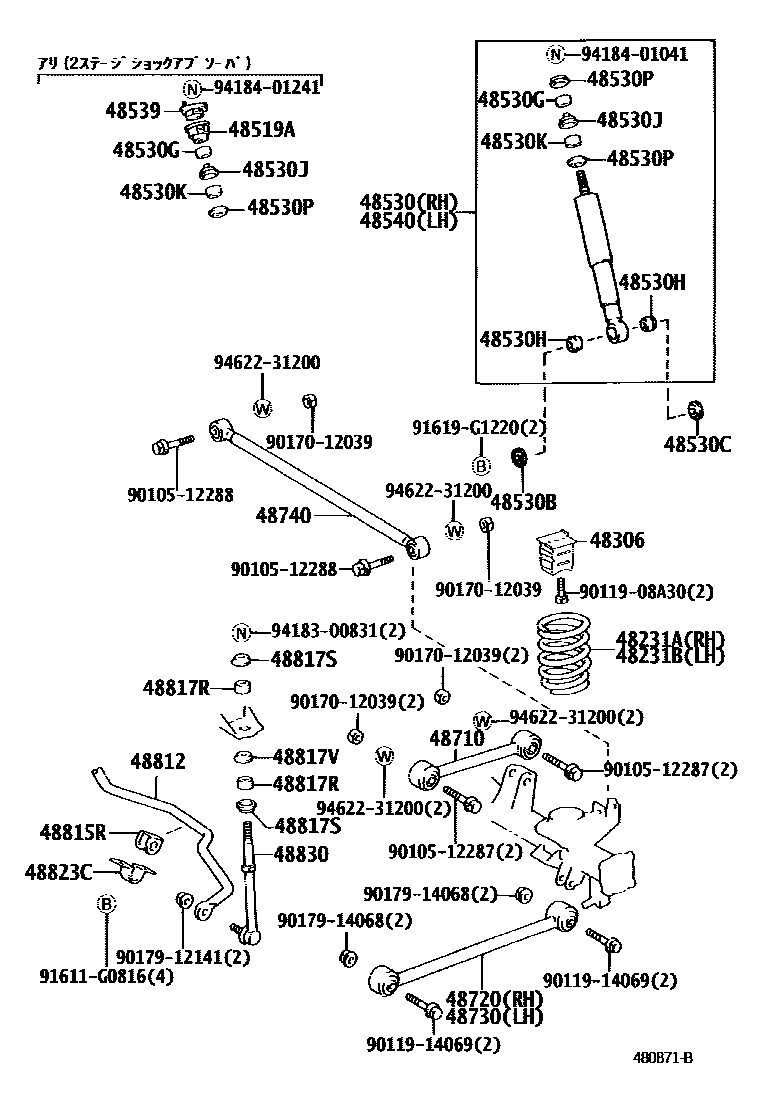

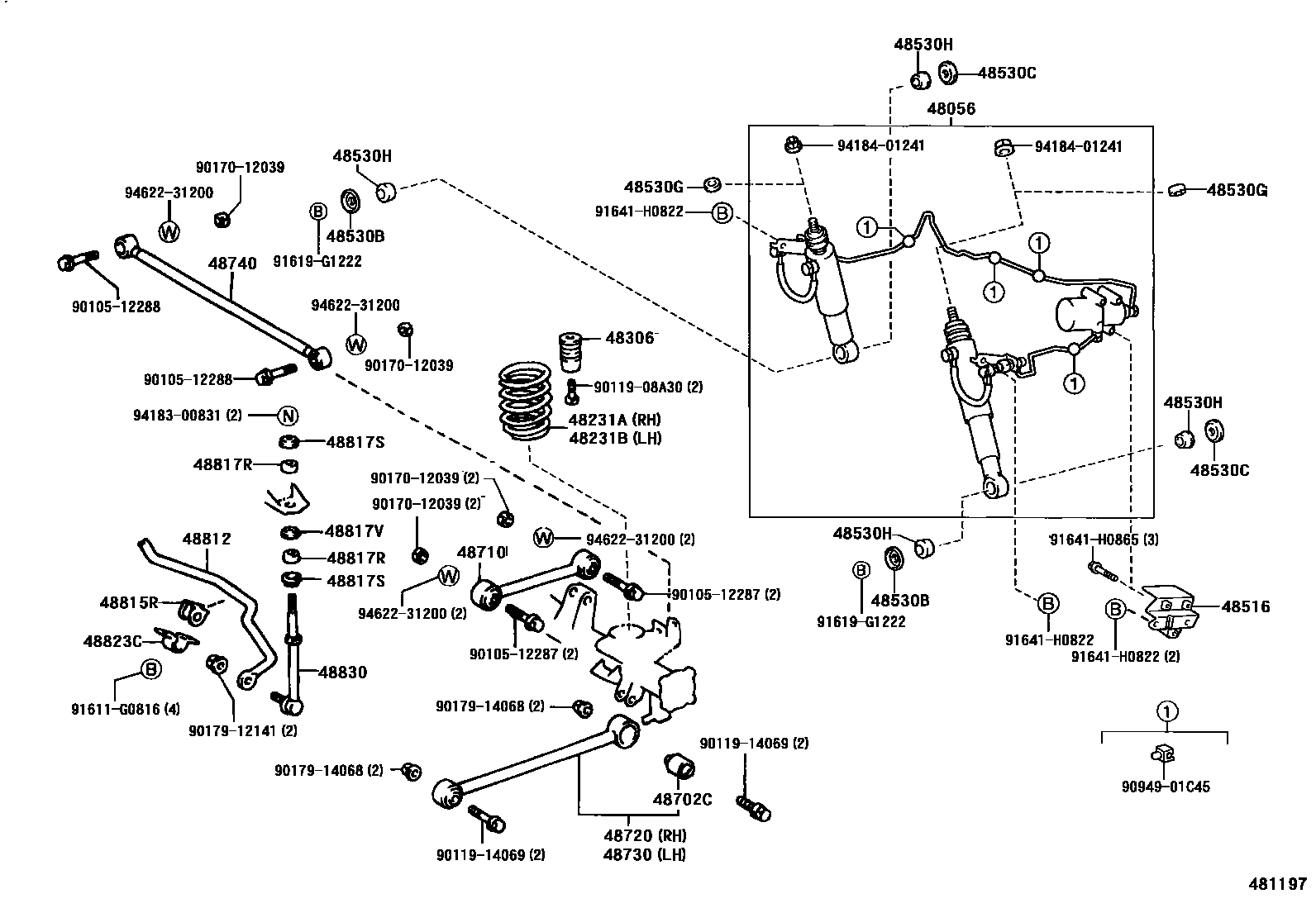

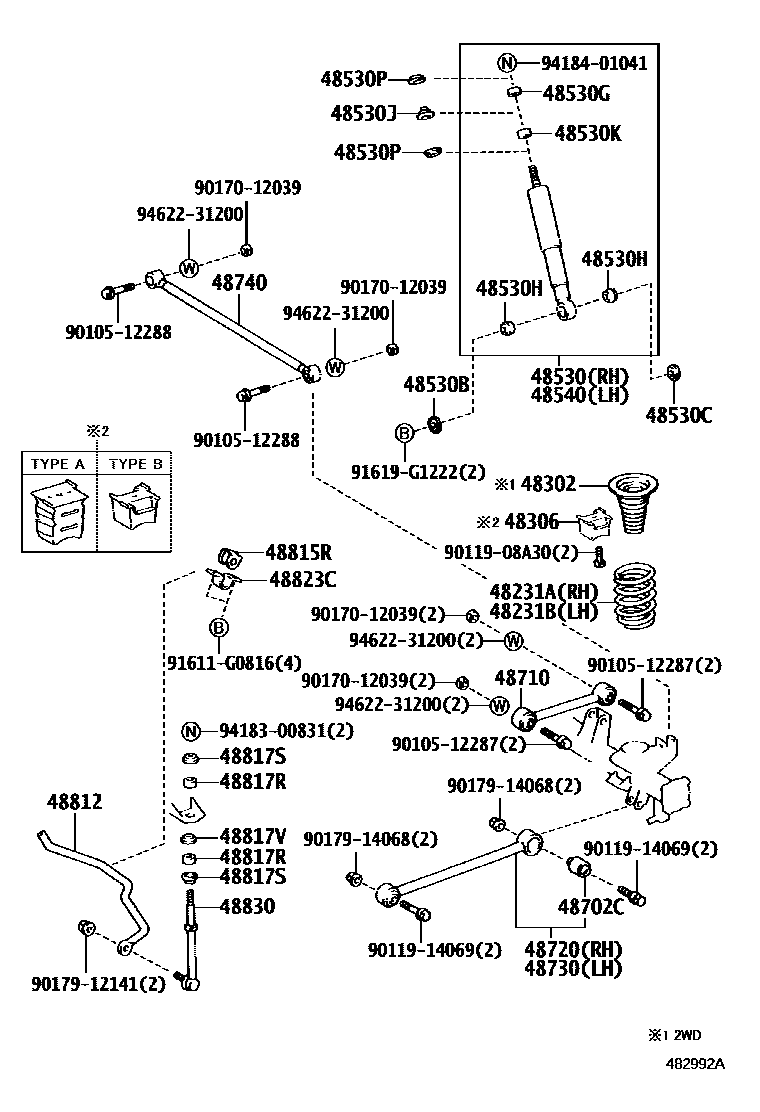

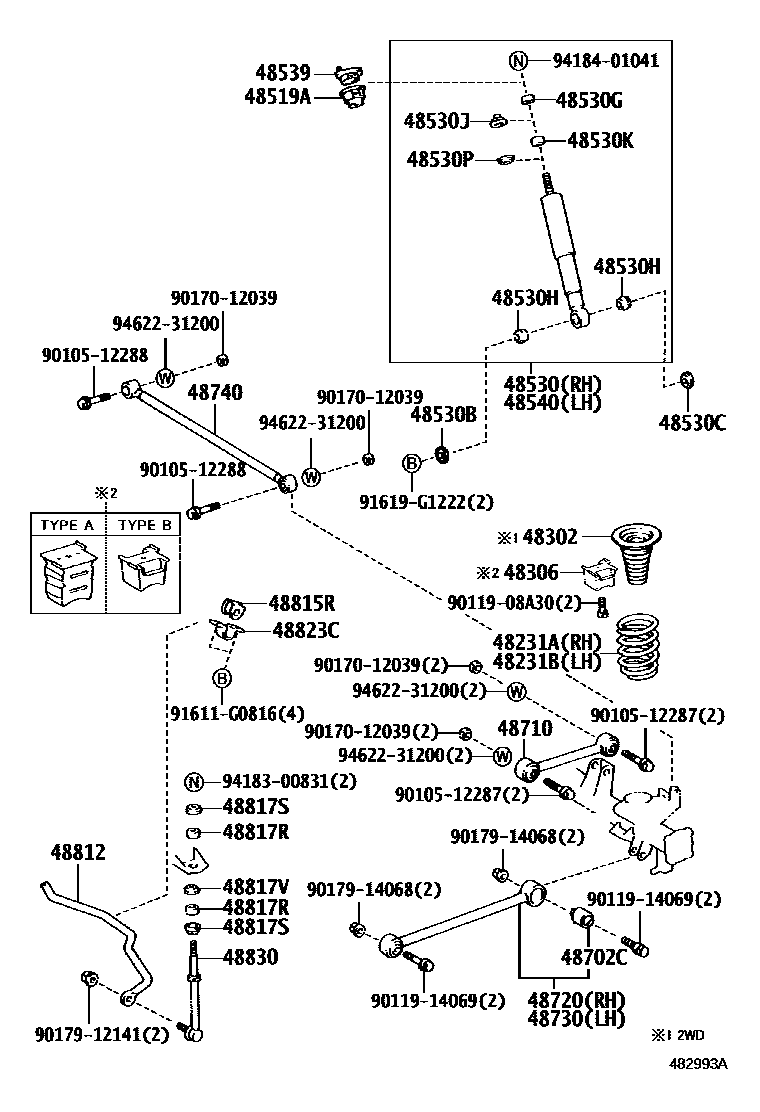

Toyota HILUX Rear Spring & Shock Absorber — Figure 4804
Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48056 | Rear shock absorber assembly | 48056-39015 |
| 48231A | Right rear coil spring | 48231-35110 · 48231-35120 · 48231-35170 · 48231-35180 · 48231-35220 · 48231-35230 · 48231-35240 · 48231-35260 |
| 48231B | Left rear coil spring | 48231-35110 · 48231-35120 · 48231-35170 · 48231-35180 · 48231-35220 · 48231-35230 · 48231-35240 · 48231-35260 |
| 48302 | Hollow spring sub-assembly | 48302-60051 |
| 48306 | Rear spring buffer block sub-assembly | 48306-35180 · 48306-60121 |
| 48516 | Right rear shock absorber upper bracket | 48516-35080 |
| 48519A | Front actuator bracket | 48539-35030 |
| 48530 | Right rear shock absorber assembly | 48530-39325 · 48530-39326 · 48530-39485 · 48530-39555 · 48531-80198 · 48531-80466 · 48531-80525 · 48531-80653 · 48531-80663 · 48531-80688 · 48531-80689 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03020 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03011 |
| 48530G | Rear shock absorber No. 1 cushion | 48509-35040 · 90948-01003 · 90948-01026 |
| 48530H | Rear shock absorber bushing | 90385-19007 · 90385-19009 |
| 48530J | No. 1 cushion block (for rear shock absorber) | 90948-02119 · 90948-02130 |
| 48530K | Rear shock absorber No.2 cushion | 90948-01044 · 90948-01045 |
| 48530P | No. 2 buffer pad block (for rear shock absorber) | 90948-02070 · 90948-02131 |
| 48539 | Rear actuator bracket | 48538-35010 |
| 48540 | Left rear shock absorber assembly | 48530-39325 · 48530-39326 · 48530-39485 · 48530-39555 · 48531-80198 · 48531-80466 · 48531-80525 · 48531-80653 · 48531-80663 · 48531-80688 · 48531-80689 |
| 48702C | Lower control arm bushing sub-assembly | 48702-35070 |
| 48710 | Upper control arm assembly | 48710-35020 · 48710-35030 · 48710-35040 |
| 48720 | Right lower control arm assembly | 48720-35030 · 48720-35050 · 48720-35051 |
| 48730 | Left lower control arm assembly | 48720-35030 · 48720-35050 · 48720-35051 |
| 48740 | Rear transverse control rod assembly | 48740-35020 |
| 48812 | rear stabilizer bar | 48812-35100 · 48812-35110 |
| 48815R | Rear stabilizer bar bushing | 48815-10090 · 48815-16160 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-30020 |
| 48817S | Crash pad block No. 1 (for rear stabilizer bar) | 90948-02126 |
| 48817V | Crash pad block No. 2 (for rear stabilizer bar) | 90948-02127 |
| 48823C | Rear stabilizer bar bracket cover | 48823-35060 |
| 48830 | Rear stabilizer link assembly | 48830-35020 |
