Toyota HILUX Front Spring & Shock Absorber — Figure 4803

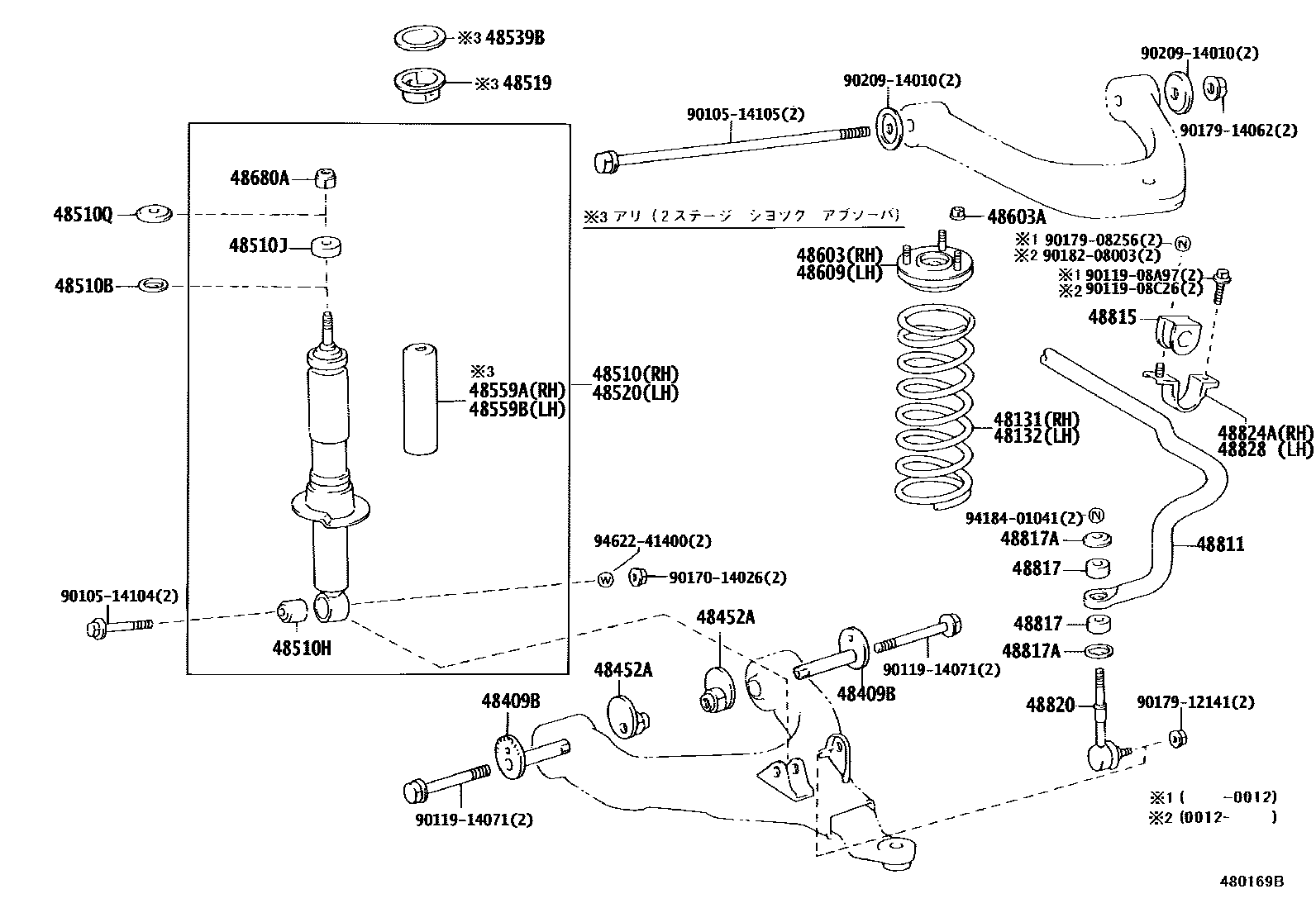

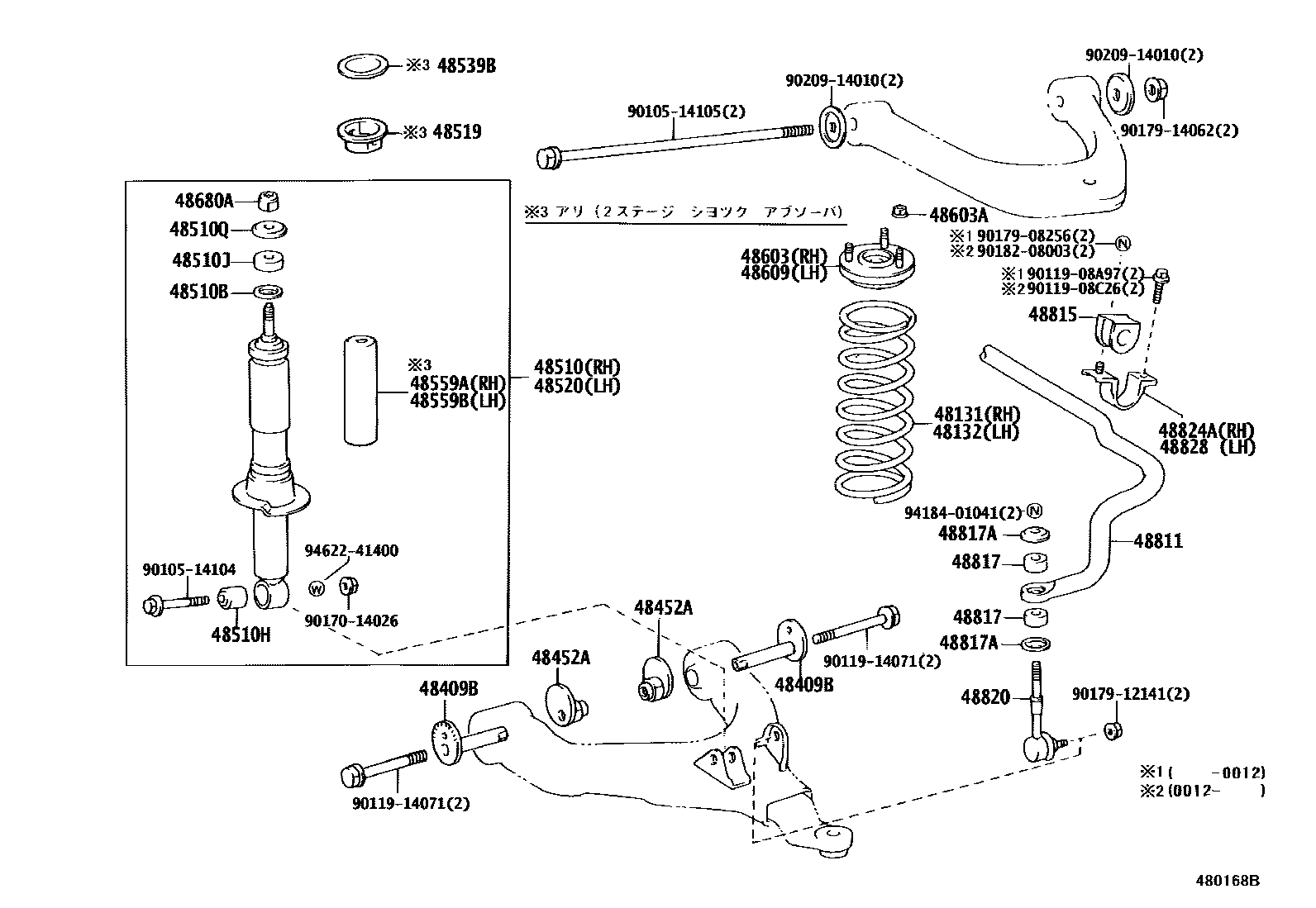

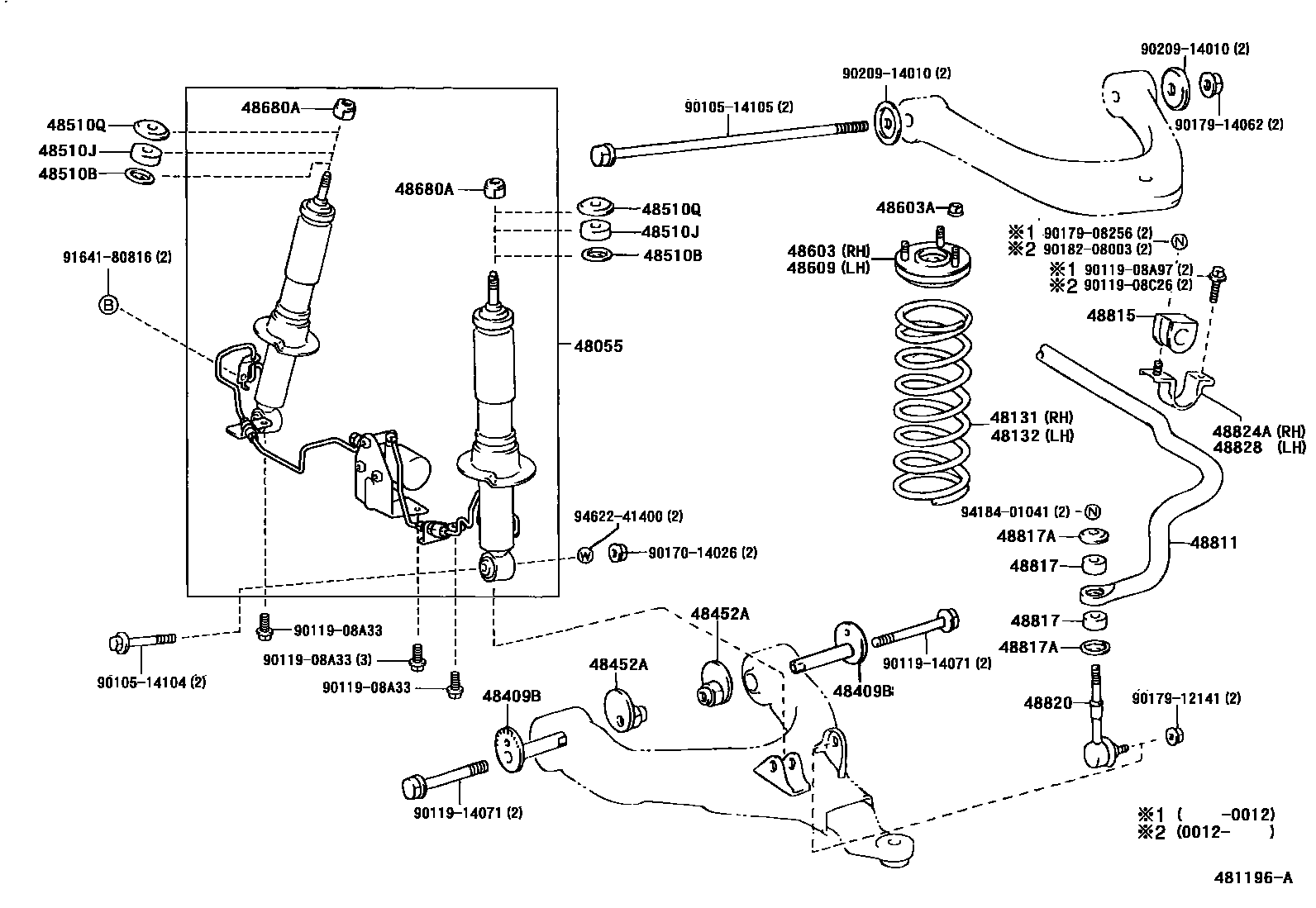

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48055 | front shock absorber assembly | 48055-39015 · 48055-39025 · 48055-39035 |
| 48131 | Right front coil spring | 48131-35130 · 48131-35190 · 48131-35200 · 48131-35210 · 48131-35250 · 48131-35260 · 48131-35270 · 48131-35360 · 48131-35390 · 48131-35410 |
| 48132 | Left front coil spring | 48131-35130 · 48131-35190 · 48131-35200 · 48131-35210 · 48131-35250 · 48131-35260 · 48131-35280 · 48131-35370 · 48131-35390 · 48131-35410 |
| 48409B | Front suspension toe adjustment cam sub-assembly | 48409-35050 |
| 48452A | No. 2 front suspension toe adjustment piece | 48452-35020 |
| 48510 | Right front shock absorber assembly | 48510-39405 · 48510-39406 · 48510-39415 · 48510-39416 · 48510-39426 · 48510-39715 · 48510-39725 · 48510-39775 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-02159 |
| 48510H | Bushing (for front shock absorber) | 90389-14048 |
| 48510J | Front shock absorber No. 1 cushion | 90948-01056 |
| 48510Q | No. 3 cushion block (for front shock absorber) | 90948-02161 |
| 48519 | Front actuator bracket | 48519-35050 |
| 48520 | Left front shock absorber assembly | 48510-39405 · 48510-39406 · 48510-39415 · 48510-39416 · 48510-39426 · 48510-39715 · 48510-39725 · 48510-39775 |
| 48539B | Front actuator bracket | 48518-35050 |
| 48559A | Right front shock absorber No. 1 dust cover | 48559-30020 |
| 48559B | Left front shock absorber No. 1 dust cover | 48559-30020 |
| 48603 | Right front suspension bearing sub-assembly | 48609-35030 |
| 48603A | Nut (for front suspension mount) | 90179-10212 |
| 48609 | Left front suspension bearing sub-assembly | 48609-35030 |
| 48680A | Nut (for front mount to front shock absorber) | 94184-01241 |
| 48811 | front stabilizer bar | 48811-35400 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-35100 |
| 48817 | Front stabilizer bar cushion | 90948-01003 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02131 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-35030 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-35120 · 48824-35150 |
| 48828 | Left front stabilizer bar bracket No. 2 | 48829-35090 · 48829-35120 |
