Toyota HILUX 前桥控制臂和转向节 — Figure 4802

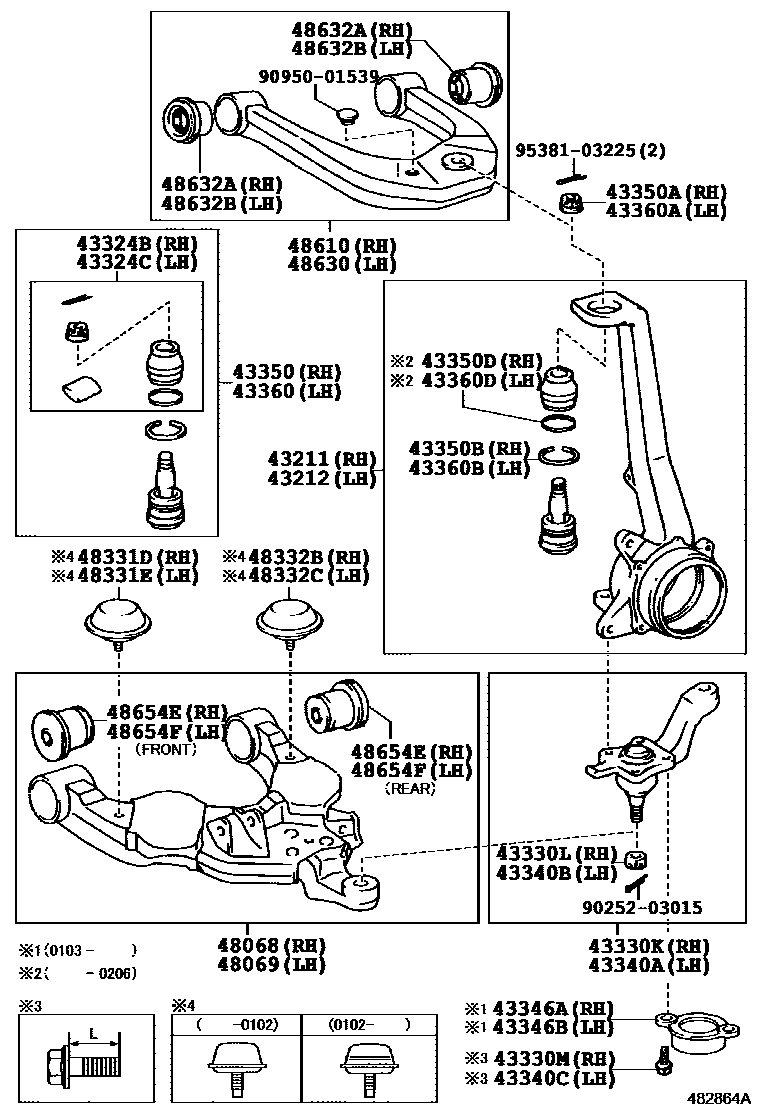

Toyota HILUX EPC diagram 4802, 前桥控制臂和转向节, with 2 images and 32 PNC and OE references.

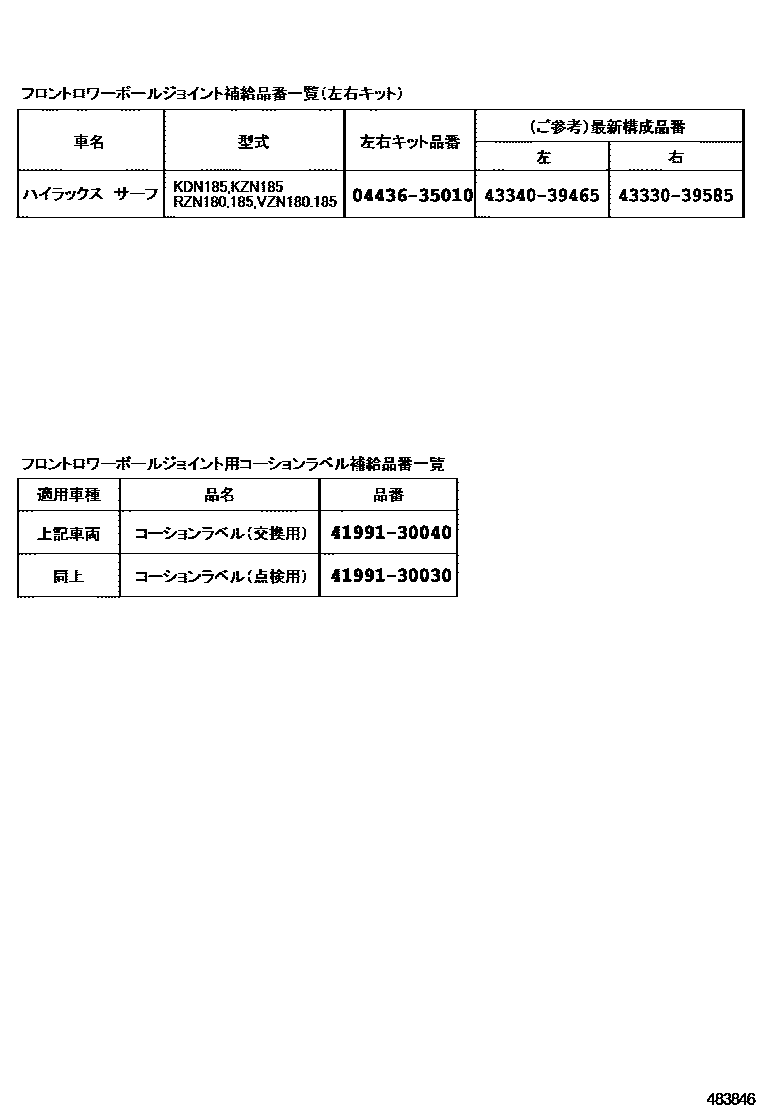

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43201-35070 · 43201-35080 · 43201-35081 |
| 43212 | left steering knuckle | 43202-35060 · 43202-35070 · 43202-35071 |
| 43324B | Front upper ball joint right dust cover | 43324-39015 |
| 43324C | Front upper ball joint left dust cover | 43324-39015 |
| 43330K | Right front lower ball joint assembly | 43330-39415 · 43330-39585 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-16050 |
| 43330M | Bolt (for right front lower ball joint) | 90105-10406 · 90105-10505 · 90119-10933 |
| 43340A | Left front lower ball joint assembly | 43340-39325 · 43340-39465 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-16050 |
| 43340C | Bolt (for left front lower ball joint) | 90105-10406 · 90105-10505 · 90119-10933 |
| 43346A | Right front lower ball joint dust cover protection device | 43346-60011 |
| 43346B | Left front lower ball joint dust cover protection device | 43346-60011 |
| 43350 | Right front upper ball joint assembly | 43310-39016 |
| 43350A | Nut (for right front upper ball joint) | 90171-14010 |
| 43350B | Snap ring (for right front upper ball joint) | 90520-39180 |
| 43350D | Wire (for right front upper ball joint) | 90522-43001 · 90580-10001 |
| 43360 | Left front upper ball joint assembly | 43310-39016 |
| 43360A | Nut (for left upper front ball joint) | 90171-14010 |
| 43360B | Snap ring (for left front upper ball joint) | 90520-39180 |
| 43360D | Wire (for left upper front ball joint) | 90522-43001 · 90580-10001 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-35080 · 48068-35081 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-35080 · 48069-35081 |
| 48331D | No. 1 right front spring buffer block | 48304-35150 · 48304-35190 |
| 48331E | No. 1 left front spring buffer block | 48304-35150 · 48304-35190 |
| 48332B | No. 2 right front spring buffer block | 48305-35040 · 48305-35050 |
| 48332C | No. 2 left front spring buffer block | 48305-35040 · 48305-35050 |
| 48610 | Right front suspension upper arm assembly | 48610-35040 |
| 48630 | Left front suspension upper arm assembly | 48630-35020 |
| 48632A | Right front suspension upper arm bushing | 48632-35080 |
| 48632B | Left front suspension upper arm bushing | 48632-35080 |
| 48654E | Right front No. 1 lower arm bushing | 48061-35040 · 48061-35050 |
| 48654F | Left front No. 1 lower arm bushing | 48061-35040 · 48061-35050 |
