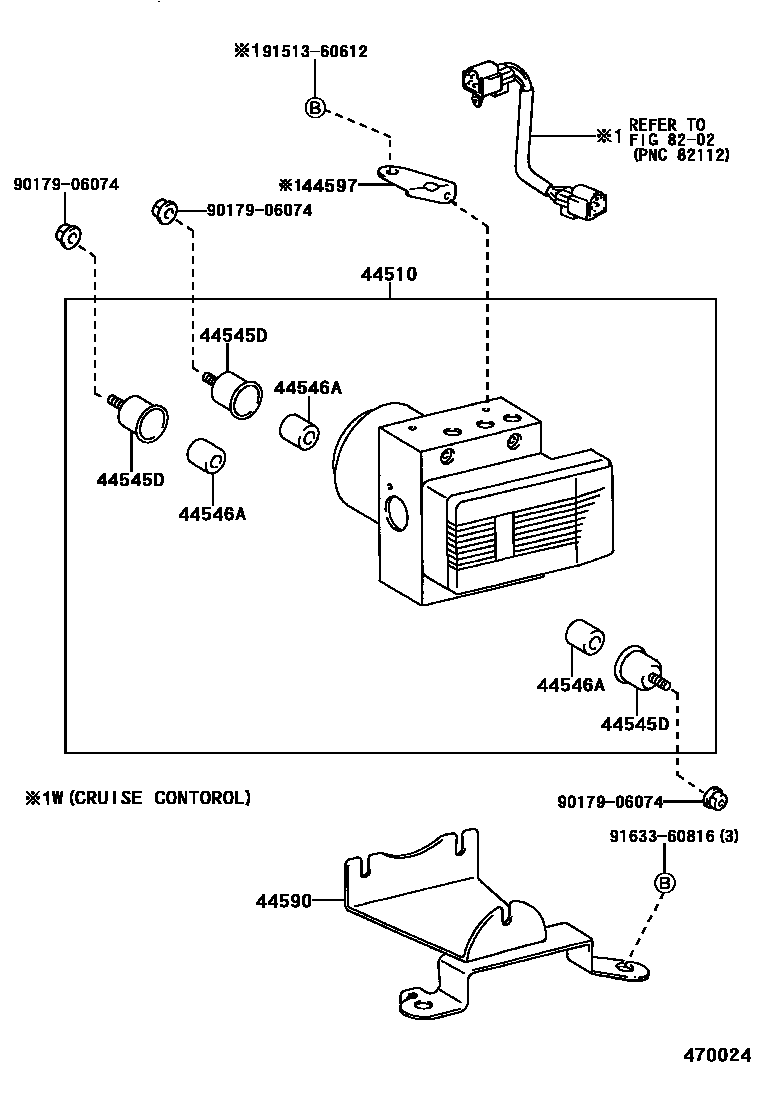

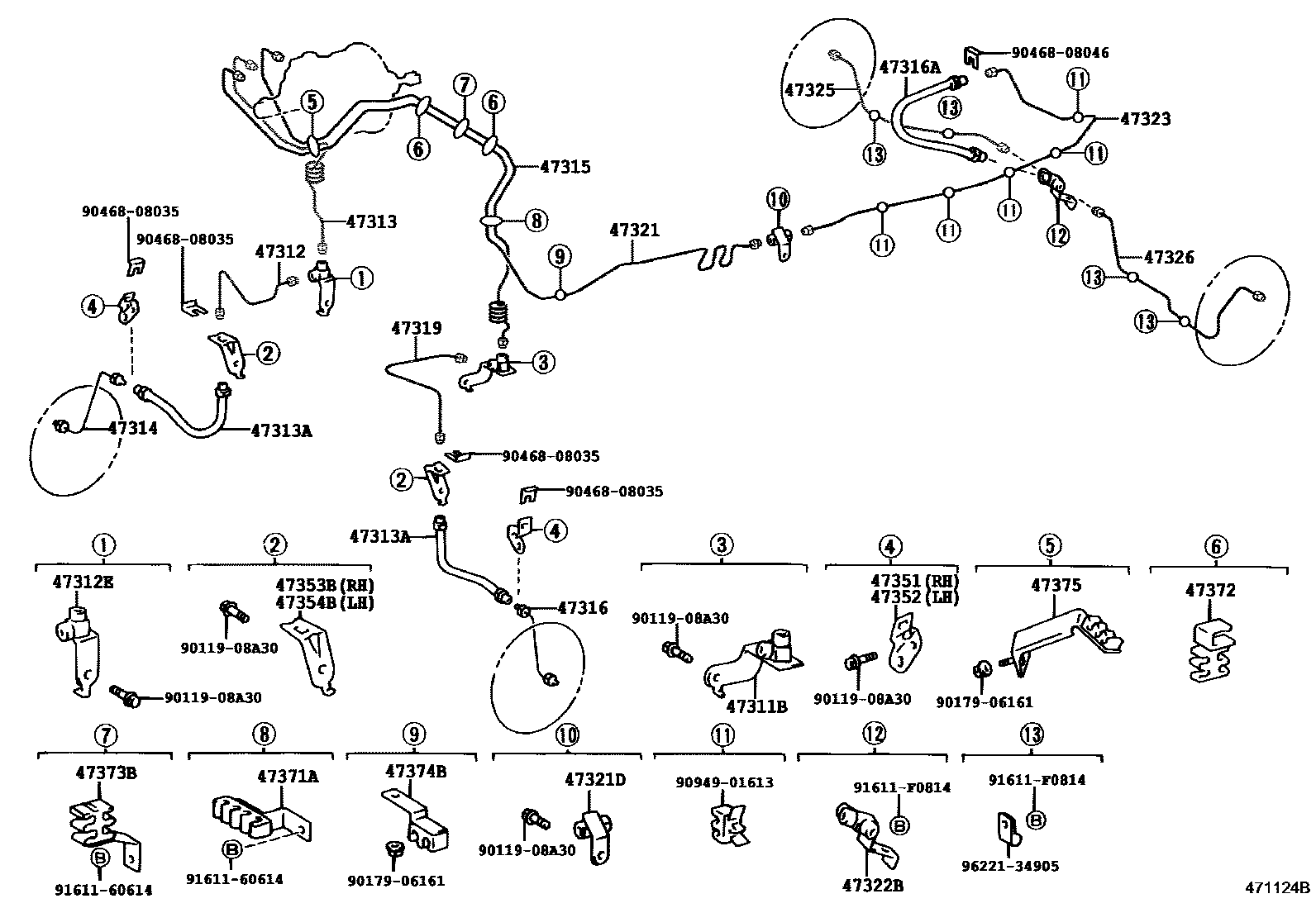

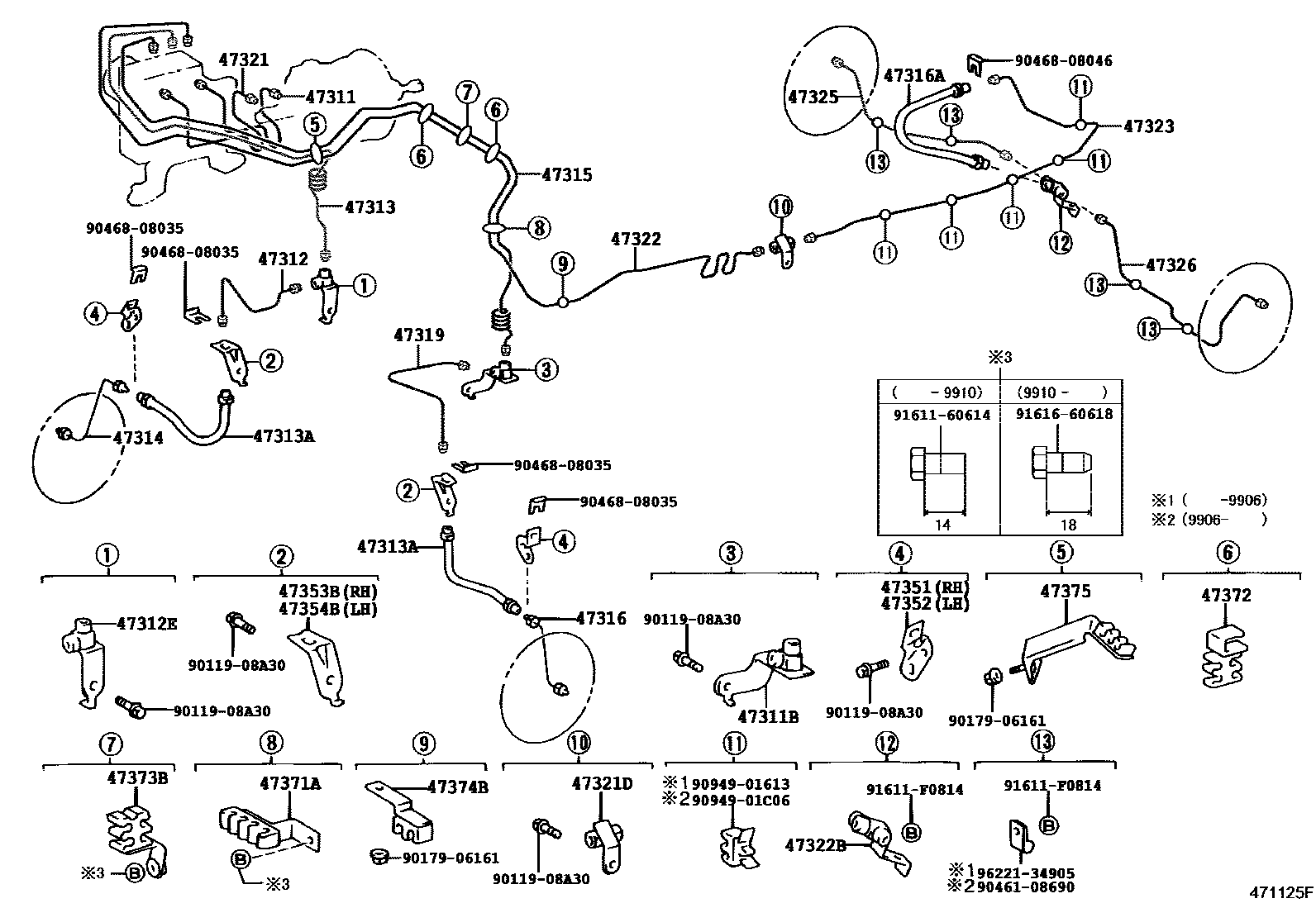

Toyota HILUX 制动配管和卡箍 — Figure 4708
Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-35020 · 44510-35080 |
| 44545D | Brake actuator bolt mount | 44545-35080 |
| 44546A | Brake actuator bolt cushion | 44546-35090 |
| 44590 | Brake actuator bracket assembly | 44590-35030 |
| 44597 | No. 1 brake actuator connector clip | 44597-60020 |
| 47311 | No. 1 front brake pipe | 47311-35490 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90904-12040 |
| 47312 | No. 2 front brake pipe | 47313-3D050 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90904-12041 |
| 47313 | No. 3 front brake pipe | 47313-3D020 · 47313-3D021 · 47313-3D030 |
| 47313A | No. 1 front flexible hose | 90947-02862 · 90947-02B14 |
| 47314 | No. 4 front brake pipe | 47314-35330 |
| 47315 | No. 5 front brake pipe | 47315-35280 · 47315-35290 · 47315-60412 |
| 47316 | No. 6 front brake pipe | 47316-35250 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02869 · 90947-02C59 |
| 47319 | No. 9 front brake pipe | 47315-35320 |
| 47321 | No. 1 rear brake pipe | 47321-35760 · 47321-35770 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10165 |
| 47322 | No. 2 rear brake pipe | 47322-35720 |
| 47322B | No. 2 pipe joint (for rear brake pipe) | 90413-10263 · 90413-10295 |
| 47323 | No. 3 rear brake pipe | 47323-35170 · 47323-35220 · 47323-60641 |
| 47325 | No. 5 rear brake pipe | 47325-35270 · 47325-35272 · 47325-35340 |
| 47326 | No. 6 rear brake pipe | 47326-35050 · 47326-35052 · 47326-35090 |
| 47351 | Right front flex hose bracket | 47351-35270 |
| 47352 | Left front flex hose bracket | 47352-35310 |
| 47353B | No. 3 Flexible Hose Bracket | 47353-35110 |
| 47354B | No. 4 Flexible Hose Bracket | 47354-35100 |
| 47371A | No. 1 brake pipe clamp | 47371-35300 · 47371-60140 |
| 47372 | No. 2 brake pipe clamp | 47372-35150 |
| 47373B | No. 3 brake pipe clamp | 47373-35060 · 47373-35090 |
| 47374B | No. 4 brake pipe clamp | 47374-35030 |
| 47375 | No. 5 brake pipe clamp | 47375-35170 · 47375-60010 |
