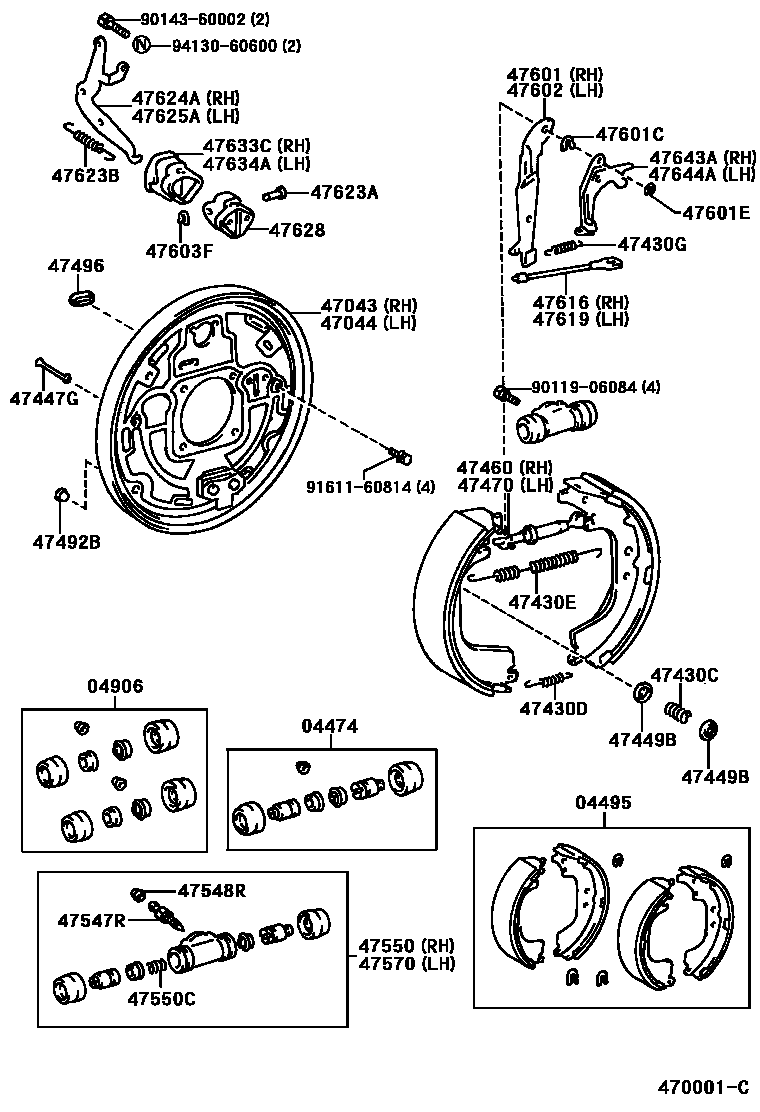

Toyota HILUX 后鼓式制动器分泵和底板 — Figure 4706
Toyota HILUX EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-35090 · 04474-35100 |
| 04495 | Rear brake shoe assembly | 04495-35151 |
| 04906 | Rear wheel pump cup assembly | 04906-35120 · 04906-35130 |
| 47043 | Right rear brake base plate sub-assembly | 47043-35180 |
| 47044 | Left rear brake base plate sub-assembly | 47044-35170 |
| 47430C | Limit spring (for rear brake shoe) | 90501-20604 |
| 47430D | Tension spring (for rear brake shoe return) | 90506-18031 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-26011 · 90506-26014 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90506-12031 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-30020 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-30020 |
| 47460 | Right brake shoe adjuster assembly (for rear wheel brake) | 47061-60011 |
| 47470 | Left brake shoe adjuster assembly (for rear wheel brake) | 47062-60011 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-28010 |
| 47496 | Hole plug (for rear brake) | 47491-20011 |
| 47547R | Bleed plug (for rear drum brake) | 47547-12010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-35200 · 47550-35210 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90029-60009 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-35200 · 47550-35210 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47611-35040 · 47611-60010 |
| 47601C | C-shaped washer (for rear brake) | 90213-07010 |
| 47601E | E-ring (for rear brake) | 96160-00500 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47612-35040 · 47612-60010 |
| 47603F | C-type washer (for parking brake right-angle lever) | 90213-06013 |
| 47616 | Right parking brake cable | 47616-35030 |
| 47619 | left parking brake cable | 47616-35030 |
| 47623A | Pin (for parking brake right angle lever) | 90249-08068 |
| 47623B | Tension spring (for parking brake right angle lever return) | 90905-06016 |
| 47624A | Right-hand parking brake right-angle lever | 47624-35050 |
| 47625A | Left-hand parking brake right-angle lever | 47625-35050 |
| 47628 | Rear brake right angle lever bracket | 47628-35020 |
| 47633C | Right rear wheel brake right angle lever dust boot | 47633-35020 |
| 47634A | Left rear wheel brake right angle lever dust boot | 47633-35020 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-60010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-60010 |
