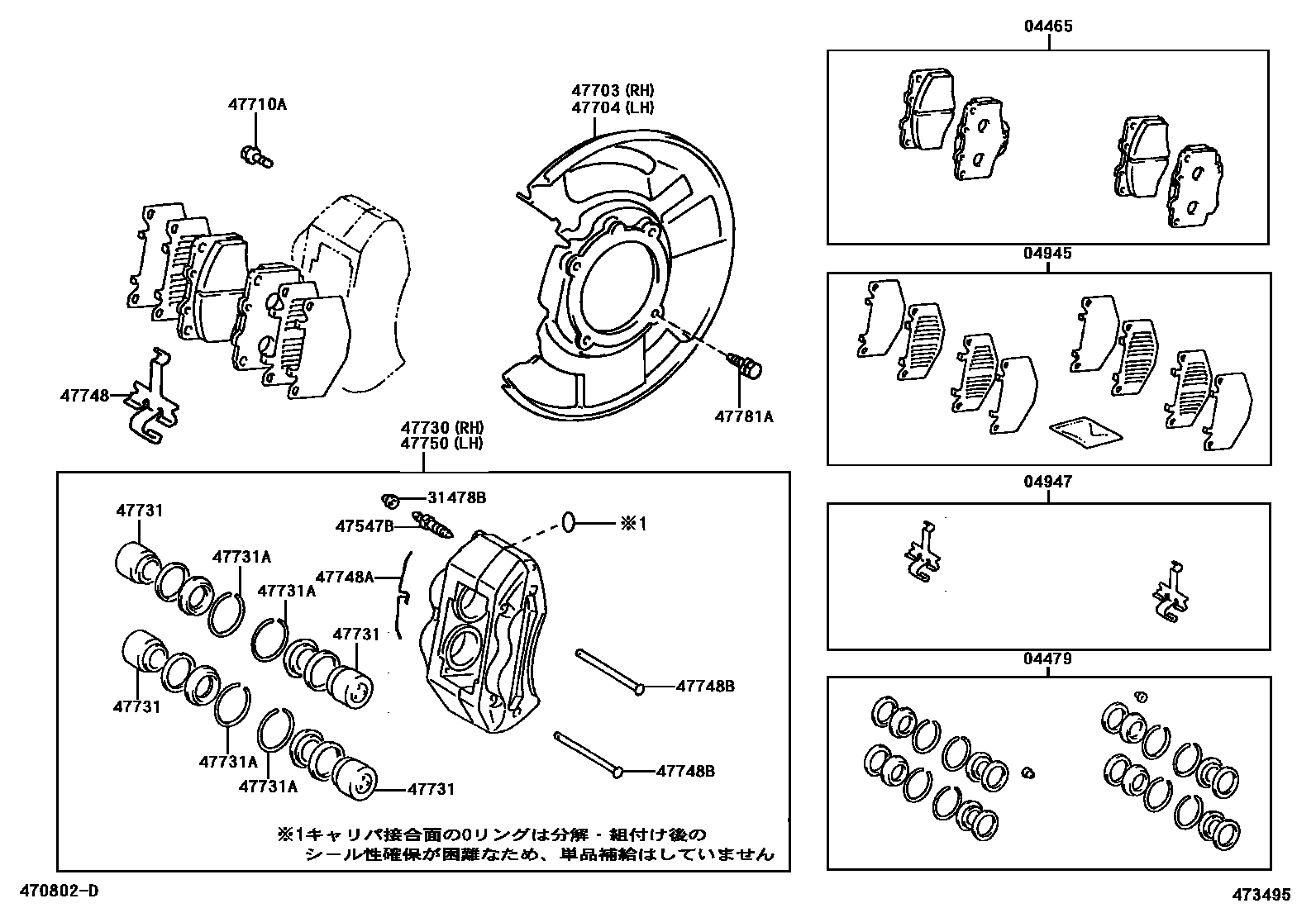

Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-35080 · 04465-35230 · 04465-35240 |
| 04479 | Front disc brake cylinder assembly | 04479-35020 · 04479-35021 · 04479-35040 |
| 04945 | Front silencer gasket assembly | 04945-35040 |
| 04947 | Front disc brake mounting kit | 04947-60080 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20030 |
| 47703 | Right front disc brake dust cover sub-assembly | 47703-35090 · 47703-35091 · 47703-35100 · 47703-35101 |
| 47704 | Left front disc brake dust cover sub-assembly | 47704-35090 · 47704-35091 · 47704-35100 · 47704-35101 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12175 |
| 47730 | Right front disc brake cylinder assembly | 47730-35110 · 47730-35120 |
| 47731 | Front disc brake piston | 47731-14110 · 47731-35040 |
| 47731A | retaining ring (for front disc brake piston) | 90522-48044 · 90522-50003 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-60030 |
| 47748A | Clamp (for front disc brake vibration isolator) | 90468-12015 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90240-06014 |
| 47750 | Left disc brake cylinder assembly | 47750-35110 · 47750-35120 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-08571 |
