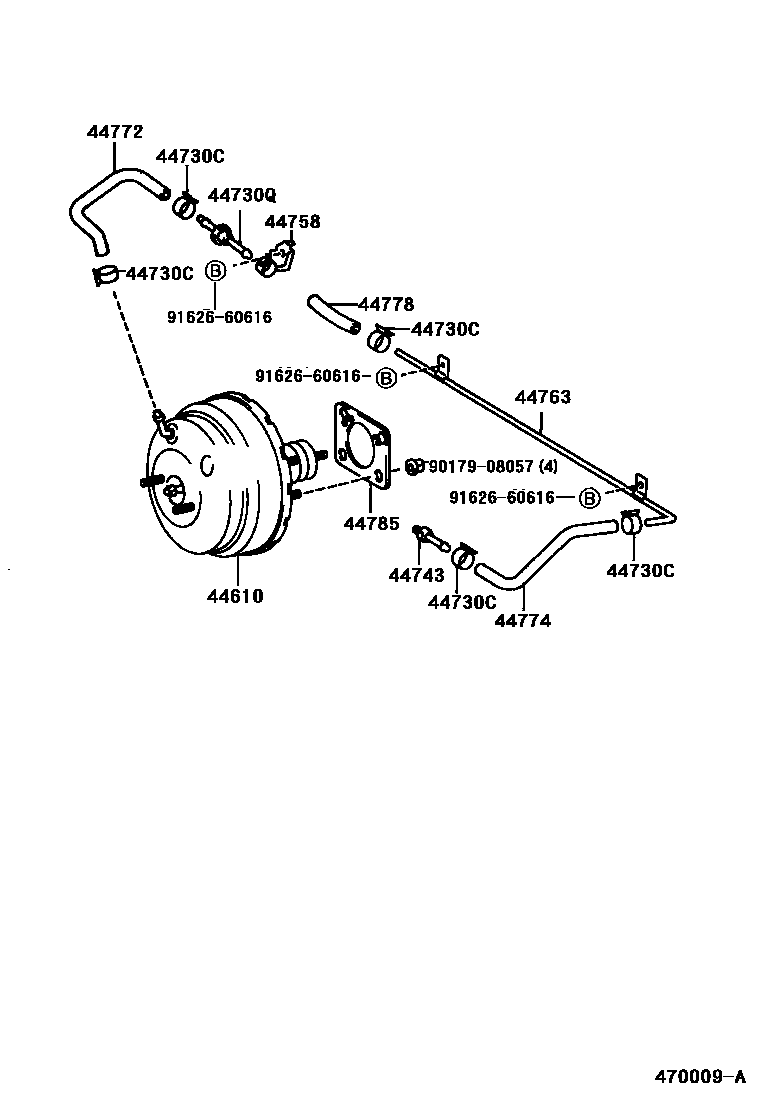

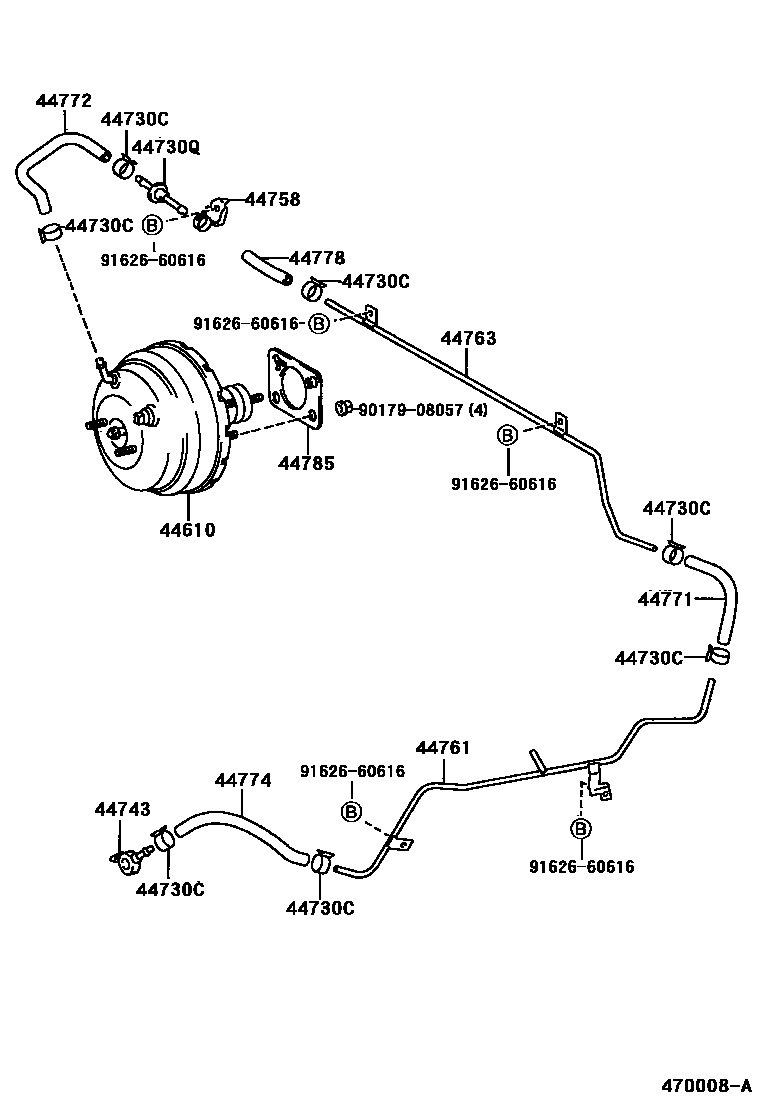

Toyota HILUX 制动助力器和真空管 — Figure 4703
Toyota HILUX EPC diagram 4703, 制动助力器和真空管, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-3D670 · 44610-3D680 · 44610-3D830 · 44610-3D840 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730Q | No. 2 vacuum check valve assembly | 44730-10010 |
| 44743 | Connector (for vacuum pump) | 90404-51237 · 90404-51319 · 90405-09175 |
| 44758 | Vacuum check valve bracket | 44758-35070 |
| 44761 | Tubing (intake manifold or vacuum pump to connector) | 44761-35130 · 44761-60020 |
| 44763 | booster vacuum tube | 44763-35030 · 44763-35040 · 44763-35050 |
| 44771 | Vacuum tube connector hose | 44771-35190 |
| 44772 | Hoses (check valve to connector tube) | 44772-35320 |
| 44774 | Hoses (joints to connector tubes) | 44774-35050 · 44774-35060 · 44774-60230 · 95447-09220 |
| 44778 | Hoses (connector to check valve) | 95446-09100 |
| 44785 | brake booster pad | 44785-35030 |
