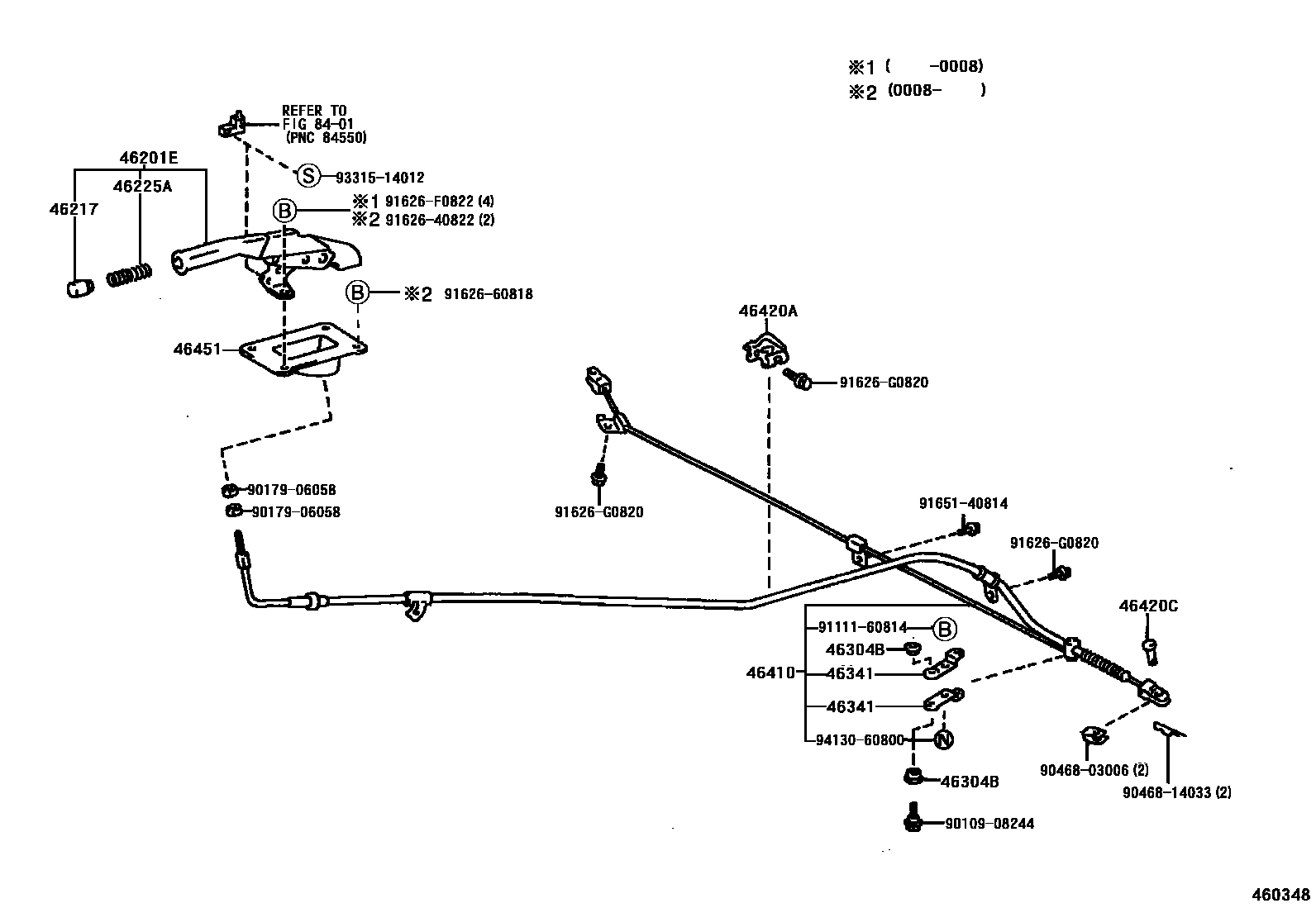

Toyota HILUX Parking Brake & Cable — Figure 4601
Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10132 |
| 46304B | Bushing (for parking brake balancer) | 90385-12012 |
| 46341 | Parking brake balancer | 46341-35030 |
| 46410 | Parking brake cable assembly No. 1 | 46410-35770 · 46410-35771 · 46410-35781 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90949-01A48 |
| 46420C | Pin with hole (for parking brake cable) | 90240-08059 |
| 46451 | cable bracket | 46451-35040 · 46451-35041 · 46451-35050 · 46451-35060 |
