Toyota HILUX 前转向齿轮和连杆 — Figure 4505

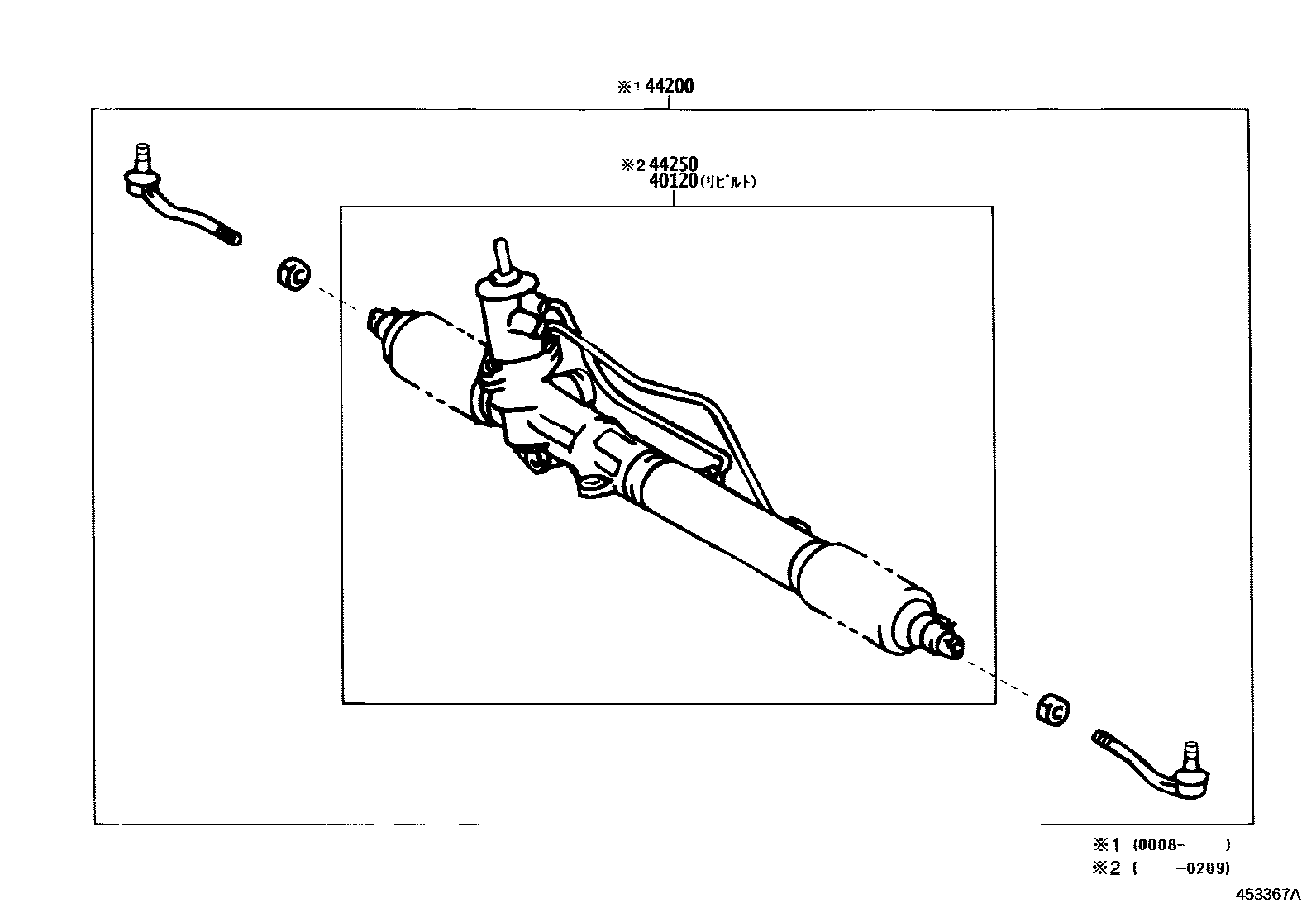

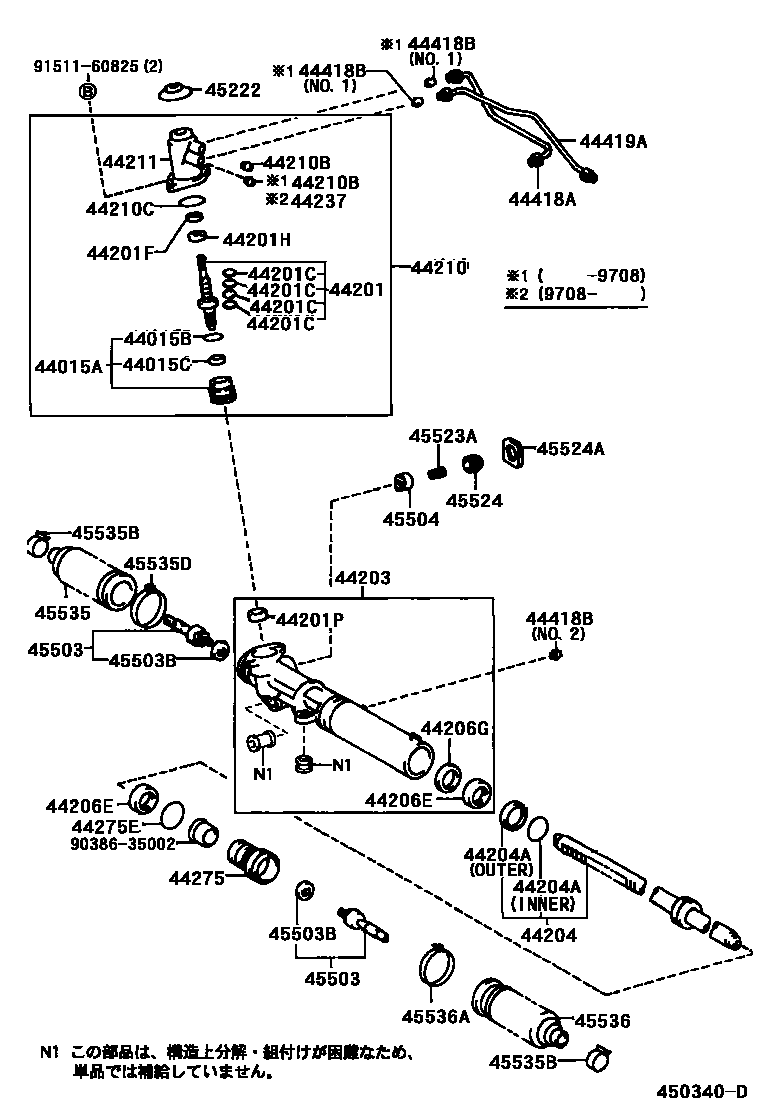

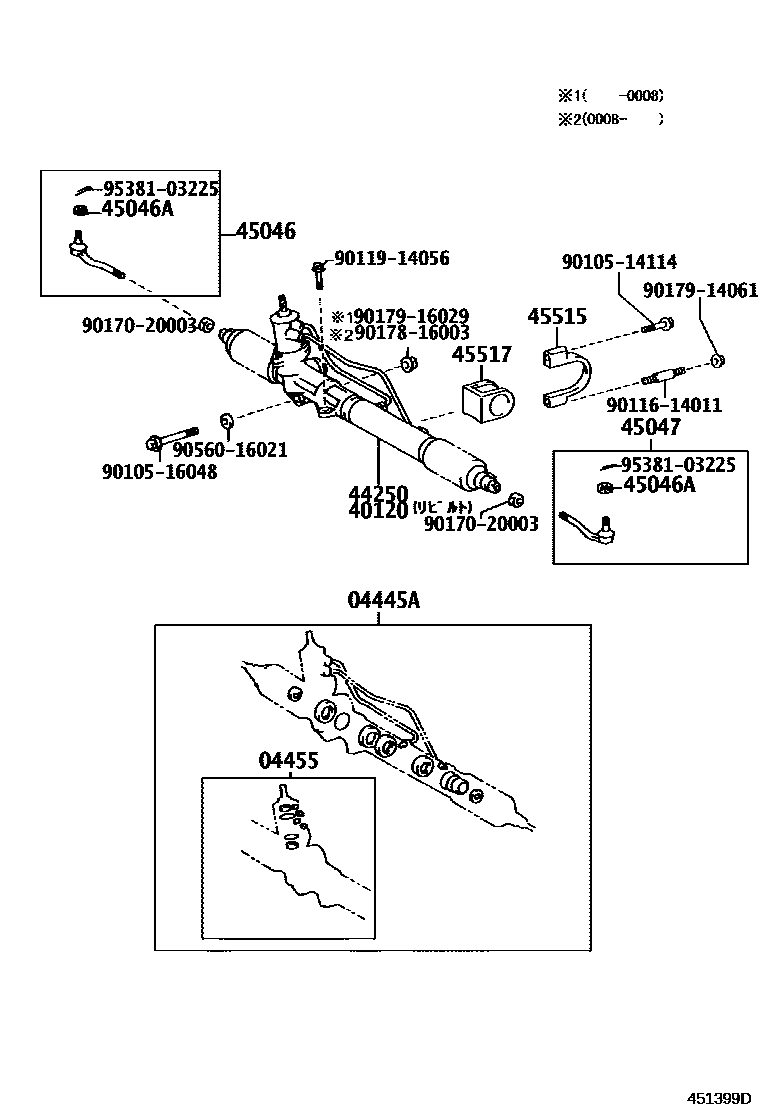

Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-35160 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-35130 |
| 40120 | Refurbished power steering assembly | 40120-35031 · 40120-35032 |
| 44015A | Bearing guide nut sub-assembly | 44015-22020 |
| 44015B | O-ring (for bearing guide nut) | 90301-43002 |
| 44015C | Oil seal (for bearing guide nut) | 90310-25004 |
| 44200 | Power steering tie rod assembly | 44200-35032 |
| 44201 | Power steering control valve sub-assembly | 44201-35030 · 44201-35031 |
| 44201C | Ring (for power steering control valve) | 90562-33007 |
| 44201F | Oil seal (for power steering control valve) | 90311-19002 |
| 44201H | Bearing (for upper power steering control valve) | 90363-19003 |
| 44201P | Bearing (for lower power steering control valve) | 90364-13003 |
| 44203 | Power steering rack housing sub-assembly | 44203-35030 |
| 44204 | Power steering rack sub-assembly | 44204-35030 · 44204-35040 |
| 44204A | Ring (for steering rack piston) | 90301-43006 · 90562-47003 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90310-35009 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 90560-35013 |
| 44210 | Power steering control valve assembly | 44210-35030 · 44210-35031 |
| 44210B | Connector seat (for power steering control valve) | 90410-06005 |
| 44210C | O-ring (for power steering control valve) | 90301-51001 |
| 44211 | control valve housing | 44211-22020 · 44211-35040 · 44211-35041 |
| 44237 | Pressure control valve throttle seat | 44237-21010 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-35030 · 44250-35031 · 44250-35032 |
| 44275 | Cylinder end stop | 44275-35010 |
| 44275E | O-ring (for rack end guide block) | 90301-46001 |
| 44418A | Right steering pressure oil pipe | 44418-35040 · 44418-35041 |
| 44418B | Joint seat (for steering pressure oil pipe) | 90410-04001 · 90410-04002 |
| 44419A | Left steering pressure oil pipe | 44419-35040 · 44419-35041 |
| 45046 | Right tie rod end sub-assembly | 45046-39335 |
| 45046A | Castle nuts (for tie rod ends) | 90171-14042 |
| 45047 | Left tie rod end sub-assembly | 45047-39215 |
| 45222 | Steering gear dust cover | 45222-35020 |
| 45503 | Steering rack end sub-assembly | 45503-39075 |
| 45503B | Jaw washer (for steering rack end) | 90214-18002 |
| 45504 | No. 2 steering rack end sub-assembly | 45504-35010 · 45504-35030 · 45504-35031 |
| 45515 | No. 2 steering rack housing bracket | 45515-35040 · 45515-35050 |
| 45517 | No. 2 steering rack housing seal | 45517-35010 |
| 45523A | Spring (for steering gear rack guide block) | 90501-26063 · 90501-26074 |
| 45524 | Steering rack guide block spring cover | 45524-35010 · 45524-37010 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-48003 |
| 45535 | No. 1 steering rack dust cover | 45535-35010 · 45535-35030 |
| 45535B | Clamp (for steering rack dust boot) | 90467-33005 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-62006 |
| 45536 | No. 2 steering rack dust cover | 45535-35010 · 45535-35030 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-62006 |
