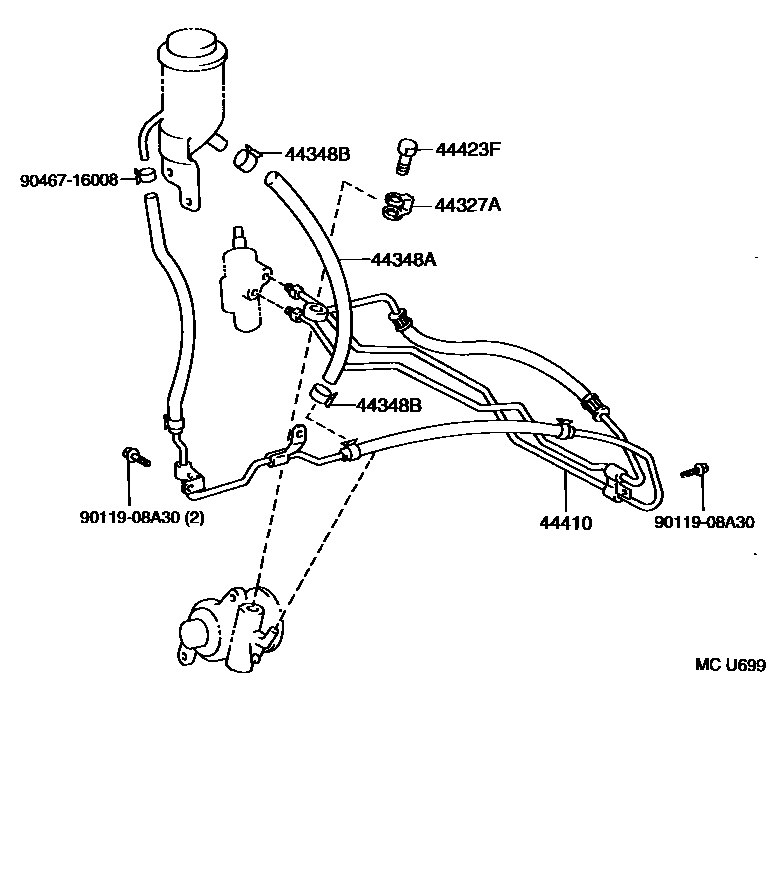

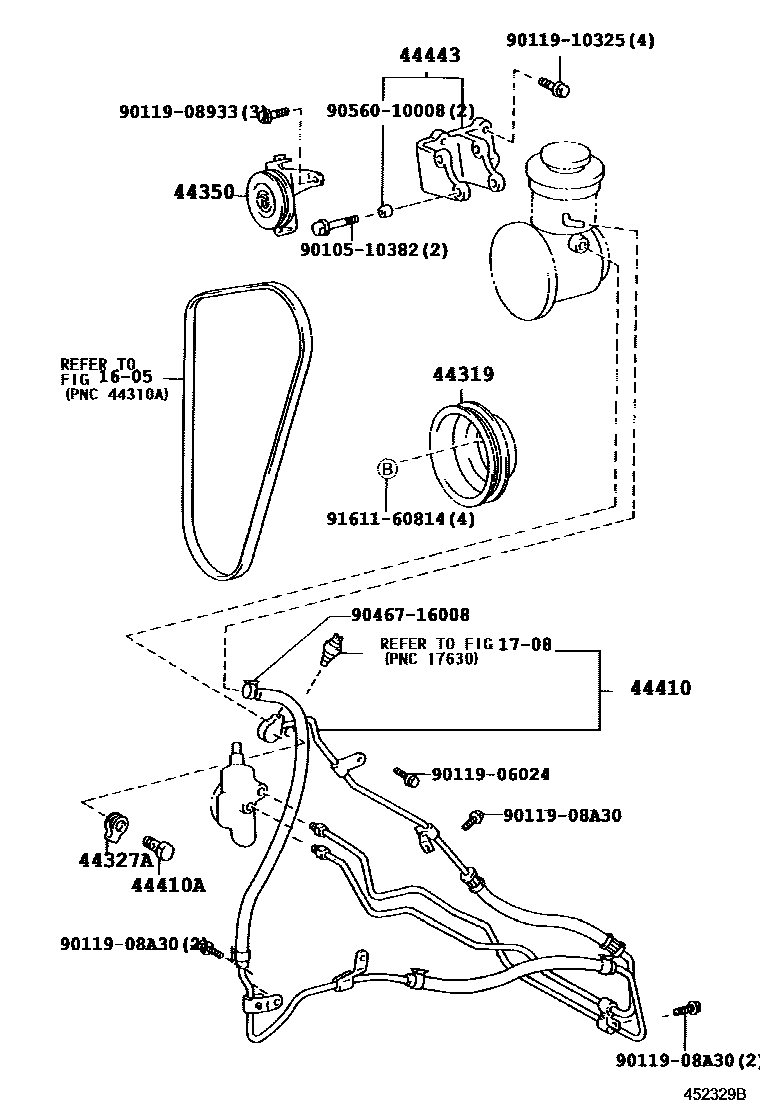

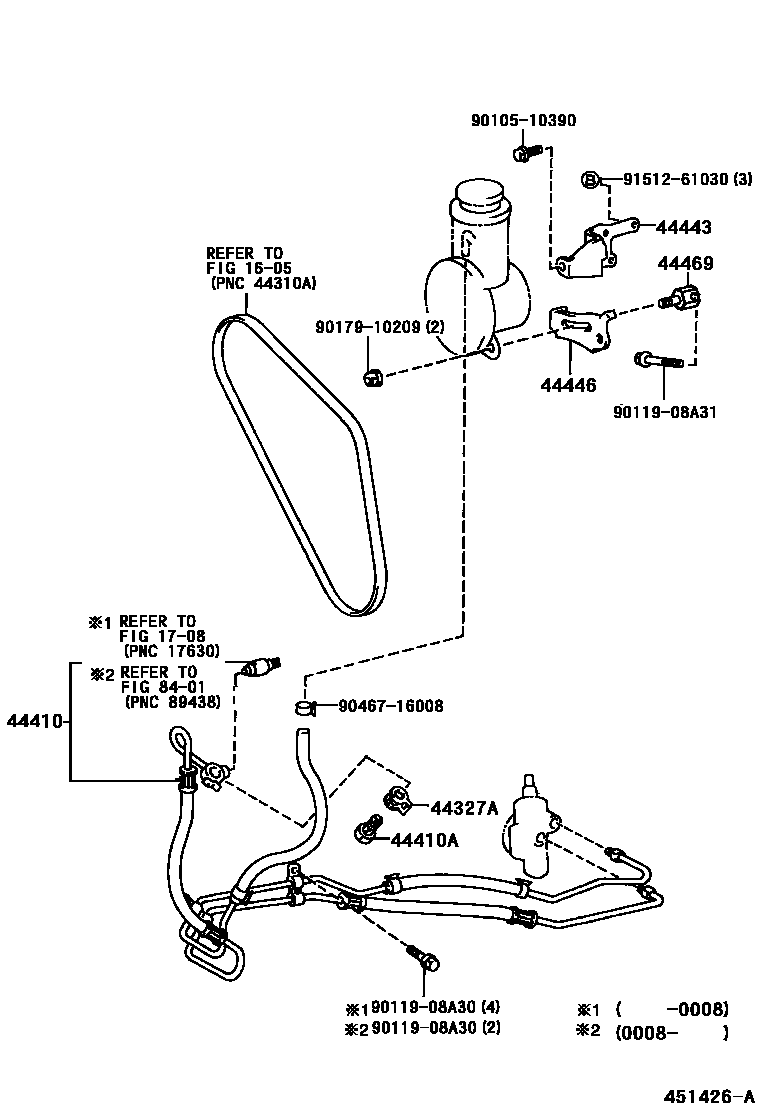

Toyota HILUX 动力转向配管 — Figure 4503
Toyota HILUX EPC diagram 4503, 动力转向配管, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44319 | Vane pump drive pulley | 44319-34010 |
| 44327A | No. 1 pressure hole gasket | 44327-12010 · 44327-26020 |
| 44348A | No. 1 hose (tank to pump) | 44348-35180 · 44348-35220 |
| 44348B | Clamp (for reservoir to pump hose) | 90467-21005 |
| 44350 | Power steering idler assembly | 44350-34010 |
| 44410 | Pressure supply pipe assembly | 44410-35410 · 44410-35420 · 44410-35430 · 44410-35590 · 44410-60410 · 44410-60420 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16034 |
| 44423F | Joint bolts | 96341-41603 |
| 44443 | pump bracket | 44443-34010 · 44443-34030 · 44443-35030 |
| 44446 | Adjust the stand | 44446-35010 |
| 44469 | Power steering belt adjustment slider | 44469-35010 |
