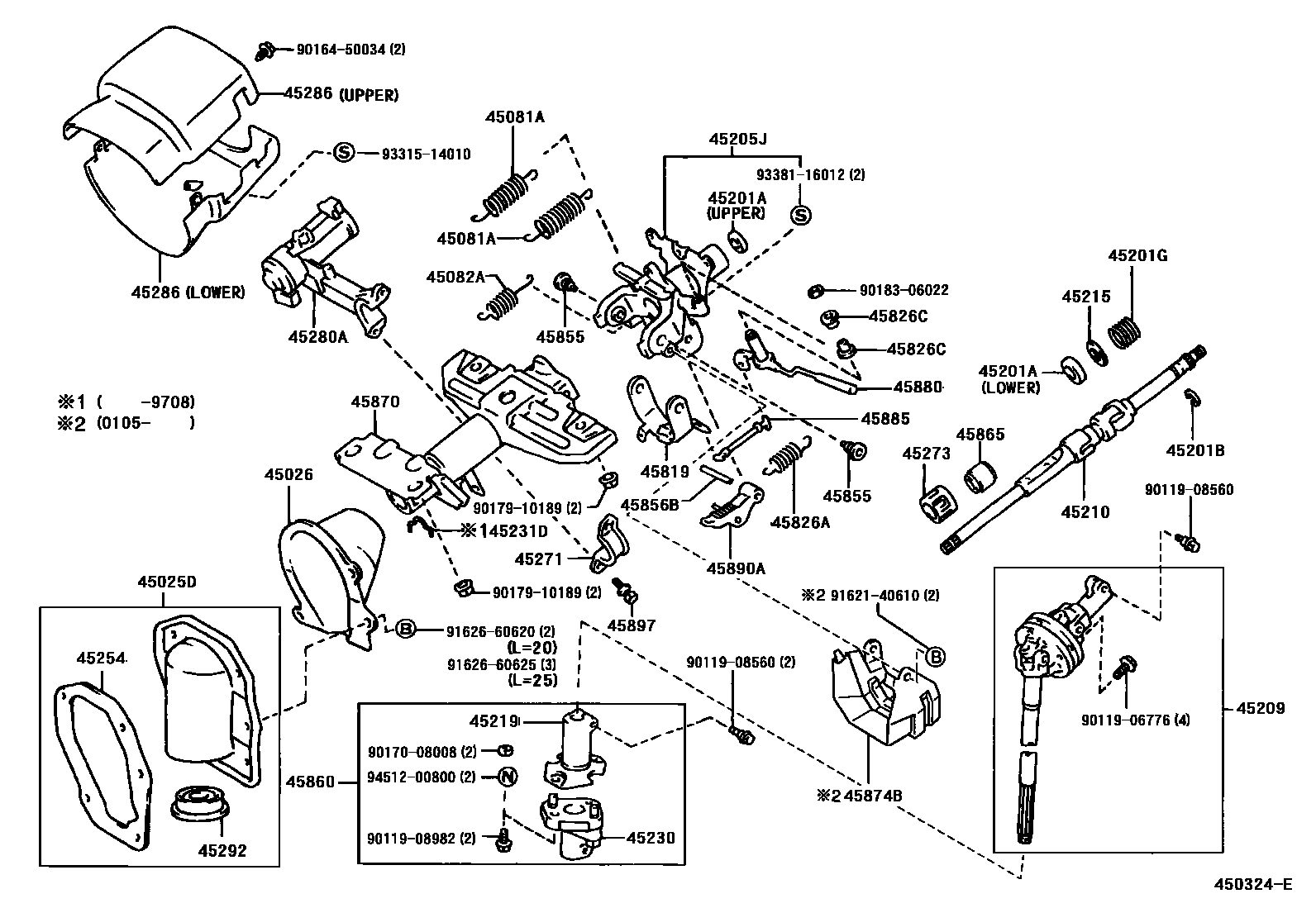

Toyota HILUX Steering Column & Shaft — Figure 4501
Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 1 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-35280 · 45025-35340 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-35030 |
| 45081A | Tension spring (for tilt-adjustable steering column) | 90506-25006 |
| 45082A | Torsion spring (for tilt-adjustable steering column return) | 90507-16024 |
| 45201A | Bearings (for steering spindle) | 90363-18009 · 90363-18011 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 |
| 45201G | Compression spring (for steering spindle) | 90501-40017 |
| 45205J | Steering column upper tube sub-assembly | 45205-35260 · 45205-35300 |
| 45209 | Steering slip fork sub-assembly | 45290-35030 · 45290-35031 · 45290-35040 |
| 45210 | Steering spindle assembly | 45210-35210 · 45210-35220 · 45210-35221 |
| 45215 | Spindle bearing thrust collar | 45215-12010 |
| 45219 | steering fork | 45209-35100 · 45209-35101 |
| 45230 | Flexible coupling assembly | 45230-35090 |
| 45231D | Hole snap ring (for steering spindle) | 90521-01005 |
| 45254 | steering column escutcheon | 45254-35150 |
| 45271 | Clamp on steering column | 45271-12060 |
| 45273 | Steering spindle bushing | 45273-16010 · 45273-16020 |
| 45280A | Steering column upper bracket assembly | 45280-35310 · 45280-35320 |
| 45292 | Dust-proof sealing ring under spindle | 45292-35080 · 45292-35090 |
| 45819 | Tilt adjustment lever retaining ring | 45819-35010 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90905-07012 |
| 45826C | Bushing (for steering tilt adjustment lever) | 90389-08120 |
| 45855 | No. 1 tilt-adjustable steering column bolt | 45855-35010 |
| 45856B | No. 2 tilt-adjustable steering shaft | 45856-42010 |
| 45860 | No. 2 steering intermediate shaft assembly | 45860-35170 · 45860-35171 |
| 45865 | Steering spindle collar | 45865-12060 |
| 45870 | Steering column tube assembly | 45870-35340 · 45870-35350 · 45870-35360 |
| 45874B | No. 1 steering column guard | 45874-35040 |
| 45880 | Steering tilt adjustment lever assembly | 45880-35030 |
| 45885 | Tilt adjustment lever linkage | 45885-35010 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-35010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
